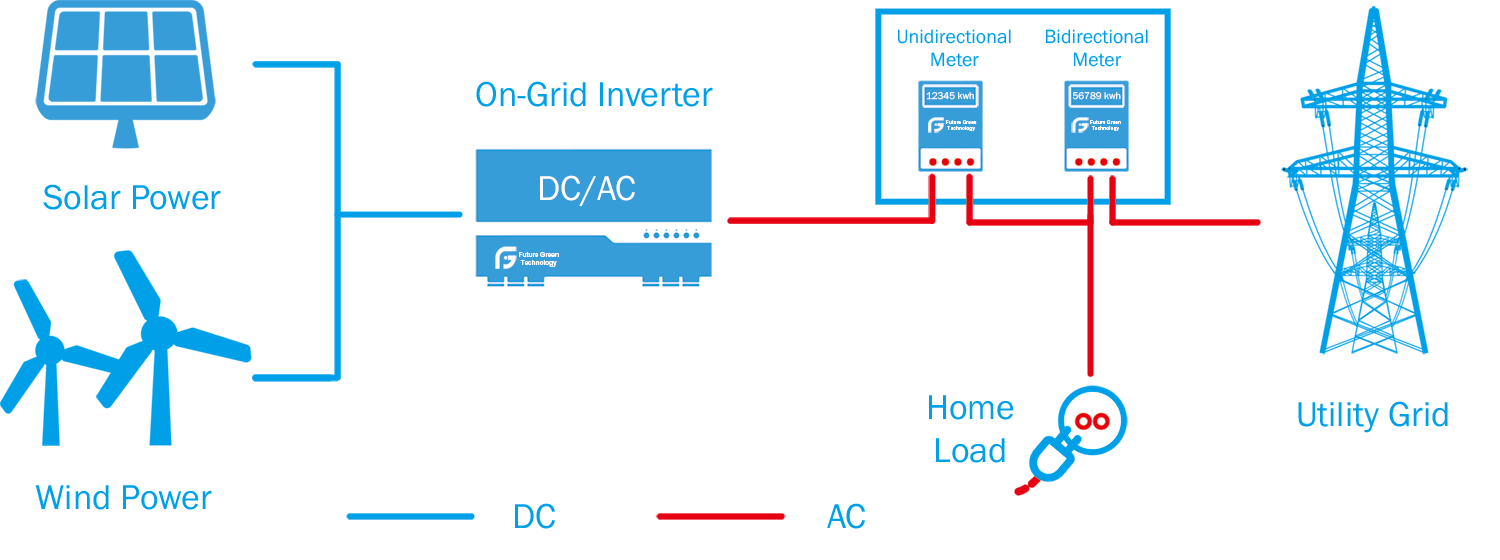

Definition: On-Grid Systems are solar pv systems that only generate power when the utility power grid is available. They must connect to the grid to function. They can send excess power generated back to the grid when you are overproducing so you credit it for later use.
Benefits: These are are simplest systems and the most cost effective to install. These systems will pay for themselves by offsetting utility bills in 3-8 years.
Downside: These do not provide power during a grid outage.
Conclusion: They are simple enough that you can install it yourself in a weekend with a friend. They are cost effective enough to pay for themselves and put money in your pocket long term. If you want to reduce your electric bill and your carbon footprint this is a good choice.
Wholesale Solar has pre-designed On-grid home solar packages with FGET panels .
5k Watts On Grid Solar Power System Datasheet
|
Solar Panel
|
20
Pieces
|
Type:
Monocrystalline Silicon PV Module
|
|
Max
Power: 250W
|
|
Vmp:
30.5V; Imp: 8.33A
|
|
Size:
1640*990*35 mm
|
|
Weight:
22kg/pcs
|
|
25
years power output guarantee
|
|
On Grid Inverter
|
1
Set
|
DC600V
input, AC220V/110V 1-phase output 50/60Hz;
|
|
Rated
Output Capacity:5kw
|
|
Protections:
Short circuit, overload, surge current, over temperature, over/under voltage,
lightning, reverse polarity.
|
|
High Voltage Combiners
|
1
Piece
|
High
Voltage Combiners
|
|
Long
service life
|
|
WM4 C
plug-in connector
|
|
Solar Panel Rack
|
1Set
|
Roof type
mounting rack including complete fittings, aluminum alloy (Rack can be
customized per request)
|
|
Cables and Accessories
|
1Set
|
International
standard, with specification suitable for solar system, BV1*4 series and 1*10
series
|
Our Services:
Samples and OEM, Warranty and After-Sale Service:
Sample can be provided for quality testing
-
OEM Welcomed
-
Warranty:5 years for solar panel, 2 years for controller/inverter/battery.
-
After-Sale Service: 24 Hour-Hot Line for Consultancy and Technical Support
