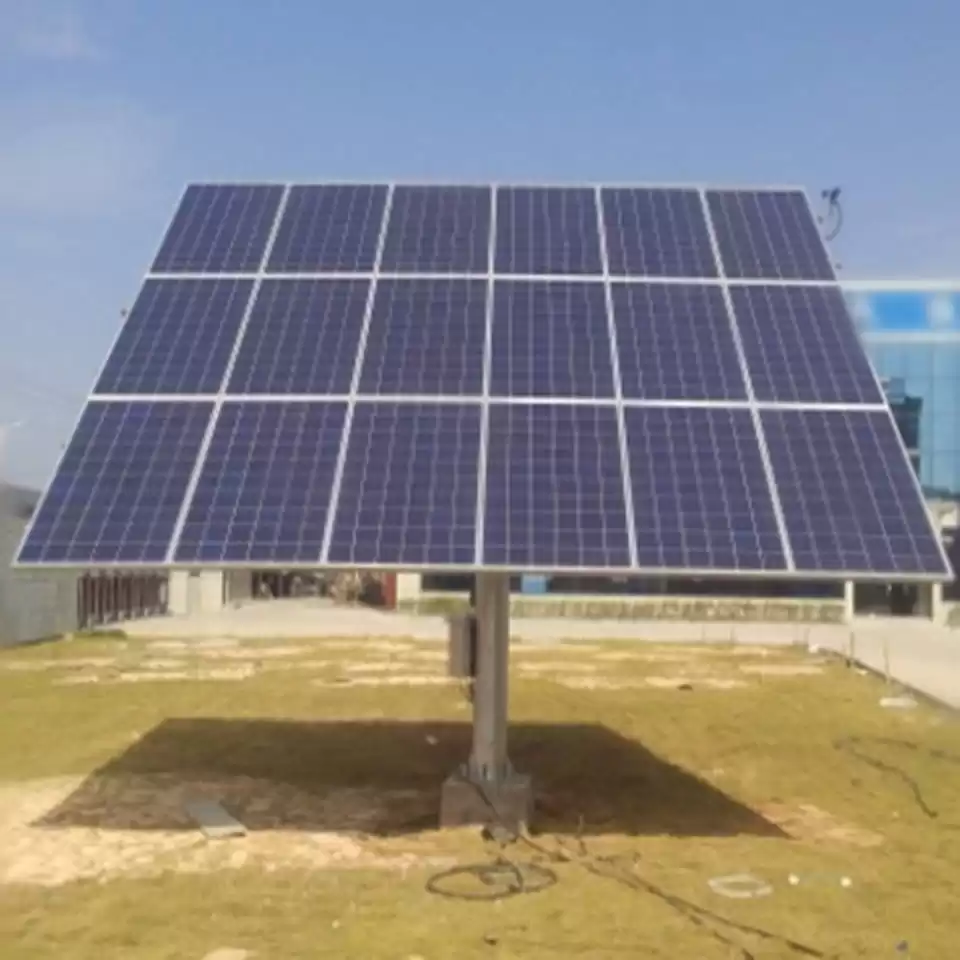

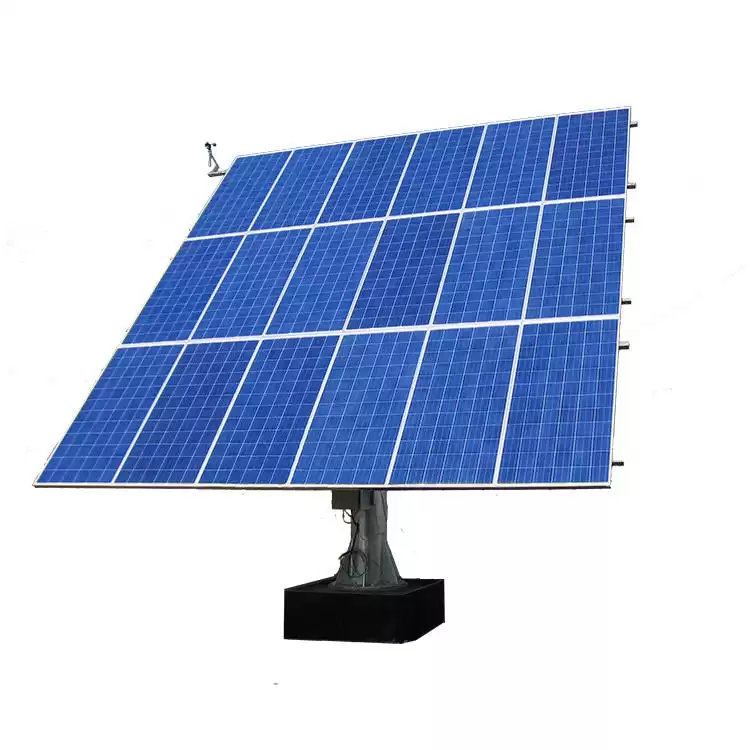

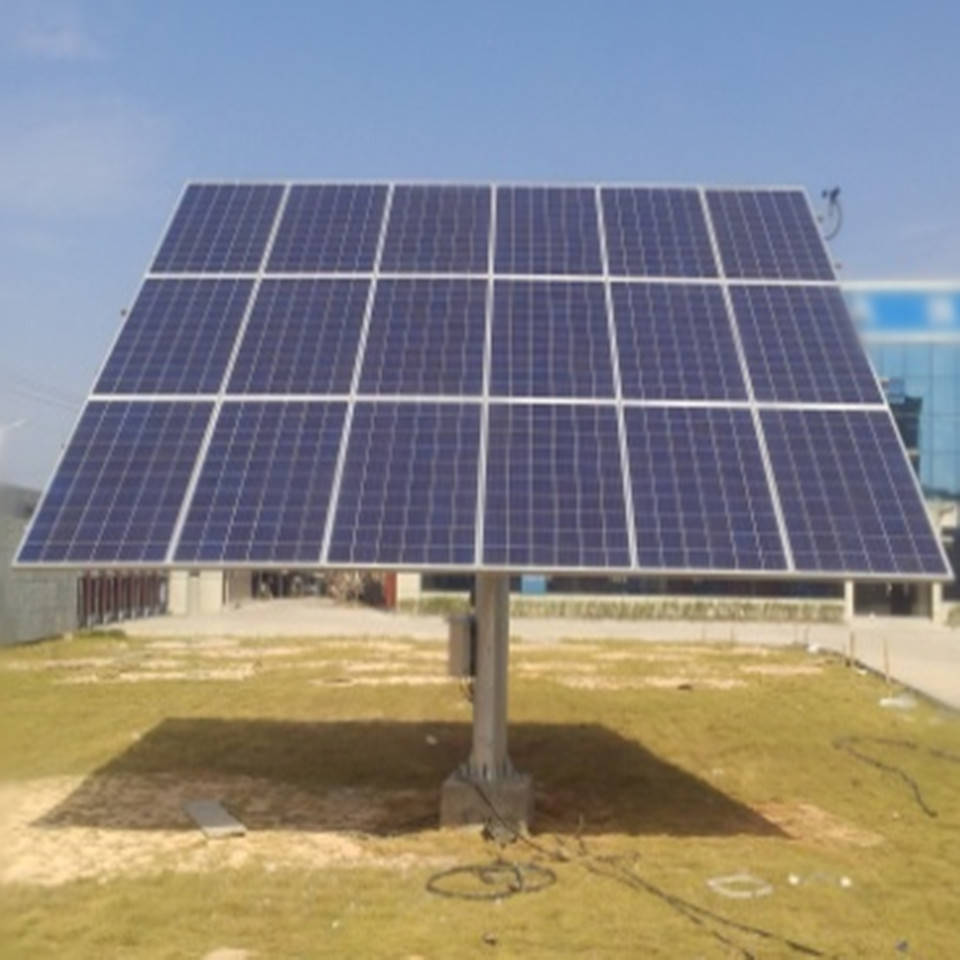

5KW 6KW 7KW 8KW Solar Mounts Dual Axis Solar Tracker

Double-axis tracking bracket structure: Generally, in high latitudes, because of tracking the change of the incident angle of the sun within one day and one year, this method obviously has the highest improvement on the power generation. Comparing the annual power generation, the dual-axis tracking is 35%-40% higher than the fixed power generation. This operation mode adjusts the inclination angle of the bracket according to the change of the incident angle of the sun within one year, so as to improve the power generation .



5KW 6KW 7KW 8KW Solar Mounts Dual Axis Solar Tracker

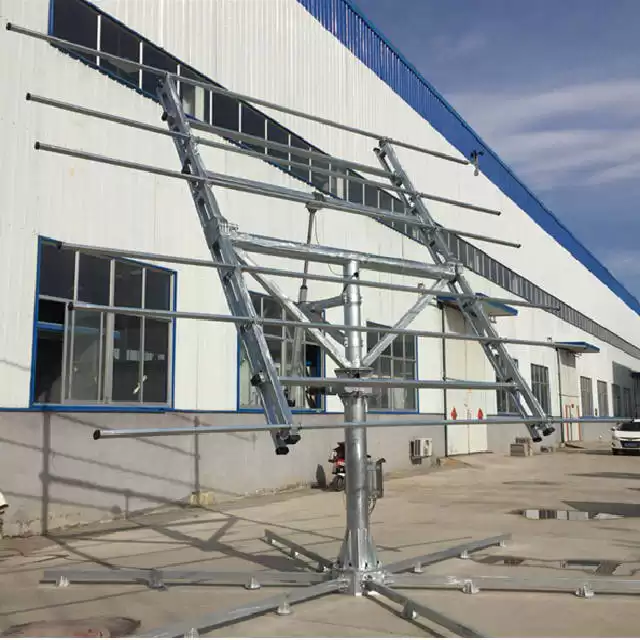

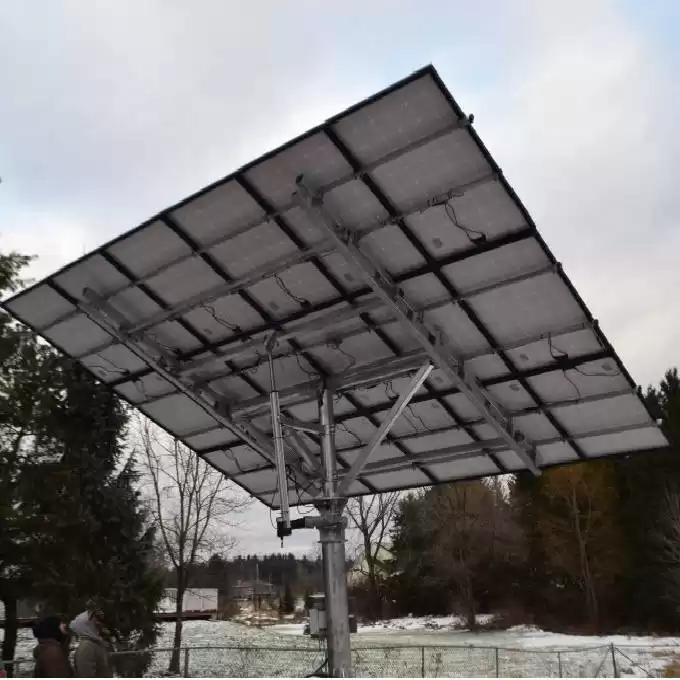

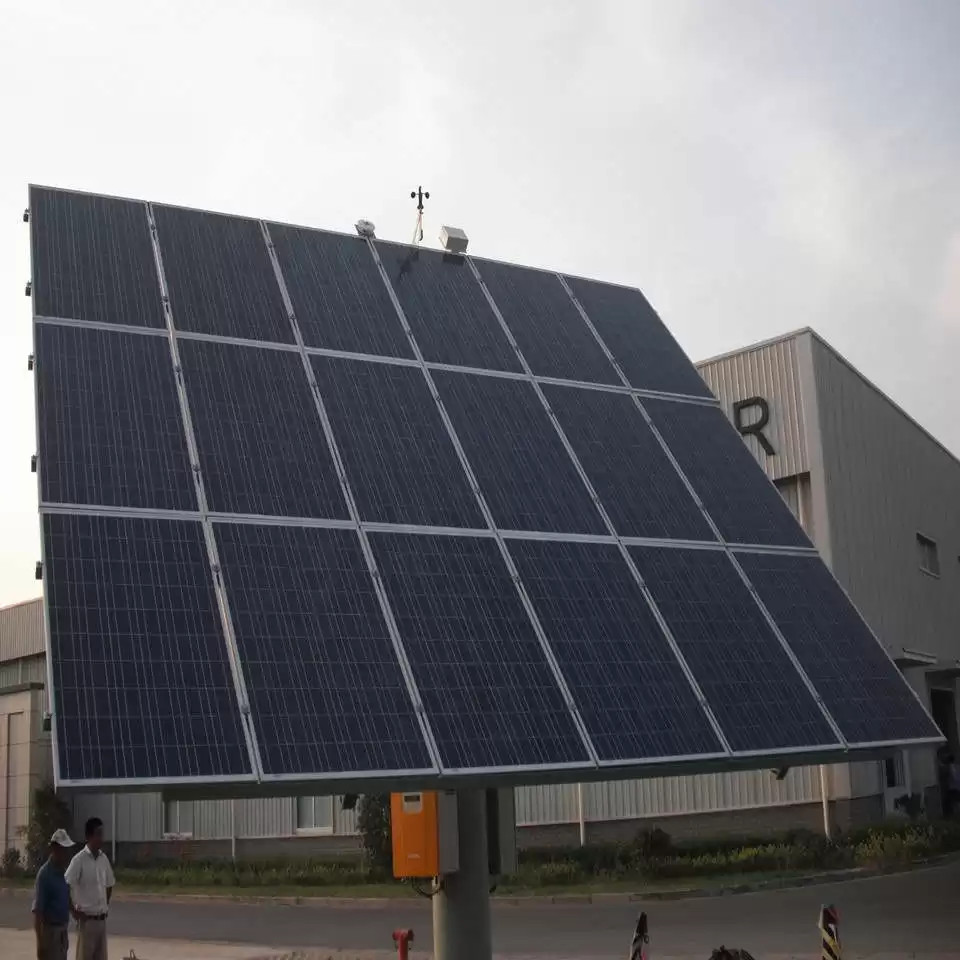

The dual axis solar tracker can rotate and tilt in both horizontal and vertical directions, always making the incident angle of solar energy 0 degrees, and collecting more solar energy radiation in a limited area.


Technical Information

Dual Axis Solar Tracker

Power Track Solar


Main Features

1) Power generation efficiency increased by 35%~40%.

2) Simple structure ,easy in installation and debugger application.

3) Adopting advanced world famous brand components in inclination,electric parts and actuator parts.

4) The tracker could adjusts solar panels into horizontal when meeting strong wind.

5) Adapt to outdoor environment,working temperature -40~70C°.

6) Running in a high automation and intelligence,no pollution

7) Hot-dipped zinc galvanization will extend the work life of the brackets,25 years service life .


Technical Parameters

Module Number
18 units
Module Size
1650 x 992mmx40mm
Tracking Precision
≤ 1°
Communicating Protocol
RS485-MODBUS
Power Supply
90~264VAC,47~63HZ
Electricity Consumption
≤0.25(KW.h)

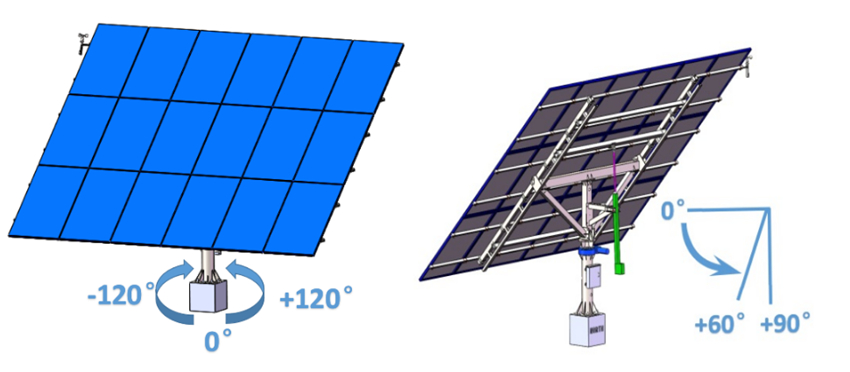

Tracking Angle Angle
0° ~ +60°
Azimuthal Angle Range -120°~+120°

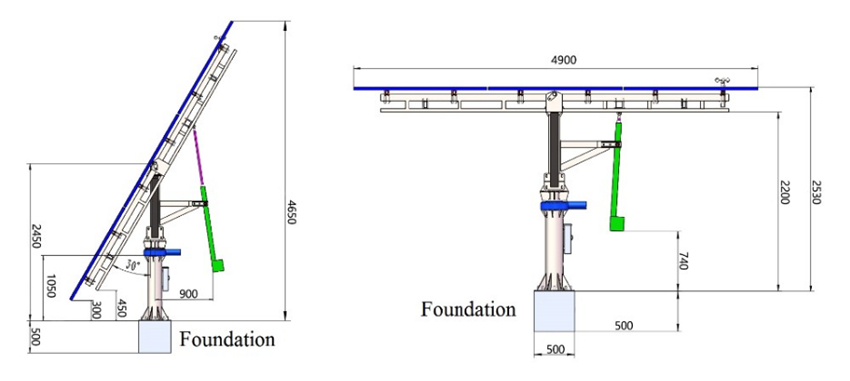

Bracket Area
≈ 30 m2
Operating Temperature
-40 ℃ ~ +80 ℃
Bracket Material
Hot Galvanizing
Device Weight
≈ 880Kg
Standard
GBT 29320-2012
Design Life
> 25 years
Certification
CE,CQC,ISO14001,OHSAS18001

The product belong to customized type ,pls feel free to contact us right now to get the free design with competitive price.
