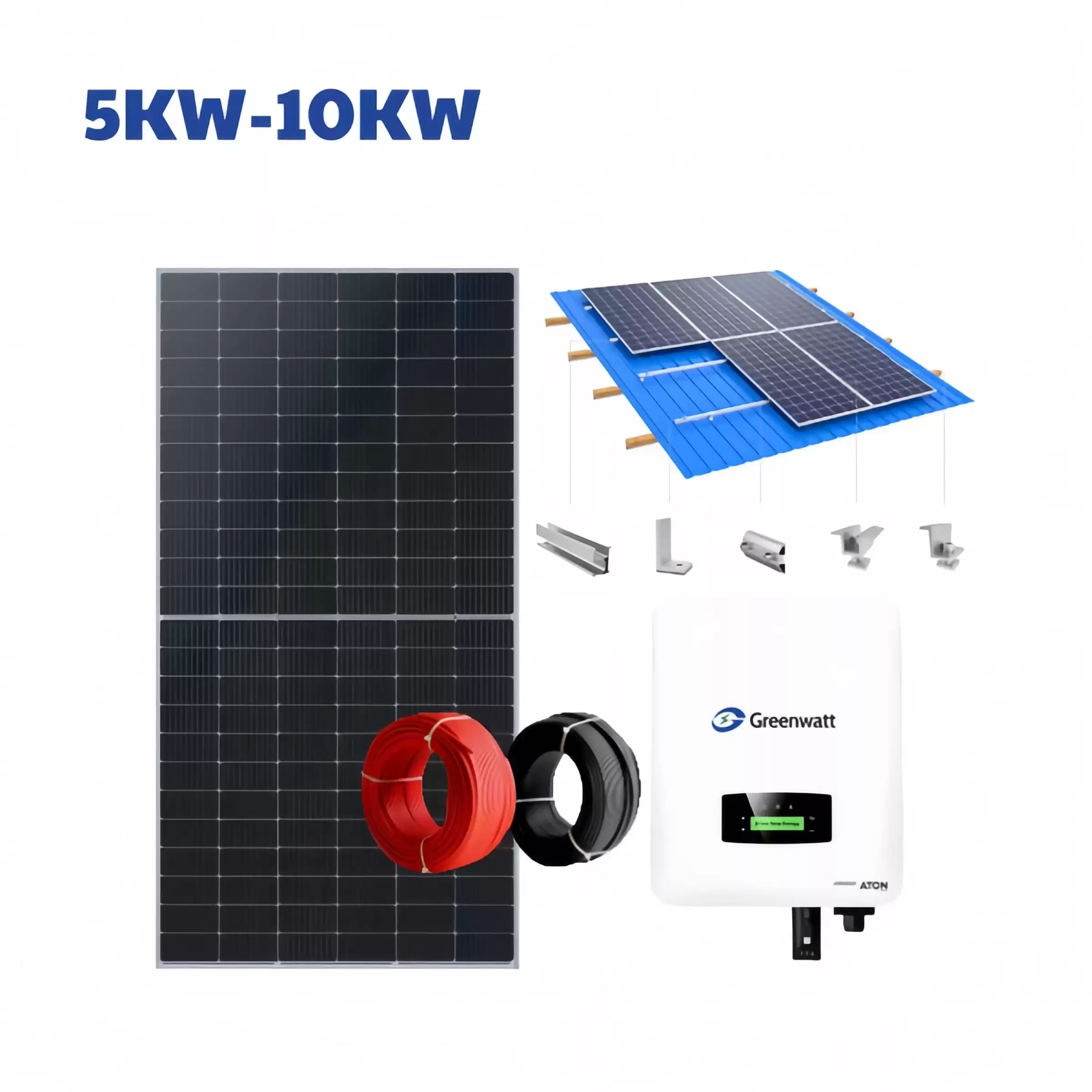

5KW 8KW 10KW On Grid Single phase Solar Power System For Residential

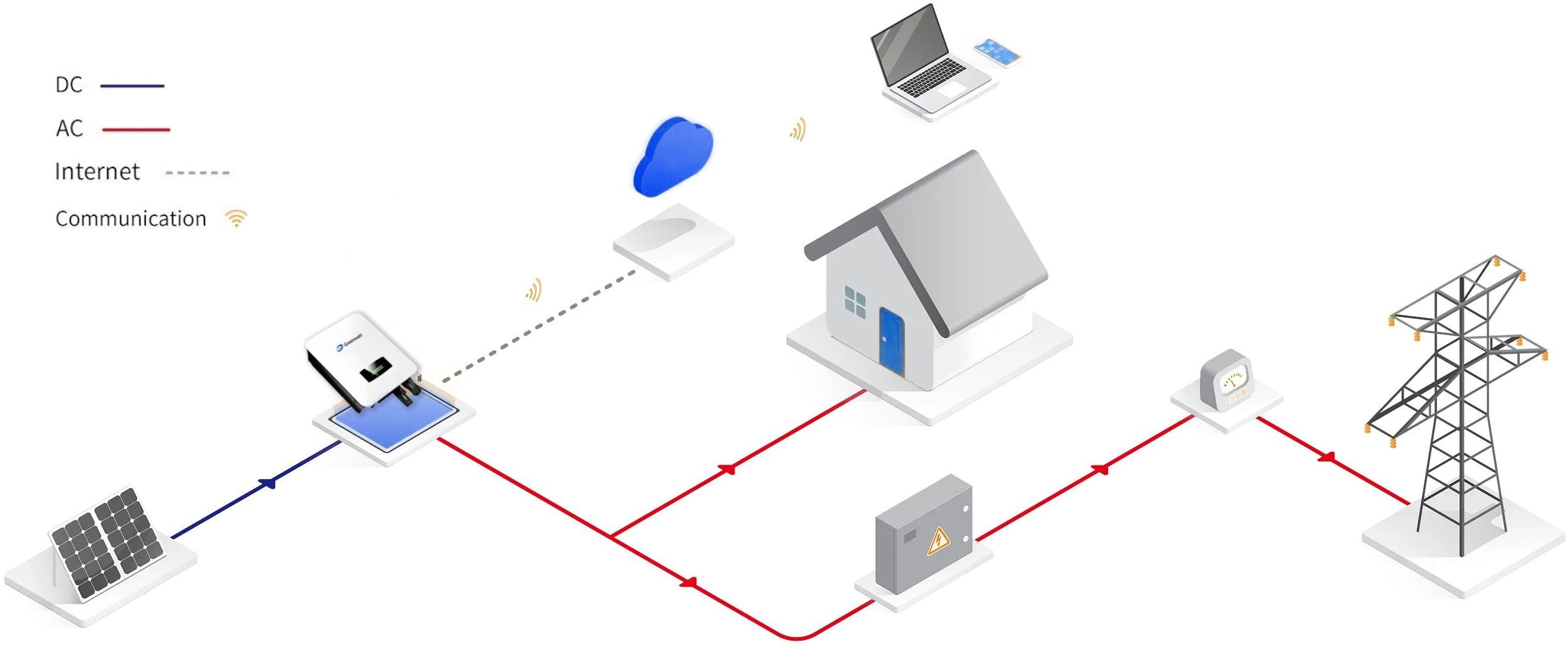

System Diagram

Home grid-tied PV systems consist of solar panels, inverters, and grid interconnection equipment to seamlessly integrate renewable energy with your power supply. The system converts sunlight into usable electricity while automatically balancing energy between your home and the utility grid, eliminating battery storage needs.

Harness the power of solar energy with our on grid home photovoltaic system, designed to cut electricity costs while reducing your carbon footprint. Equipped with high-efficiency panels and smart inverters, it seamlessly integrates with your local grid, allowing excess energy to be stored or sold back. Real-time monitoring via our app ensures optimal performance and savings. Sustainable, cost-effective, and future-ready—transform your home into an eco-friendly energy hub today.

System Configuration

 System Components

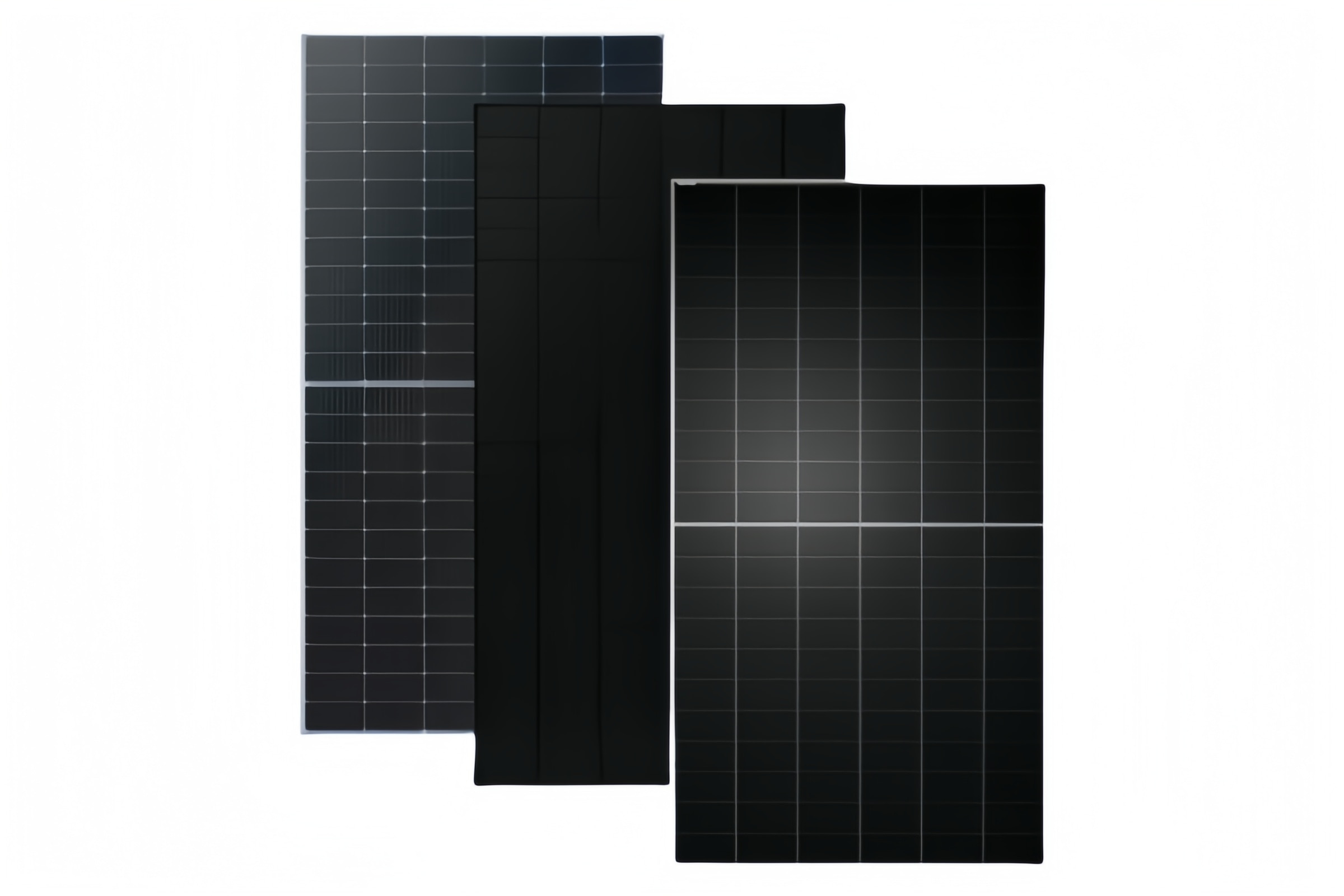

High Efficiency PV Module

* Max Power: 600W-750W

* Technology: TOPCon/HJT/Bifacial

* Low temperature coefficient

* Upto 24% Efficiency

* Low BOS cost & LCOE

* Warranty: 30 Years

* Full Certification

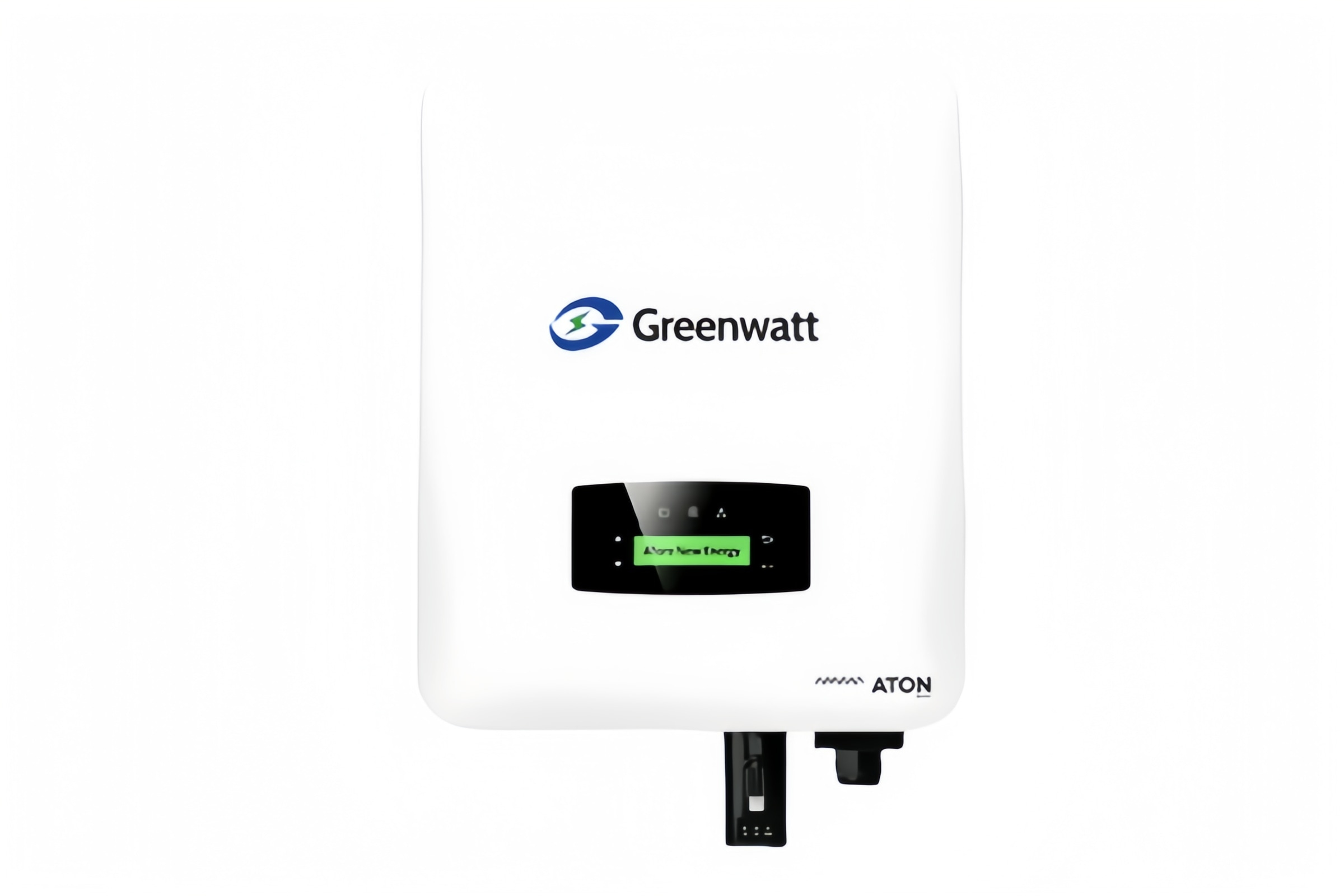

Smart Commericial Grid Tie Inverter

* Dual MPP trackers
* Max. efficiency up to 98.75%
* Type II SPD on DC and AC sides
* AFCI function optional
* Intelligent string monitoring
* Online smart service

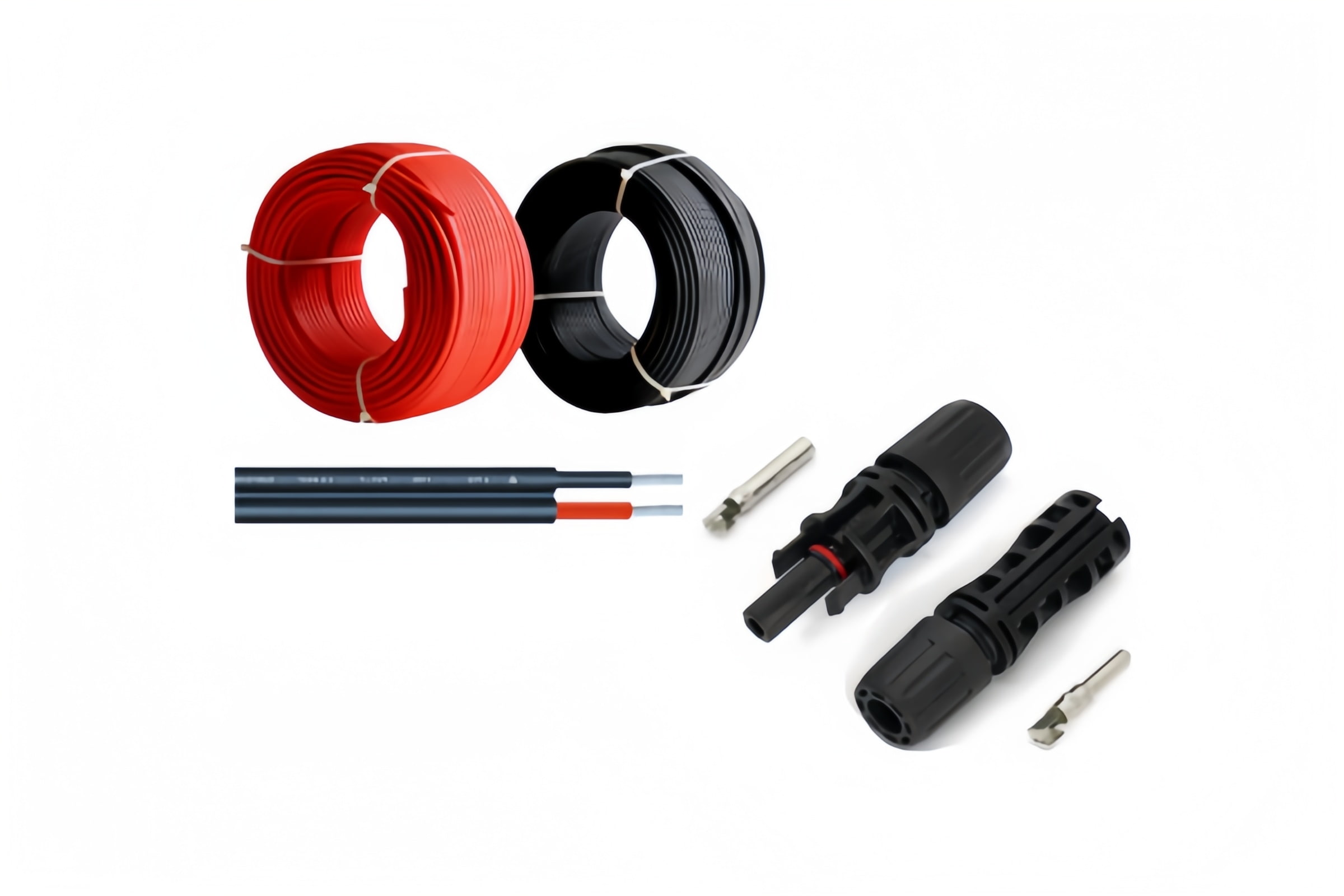

DC Cable & MC4 Connector

* Cross Section: 4mm2, 6mm2 Optional
* Rated Voltage:1000VDC/1500VDC
* Rated Current: 55A,70A
* Colors: Black For STD, Red Optional.
* Lifetime:30 Years

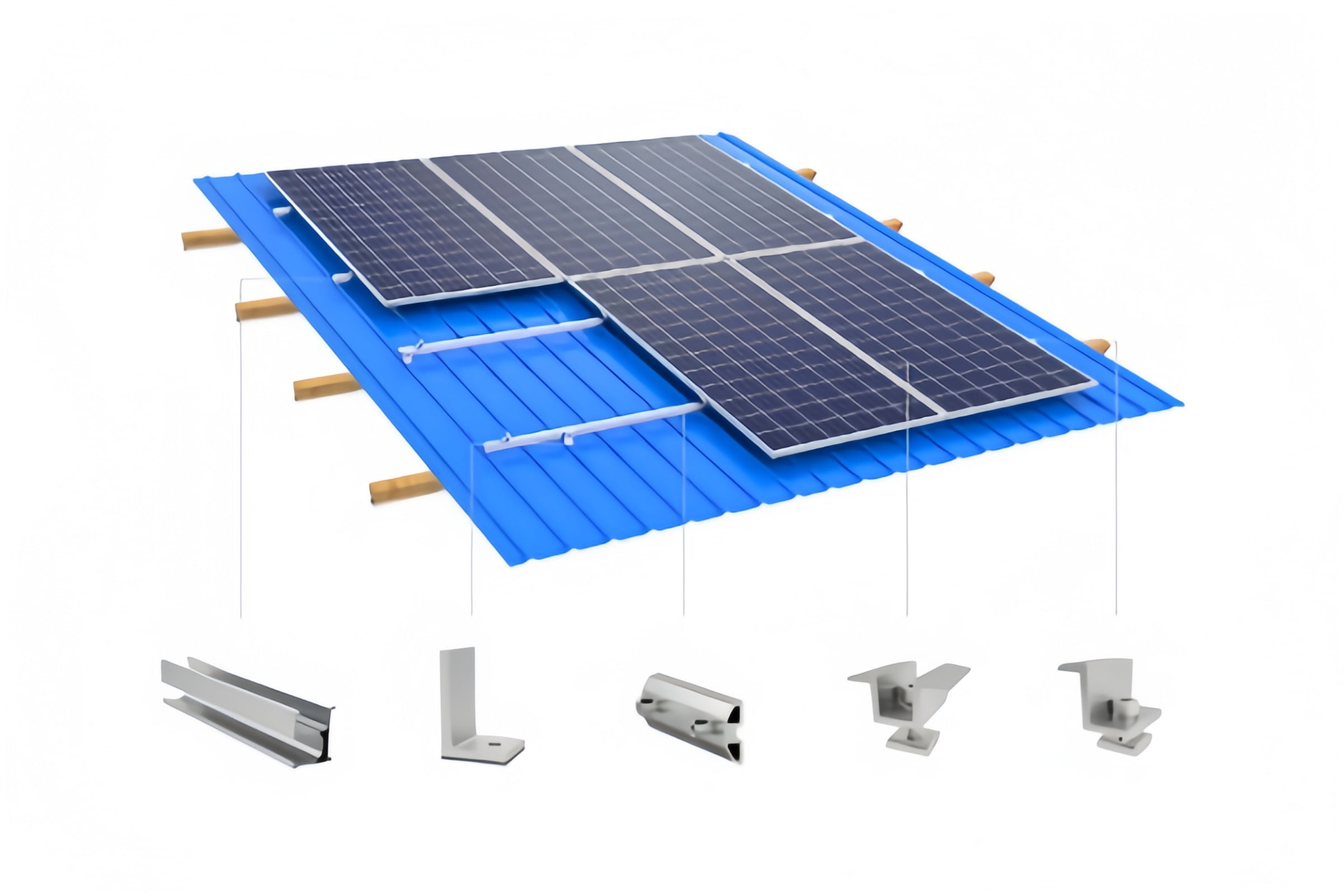

PV Mounting System

* Mounting Type: Tile Roof, Tin Roof, Flat Roof, Ground

* Metarial: Aluminum alloy, hot dip galvanized steel

* Wind Speed: 80M/S

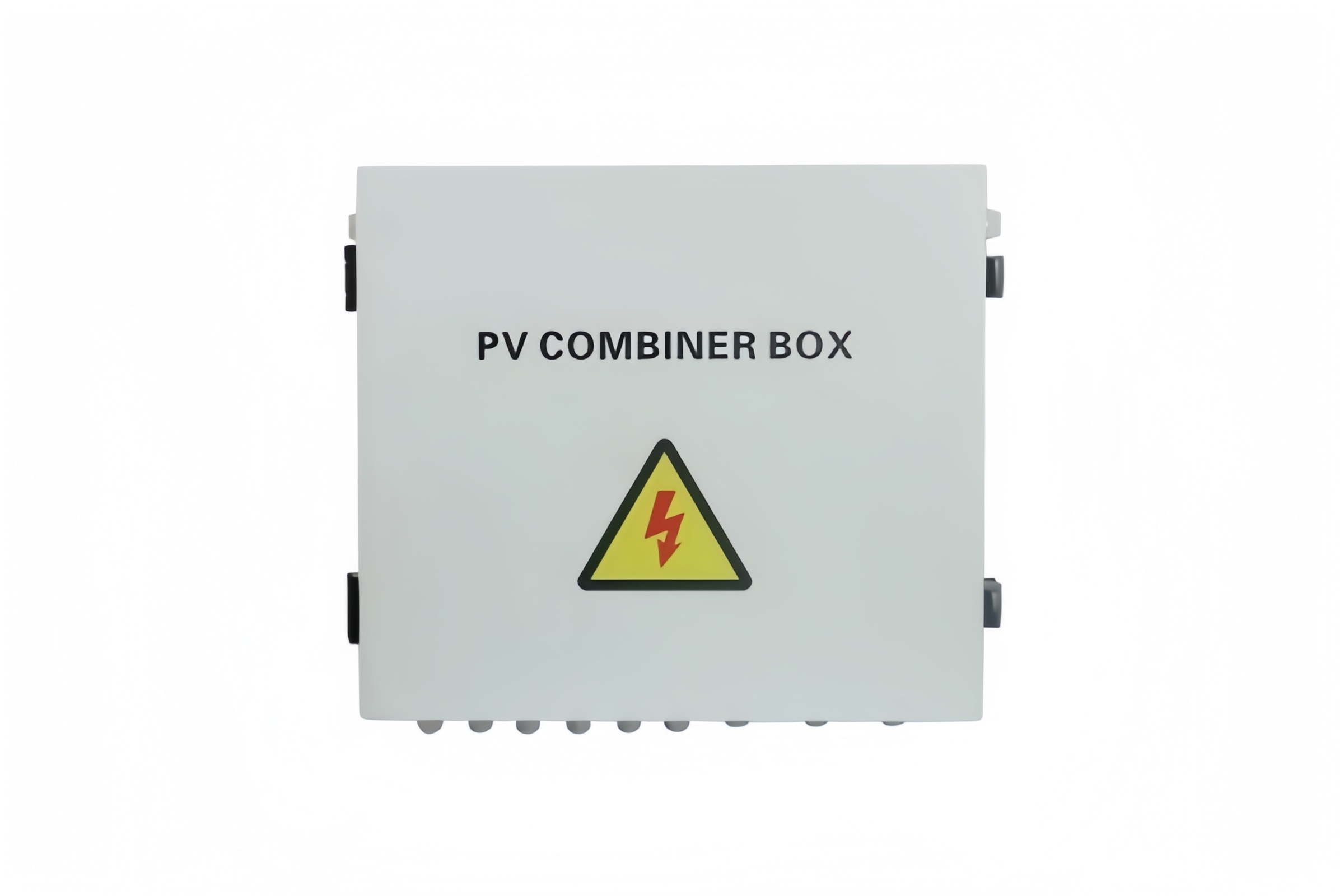

PV Combiner Box

* IP Rating: IP66
* Rated Voltage: 1000VDC
* Connection Type: M20,M25,MC4
* Rated Current: 16A,20A

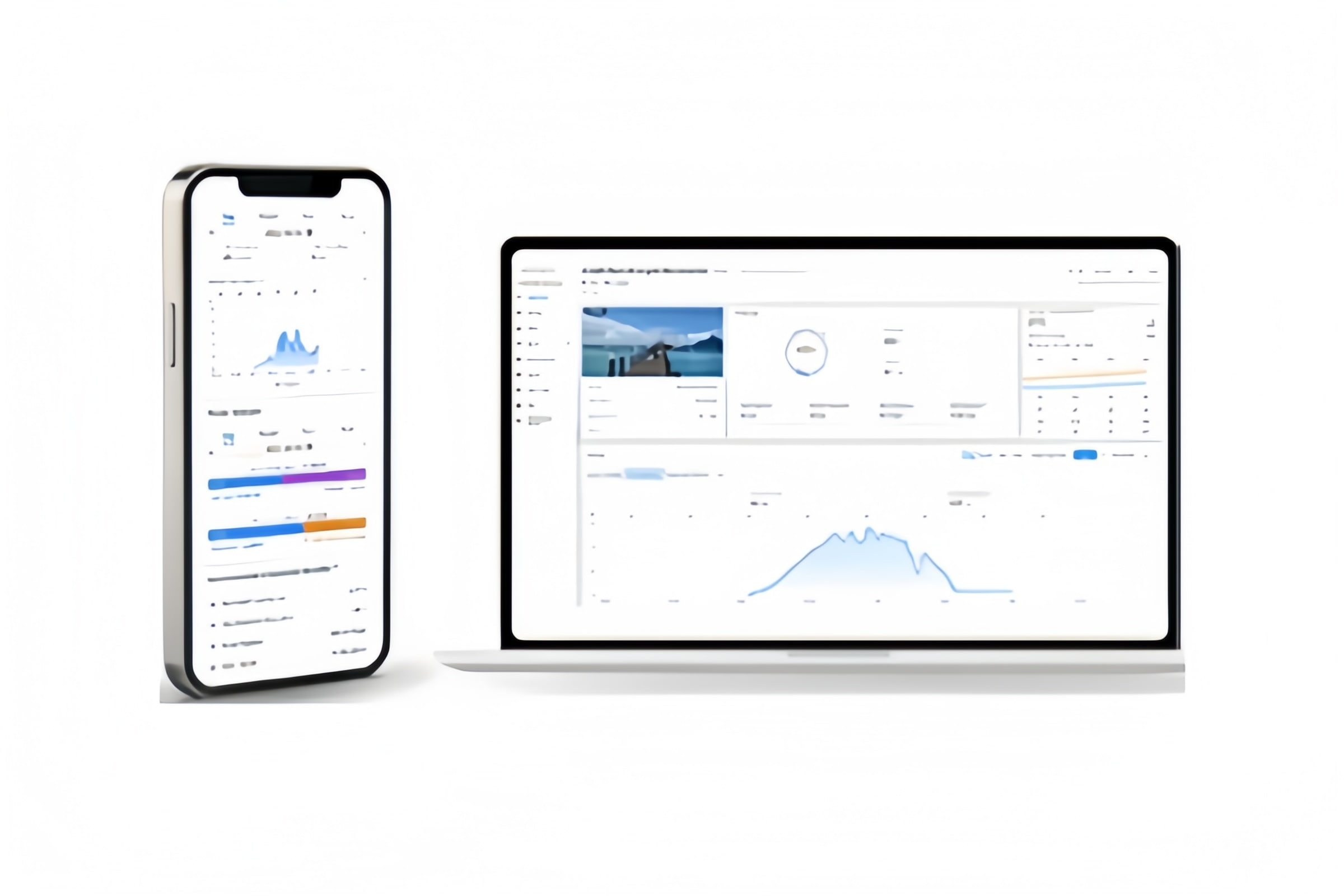

Online Monitoring System

* Open station supports one-click installation and registration

* Problem support one-click dispatch and navigation

* Support full lifecycle data storage to ensure data security and reliability

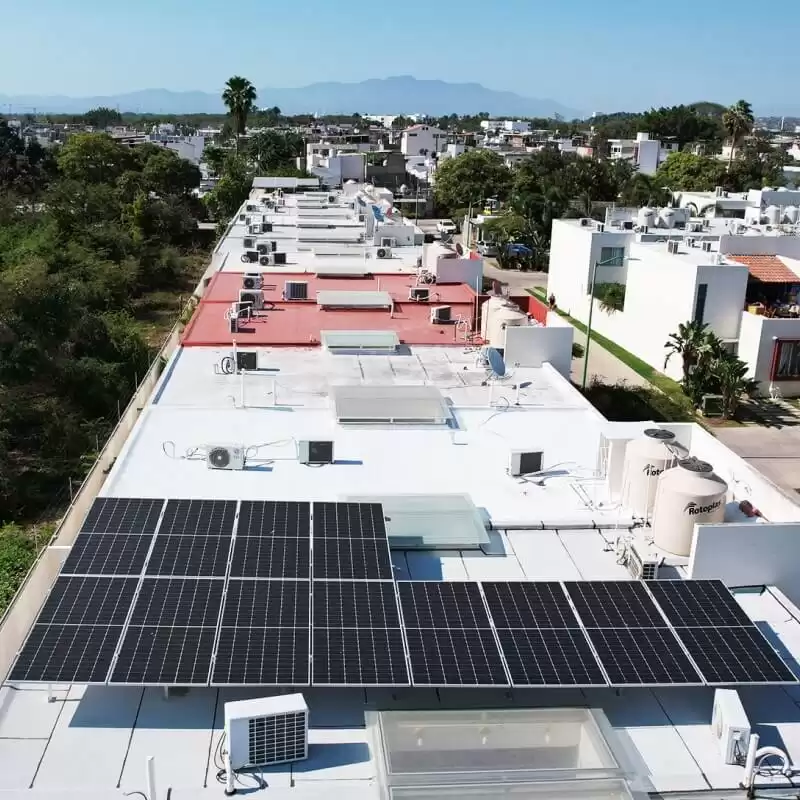

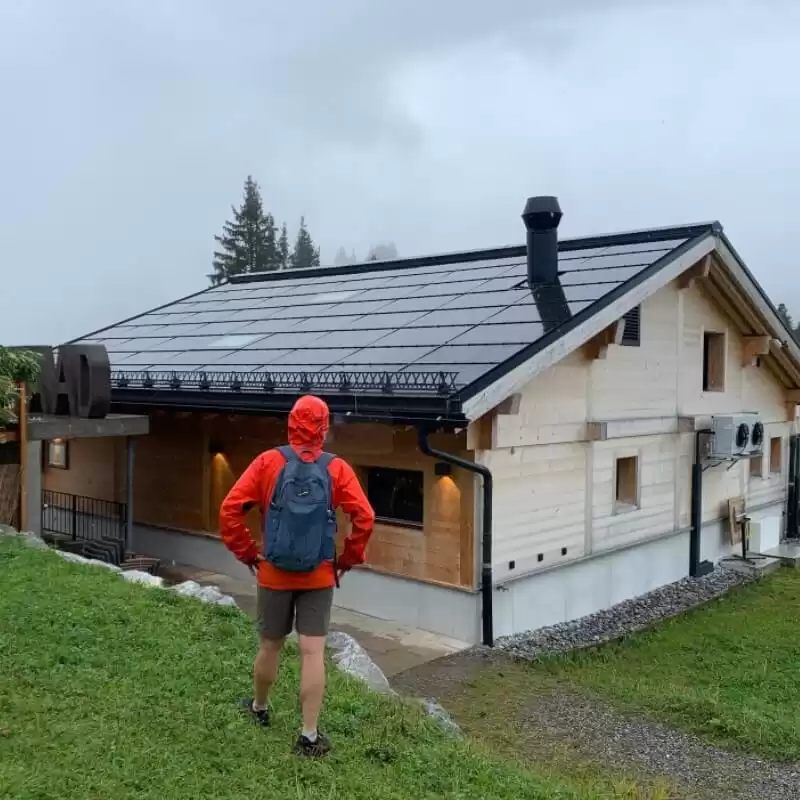

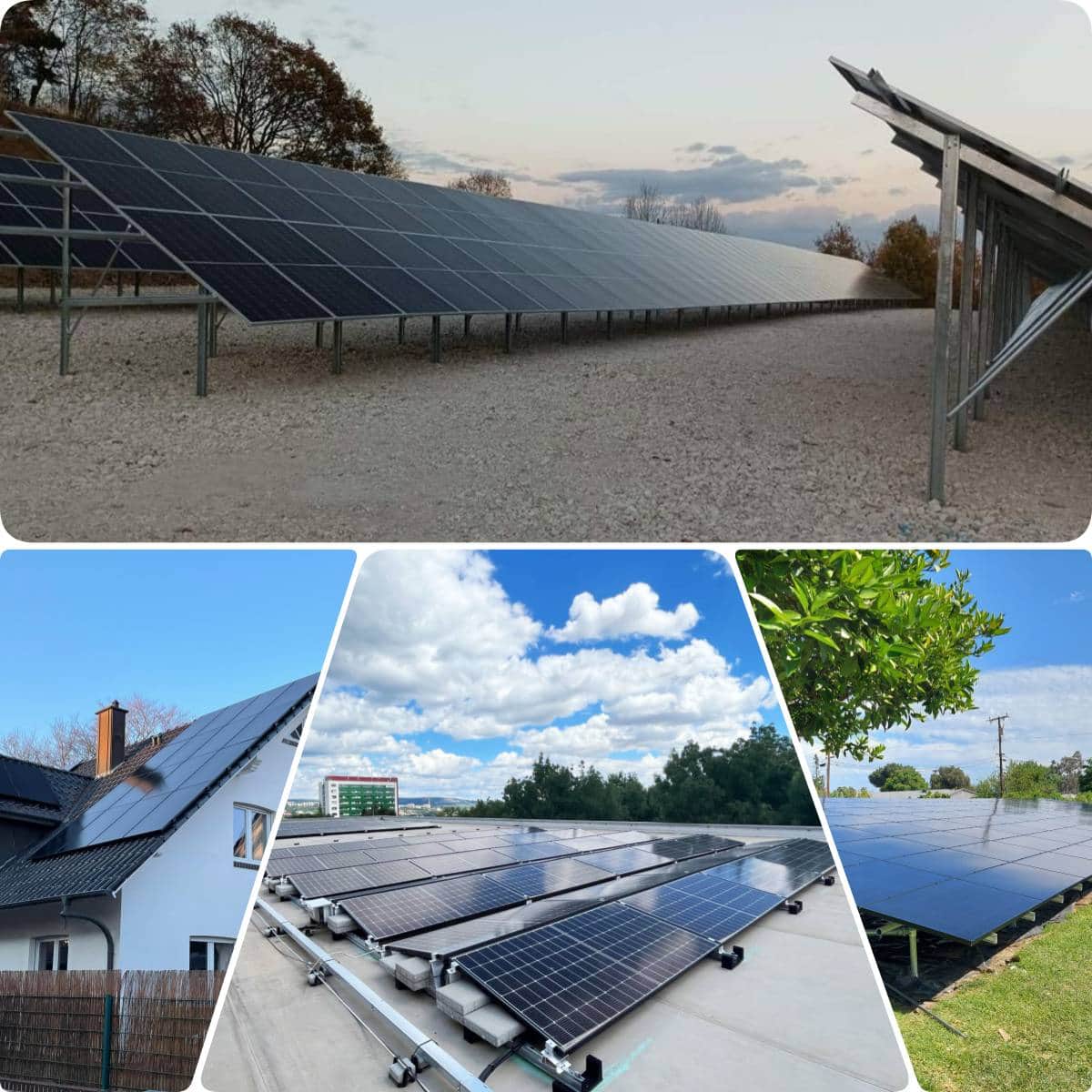

Project
