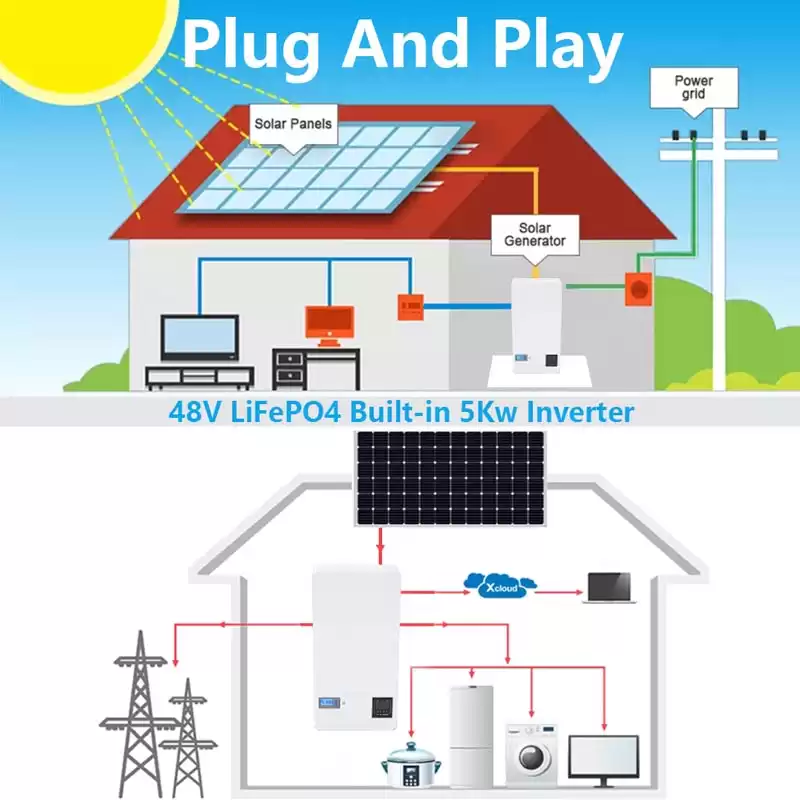

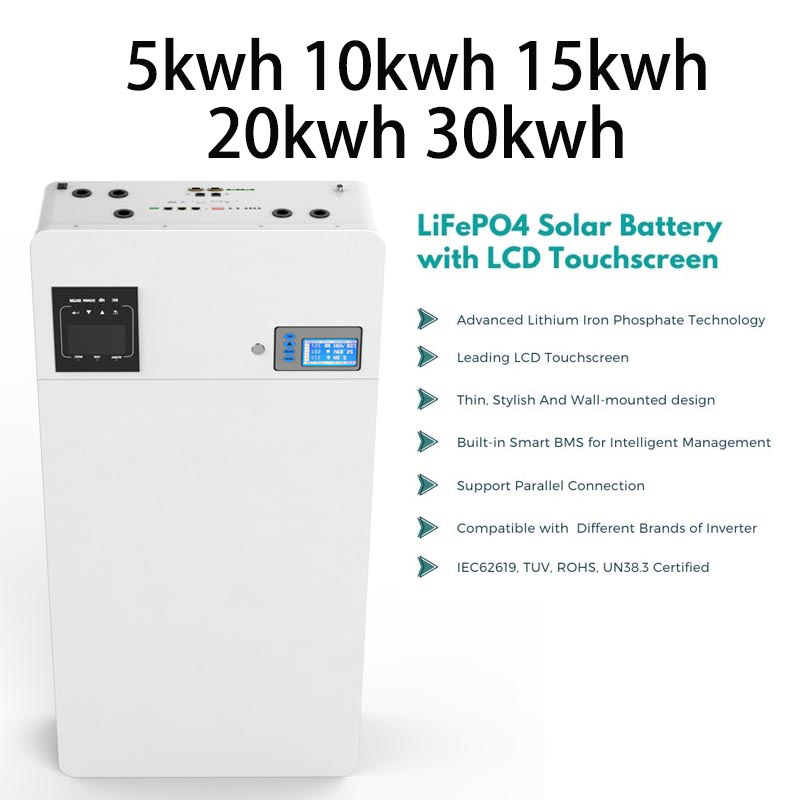

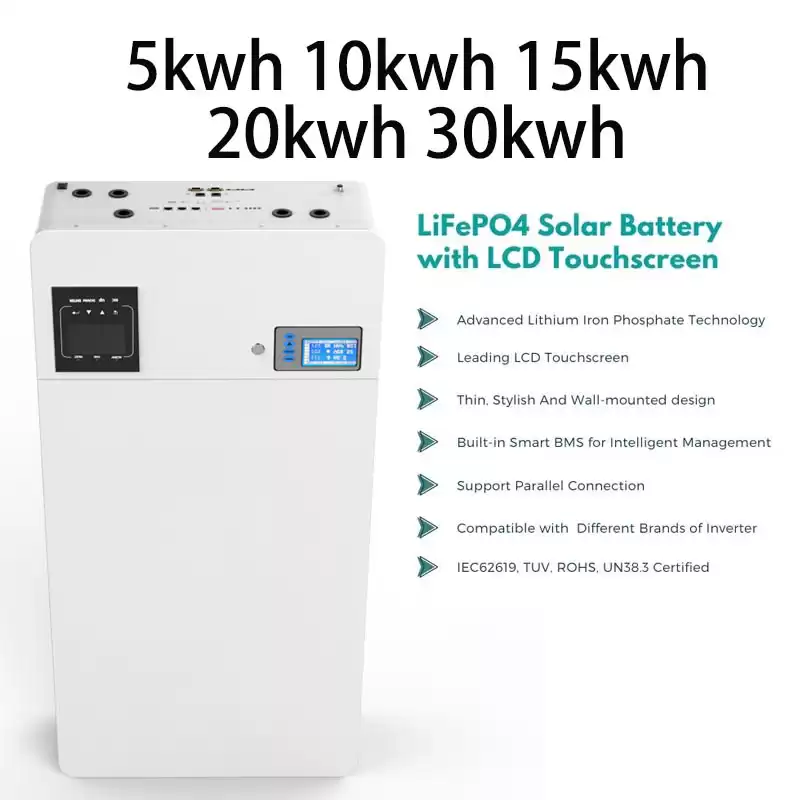

5Kwh 10Kwh Powerwall Home Solar House Battery With Inverter

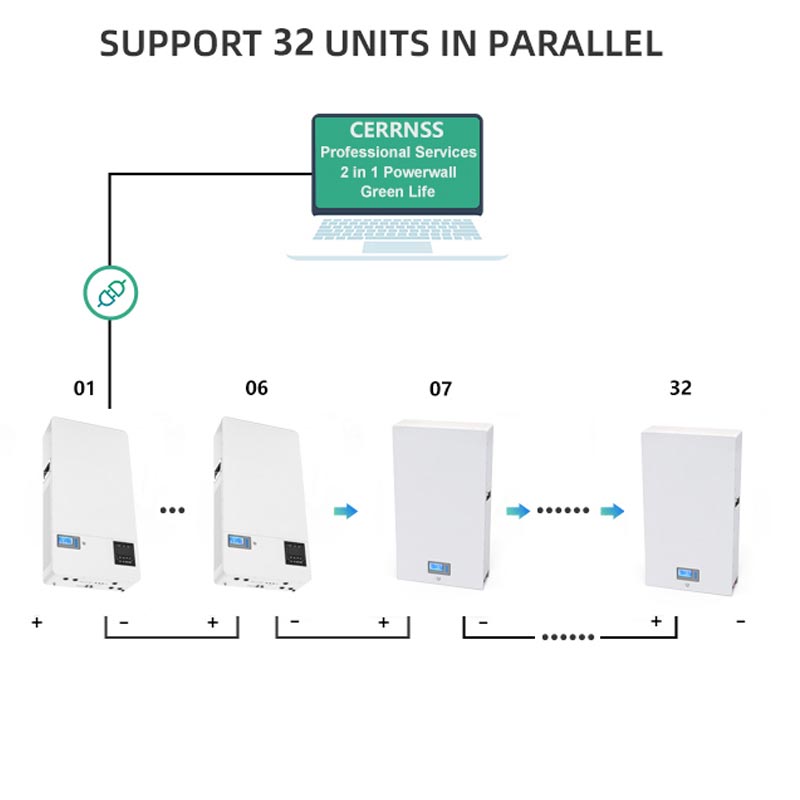

Our wall mounted lithium batteries are light and easy to install, making solar power generation easier and faster，When without master control unitwe supports max 6-8 parallels tohighest 30-40kwh battery system !And when with master control unititd able to parallel with more bat -teries。
List of compatible brands of inverter
Specifications:

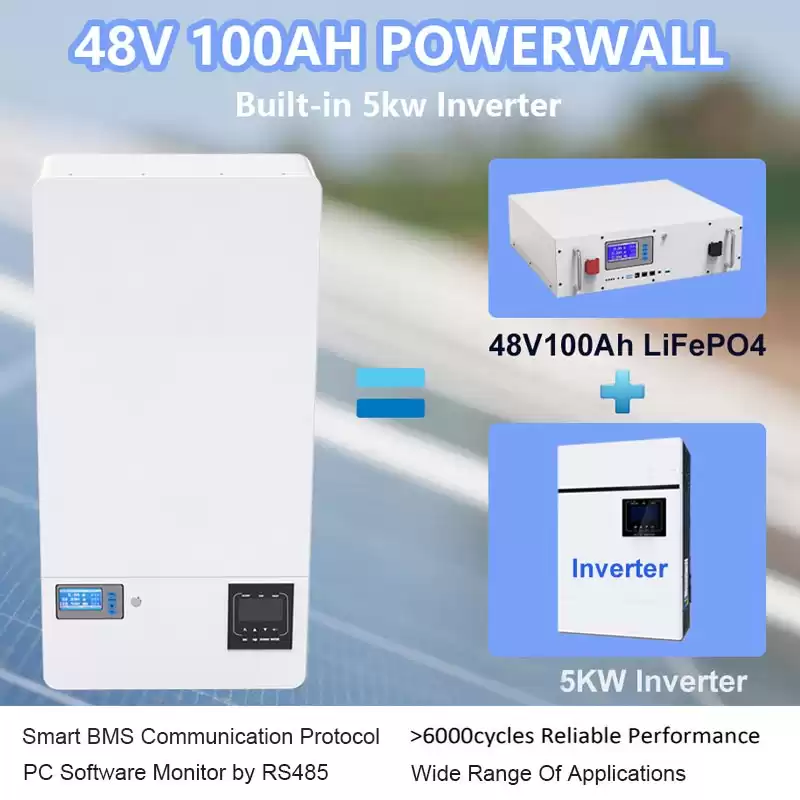

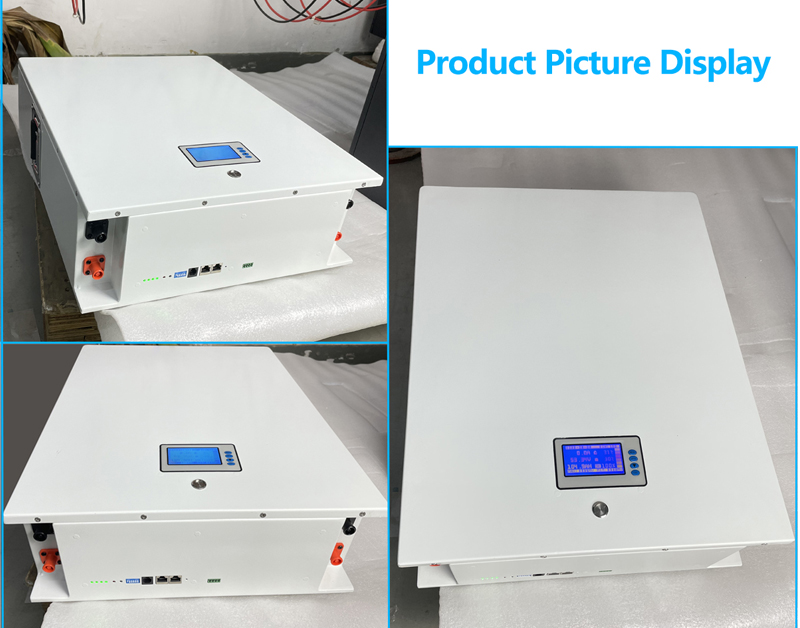

Product Name : 48V 100Ah LiFePO4 Powerwall
Inverter Brand : BP-5Kw Inverter
Rate Capacity : 100Ah
Energy Power : 5120Wh
Nominal Voltage : 51.2V
Max Charge Voltage : 58.4V
Maximum Charging Current : 100A (1C)
Maximum Dicharge Current : 100A (1C)
Cycle Life : 6000+ Cycles
Charging Temperature : -5~55°C
Discharging Temperature : -20~60°C

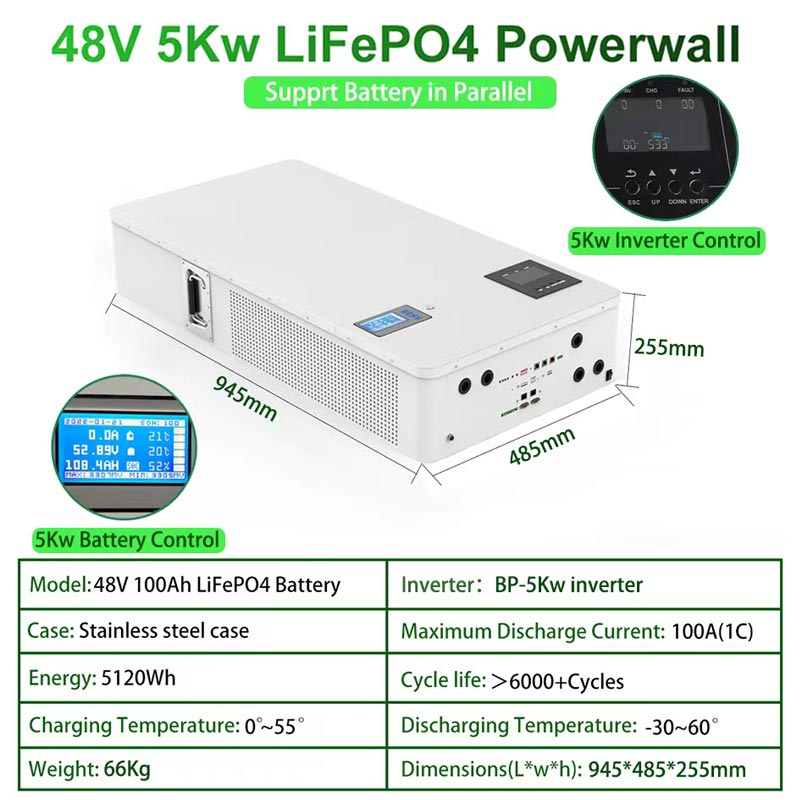

Dimensions(L*W*H) : 945*485*255mm
5kwh Powerwall Inverter Parameters
Rated power：5000VA/5000W
System DC Voltage:48VDC
Parallel Option：Yes , up to 6 units
Monitoring Option：WIFI or GPRS
AC Voltage：220V-230V-240VAC
Surge Power：10000VA
Peak Efficiency：93%
Transfer Time：10ms ( For Personal Computes )； 20ms ( For Home Appliances
Waveform:Pure Sine Wave
Solar Charger & AC Charger
Max PV Array Open Circuit Voltage:450Vdc
Max PV Array Power:6000W
Operating Voltage MPPT Range:120-430Vdc
Battery Overcharge Protection:60Vdc
Max Solar Charge Current:100A
Max AC Charge Current:80A
Max Charge Current:100A
Dimensic:470x320x135mm

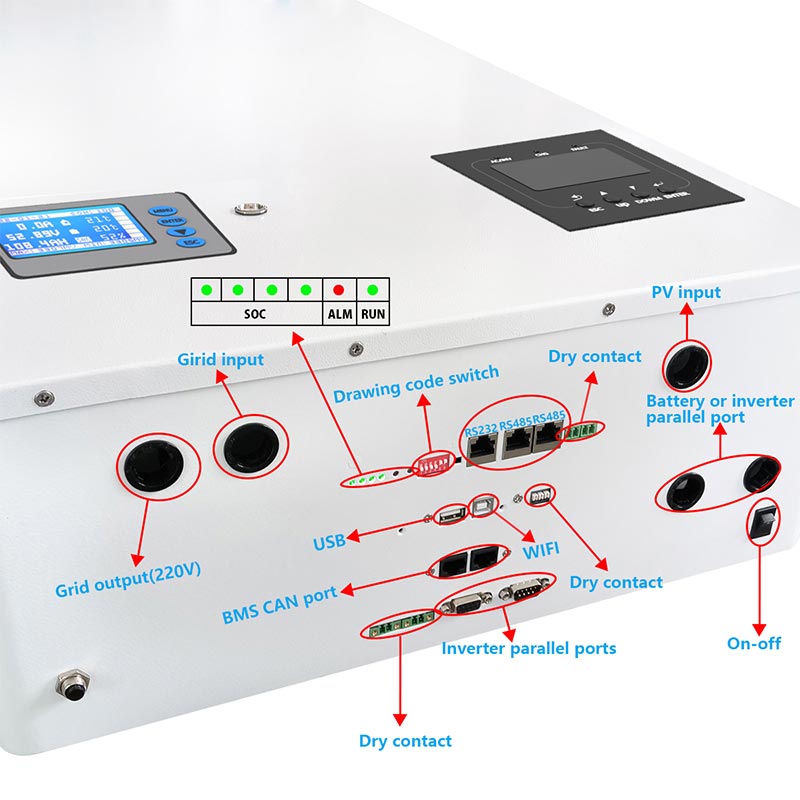

Communication Interface:USB /CAN/RS485
Humidity:5% to 95% Relative Humidity ( Non-condensing)
Operating Temperature:0℃~50℃
Storage:-15℃~60℃
In order to provide more efficient and cost-effective power wall home battery to meet customers' growing power demand and high quality requirements, we have passed the following certification:
1. GB / T 45001-2020 / ISO 45001 06722s30131r0s 2018 occupational health and safety management system.
2. GB / T 24001-2016 / ISO 14001r 2015 environmental management system 06722e20137r0s.
3. GB / T 19001-2016 / ISO 90012015 quality management system 06722q20262r0s.
4. UN38.3 rechargeable lithium iron phosphate battery cmc220531009.
5. MSDS rechargeable lithium iron phosphate battery cmc220531009m01.
6. Dangerous goods transportation certificate: rechargeable lithium iron phosphate battery seksz202206265622wx83001.
