Product Features

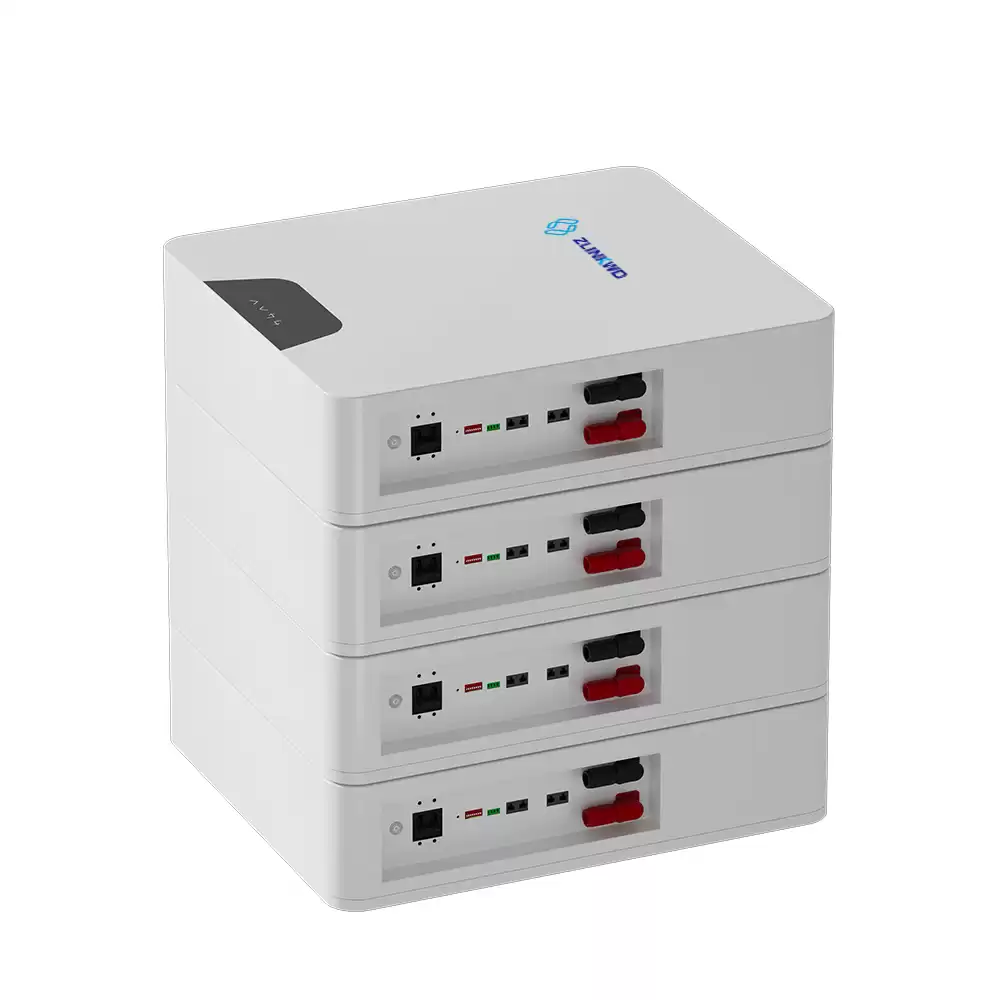

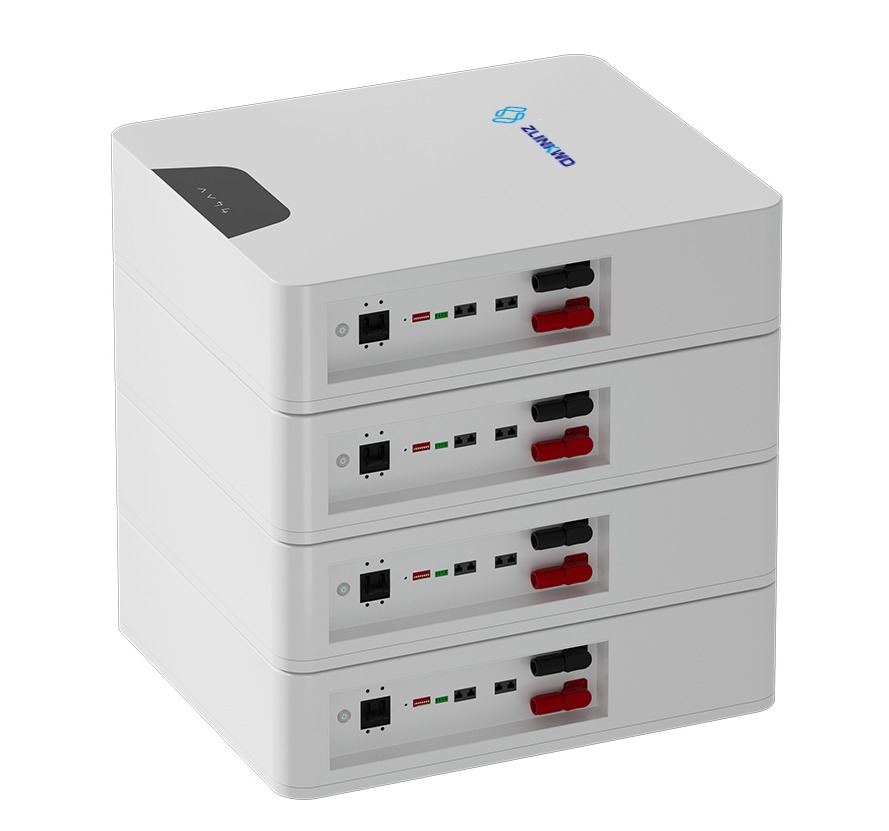

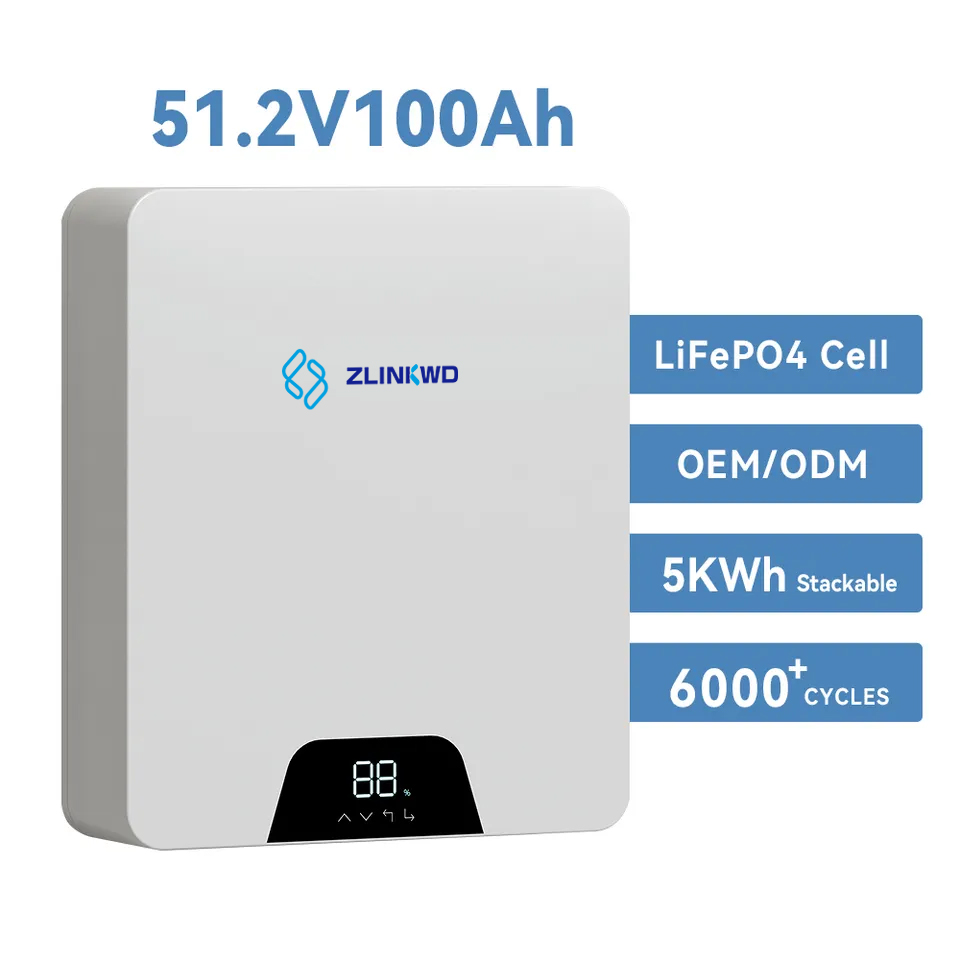

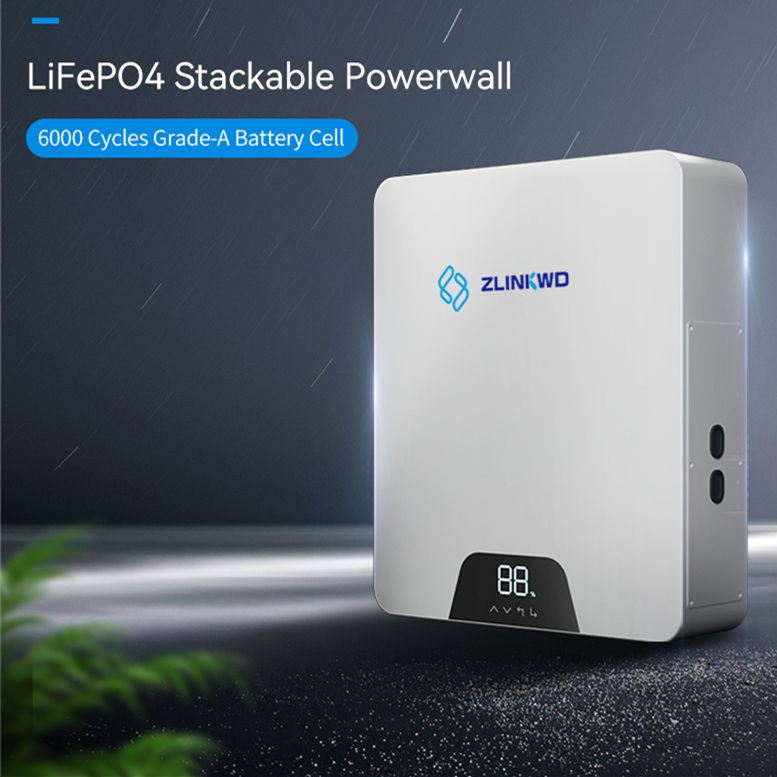

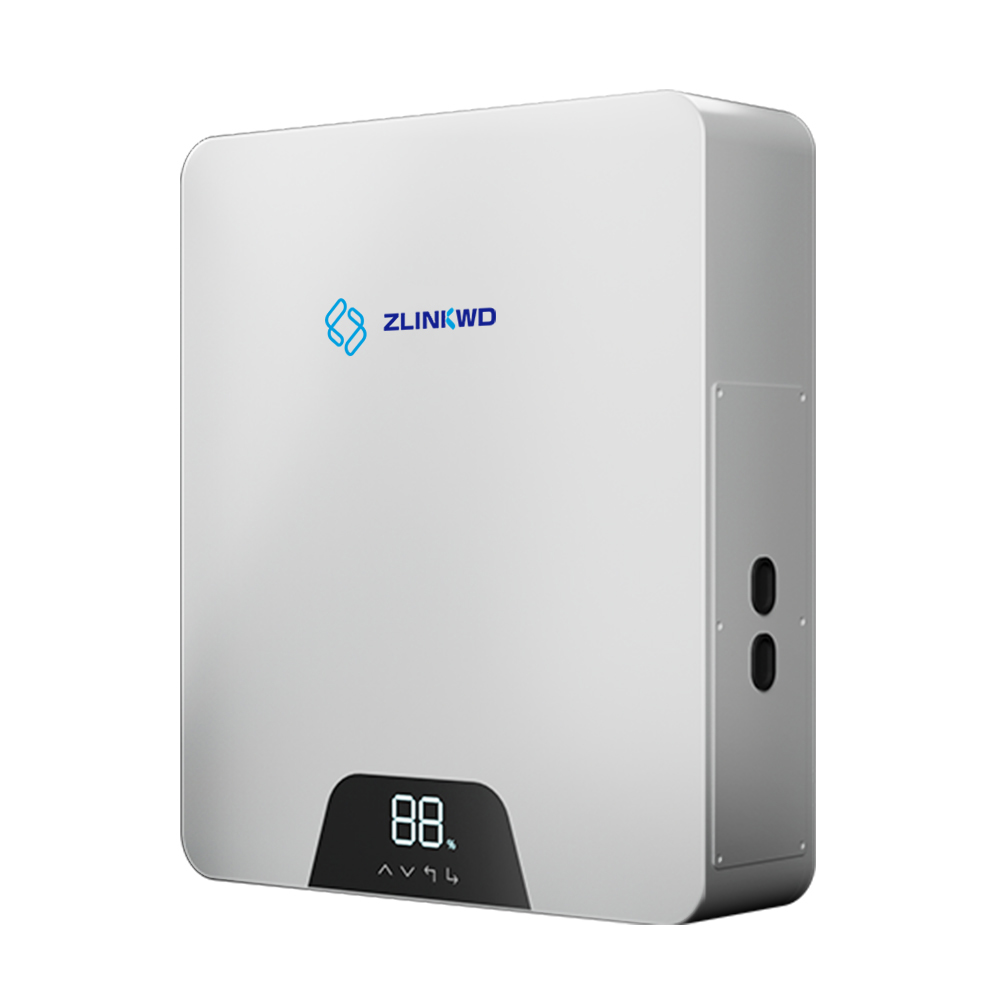

5KWh/10KWh Stackable Powerwall Energy Storage Battery
> Wall-mounted/ Stacked-mounted unique exterior design
> 4-channel battery temperature detection
> Intelligent BMS with comprehensive protection functions
> Compatible with all first-tier brand inverters
|
◆Unique Design

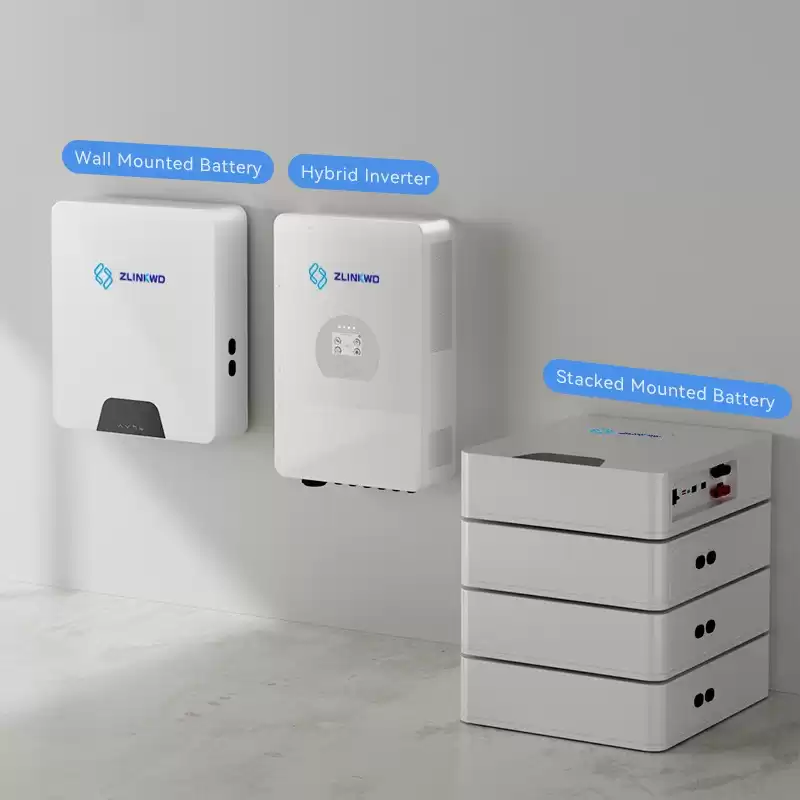

Choose wall-mounted/stacked mounting options
◆A Grade Battery Cell
Choose the domestic first-line lithium battery cells and BMS protection boards
◆High Consistency
Ultra-low internal resistance, excellent battery pack consistency
◆High Security
Built-in BMS multiple protection, communication function to monitor data in real time
◆High Capacity
Up to 16 units can be connected in parallel to meet the needs of large-capacity applications
◆Long Cycle Life
Battery Cycle life> 6000 times, 80% DOD
|
 |
Application Scenarios
 |
Suitable for application scenarios in most regions
● Charging temperature range 0°C~55°C
● Discharge temperature range -20°C~60°C
● Storage temperature range 5°C-45°C
|
-
-
-
-
Household New Energy Vehicles

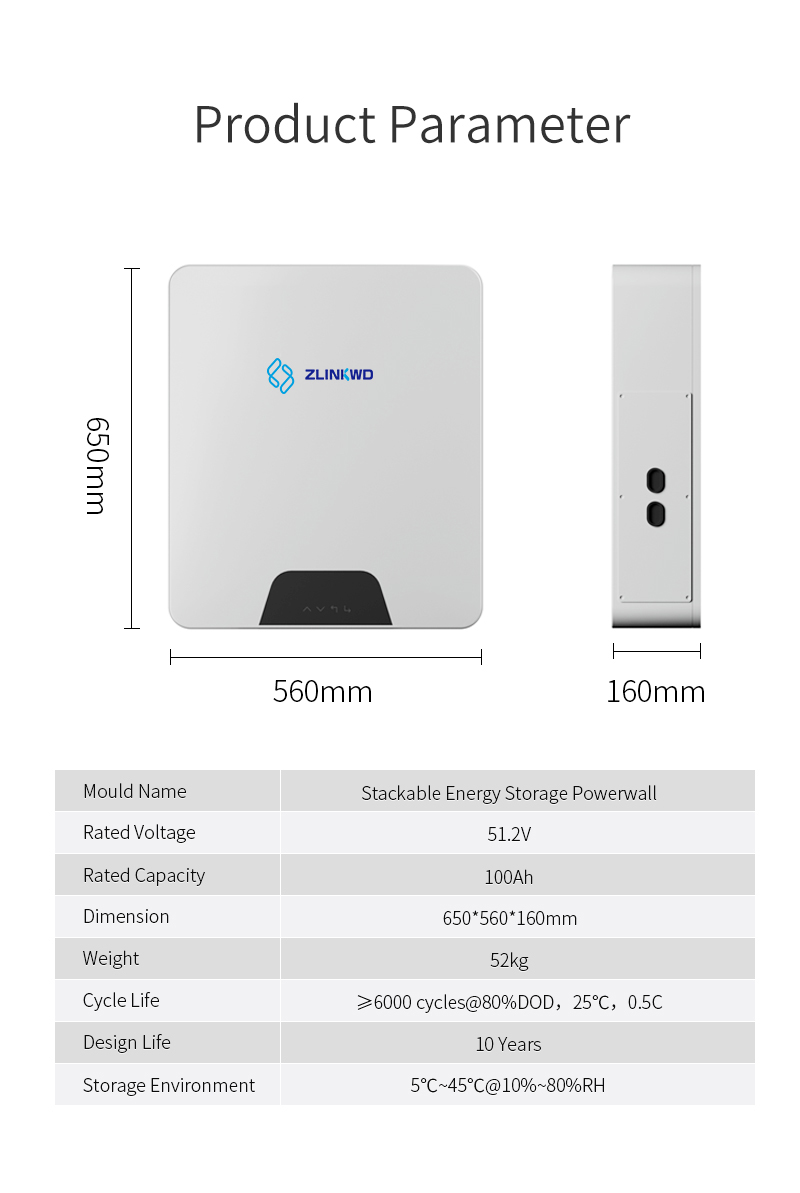

Home Energy Storage Battery System Parameters
| Model |
ZHST5K |
ZHST10K |
| Rated Voltage |
51.2V |
51.2V |
| Rated Capacity |
100Ah |
200Ah |
| Rated Energy |
5120Wh |
10240Wh |
| Built-in Battery Cell |
LiFePO4 |
LiFePO4 |
| Product Size |
580*440*160mm |
660*570*160mm |
| Product Weight |
55kg±5kg |
88kg±5kg |
| Max. Operating Current |
100A |
200A |
| IR |
≤100mΩ |
| Cycle Times |
≥6000 cycles @80% DOD,25 ℃,0.5C |
| Design Life |
≥10 Years |
| Charge Voltage |
56V |
| Discharge Cut-off Voltage |
46V |
| Charge Temperature |
0℃~60℃ |
| Discharge Temperature |
-20℃~60℃ |
| Storage Temperature |
0~45℃@60%±25%RH |
| Certification |
CE，ROHS，IEC62619IEC62133,UN38.3,MSDS |
FAQ
Q. What's price?
A: We provide reasonable price and recommend suitable batteries to our customers.
Q. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q. Can I print my LOGO on it?
A: YES, LOGO/sticker/OEM/ODM welcomed
Q. Do you accept OEM/ODM?
A: Yes,it is available.We have OEM group to design battery case.
Q.Which certificates do you have?
A:We have CE/ROHS/FCC/SGS/UN38.3/MSDS ...etc.
Q. Can your battery be wired in series or parallel?
A: YES,YOU can connect up to ANY of these batteries in parallel. For series, suggest within 3 units.
Q. What is your Shipping way?
A: We suggest sample & small order to be shipped to destination through our shipper partner who has excellent UPS/DHL/FEDEX/TNT service.Big order to be shipped by sea .
