5Kwh Grid energy storage power station 48V 100Ah lifepo4 battery module solar system

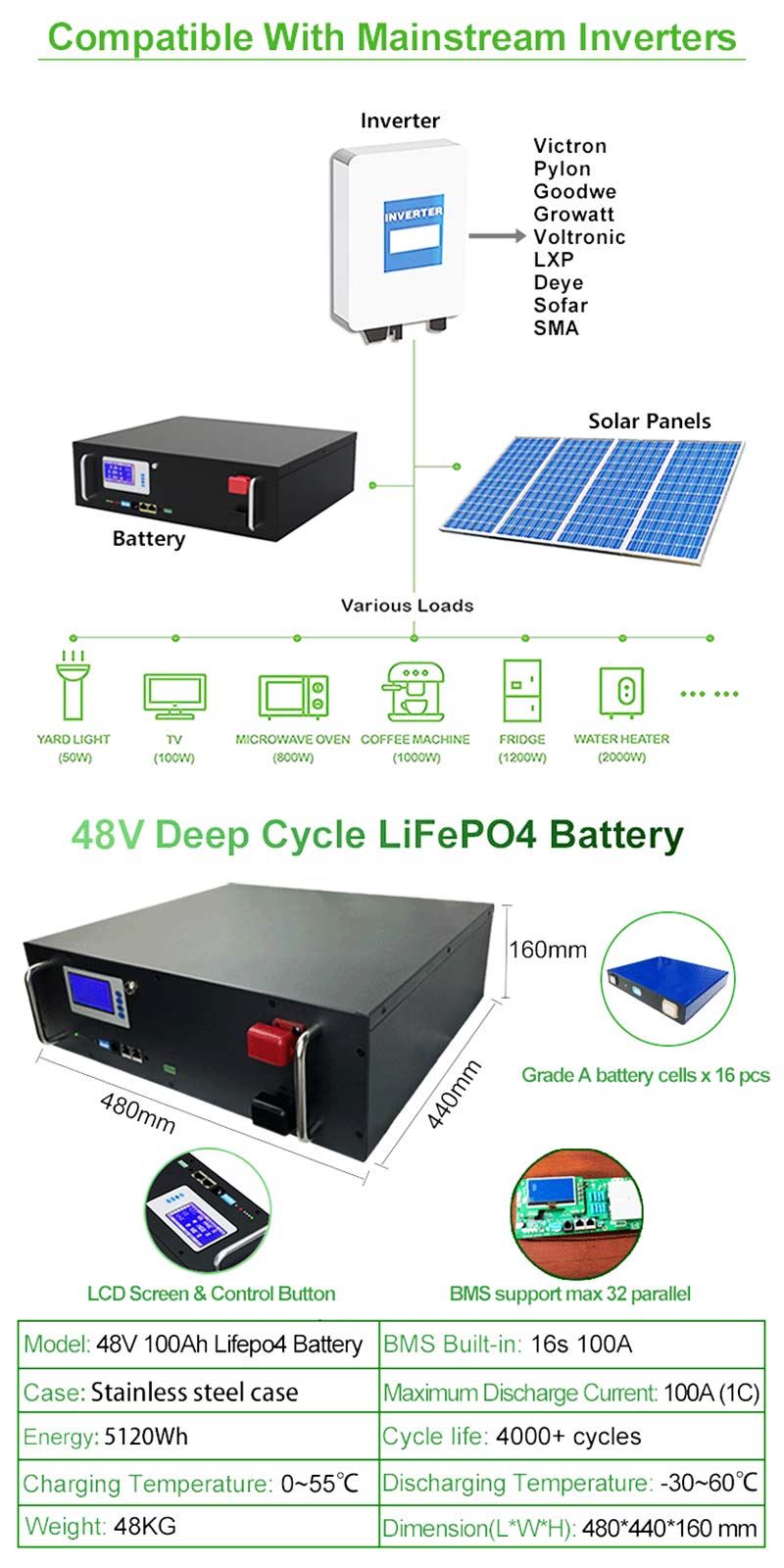

Grid energy storage power station and solar system is a high voltage battery storage systembased on lithium iron phosphate battery , is one of newenergy storage products developed and produced by ZXDY , it can be used to support reliable powerfor various types of equipments and systems.48V 100Ah lifepo4 battery module is especially suitable for applicationscene of high power , limited installation space ,restricted load-bearing and long cycle life .

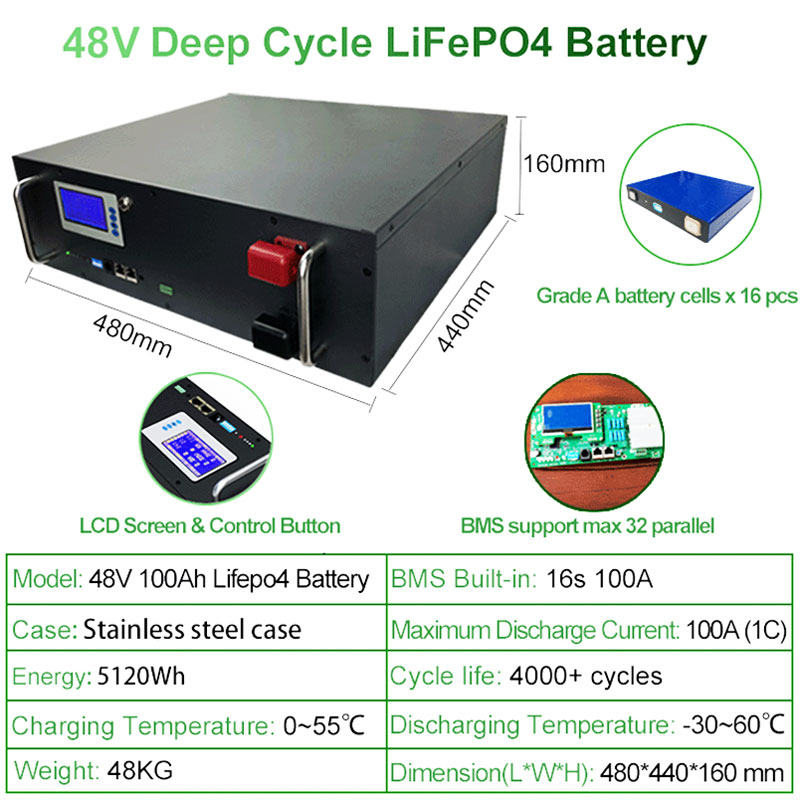

Specifications:
Cycle Life : 6000+ Cycles
Communication Protocol: CAN RS485
Nominal Voltage : 51.2V
Rate Capacity : 100Ah
Energy Power : 5120Wh
Max Charge Voltage : 58.4V
Maximum Charging Current : 100A (1C)
Maximum Dicharge Current : 100A (1C)
Charging Temperature : -5~55°C
Discharging Temperature : -20~60°C
Dimensions(L*W*H) : 480*440*160mm

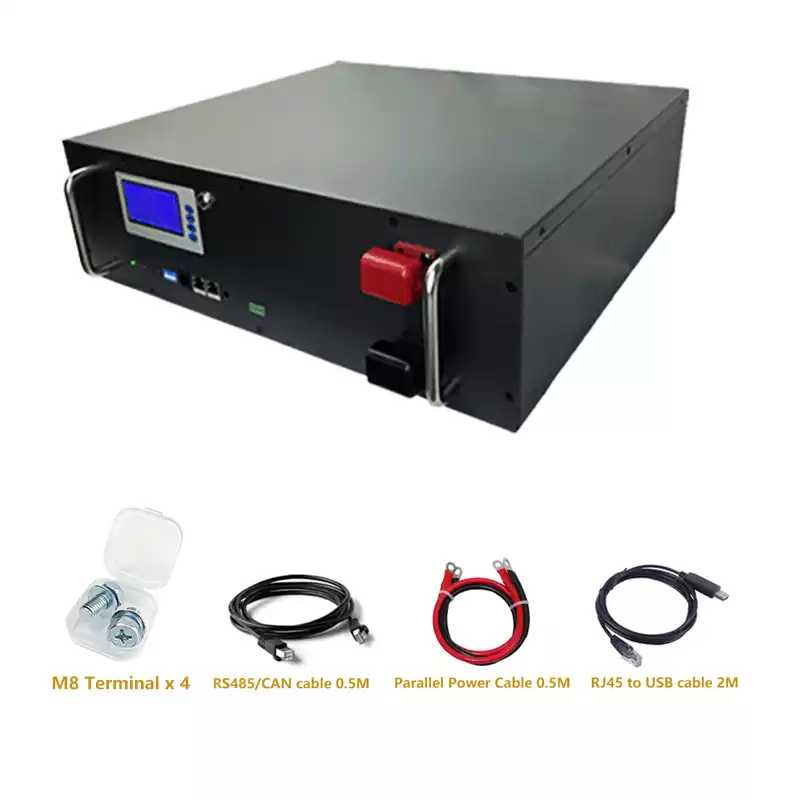

Studs : M8 Terminal
Weight : 49KG

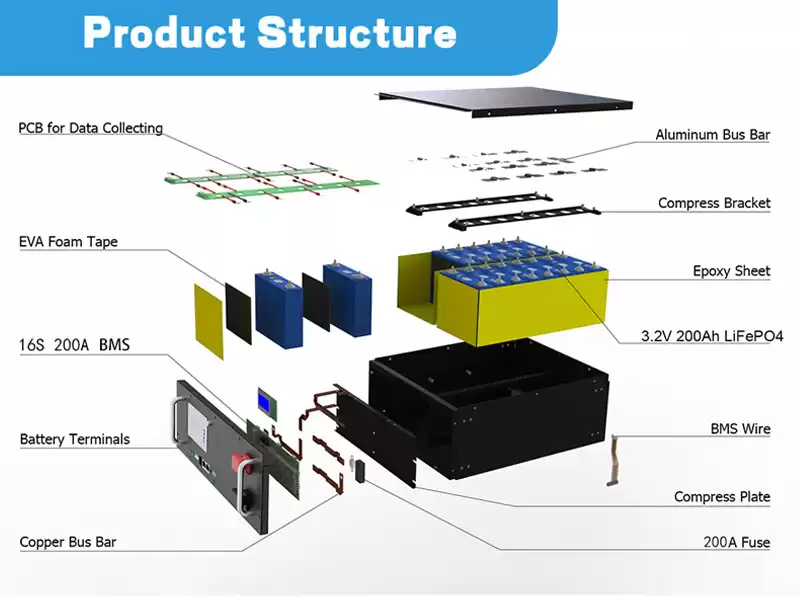

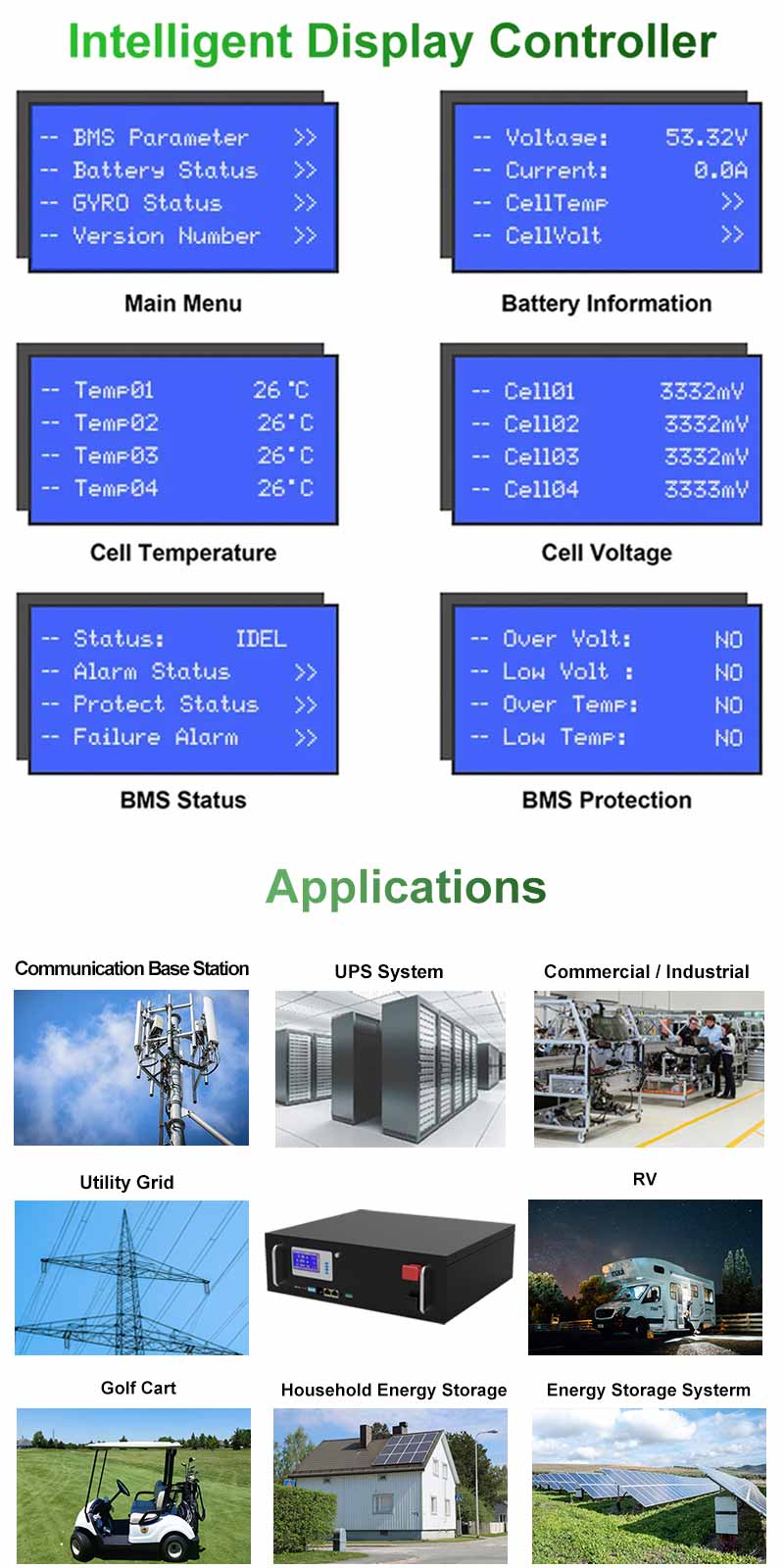

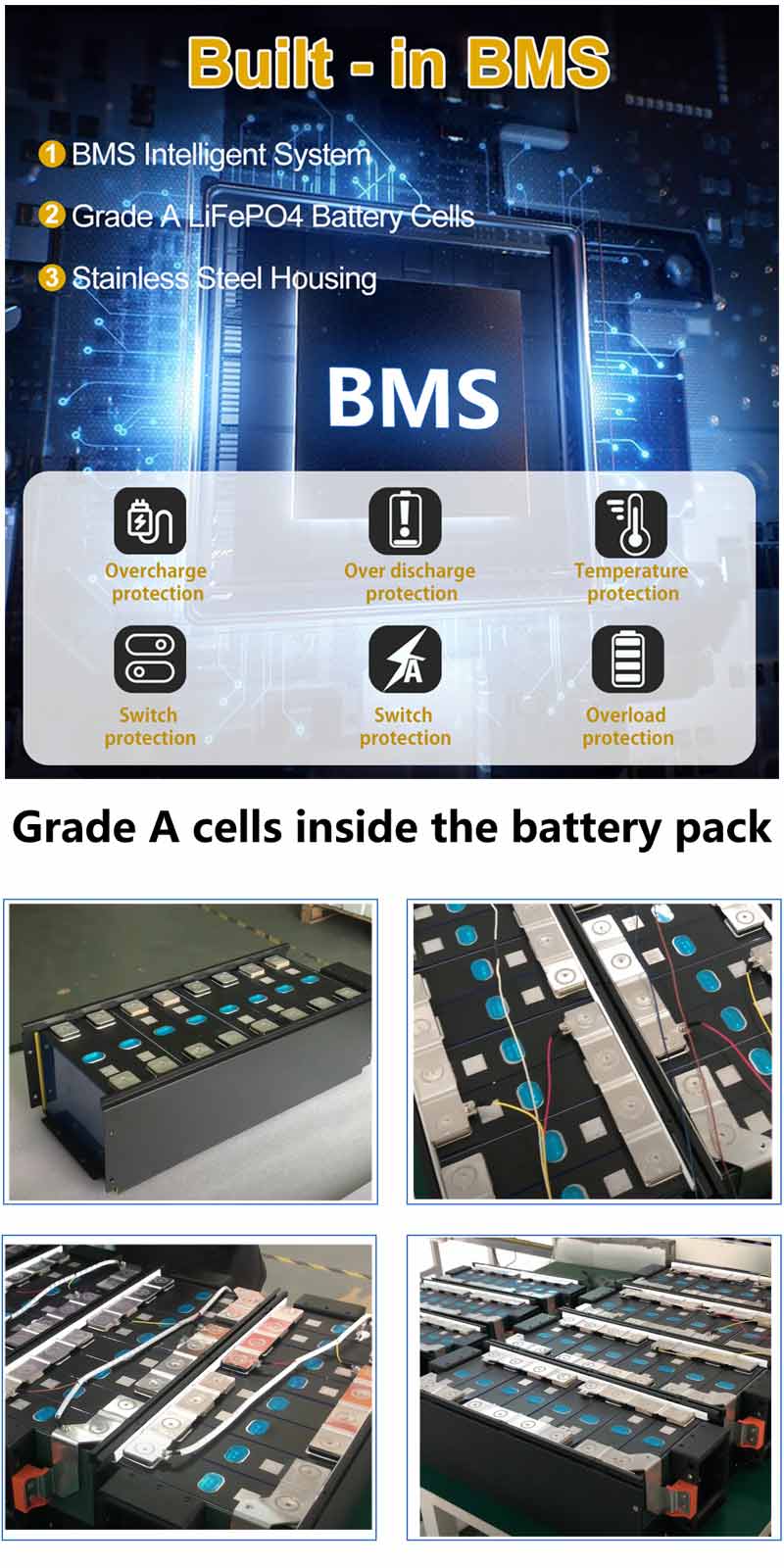

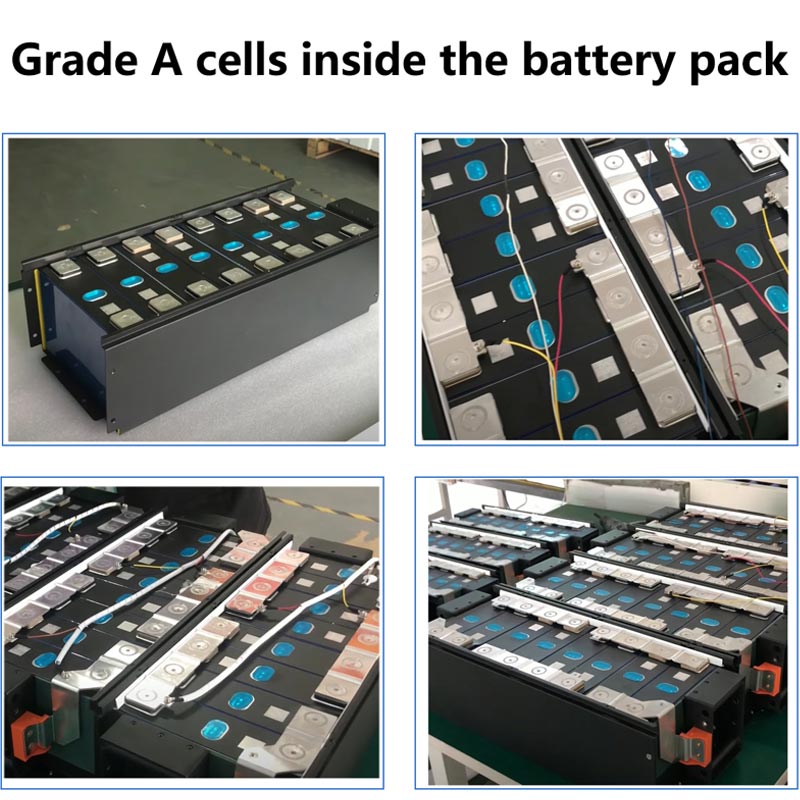

The grid energy storage station and solar energy system are composed of a 48V 100Ah lifepo4 battery pack and a three-level BMS (battery management system), which can manage and monitor battery information, including voltage, current and temperature.
In addition, BMS can Lithium Lifepo4 Battery charging and discharging to extend cycle life. Multiple batteries can parallel to expand capacity and power, parallel to meet the requirements of larger capacity and longer power support duration.

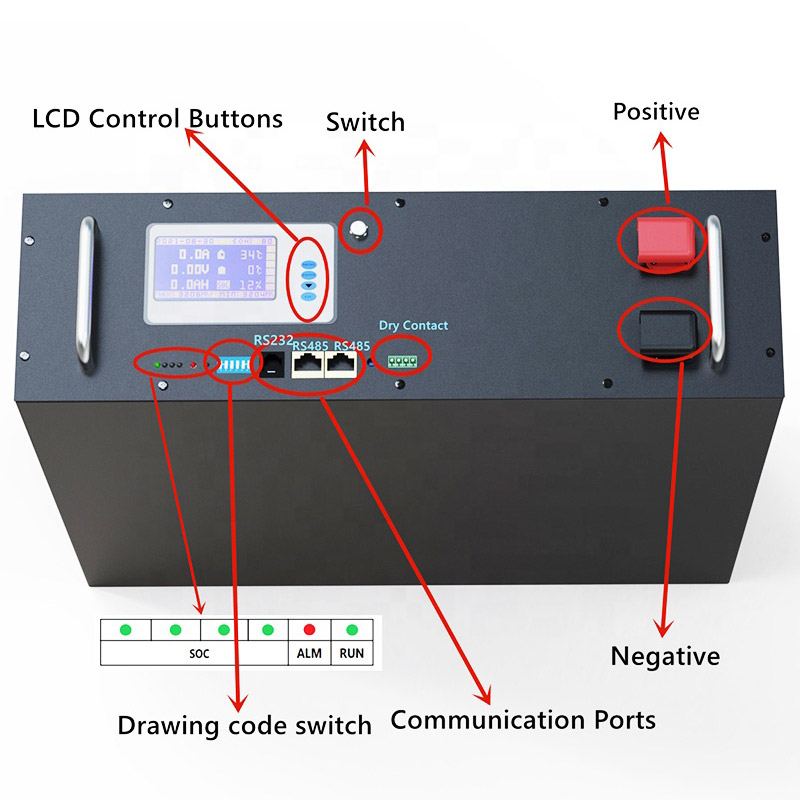

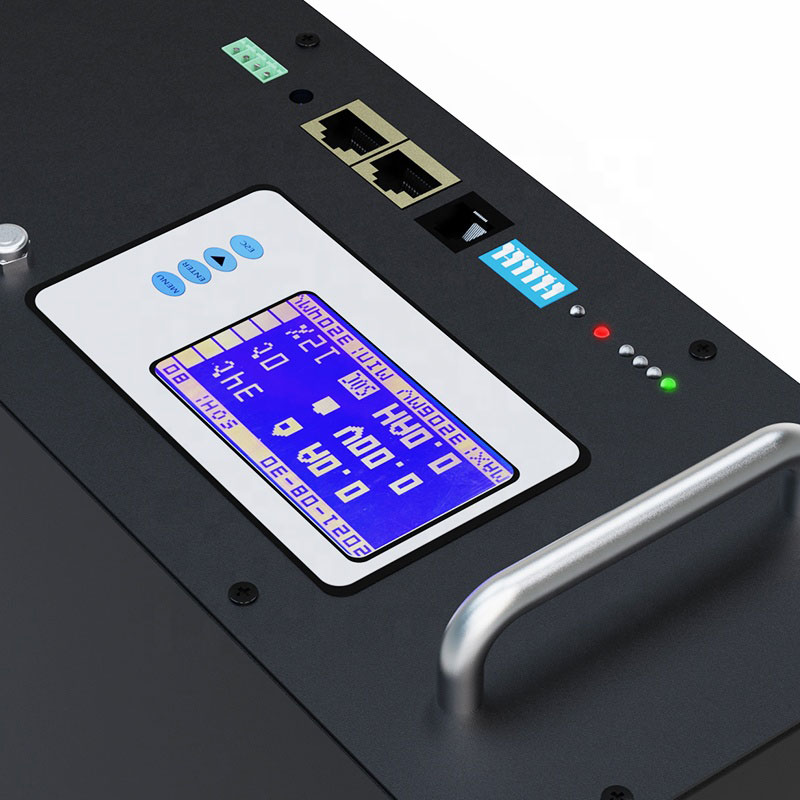

Full reliability and other characteristics. Three stage BMS module (ESMU) in the bus cabinet, with CAN,Rs-485, RJ45 Ethernet communication interface, can be realized with high voltage box, PCS/UPS or The communication function between EMS realizes the data communication and control of the
energy storage battery management system and protection.
Electrical characteristics, heat dissipation and safety performance of various components of lifepo4 battery solar system.It has been fully considered in the design. And operation and maintenance, reasonable space.The layout is compact and the configuration is flexible,security.
