5L 10L 30L 50L Vacuum Planetary Mixer Mixing Machine with Vacuum Pump and Water Chiller for Lithium ion Battery Making

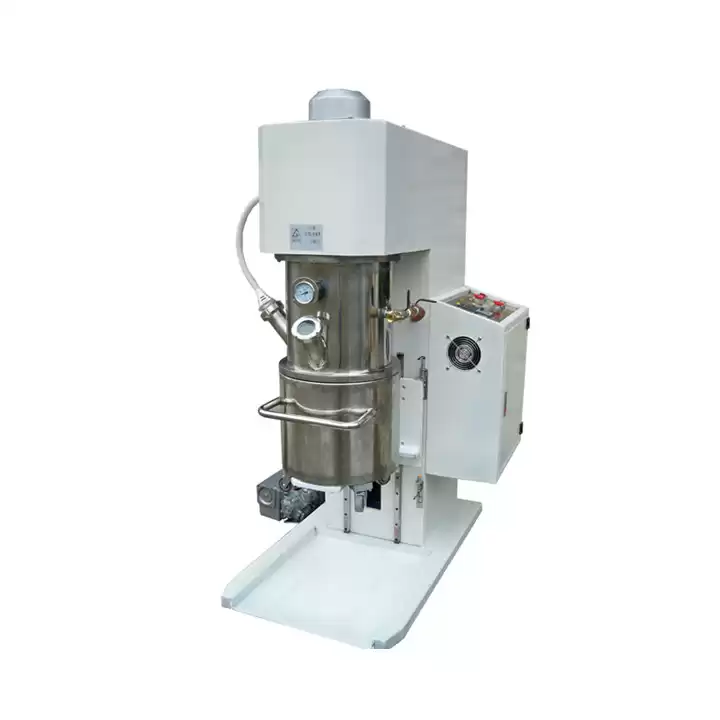

1 This TMAX-PVM-5L Planetary vacuum mixer machine is a set of vacuum mixing, dispersion of efficient equipment, suitable for lithium electricity experiment process is anode paste mixing process, solder paste, silica gel, chemical industry, etc

2 This lab planetary mixer Mixing motor adopts transmission frequency adjustment,

can choose different rotational speed and torque according to different process, different viscosity.

3 The vacuum planetary mixer is excellent for preparing LiCoO3, LiFePO4, Phosphors and

ceramic slurry without gas bubble. And the processed material results in the better dispersion and uniformity.

Model	Planetary Vacuum Mixer  TMAX-PVM-5L
Source voltage	AC 220V/110V, 50HZ/60HZ
Power	3500W
Warranty	One Year limited warranty with lifetime support
Rotation speed	0-1400 r/min, Through the inverter speed control
Revolution speed	0-70r/min
Effective volume	5L, 1-10 Liters Customized according request
Design volume	9L
Mixing barrel opening mode	Deceleration motor driven fill rises
Mixing barrel size	Φ260mm(Diameter)*180mm(Hight)
Mixing time set	0-99H can be set, auto stop when finish with vacuum
Weight	About 150kg
Dimension(H*L*W)	1400*1100*800mm, 51″*43″*27.5″
Advantage	5 liters 304 stainless steel container with high accuracy Advanced soft sealing type to keep vacuum pressure  maintain on -98kpa up to 24 hours. Double Step Rotary Vane Vacuum Pump, 254L/m, is  included for immediate operation Programmable controller to set time, speed, rotation  direction. With time and temperature setting function Double blade design, make the material up and down  around, mixing  battery paste rapi
