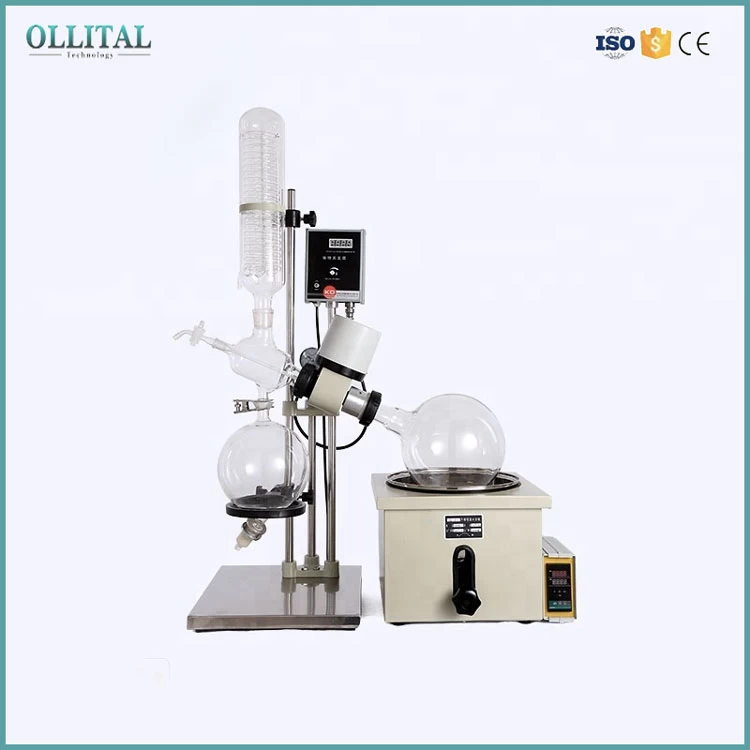

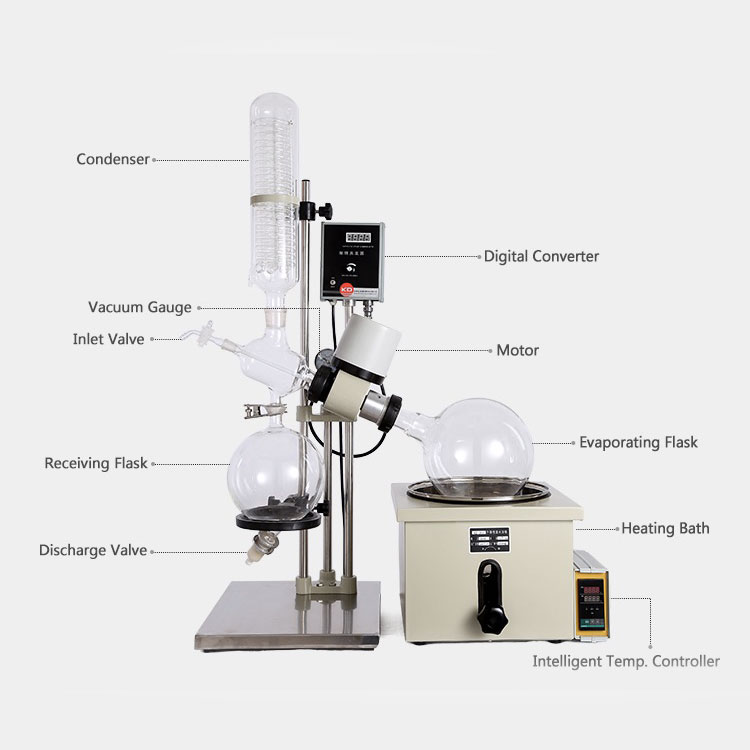

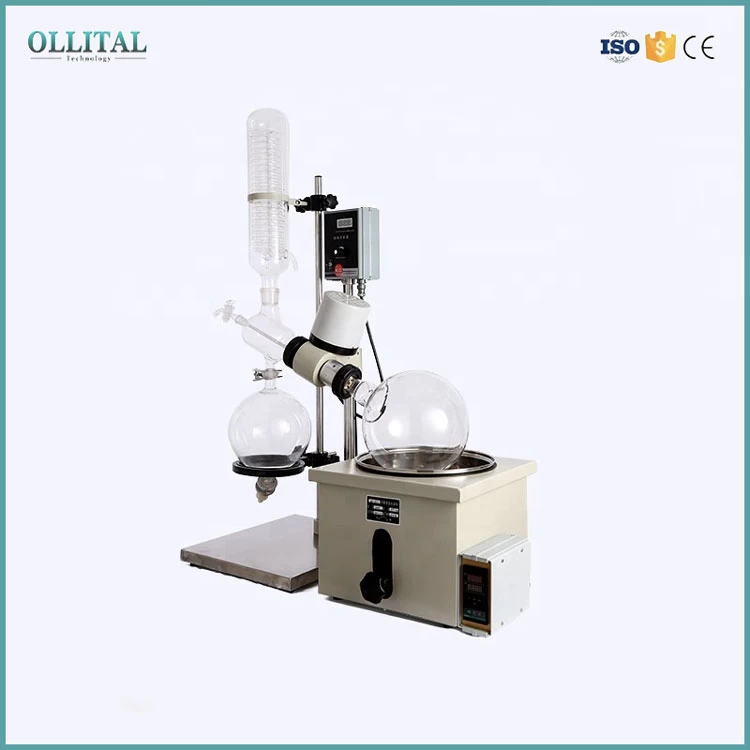

Lab Vacuum Distillation Kit works by heating liquids under low pressure, vaporizing them and condensing that gas in a separate vessel, just like many other distillation apparatus. However, Distillation Kit uses both temperature and pressure changes in its functionality. Our company's Distillation Kit for Concentrate have the volume from 0.25L to 50L and accept custimized volume.
|
Model
|
OLT-RE-12
|
|
Evaporating Flask
|
5L
|
|
Receiving Flask
|
3L
|
|
Rotating Motor
|
40W
|
|
Rotating Speed
|
0~120R/MIN
|
|
Water(Oil) Bath Power
|
1500W
|
|
Temperature Control Range
|
Intelligent digital control RT-399℃
|
|
Temperature Fluctuation
|
±1℃
|
|
Evaporation Rate(H2O)
|
>1.5L/h
|
|
Condenser
|
Vertical Double Condenser
|
|
Lifting Mode
|
Water(Oil) Bath Mannal Lifting
|
|
Lifing Height
|
0~120mm
|
|
Voltage
|
108V-220V
|
|
Sealing Mode
|
PTFE,Fluoro Rubber Sealing
|
|
Note
|
Customized configuration is available
|

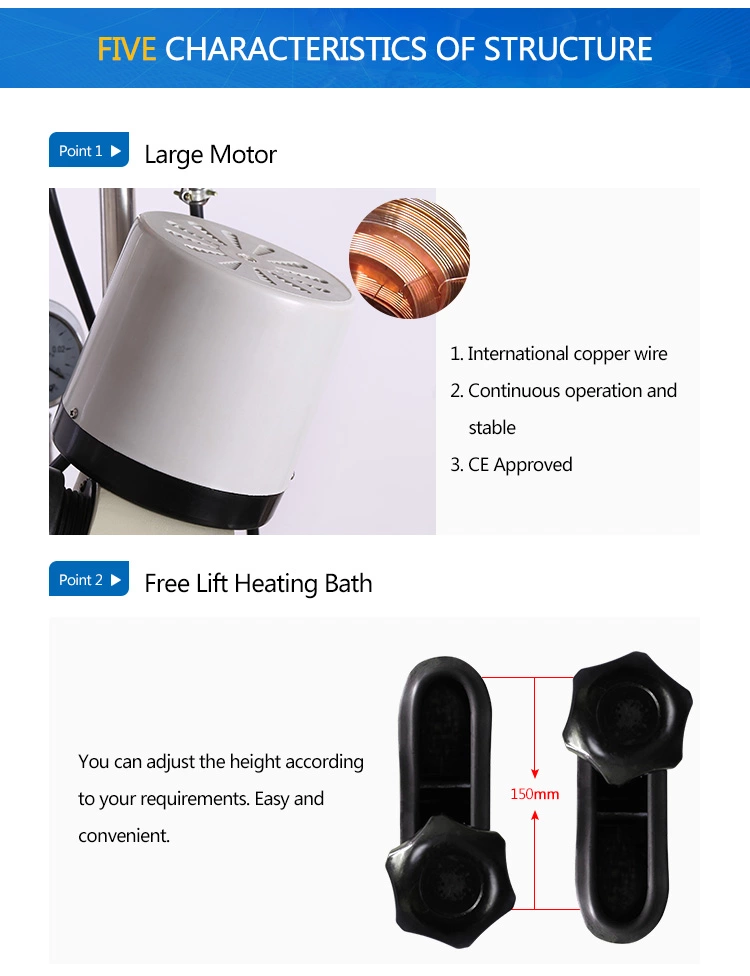

(1)Micro- motors, speed motor and integrated control device.
(2)With screw lifting mechanism.
(3)Incline willfully along the horizontal direction in 0-45° the scope.

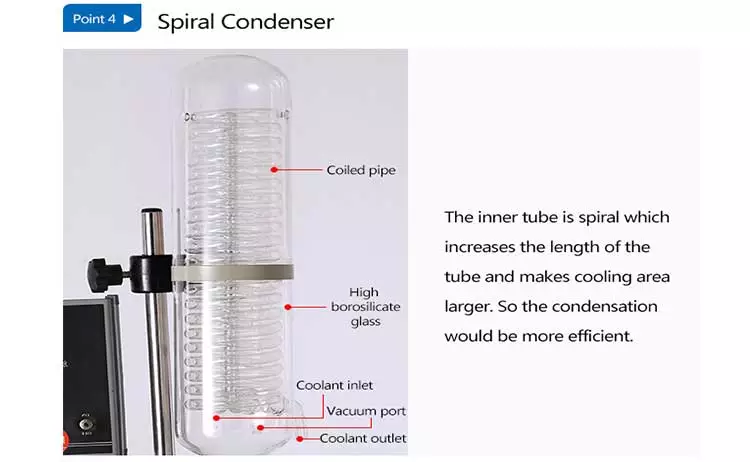

(4)Vertical condensation system.

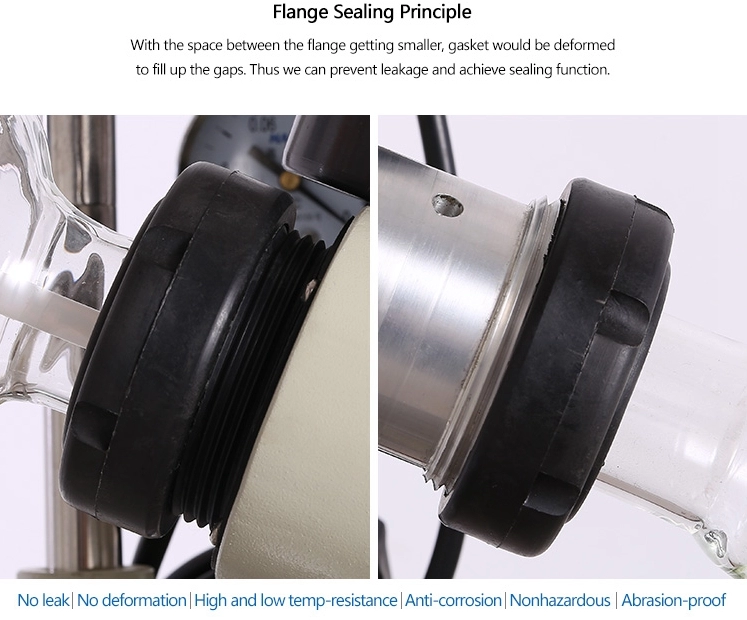

(5)Sealing elements to a good performance.
(6) Automatic temperature control digital display.
They are the ideal tools for many everyday laboratory applications including:
• Concentration of solutions
• Reclamation of solvents
• Vacuum drying of wet solids
• Degassing liquids
Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
