5t Best Selling China New tower crane QTZ63(5013)

QTZ63(5010) is used in building height 50 floors(150m), building length 50m or 55m, the max load is 5t, the tip load is 1.3t. if you have the special request, we will design new tower crane for you.



QTZ63(5013)---5t Best Selling China New tower crane QTZ63(5013)

1. 5t max load, tip load 1.3t, jib length 50m.

2. new condition tower crane/China-made tower crane/best selling tower crane

3. China-made high quality tower crane, China good tower crane manufacturers

4. high efficiency, CE, ISO, GOST certificates


 Technical Datas  of QTZ63(5013) 5t tower crane

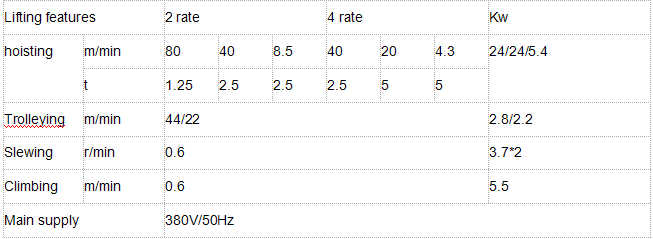

Mechanism Specifications  of QTZ63(5013) 5t tower crane



Features of QTZ63(5013) 5t tower crane

1): The main stressed steel parts of QTZ63 tower crane use Q345B Mn steel, the tower body mast section 1.835m*1.835m*2.5m, using on-chip-type or standard mast section of two forms of production

2): Light weight, air resistance is small, convenient transportation. Rotation adopts double rotary organization. Lifting mechanism is driven by frequency converted motor, running steady

3): It adopts standard section hydraulic lifting and connecting, and can decide the crane height according to the actual height of the building

4): High-quality surface coating that can meet different requirements of transporting and using. It is durable under environments of low, high, wet as well as oceanic environment

5) The crane has full set of safety devices, which ensure the safe and high efficiency. It has lifting height limiter, dolly range-change limiter, moment limiter, weight limiter, slewing limiter, etc.


The Three Mechanisms of QTZ63(5013)

1): The lifting mechanism

The coiling frequency motor and mono-speed ratio decelerator is applied in the lifting mechanism, which enables heavy load low speed and light load high speed

2): The trolleying mechanism

The range-change structure drives the dolly to change range on the horizontal arm, with good positioning performance

3): The slewing mechanism

Planet gear decelerator is used in the slewing structure, together with moment-limiting hydraulic coupler, which ensure high load capacity, steady starting and reliable operation.

 Our Service

1.One year warranty will be offered,
2. a full set of accessories are provided
3. a full set of quick-wear parts are provided
4. Besides, Professional service team is available to give technical support for the installation and maintenance of Tower Crane and construction hoist.
5. Consulting hotline to receive customers’s inquiry and regularly inquiry the customer machine usage condition, and offer technical guidance and solution to problems in operation and maintenance.
6. tower crane oversea service: for installation and debug, We shall send one technician to the site to provide guidance on installation and debugging and the training of operators if necessary.


As a professional exporter,our target is to serve worldwide clients with high-quality products, great-reliability, devoted responsibility,professional services and honorable credibility to meet customers’ requirements in all aspects. We will supply you 24 hours a day and 7 days a week after-sale services.


 If you want to know more about our products, pls contact us by email or phone. Also welcome consult us any question at your convenience, any inquiry or kind suggestions from you will be very appreciated.



Looking forward your kindly inquiry and hope to help your strong business in near future!
