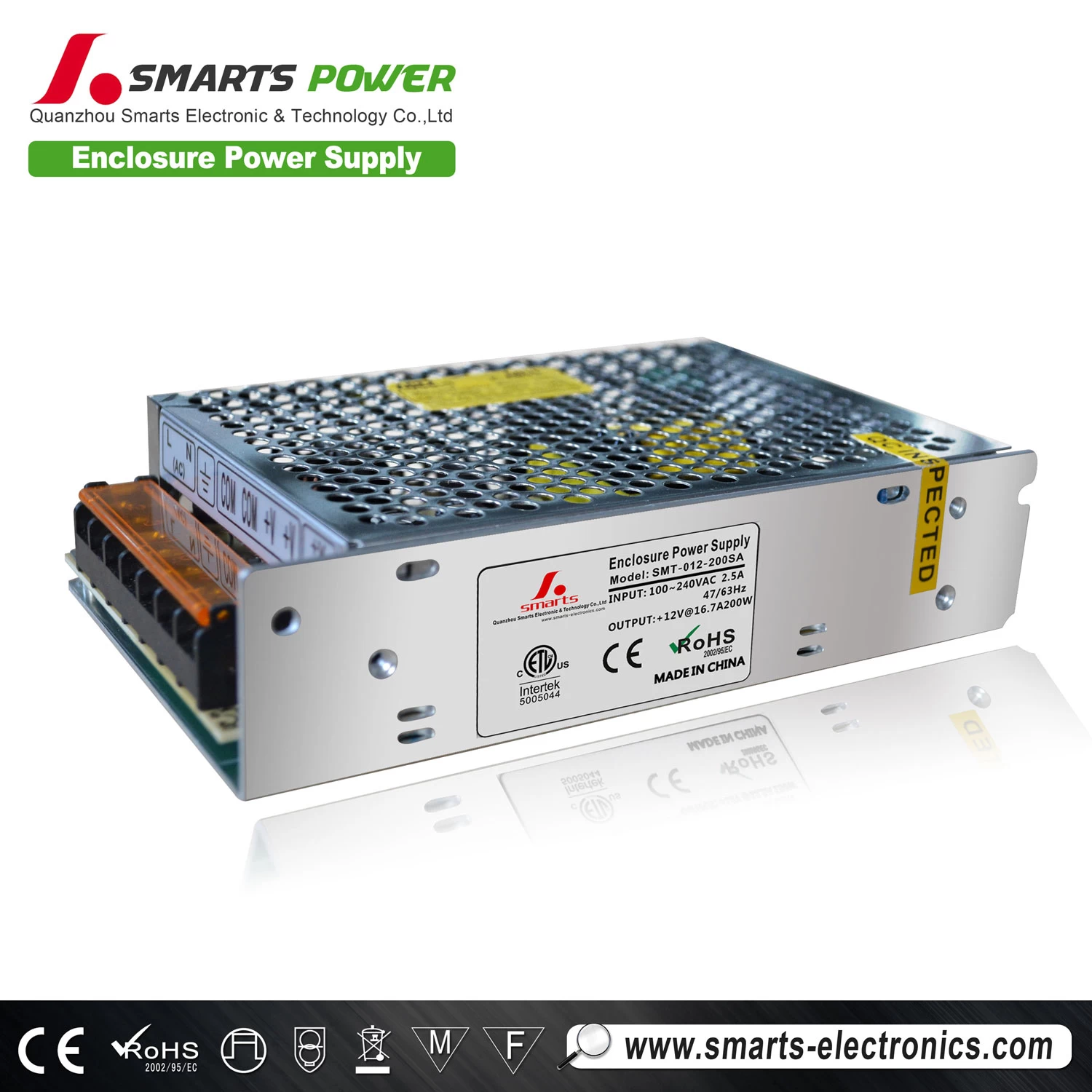

5v 20amp smps transformer enclosure

Product Description

Product parameters:

Model		SMT-005-100SA	SMT-012-100SA	SMT-015-100SA	SMT-024-100SA	SMT-036-100SA	SMT-048-100SA
output	DC voltage	5V	12.5V	15V	24V	36V	48V
	Voltage tolerance	±2%	±1%	±1%	±1%	±1%	±1%
	Rated current	20A	8.33A	6.6A	4.17A	2.78A	2.08A
	Current range	0~20A	0~8.33A	0~6.66A	0~4.17A	0~2.78A	0~2.08A
	Rated power	100W	100W	100W	100W	100W	100W
	Ripple&noise	100mvp-p	150mvp-p	150mvp-p	150mvp-p	150mvp-p	150mvp-p
	DCvoltage ADJ.range	± 10%	±10%	±10%	±10%	±10%	±10%
input	Voltage range	100~240Vdc
	frequency	47~63HZ
	AC current	3.2A/115VAC,1.6A/230VAC
	efficiency	83%	82%	82%	83%	82%	83%
	Inrush current	Cold start current 18A/115VAC,36A/230VAC
	Leakage current	< 1mA/240VAC
protection	overload	Rated output power115%~150% start over load protection
		protection type:cutoff output,recovery after restart power
	Over voltage	6.8~8.2V	15.6~17.8V	18.6~20.8V	30.6~33.2V	33.2~35.6V	54.8~56.6V
		protection type:hiccup mode,auto-recovery after fault condition is removed
environment	Working temp,humidity	-10°C~+60°C,20%~90%RH
	Storagetemp,humidity	-20°C~+85°C,10%~95%RH non-condensing
	Withstand vibration	10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes
safety	Withstand voltage	I/P-O/P:2.0KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	Isolated resistance	I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
Fitstandard
	EMC standard	Comply with EN55022,CLASSA
others	Dimension	160*88*34mm (L*W*H)
	Weight/packing	0.65kg/20pcs/13.5kg/0.0318 m³
note	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation



• CE,ROHS approval
• 2 years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)

Features:

• Constant voltage design with high accuracy.
• International wide input voltage.
• output voltage 5v/12v/24v/36v/48v selectable.
• Wattage: 15w-600w.
• High efficiency, save energy, protected environment.
• High stability and low ripple, increase light efficiency and decrease light attenuation.
• Meet to safety standard and EMC.
•  Assure LED stability long lift and light efficiency by constant voltage.
• 9. Overcurrent, overvoltage, overheat, short curcuit protection:Auto-recovery
• 10. Start,raise,stable time:  500ms,30ms,40ms/230VAC,500ms,30ms,16ms/115VAC
• 11. Cooling by free air convection.
• 12. 100% full load burn-in test.
• 13. Brand electrotronic components.
• 14. ROHS material.
• 15. Well match with LED guardrail lamp, Flood light, light word, street lamp etc, For LEDs series-parallel.

Application:

• indoor LED illuminating lights, LED Neon
• LED urban Decoration,LED Lighting Advertising
• LED Display, Safety Protection Apparatus
• Telecommunications, Networks
• Vehicle Lights, Controller Panels

Packaging & Shipping

Packing
N.W./pcs		G.W/ctn		Qty/ctn		Carton Size( m³)
5v 20amp smps transformer enclosure
650g/pcs		13.5kg/ctn		20pcs		0.0318 m³
