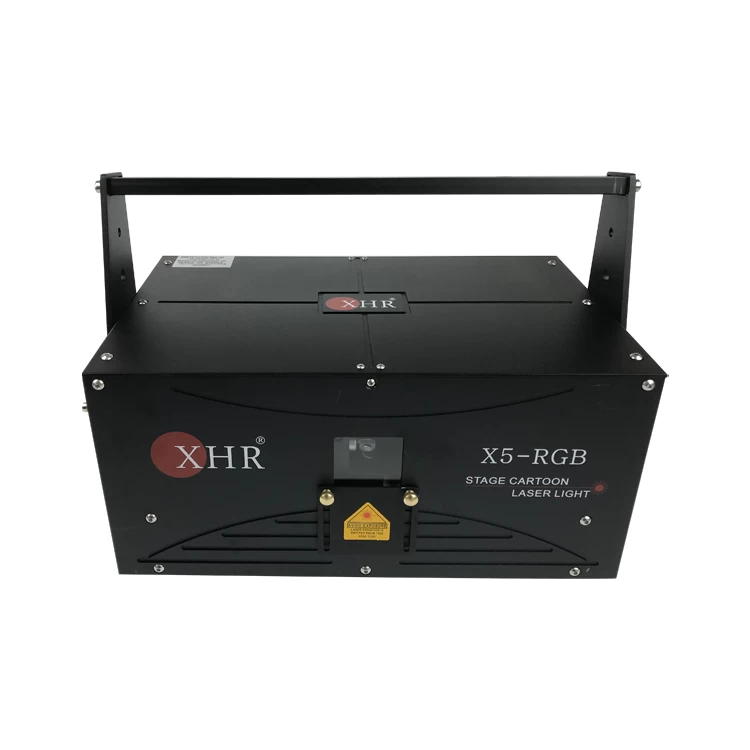

Product Item: 5w Green 3D Logo Animation Laser Text Projector
Scanner Optional:
1:20-25kpps we suggest used in 1w-3w laser,as 20-25k is comparatively cheaper than 30k 40k.and 1w-3w is mini power, it is not available to use more than 30k .the effect also not much different.
2:30kppcs usual used more than 2w,if you only project beam effect,used 30k is really enough,do not spend much money to used a 40k or 50k scanner,we are already testing project beam effect is the same between 30k and 40k!
3:40k-50k used 5w-12w,if would like to project better animation effect,choose higher scanner the effect will not shake too much .and we all know higher scanner the mirror will be smaller,but higher power laser diode the beam will be thicker and thicker .then will be a problem,the scanner can not keep to the laser beam,that will be loose the brightness.after we testing,if would like to used 40k,power range between 5w-12w will be best!
Specification:
Color
|
Single Green laser
|
Wavelength
|
5000mw-532nm
|
Laser Diode type
|
Analog/TTL
|
Scanning Angle
|
+/-30degrees
|
Scanner
|
High-speed optical scanner 30kpps/40kpps/50kpps
|
Working Temperature
|
-10C - 45°C
|
Working Life
|
10000 hours
|
Control
|
Signal International Standard ILDA
|
Voltage
|
100-250V
|
Rated Power
|
500w -800w
|
Control Modes
|
Auto-run, DMX 12 channels, Slave/Master Mode, ILDA PC software Control
|
Applicable
|
Disco,Clubs, KTV, Pub, Bar, family party, ect
|

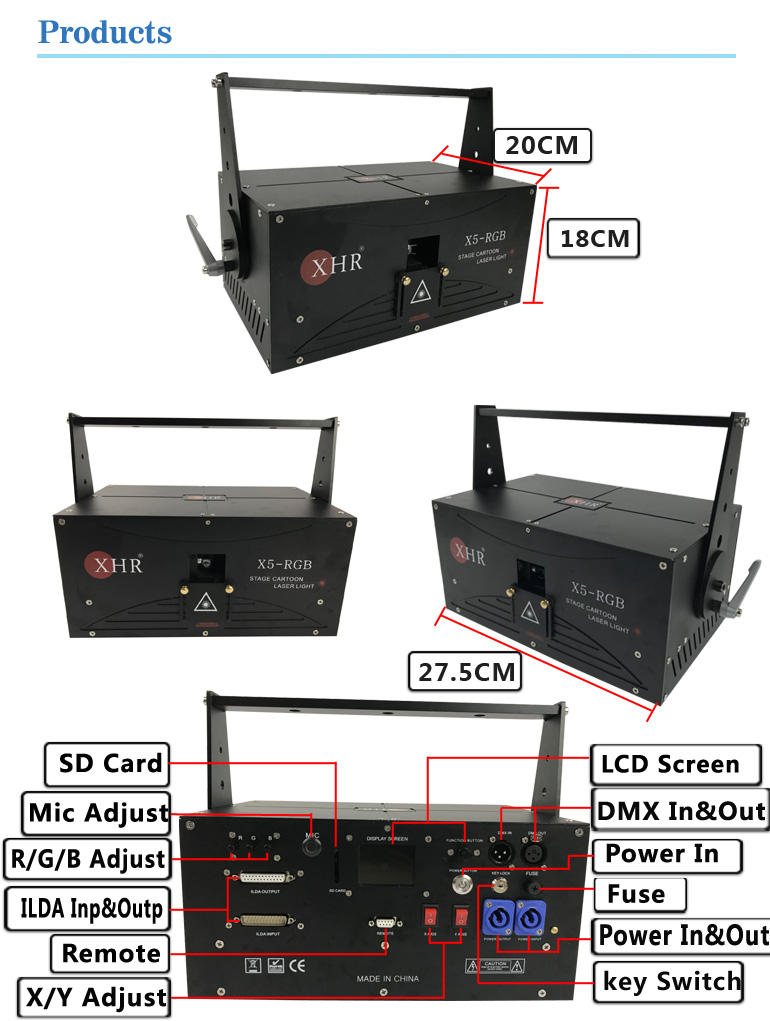

Dimensions
|
43*33*29cm
|
Net Weight
|
23kg
|
Packing content
-
user manual
-
Insurance rope
-
power cable
-
Key switch
