Vacuum Sewage suction tanker truck super structure (also
called Vacuum pump truck body kit, Gully bowser upper structure, Sewage tanker kit, Vacuum cleaning truck upper body kits etc.) This vacuum suction truck is mainly used to suck, transport, unload, and load sewage and sludge existing in the sewer lines and rainwater wells, and it can also be used to suck and transport wastewater, industrial waste oil, and sewage in large factories. Furthermore, sometimes it can even be used to dredge and clean small watercourses.
It is mainly composed of chassis, tank, hydraulic system, high-pressure system,and electrical system.
This Sewage suction tank truck body kits Suitable for ISUZU NKR/NPR series chassis(Option other brand chassis),
it's the idea product for suction,transportation and dumping soil and
mud from various sewer man-hole,water wells and sediment.It is necessary
tool for city sanitation department,waste processing company,big
factory……,it can help to clean the sewer pipe undergroud,clean the
sludge in the river around city, it also can help big factory to clean
the greasy dirt and waste water.More specification about the vacuum tank
please kindly refer to following information .
NO.
|
Main components
|
Detail Description
|
1
|
Chassis
|
ISUZU brand 4X2 NPR truck chassis,Engine is Euro 3 or 4 emission standard, There 2 pcs PTO to drive vacuum pump and all kinds of hydraulic equipment. Chassis Model will as per cusotmer's final confirm.
|
2
|
Vacuum tank
|

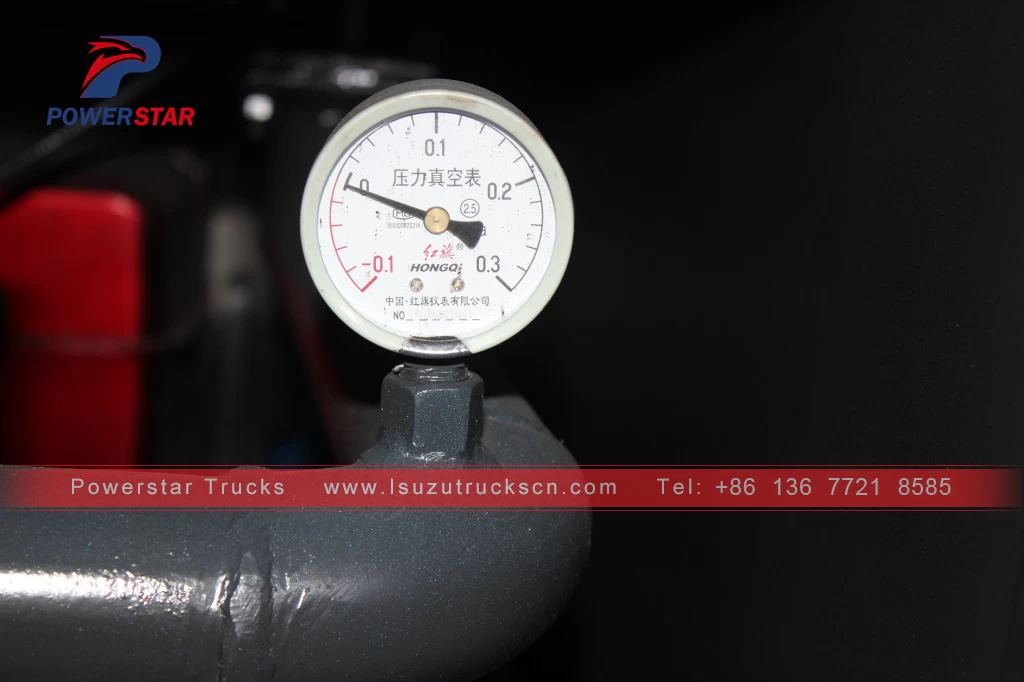

Tank Shape:Cylinder type ,Vacuum tank volume is 6000 liters,made by SS304L,6mm thickness shell. Design Pressure:-0.9 Bar.There some U shape strengthen rims outside the sludge tank body to offer stonger support to the tanker body. Hydraulic lift sylinder to lift up the tank body to outlet the sludge in 45 degree with safety support. Water level instrument locate in the rear of the tanker body.6" or 4" outlet valve in the rear to release the sludge.
|
3
|
Clean Water tank
|
without clean water tank
|
4
|
Rear Door
|

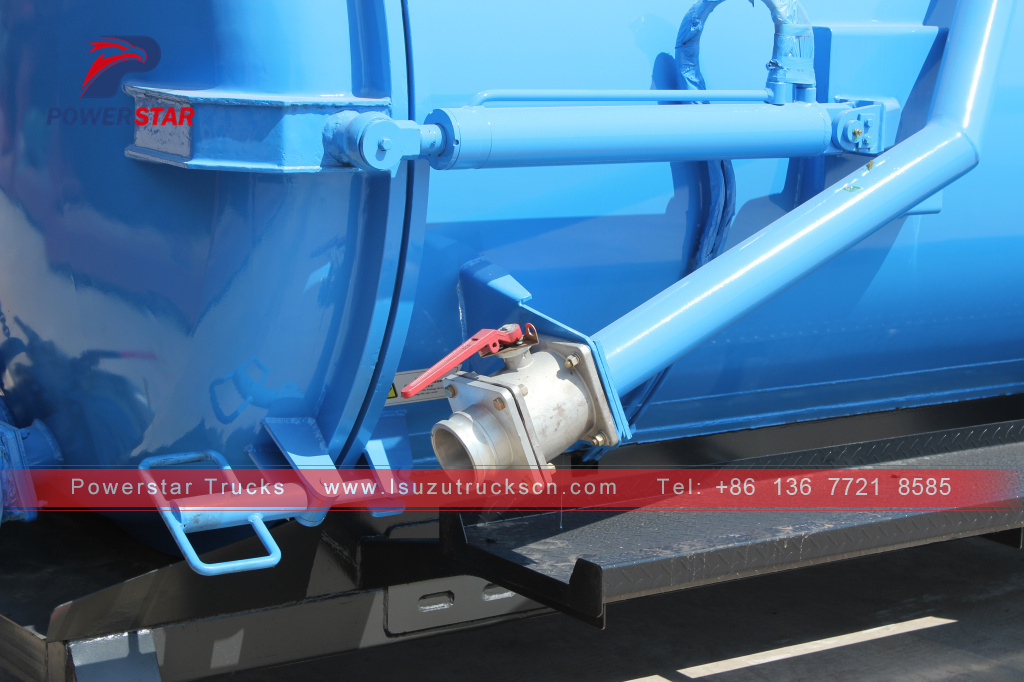

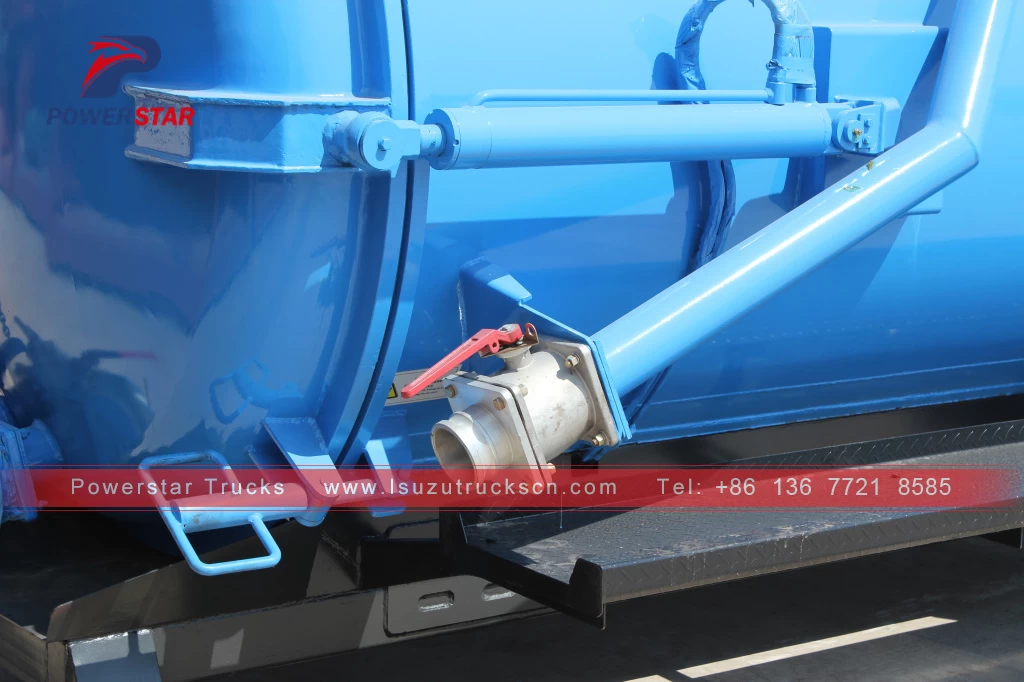

Controlled by Hydraulic,2 cylinders open the door,and 4 cylinders closed the door,6" suction pipe and 6" discharge valves.
|
5
|
Cooling water tank
|
1000L,located behind the Cab of the truck,use for cooling the vacuum pump.
|
6
|
Vacuum pump
|
ITALY JUROP,PN45D, Max pressure: 1.5 bar, Max speed: 1300 RPM,vacuum rate 98%,vacuum pump can be choose according to customer's requirement.
|
7
|
High Pressure pump
|
without high pressure pump
|
8
|
Others
|
Telescopic suction boom can be optional : Swivel in both the vertical and horizontal plane.300°horizontal
rotation, 6m working radius and vertical lift up to 3m above ground.Dia
6" stailess and rubber suction hose. Painting All stainless steel parts will painted by primer and finish paint,sand
blasting before painting,coloer as per customer's choose. Operation instructions This instruction will guide customer how to operation this truck. Training Before delivery:we can offer one or two days operation of the truck training in our factory.
|
9
|
Remarks
|
Above information just for reference,we can adjust the specification according to customer's requirement.
|
Quality certificate

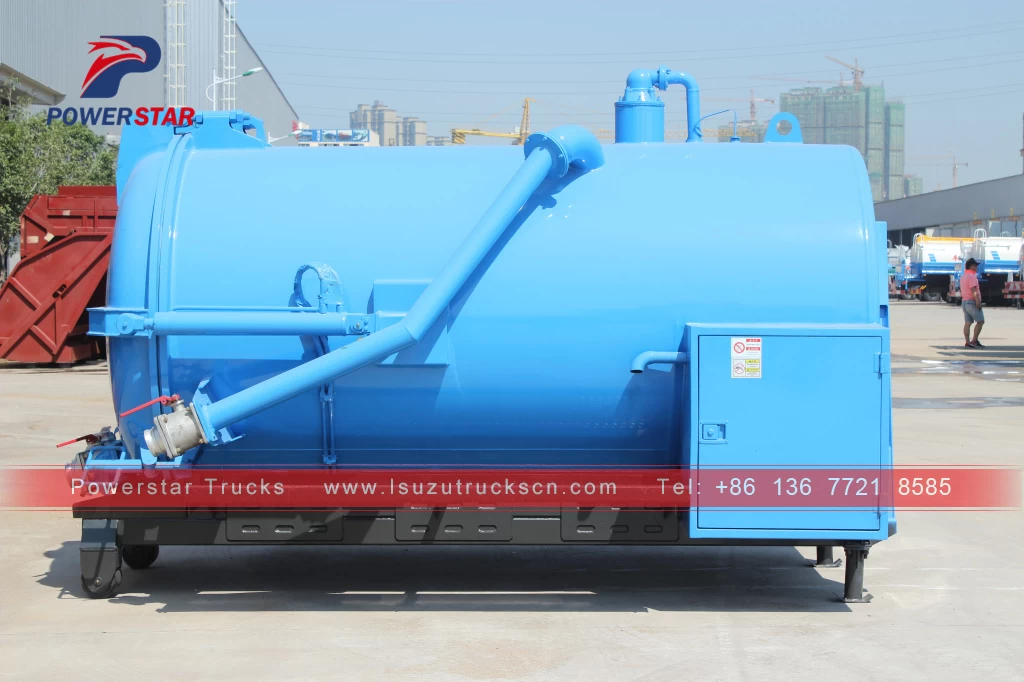

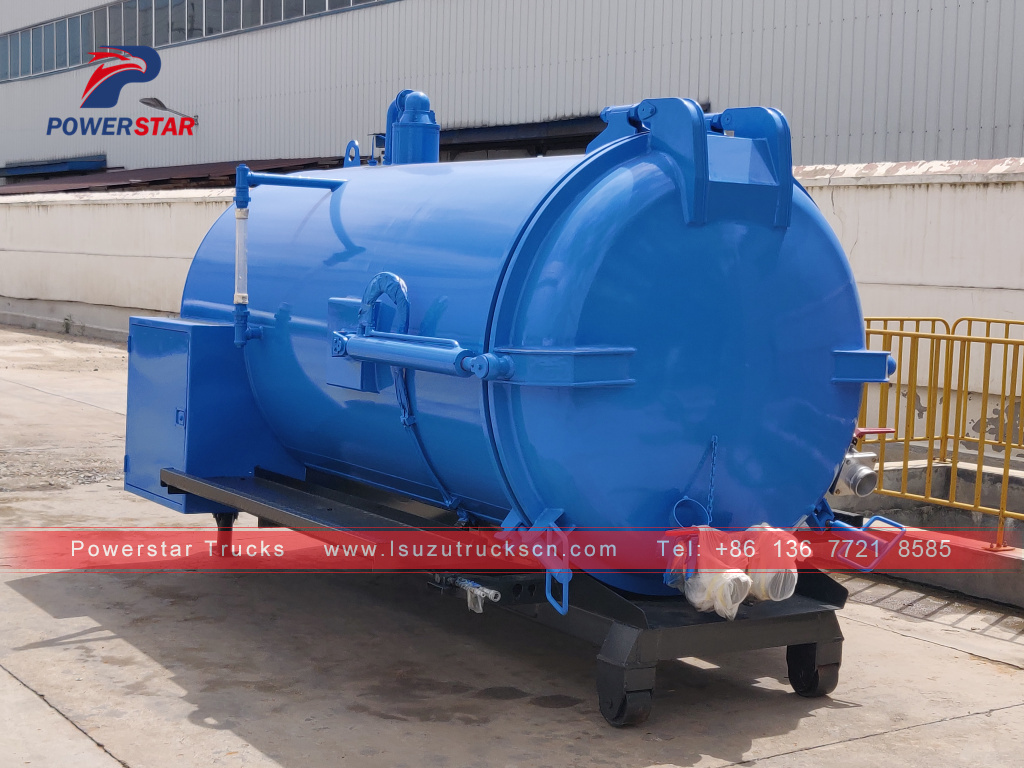

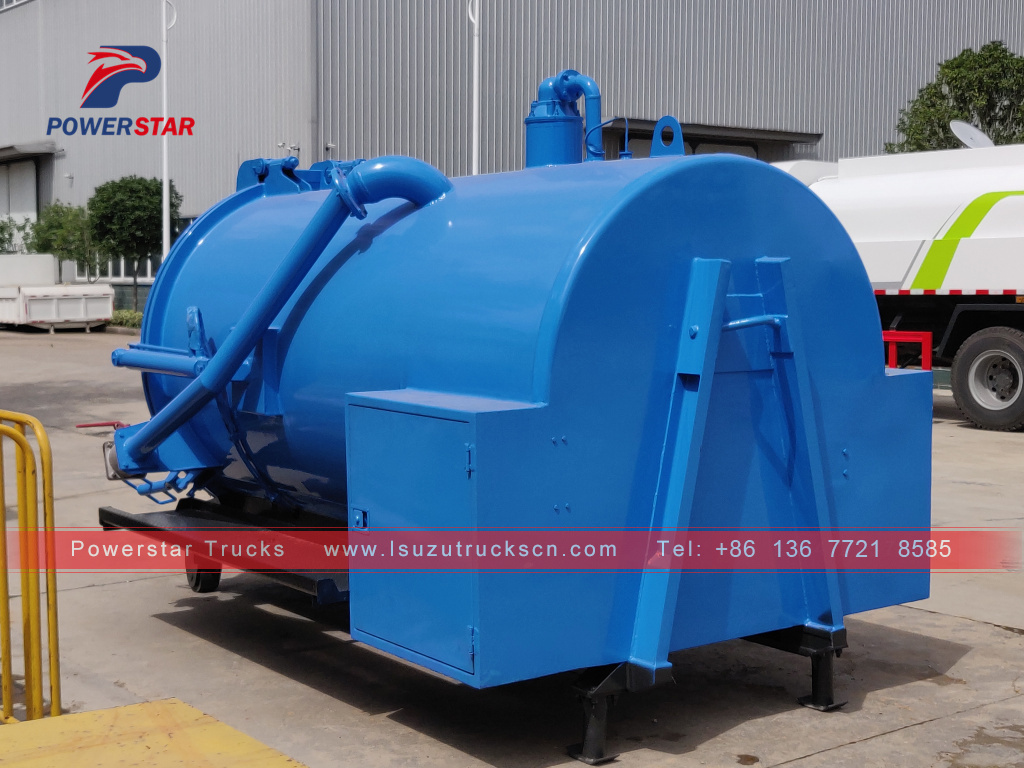

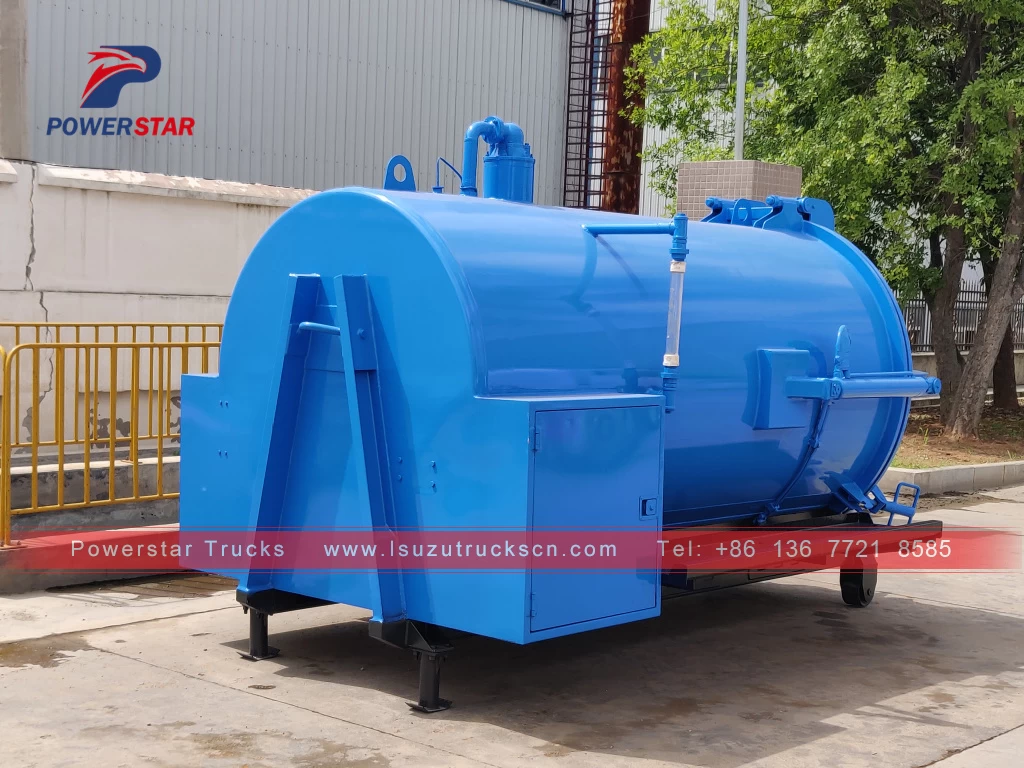

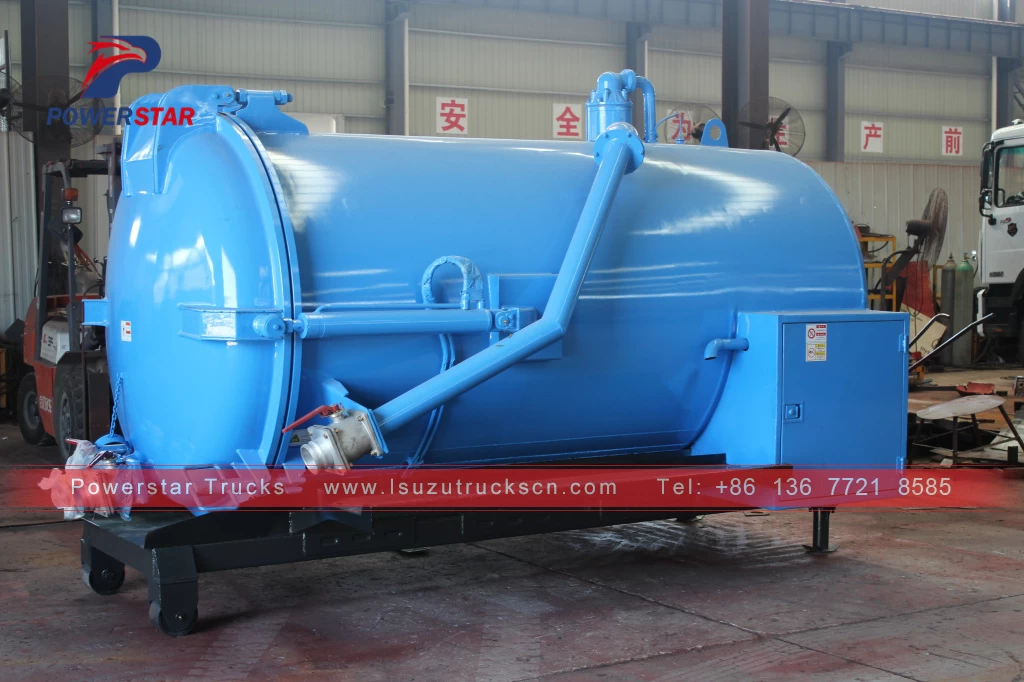

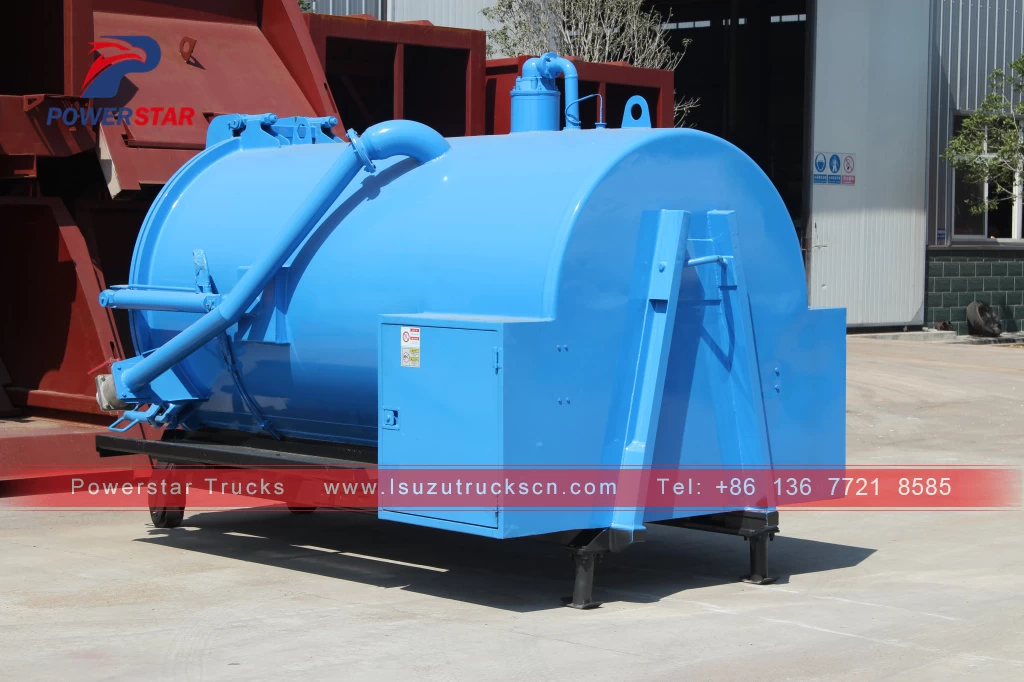

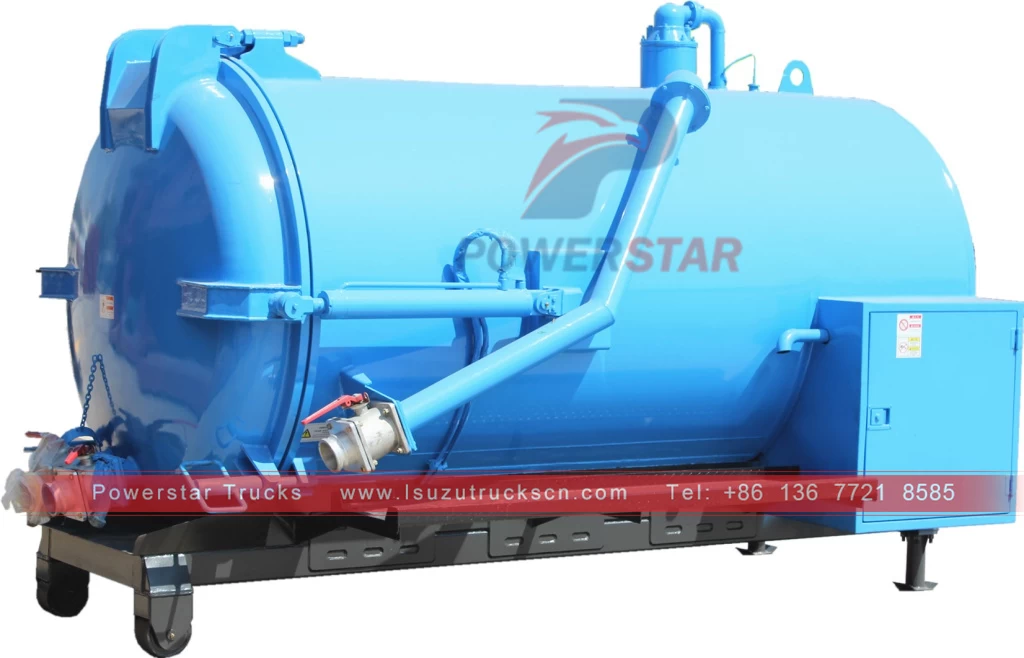

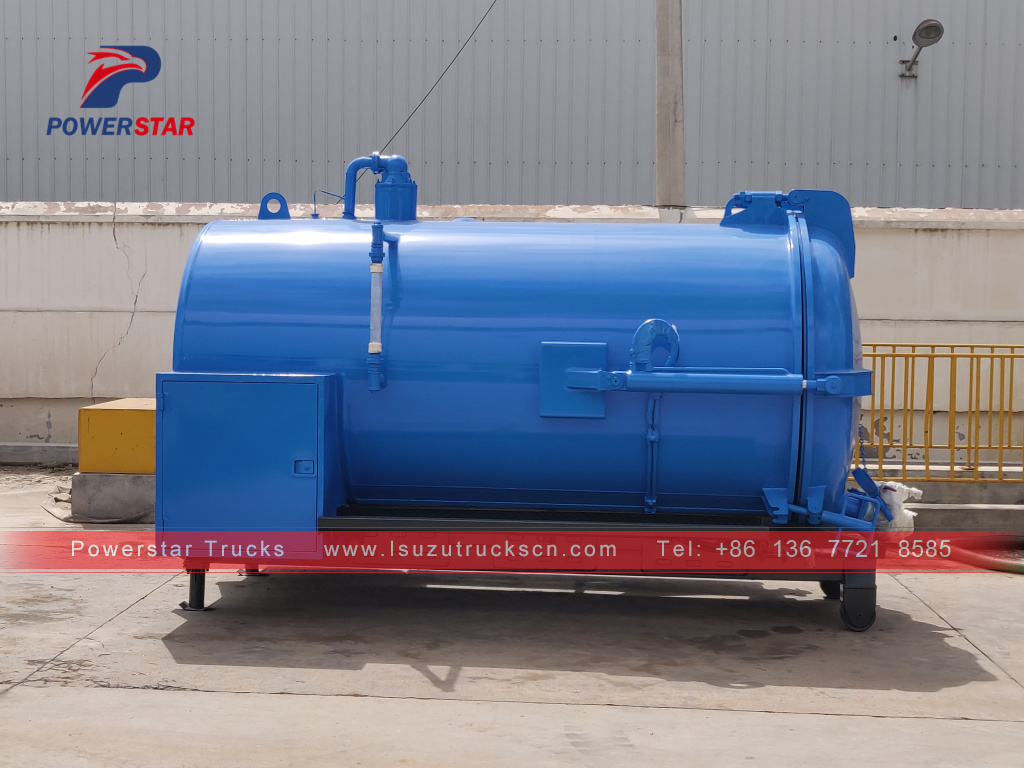

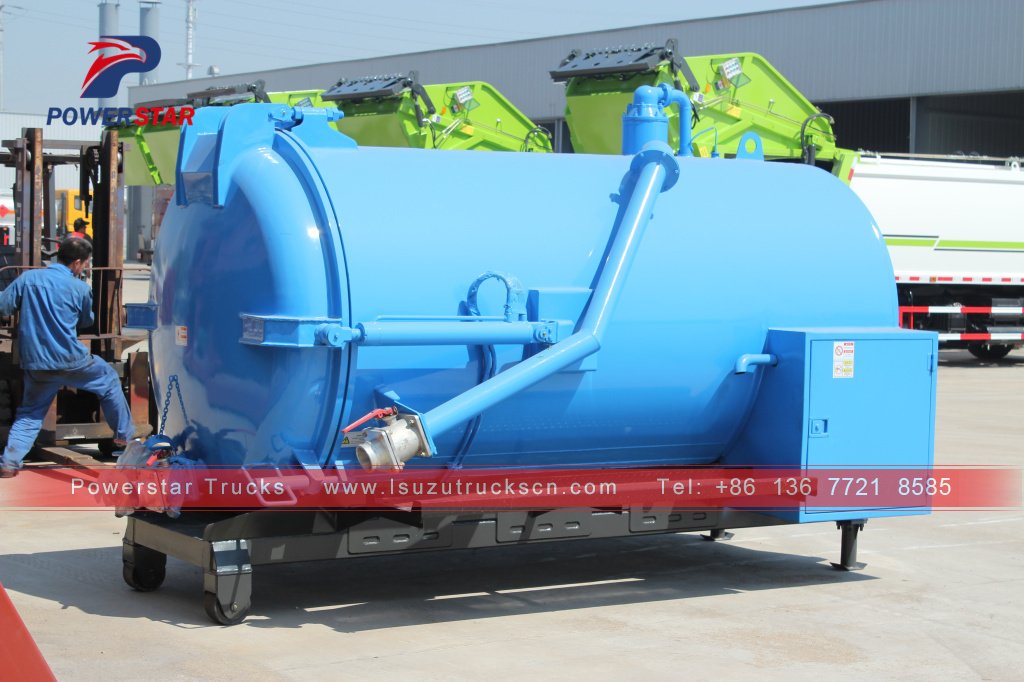

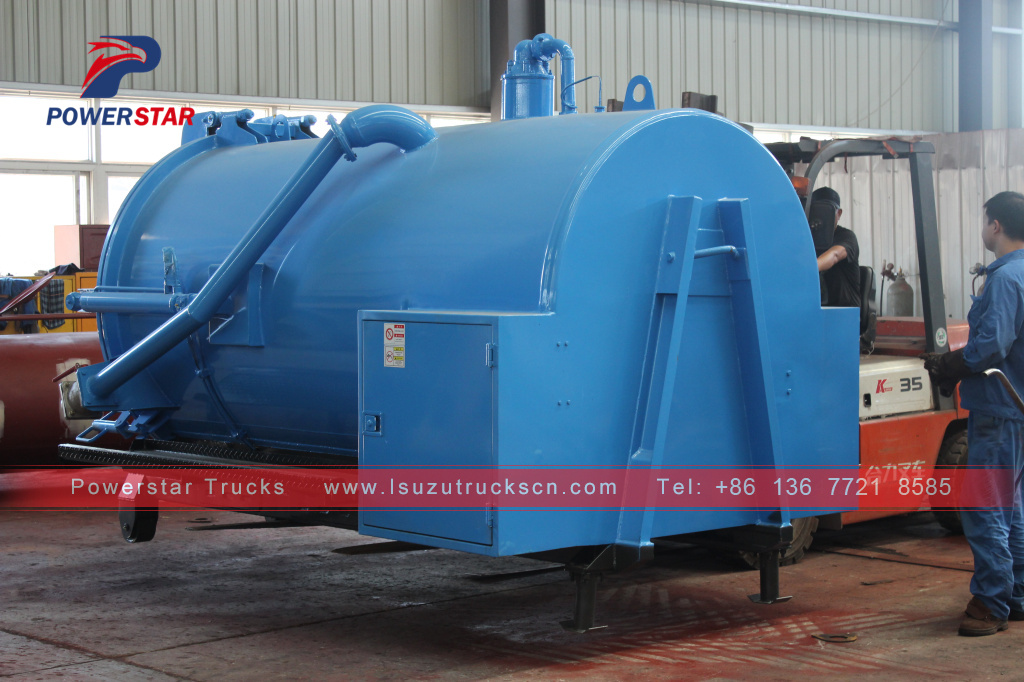

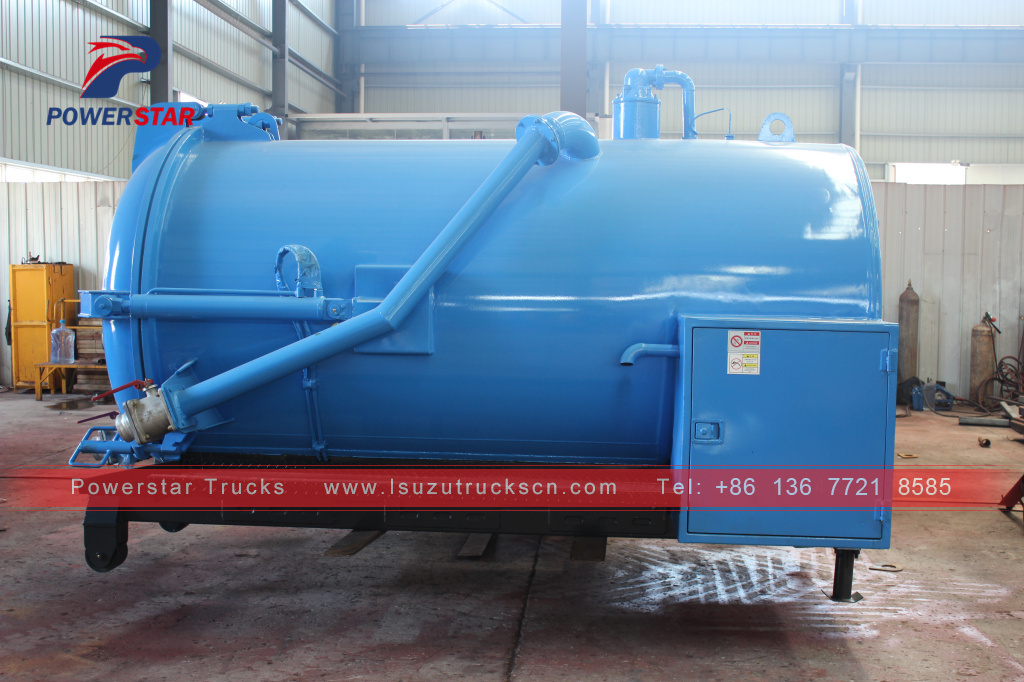

Vacuum Tanker Kits overview
sewage tanker truck body kit Isuzu vacuum truck upper structure for sale
sewage tanker truck body kit Isuzu vacuum truck upper structure for sale
sewage tanker truck body kit Isuzu vacuum truck upper structure for sale
sewage tanker truck body kit Isuzu vacuum truck upper structure for sale
sewage tanker truck body kit Isuzu vacuum truck upper structure for sale

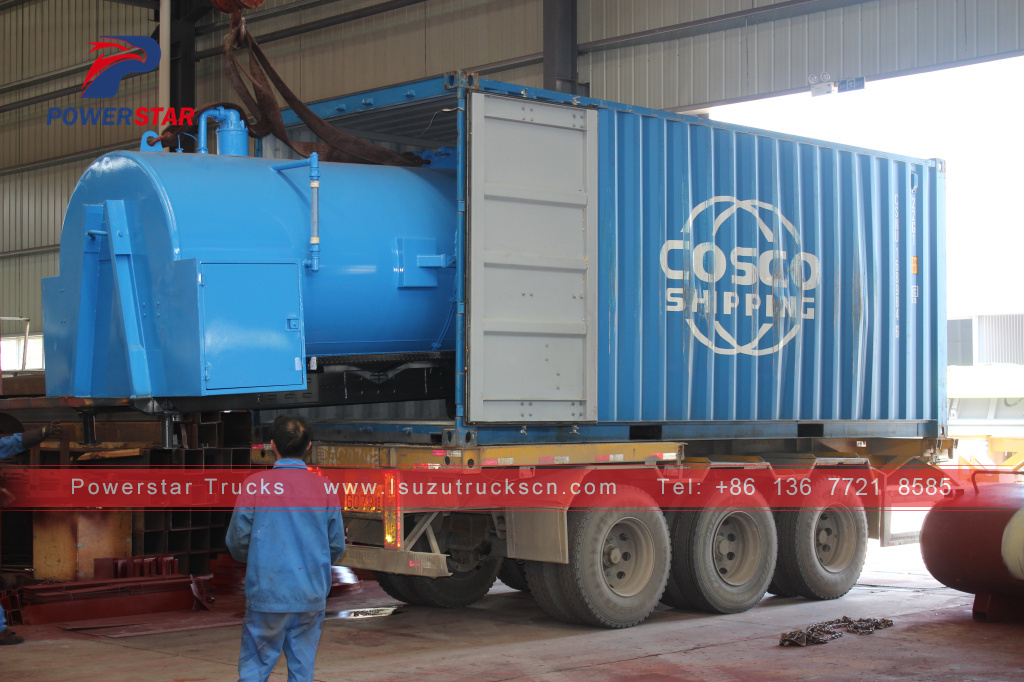

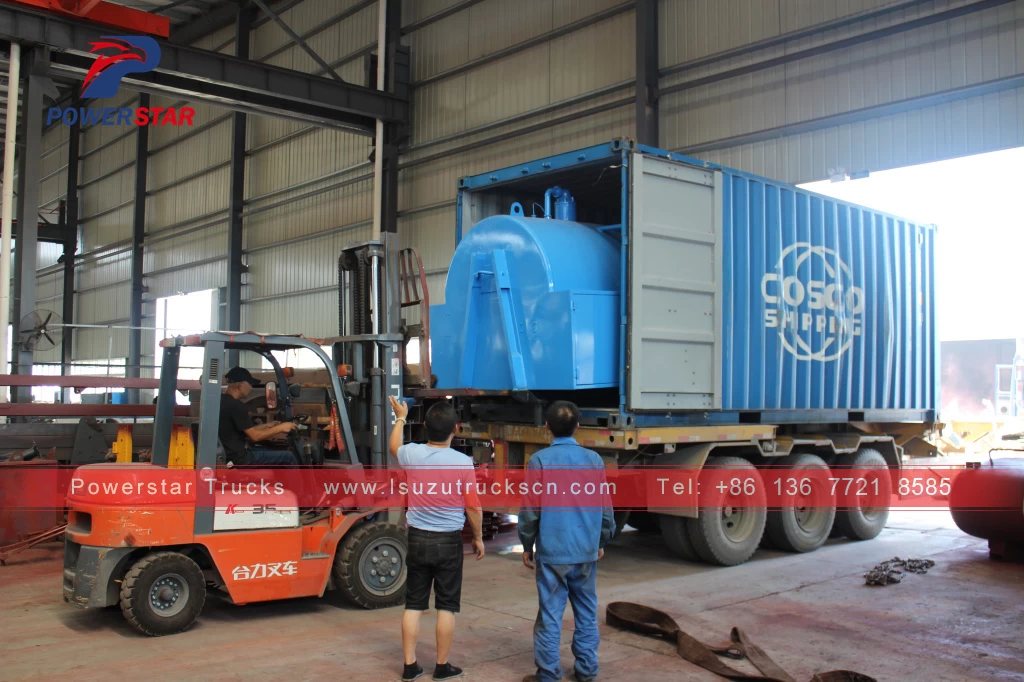

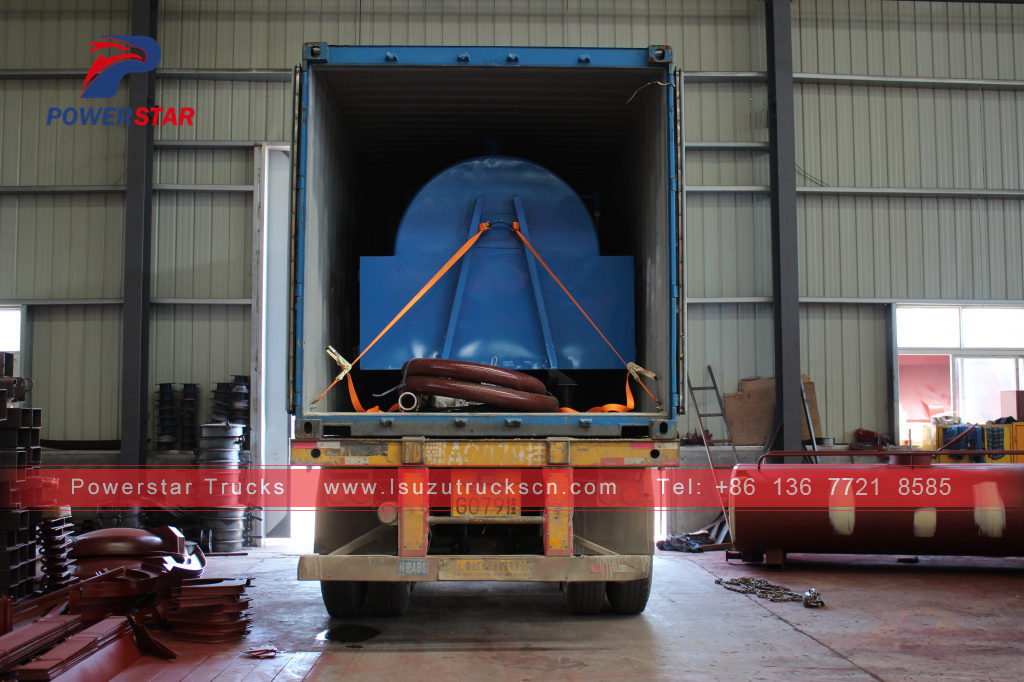

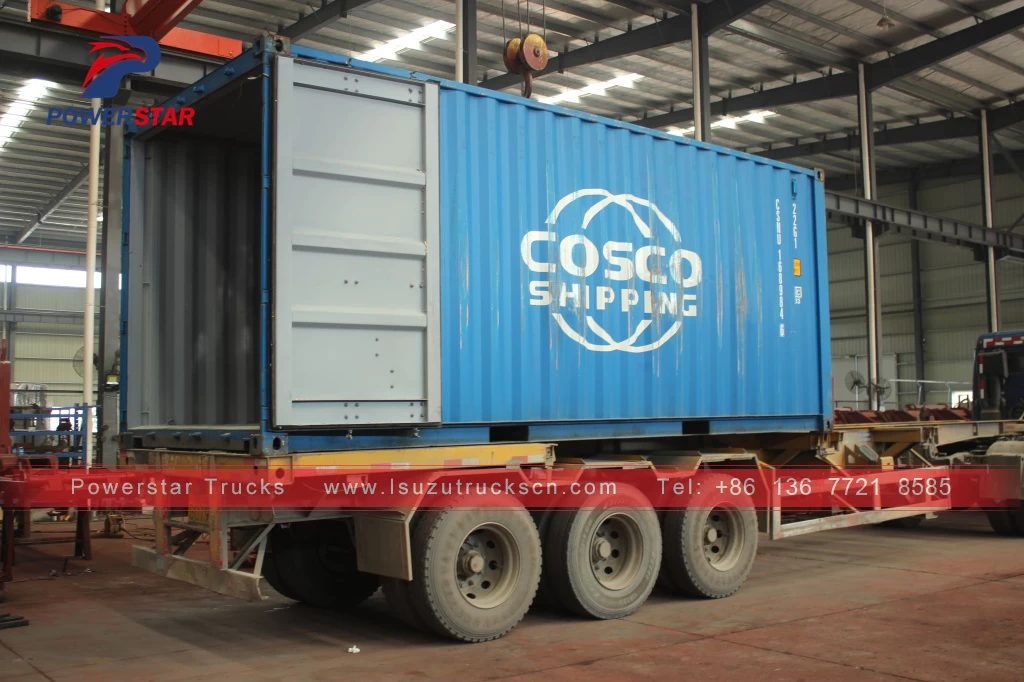

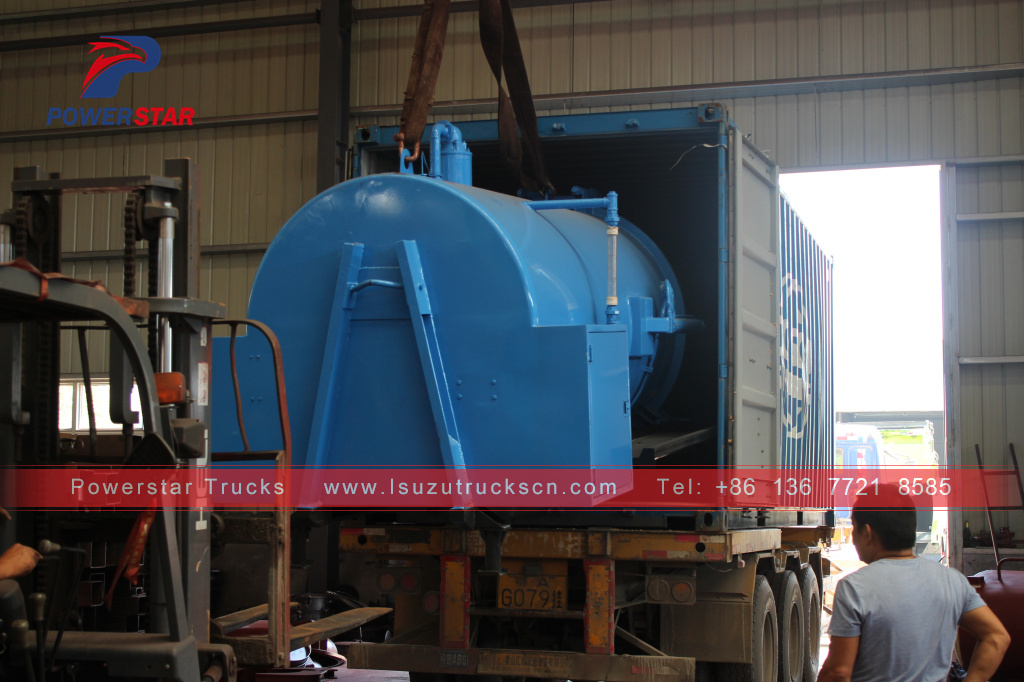

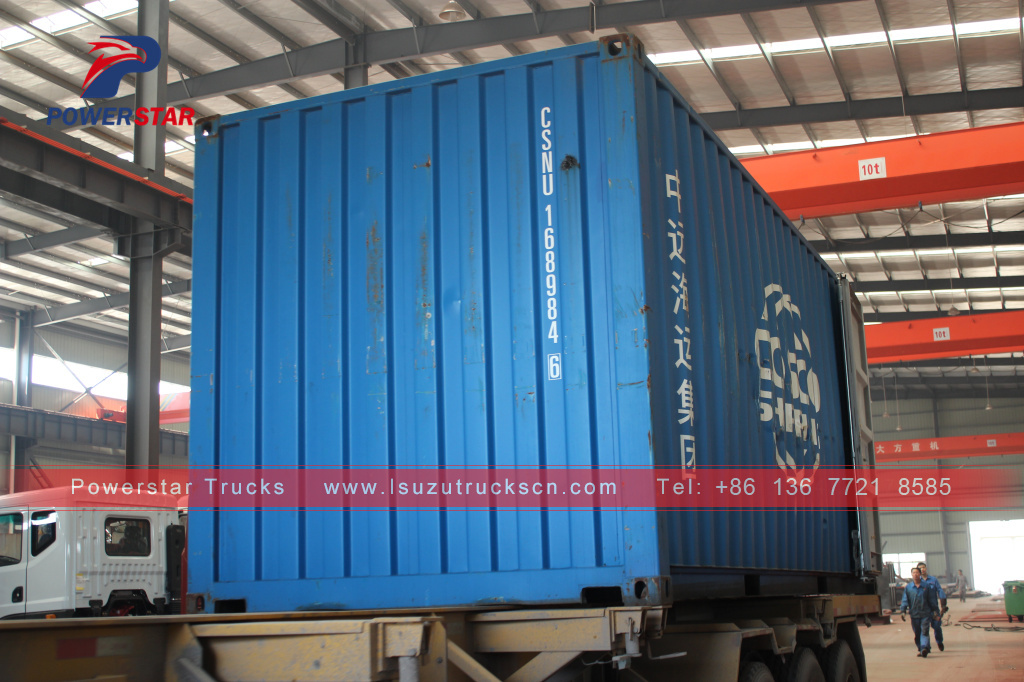

Vacuum Tank kit shipment by container, Ship to your worldwide:
