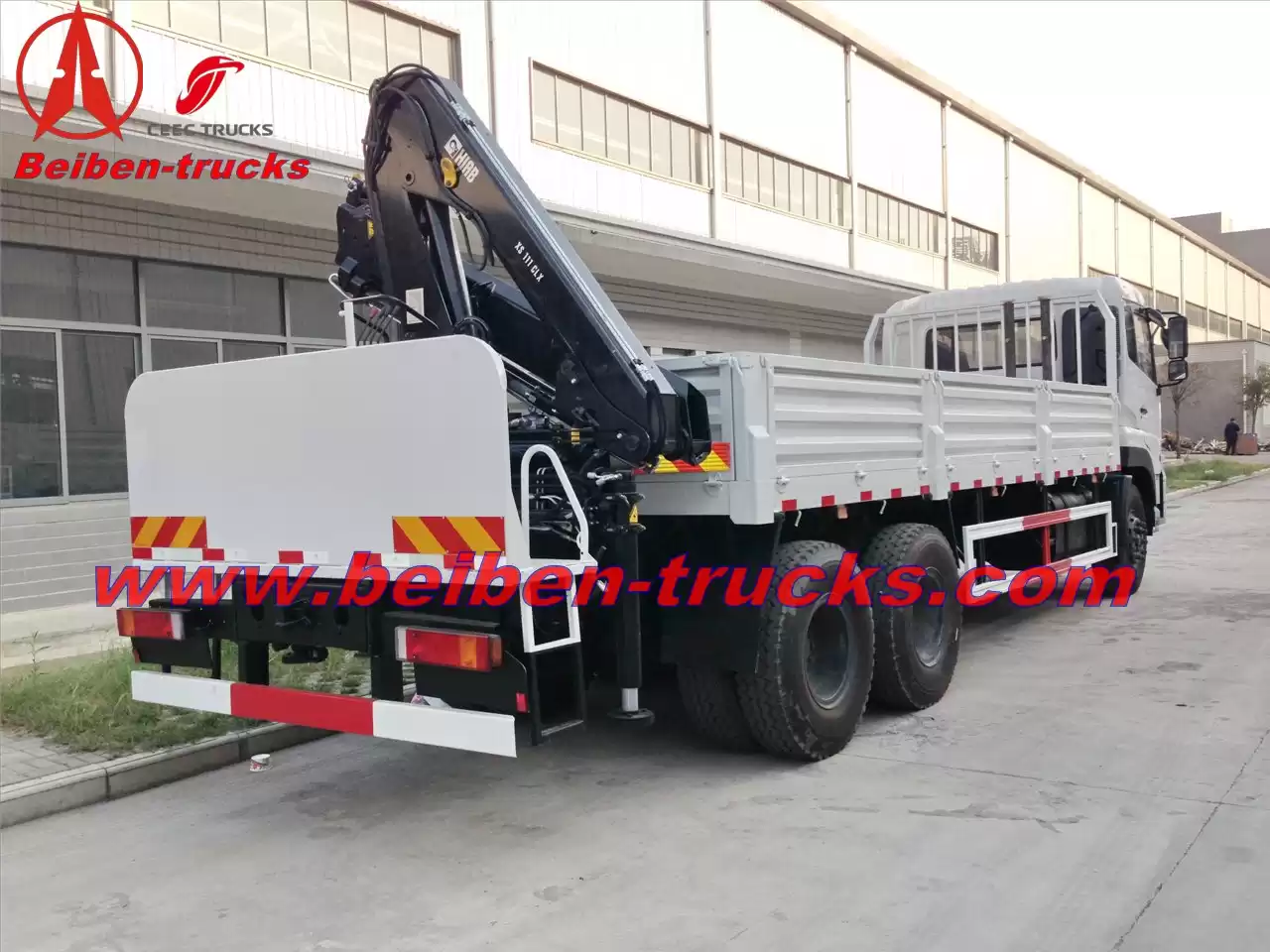

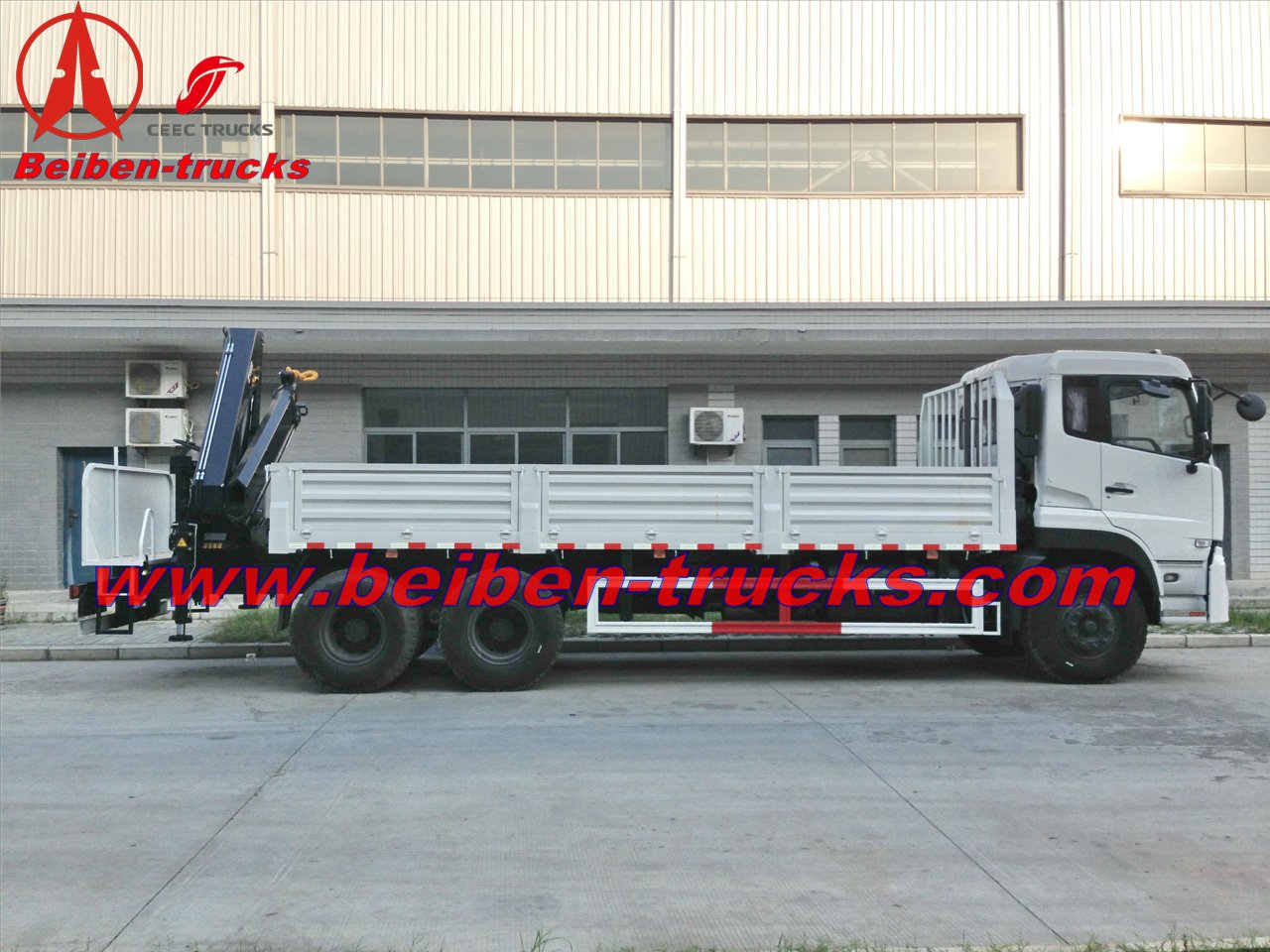

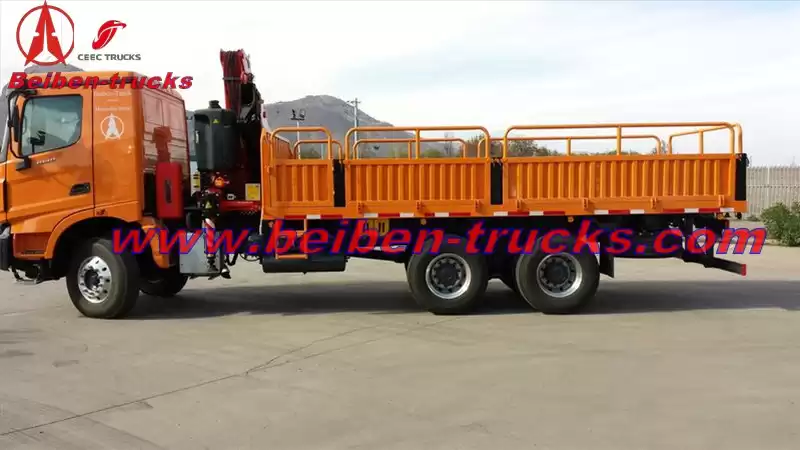

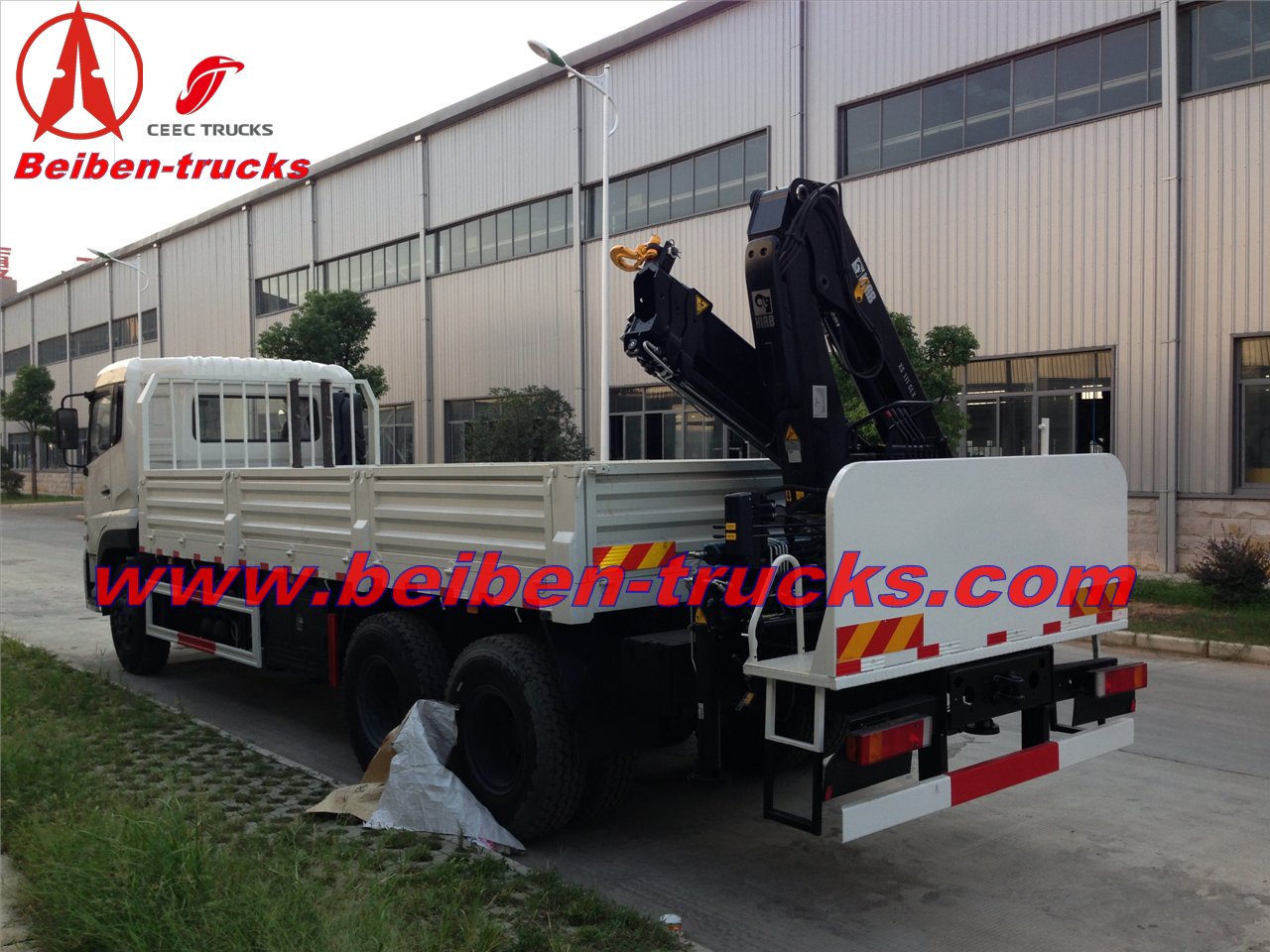

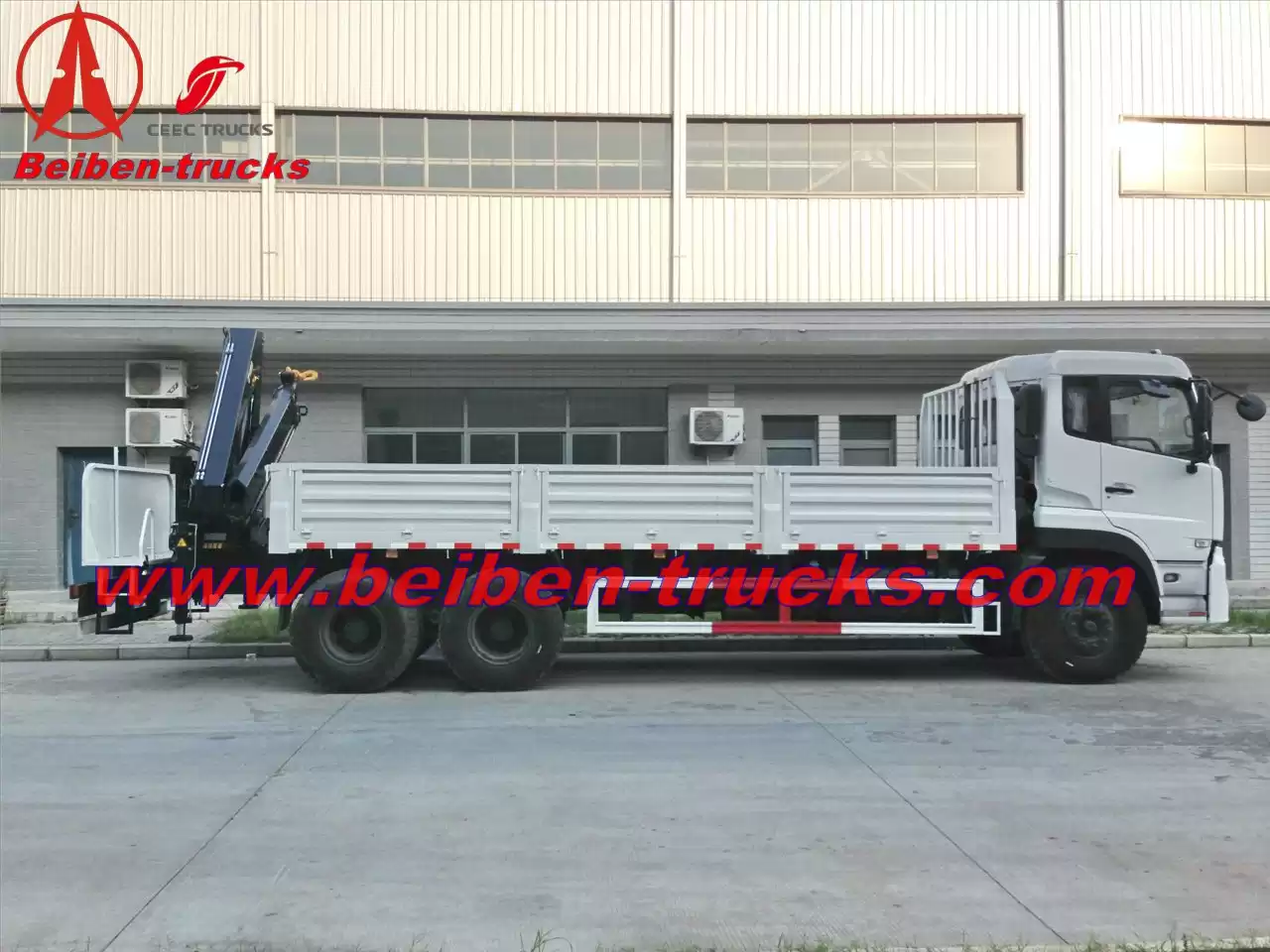

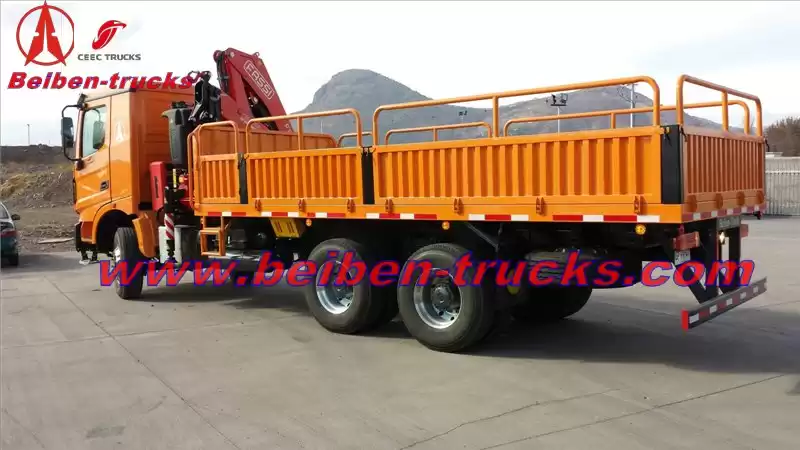

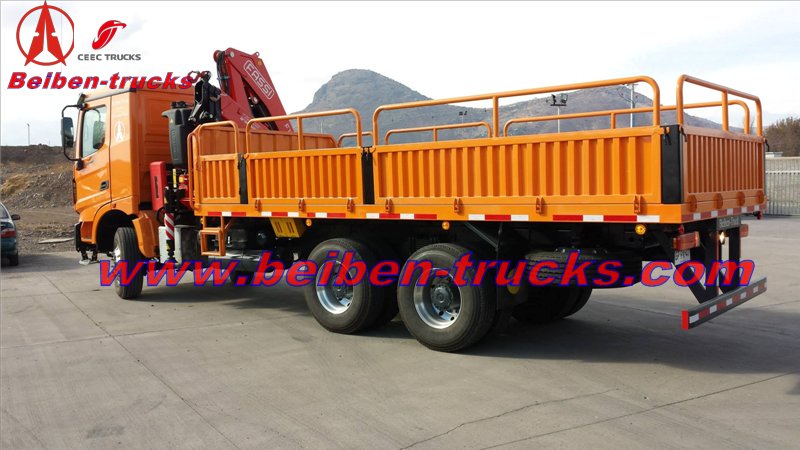

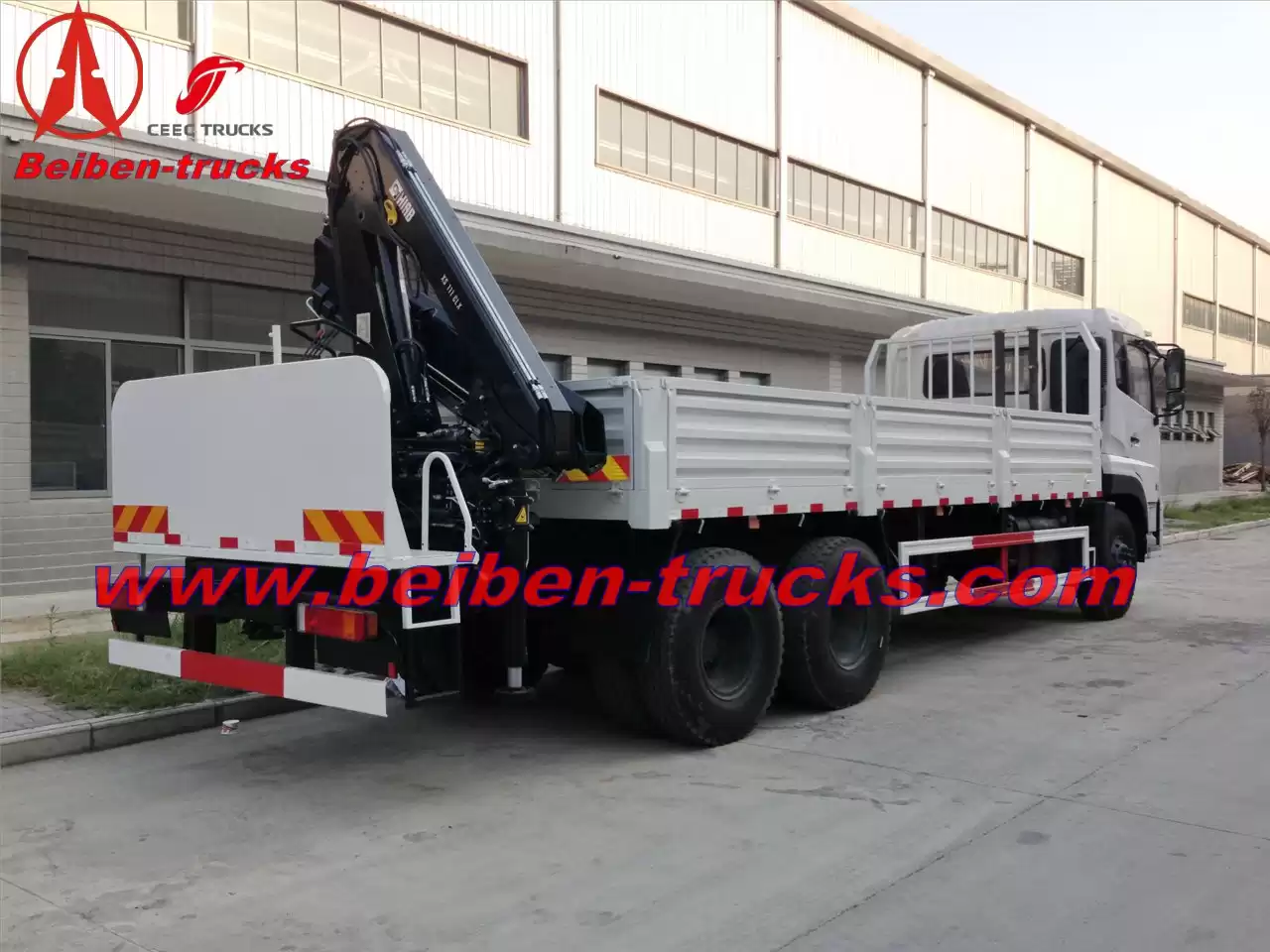

DurableHydraulic Beiben V3 6300kg Truck Mounted Crane , BeibenTruck Mounted KnuckleBoom Crane
| Model
|
SQ6.3ZK3Q
|
Unit
|

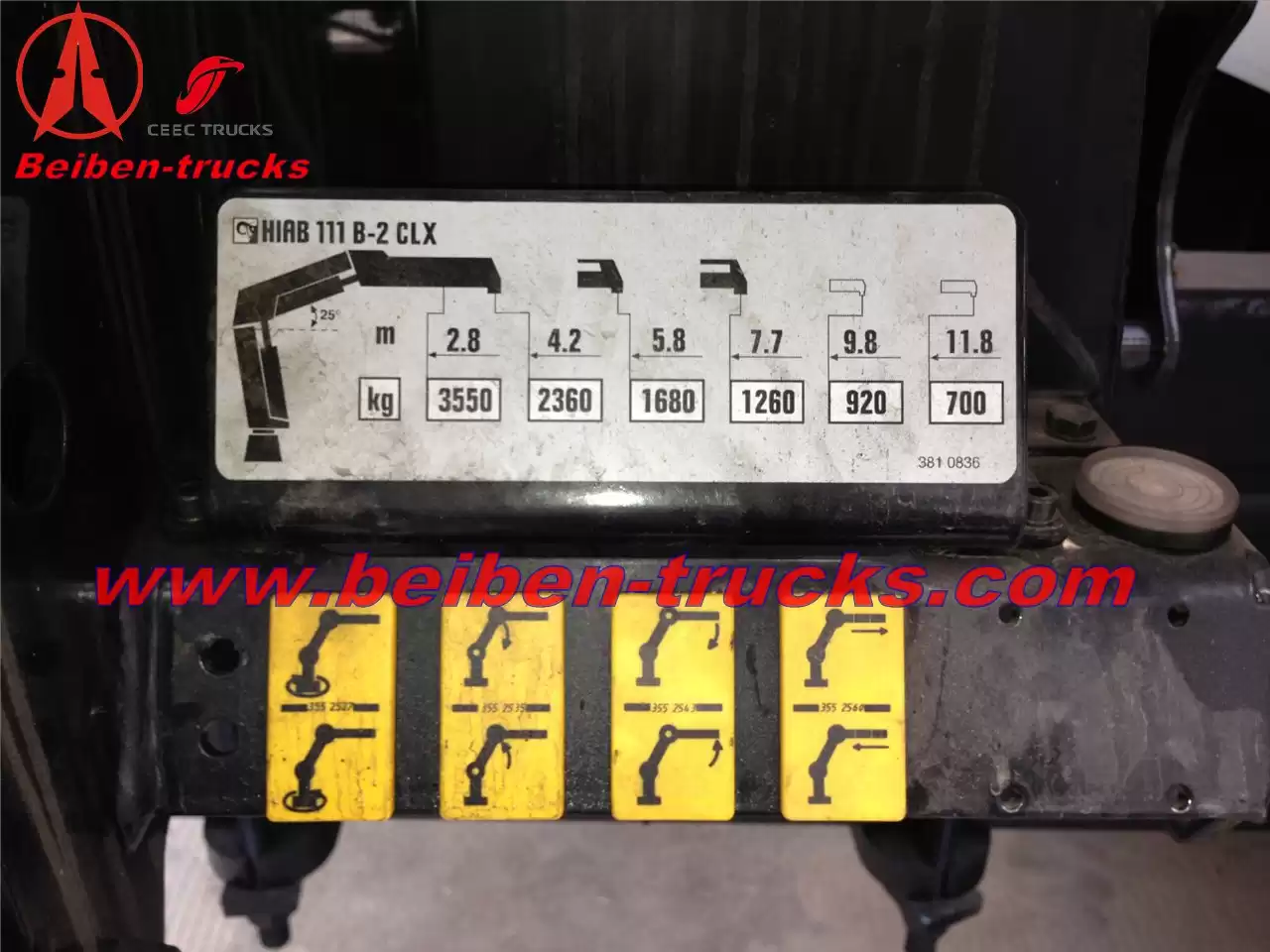

| Max Lifting Moment
|
13.23
|
t.m
|
| Max Lifting Capacity
|
6300
|
kg
|
| Recommend Power Needed At Recommend Oil Flow
|
18
|
kw
|
| Max Oil Flow of Hydraulic System
|
25
|
L/min
|
| Rated Pressure Of Hydraulic System
|
28
|
MPa
|
| Oil Tank Capacity
|
90
|
L
|
| Rotation Angle
|
(360°) All Rotation
|
°
|
| Crane Weight
|
2226
|
kg
|
| Installation Space
|
1050
|
mm
|
Applications:
It can be applied on most common Commercial Truck-mounted Cranes. Rangecovers light to medium crane. With small mounting size and weight to save yourpayload, minimizing loading and unloading time, is the best choice of truckmounted crane facilities.
Specifications:
| Sales No.
|
1630PZ
|
| Dimension（mm)
|
Long
|
8990
|
|
Wide
|
2500
|
|
High
|
3500
|
| Wheel base（mm）
|
5500
|
| Drive
|
4×2
|
| Engine
|
Model
|
WP10.300N
|
| Cabin
|
NG80B/ short cab
|
| Clutch（mm）
|
Φ430
|
| Front Axle
|
7.5T
|
| Rear/Mid Axle
|
Model/speed radio
|
Double Reduction Driving Axle /5.263
|
| Steering System
|
ZF8098
|
| Braking System
|
Dual Circulation Air Brake System
|
| Fuel Tank（L）
|
400L
|
| Frame/mm
|
317×70×8.5+7
|
| Tire
|
12.00R20
|
| Front/Rear Overhang
|
1410/2055
|
| Transmission
|
Fuller 9JS135
|
| Curb Weight（kg)
|
7900
|
| Max loading Weight(kg)
|
7950
|
| Max Speed（km/h)
|
90
|
