6*6 10wheels Heavy duty Truck Mounted Workshop Truck

Japanese Mobile Repair and maintenance vehicle supplier,ISUZU Mobile Car Workshop truck for Lubrication and Maintenance ,Mobile Workshop Truck,ISUZU ELF 700P 4x2 workshop truck/toll vehicle





6*6 10wheels Heavy duty Truck Mounted Workshop Truck



 6*6 10wheels Heavy duty Truck Mounted Workshop Truck

Mobile Workshop Trucks

Mobile Workshops Trucks is special for Heavy equipment repair and maintenance, Field Living, Field Operating, Oil Field, Mineral Exploration purpose, equipped with complete repair tools and accessories, independent power support system, steel tools storage cabinet, steel working tables.



Up on request, we can offer countless Mobile Workshop Unit equipment variations to suit your individual requirements, providing optimal solutions to your specific disposal operations.



Detail Specifications:

Equipment for Mobile Workshop

Item

Description

Technical Data

Measurement

Weight

Qty.

1

Chassis

As Option ISUZU,HINO,IVECO







2

Drive type

4x2, 6x4, 4x4, 6x6







3

Power Set
(Generator)

As Option

2030x650x1255(mm)

1030kg

1

Rated Power: 40KW

Rated Voltage: 400/230V

Rated Frequency: 50Hz

Rated Current: 72.2A

Output: 3-phase, 4-line

Diesel Engine: R4100ZD

Generator Model: TZH-40

4

Welding Set

As Option

406x530x840(mm)

160kg

1

Voltage: 380V

Phase: 3

Frequency: 50/60Hz

Initial Current: 29.6A

Range: 25-250A

Input: 19.2KVA

Working Ambient: -10--+40oC

5

Air Compressor

As Option

1180x410x850(mm)

130kg

1

Voltage: 380V

Frequency: 50Hz

Power: 3KW

Pressure: 0.7MPa

Capacity: 0.36M3/mm

6

Drilling Machine

As Option

760x490x260(mm)

57kg

1

Bore Range: 3--16mm

Power: 700W

7

Vice

Size: 150mm







8

Grinding Machine

Model: MQ3225





1

Size: 250mm

Power: 700W

9

Oxygen Cylinder

Volume: 40L





1

10

Acetylene Cylinder







1

11

Gas Welding Set







1

12

Working Bench

Steel Panel

2300x550x780(mm)



1

13

Hand Tools

M6--16 drilling set; Hack Saw;







Hammer; Portable Oil Pump;

3--16mm Thread Tapper;

Spanner sets; Socket Spanner Sets

Files; Clamps

Recently Customer Build Examples:

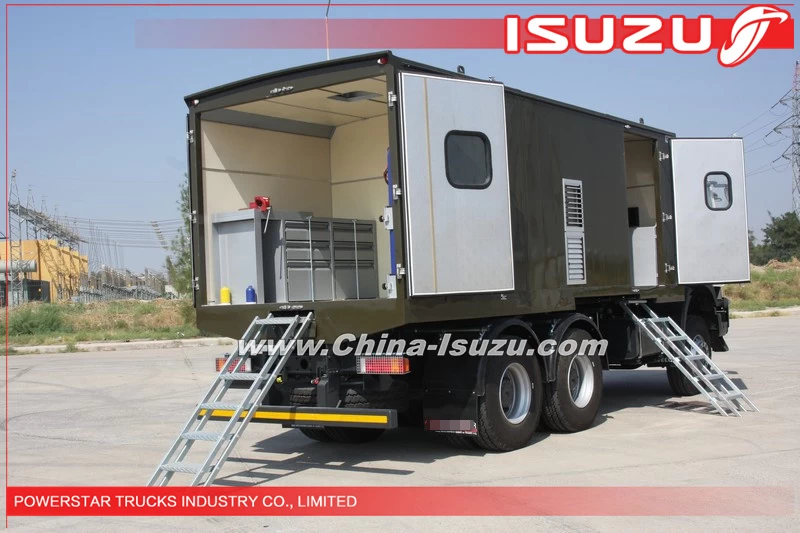

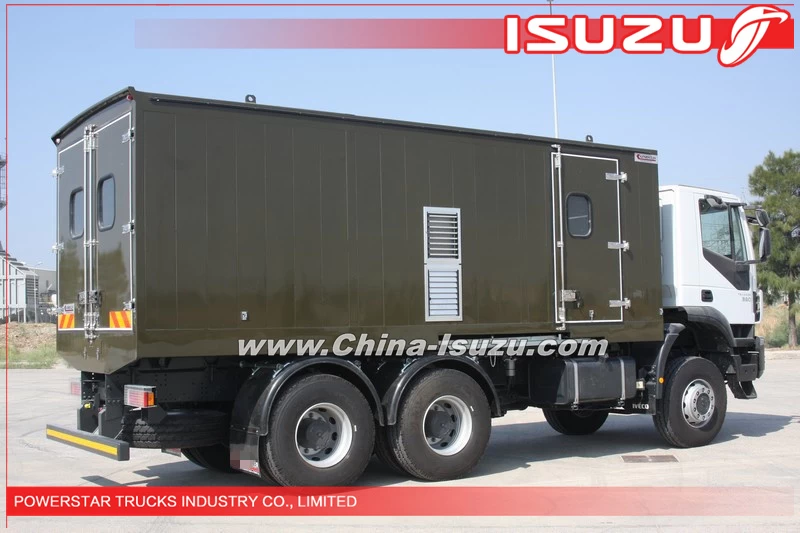

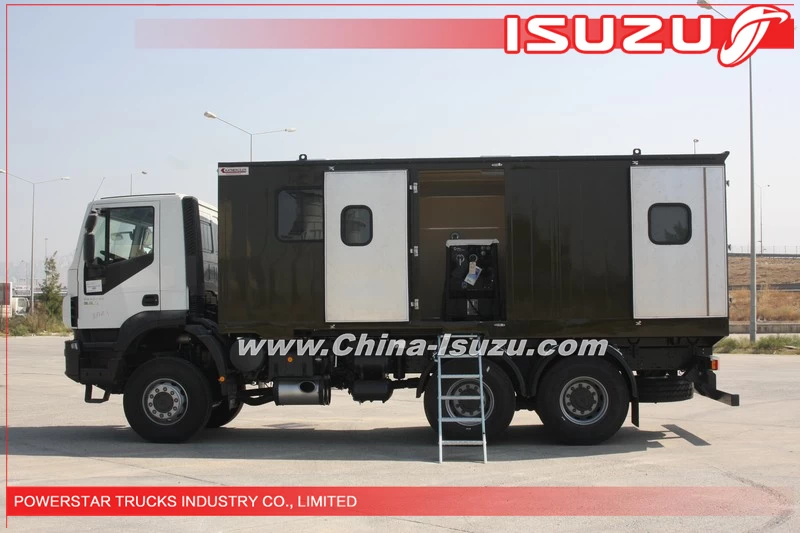

6*6 10wheels Heavy duty Truck Mounted Workshop Truck



6*6 10wheels Heavy duty Truck Mounted Workshop Truck



6*6 10wheels Heavy duty Truck Mounted Workshop Truck



6*6 10wheels Heavy duty Truck Mounted Workshop Truck
