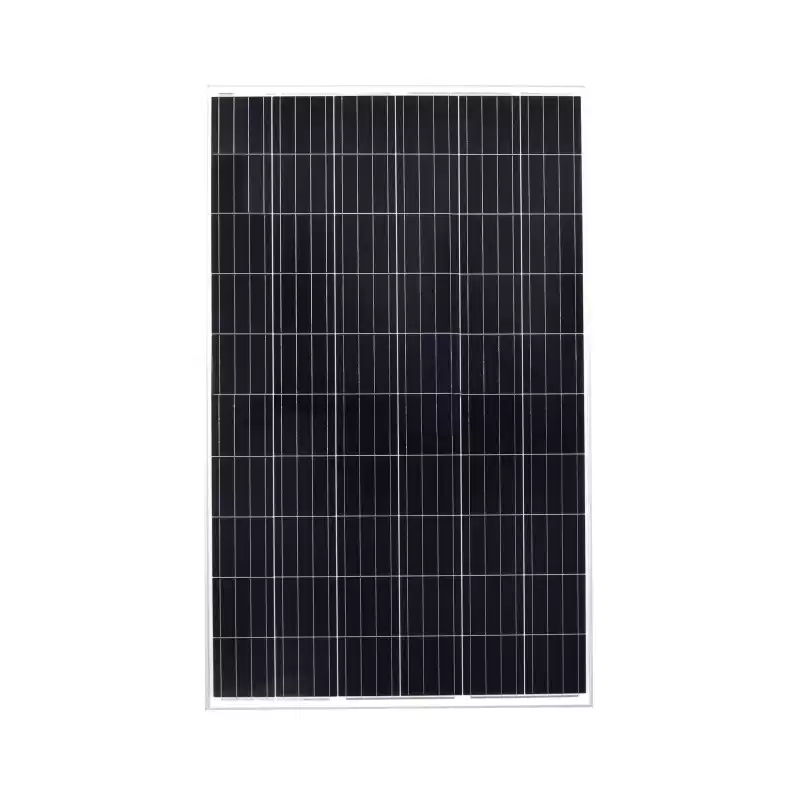

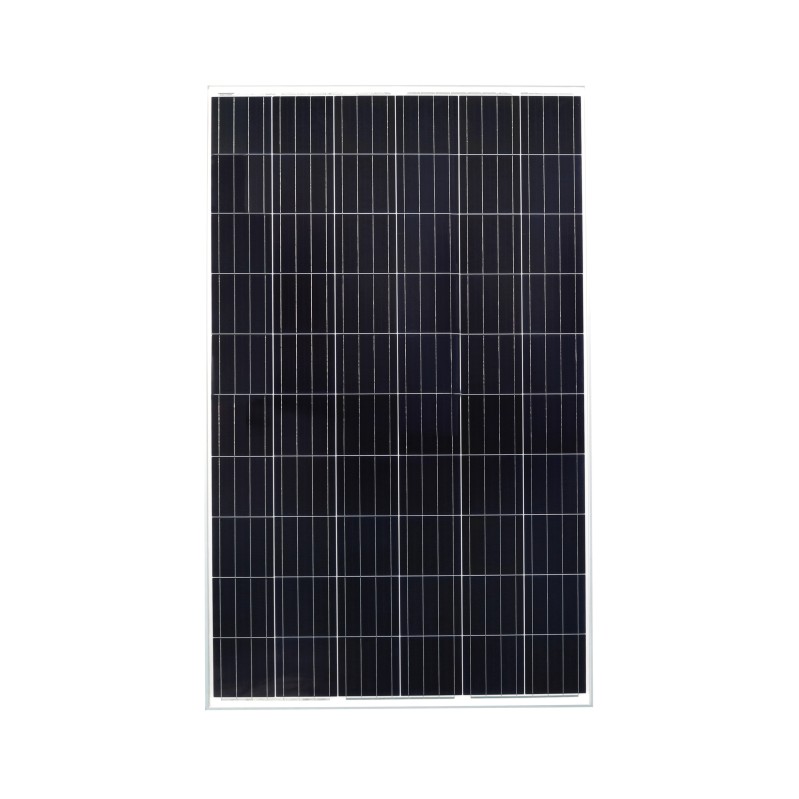

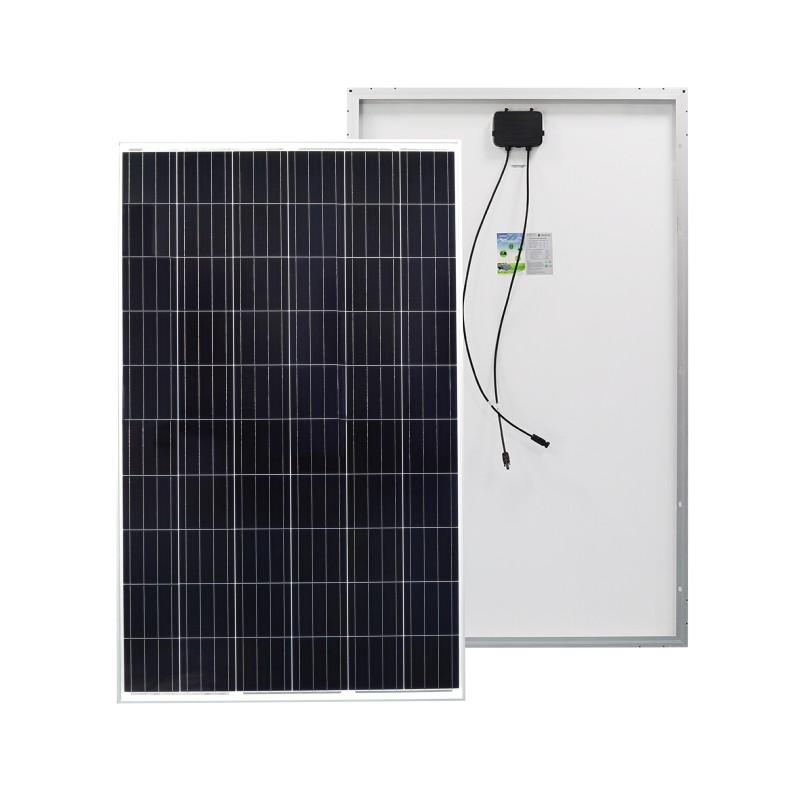

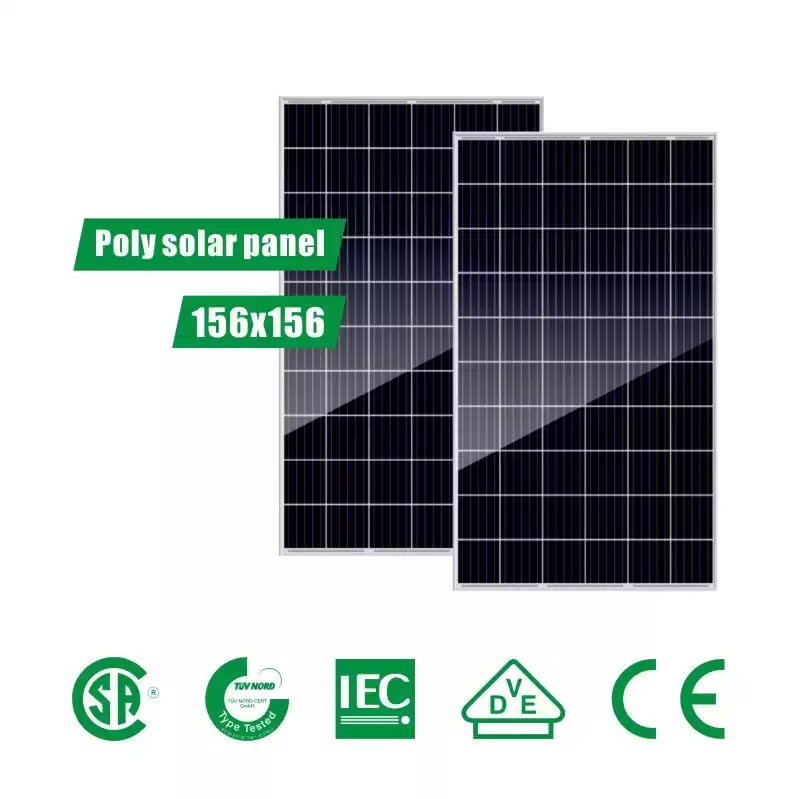

6 inch 60 cells(240~275W) Poly Solar Module

EverExceed 156x156 Poly Solar photovoltaic modules are built with EverExceed's highly regulated manufacturing standards and latest Standard technology. EverExceed's Polycrystalline Standard Modules are built to deliver the most cost effective performance. Pluto's extra fine cell fingers (~30μm), reduce surface shading and boost sunlight absorption into the cell and give the product a sleek appearance.



  • Dimension1650x992x35mm
  • Cell Configuration60(6x10)
  • Cell Size156.75x156.75mm
  • Type of CellPolycrystalline
  • Weight19.5kg



Technical Features








High Flexibility

High Reliability

Great PID Resistant
The most flexible solution for any rooftop condition and orientation


Sand blowing test, salt mist test and ammonia test passed to endure harsh environments

Selected encapsulating material and stringent production process control ensures high PID resistance and snail trails free










High Performance

Latest Technology

Easy Maintenance
Optimized system performance due to module level current sorting

Special cutting and soldering technology leads to low hotspot risk

Highly transparent self-cleaning glass brings additional yield and easy maintenance



    Advantages





 High module conversion efficiency through 156.75 high efficiency cell and 5 multi busbar

10 years material and workmanship guarantee

Easy installation and handling for various applications

95% power output guarantee for 5 years

Module certified to Withstand High Entire Wind  loads (2400Pa) and Snow loads (5400Pa)


90% power output guarantee for 10 years

ISO9001, ISO14001, OHSAS18001

80% power output guarantee for 25 years




Product Details

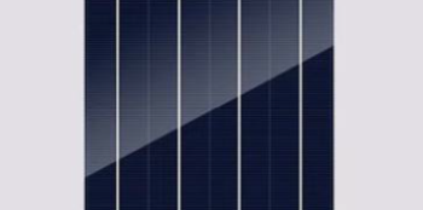

② Glass
• CSG brand, high-strength tempered glass;
• Translucency of normal luminance
is increased by 2%;
• Module efficiency is increased by 2%;  • Self-cleaning function;  • Wind pressure resistance 2400pa;
• Snow pressure resistance 5400pa;

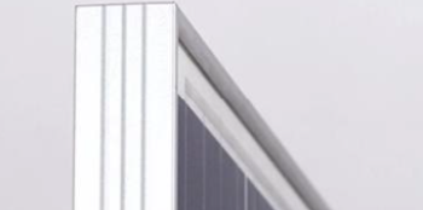

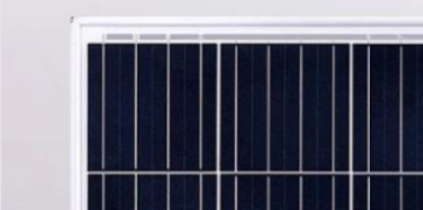

① Frame
• Strong mechanical load resistance;
• Anodic oxidation layers resist to chemical corrosion;
• Anodized aluminium alloy frames;
• Boost bearing capability and service life;

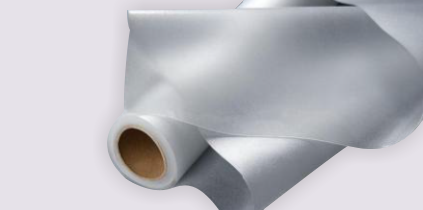

③ EVA Film
• Imported   from Japan BRIDGESTONE material, 0.46-0.5mm thick;
• Light transmitance more than 92%;
• Smail trail prevention treatment;
• UV resistance against ageing;

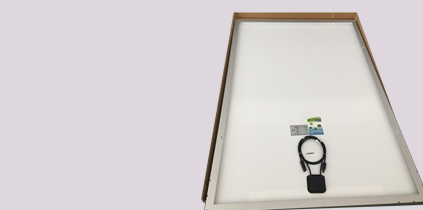

⑤ Back sheet
• Japanese DNP NIPPON material, 0.3-0.35mm thick, poor quality manufacturers use thin PET material, the cost is 50% lower;
• Low moisture permeability against snail trail defect;
• Outstanding weatherproof performance;


④ Solar Cell
• High efficiency A grade PV Cells;
• The suppliers are first-line brands such as MOTECH, JA SOLAR, QCELL Germany, SUNWAYS Germany, etc;
• Appearance consistency;
• Color sorting ensure consistent appearance on each module;
• Anti -PID;

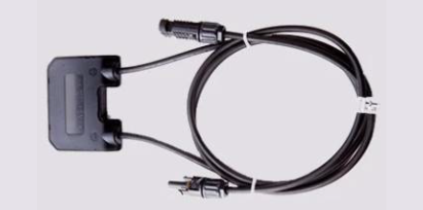

⑥ Junction box
• Conventional standalone edition and engineering custom edition;
• Quality diodes ensure module's  safe   operation;
• IP67 protection level;
• TUV Certified;
• Heat dissipation;
