6 m³

Euro standard 6m³ rubbish compactor kit, high strength steel material compactor body, with thickness for side and floor 4mm, import SIEMENS control PLC model, hydraulic cylinder control the tailgate, push plate, slide plate, whole English version control box for easy operation



Recommend Chassis in China:

DongFeng brand: 4*2 & 4*4 model, with LHD and RHD optional

ISUZU brand: 4*2 & 4*4 model, only LHD

Beiben brand: 4*2 & 4*4 model, with LHD and RHD optional

Other brand: SHACMAN, FAW, SINOTRUK, etc


Recommend Chassis in customer country:

Can be refitted on any chassis based on Chassis CAD Drawing, such as ISUZU, HINO, Mitsubish, BENZ, MAN, etc chassis.



European country 6 m³ Garbage superstructure



 6CBM garbage Compactor truck Superstructure



Type

Hydraulic Pressing Garbage Trucks Kit

Body

6 m³
1584 Gallon

Gain volume

0,8
210 Gallon

Compression

1:3

Driven hydraulic system

PTO

Container removal mechanisms

120L / 240L / 660L / 1100L Bin Containers

Accesories

Container bin lifting system (with any option)
Safety bar for gailgate
Rear light for night works.
Two foldable operator steps at the rear with safety bars
Rotating yellow beacon
Mudguards and rubber flaps
Dirty water tank in front of the body
Automatic / manual control option
Emergency button
Rear vision camera (optional)
Sand blasting and oven painting



Euro Standard 10CBM garbage Compactor truck blue painting



Compactor Garbage Truck Kit Advantages:



6CBM garbage compactor kit can bemounted at any chassis, including special RHD chassis HINO RHD chassis, ISUZU RHD chassis, Benz chassis, etc.

As the garbage truck manufacturer, we CEEC can provide the factory bottom price also with discount basedon company policy.

Broad city garbage process capacity for your choice, CEEC trash trucks capacity ranges from 2 ton to 15 ton (or 4cbm to 22cbm).

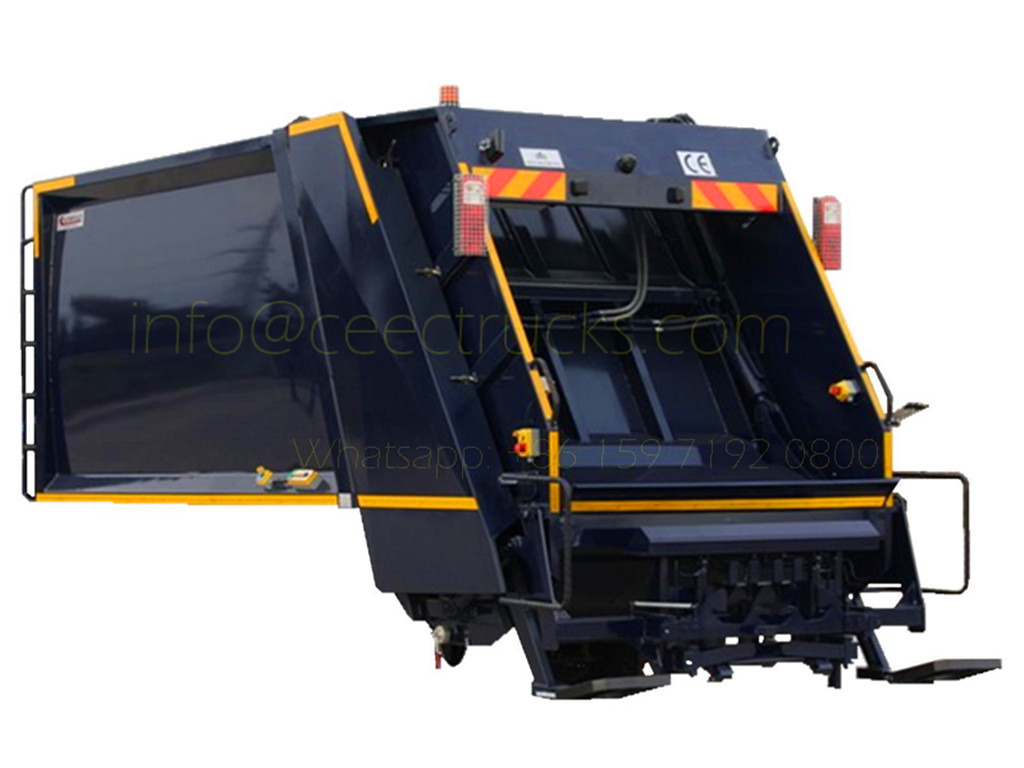

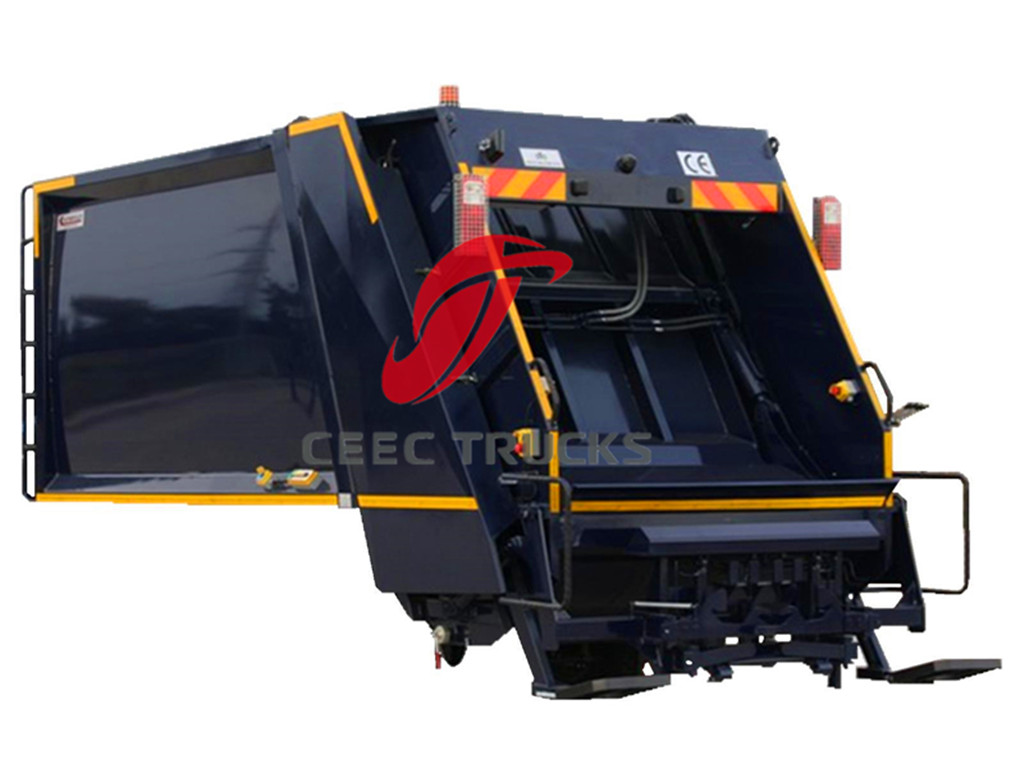

Above picture show CEEC 6000L garbage truck up-body is designed based on EURO type compactor trucks, which equipped with combined stainless steel water tank and material tank, sewage directly into the sewage tank in theprocess of compression, which effectively prevents second pollution caused bysewage leaks.

Through hydraulic system design, the compactor garbage truck achieves thefunction of two-way garbage compression, which improves the compressibility.And make the compression ratio up to 1:3,the garbage can reach more than 600~800kg/m³ after compression.

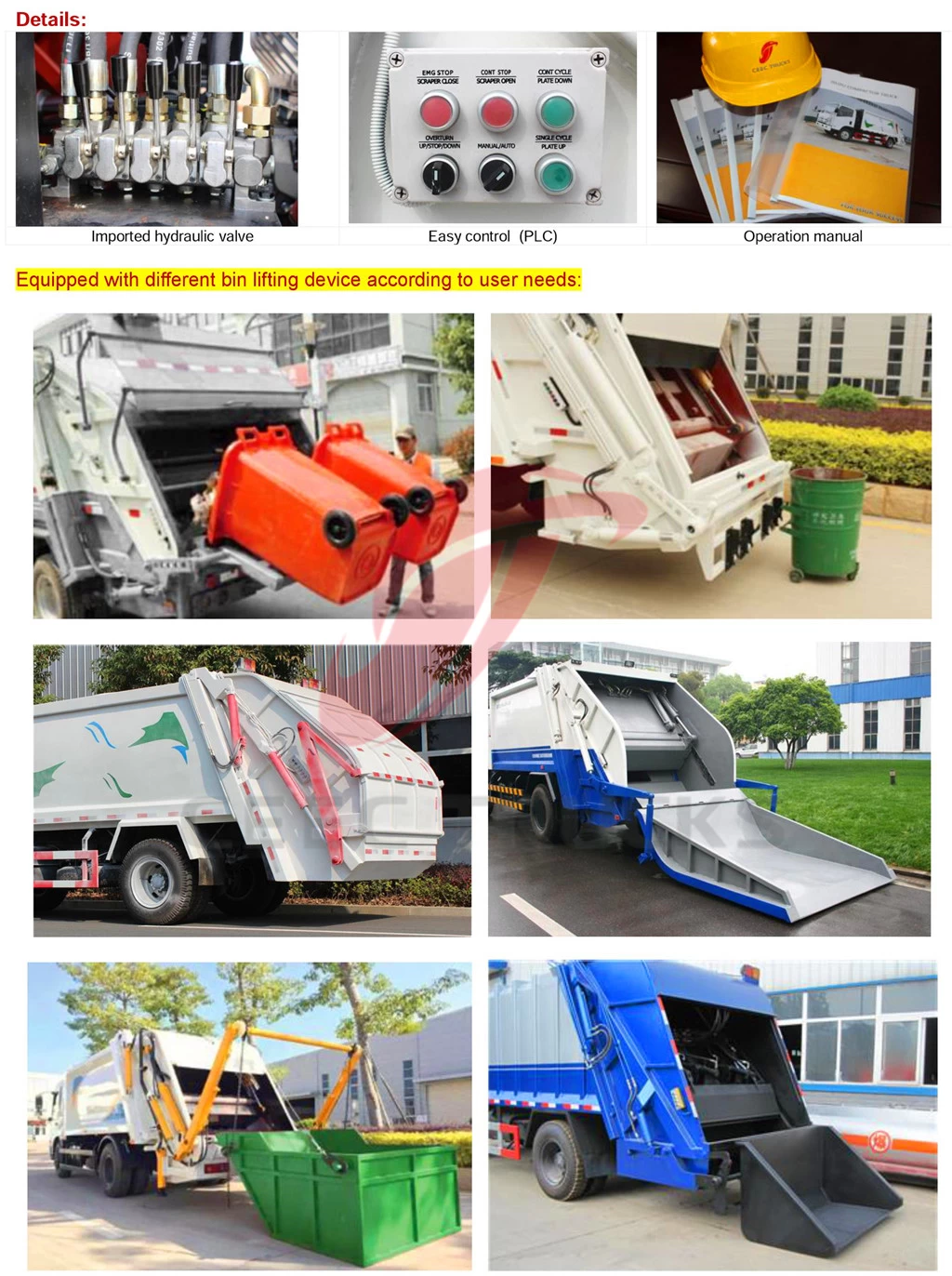

Standard lifting and turnover device (plastic or steel garbage bin), groundhopper, swing arm device or other kinds of loading device for your choice.

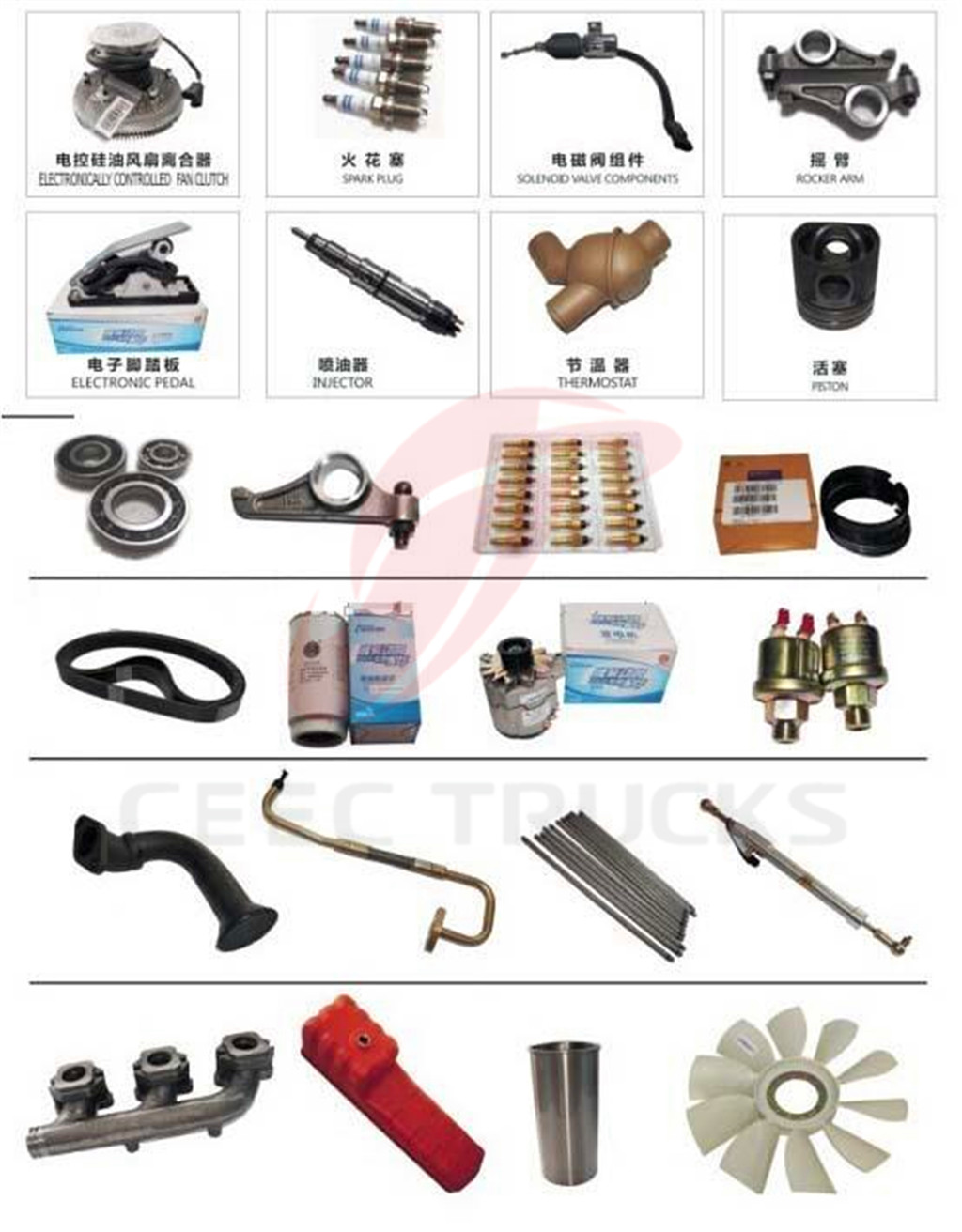

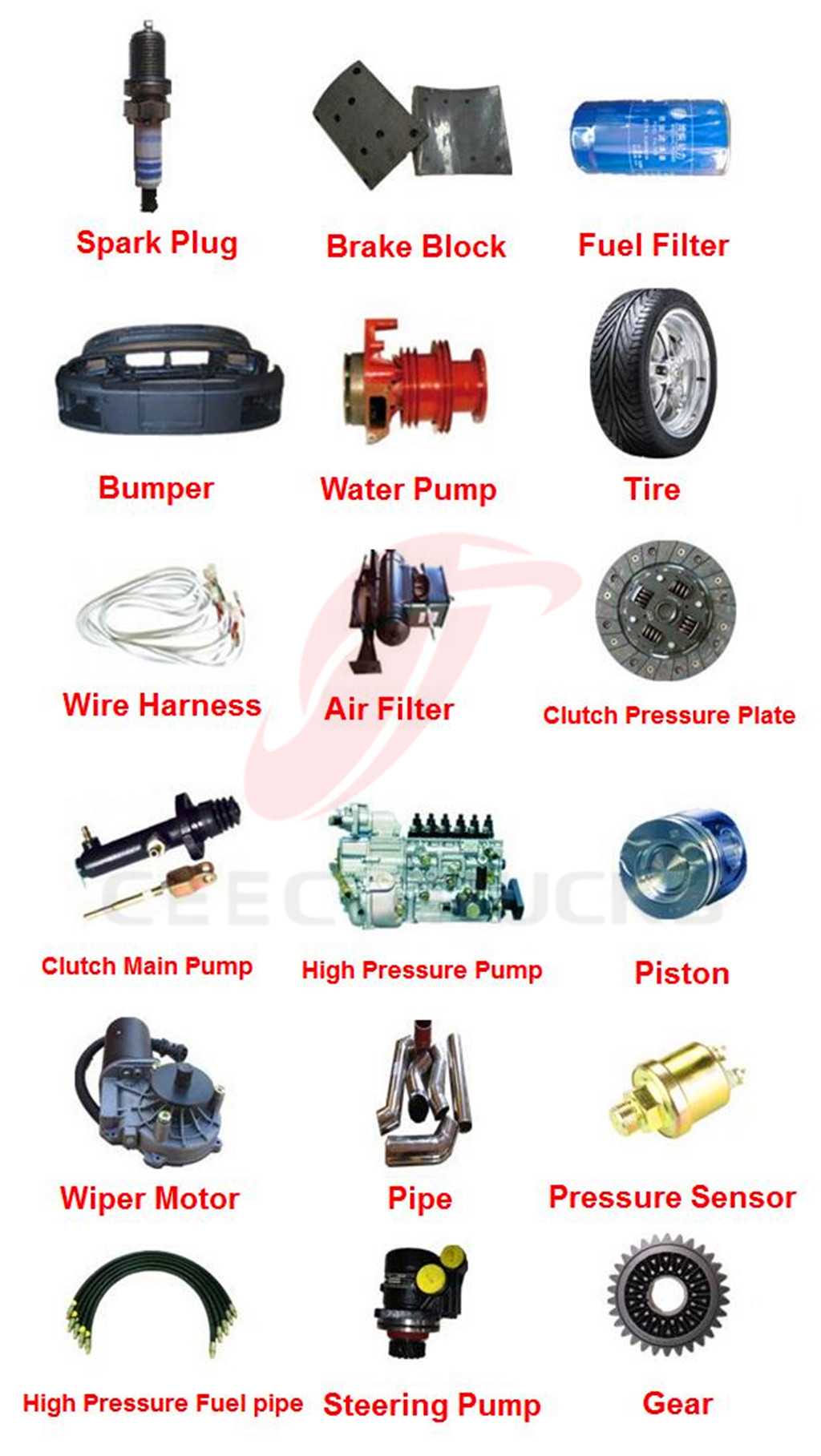

Genuine spare parts supplier

(Genuine spare parts manufacturer CEEC TRUCKS, who can provide all parts for garbage compactor trucks and kit)
