Product name: 6 Meters Metal Sheet Slitter Folder Machine CNC Control

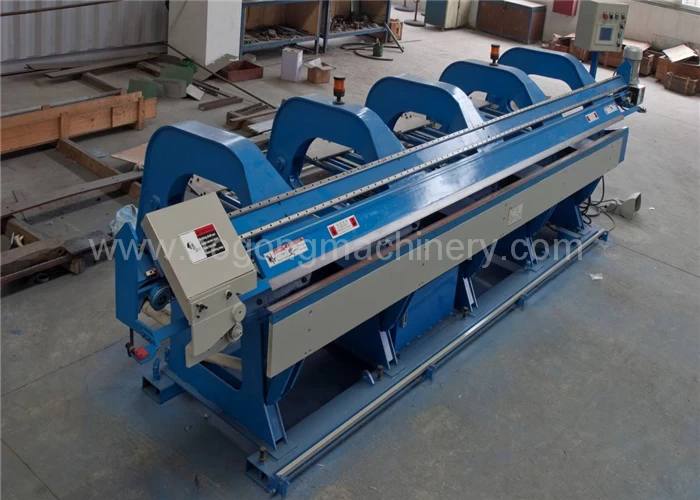

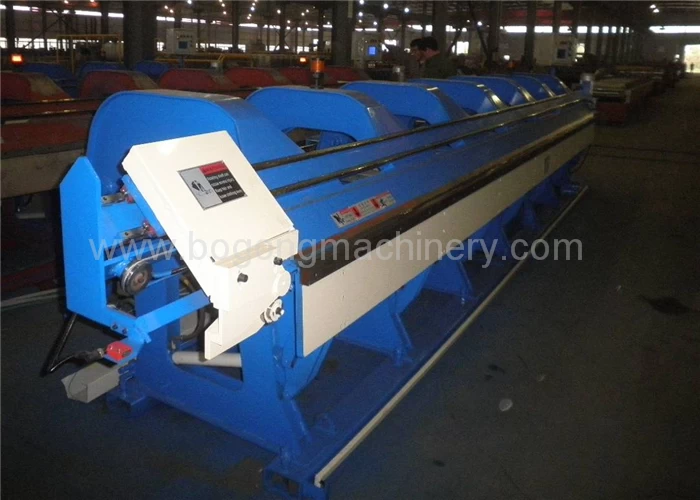

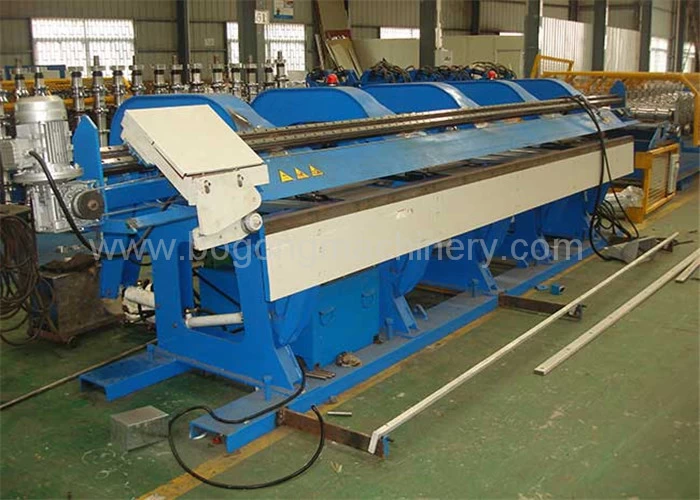

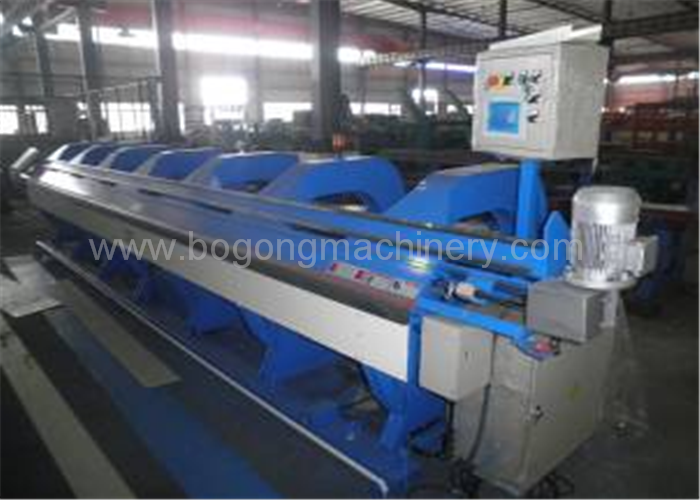

There are seven clamping press units for 6 meters metal sheet slitter folder machine, servo motor feeding material, portable PLC control box control,the bending angle range is 0~125 degree. The slitting roller will slit the no used metal sheet material, and bend the required angle degree correctly.
If it is necessary, outside safety guard can be made also. With back gauge system to position the working piece, mark out the slitting position and folding position.
Clamp and apron speed control system allows the operator to adjust the speed of this 6 Meters Metal Sheet Slitter Folder Machine CNC Control. Input parameters on the touch screen, the user can adjust the clamp approach speed, Clamp speed, clamp raise speed, and the speed up and down of the folding apron. The idle speed of the pump is also adjustable to give quiet and efficient operation.

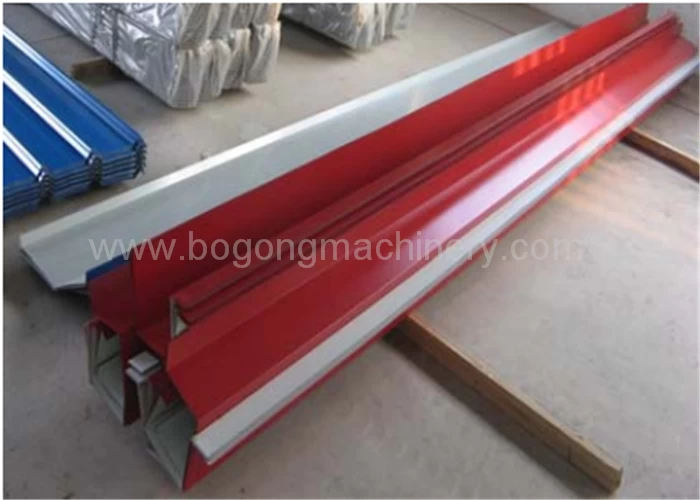

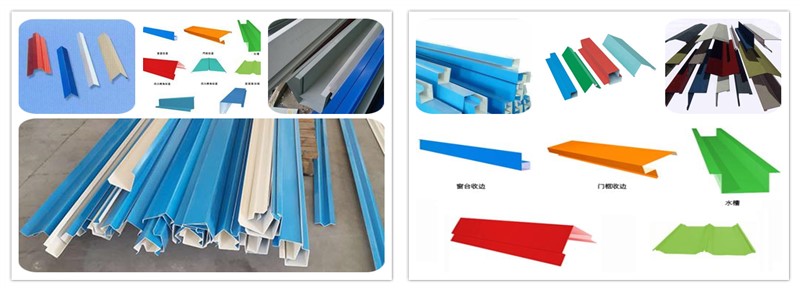

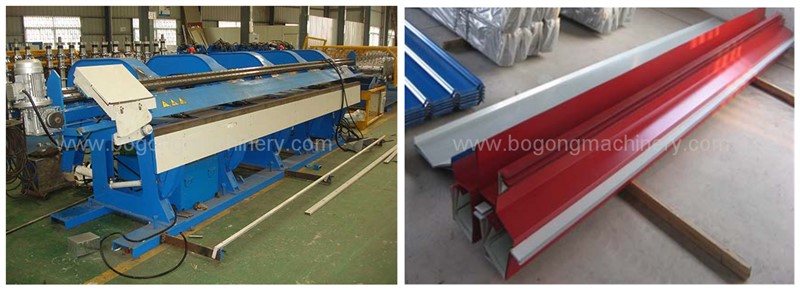

Kinds of samples bent by our 6 Meters Metal Sheet Slitter Folder Machine, the biggest thickness can be 1.2mm, and the raw material can be stainless steel, galvanized steel, pre-painted steel.
Technical Parameter
|
General Parameter
|
|
Description
|
Parameter
|
|
Suitable Material
|
PPGI, galvanized sheet, aluminum sheet, stainless steel
|
|
Material Thickness
|
Max. 1.0mm
|
|
Feeding Width
|
Max. 1000mm
|
|
Working Length
|
6000mm
|
|
Driving Motor
|
Servo motor, pump motor: 0.82KW
|
|
Pressing Motor
|
7.5KW pump motor (installed in machine inside)
|
|
Bending Range
|
0~125 degree
|
|
Throat Depth
|
1000mm (Max raw material width for clamping)
|
|
Clamping Press
|
7 pcs
|
|
Hinge
|
7 groups
|
|
Total Power
|
9.42KW (7.5KW+1.1KW+0.82KW)
|
|
Weight
|
3000KG
|
|
Overall Dimension
|
5800*1700*1500mm
|
|
|
|

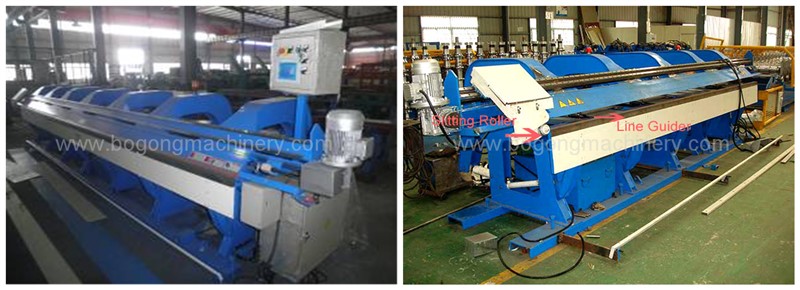

Slitting Device
|
|
Description
|
Parameter
|
|
Driving System
|
1.1KW motor Driving
|
|
Slitting Blade
|
⌀80mm wheel slitting, Cr12MoV as blade material
|
|
Guiding Device
|
Steel rope circling
|
|
Slitting Speed
|
Aprrox 8m/min
|
|
Slitting Distance
|
Through steel rope circulation
|
|
|
|
|
Bending Device
|
|
Description
|
Parameter
|
|
Max. Bending/slitting Thickness
|
1.0mm
|
|
Max. Bending Length
|
6000mm
|
|
|
|
|
Hydraulic Power Pack
|
|
Description
|
Parameter
|
|
Capacity
|
Max.16MPa
|
|
Power source
|
Hydraulic
|
|
|
|
PLC Control System
|
|
Description
|
Parameter
|
|
Control System
|
Siemens brand PLC
|
|
Operation Table
|
Touch screen
|
|
Angle Programmer
|
Encoder test
|
|
Slitting Control
|
Manual
|
|
Emergency Stop
|
Emergency stop button, emergency limited, foot switch
|
Slitter Folder Machine Working Video As Below For Reference
