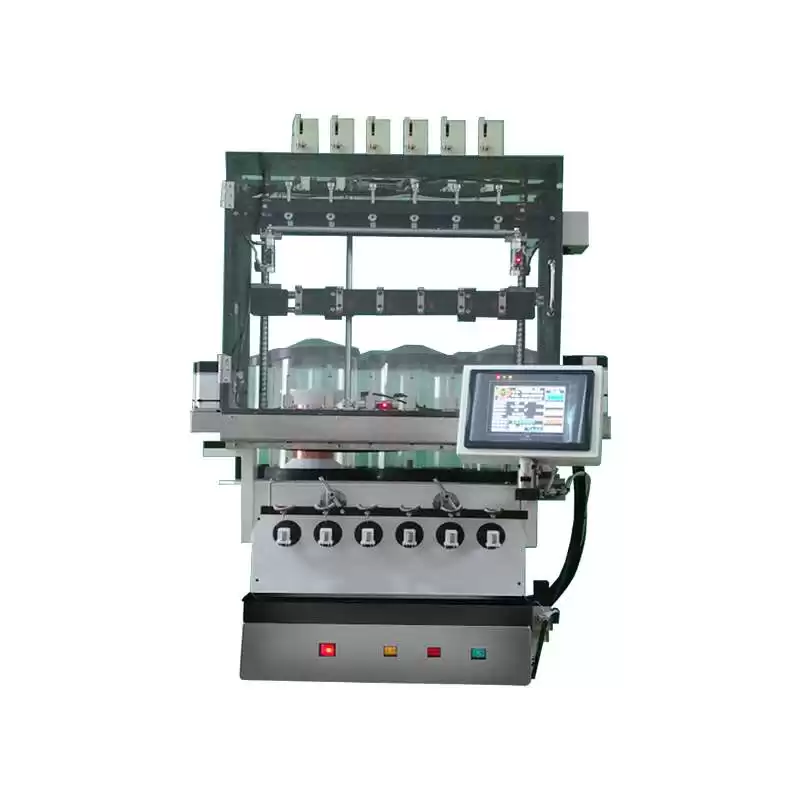

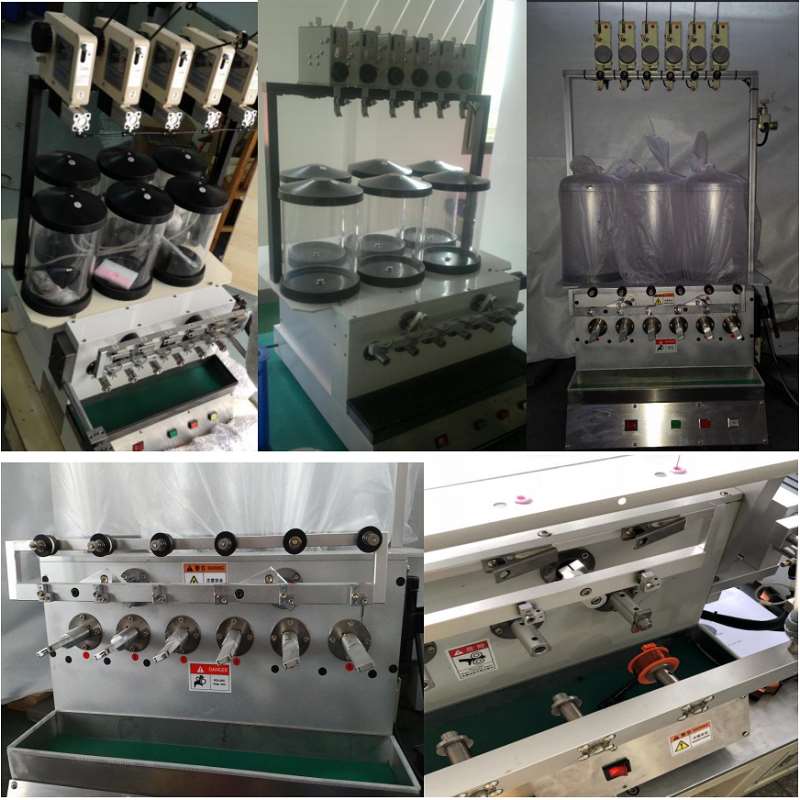

The typical model of STC-0672, 6-spindle CNC winding machine
3. Processes of the machine

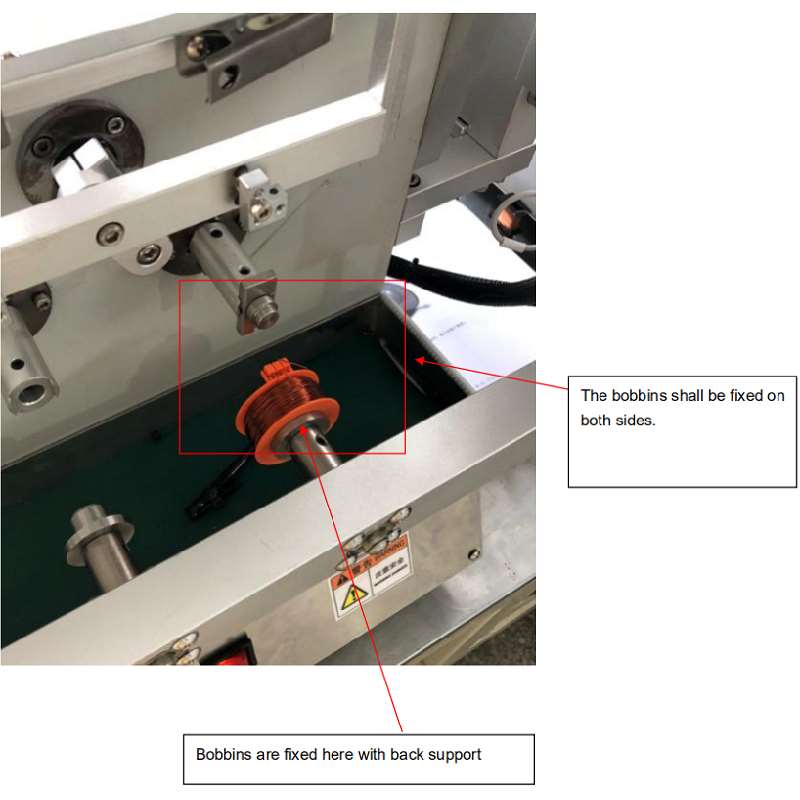

1)4 pcs fixtures are fixed on the fixture and then mounted to the main spindles of the winding machine. It is the style of “quick change over”.
2) The machine is semi-automation, and the motion of wire cutting and bobbins loading/unloading are manual.
3)Automatic Winding, manual cutting.
4. Characteristic of 6-spindle CNC Winding Machine
1)The model is Synergy original. We have been refining it for 10 years to make it perfect.
2)It is applicable for the production mode of “Multi-type & small batch”. The quick-change tool transfer system solved the problem of "multi-objective production" to vastly reduce down-time for specification changeovers

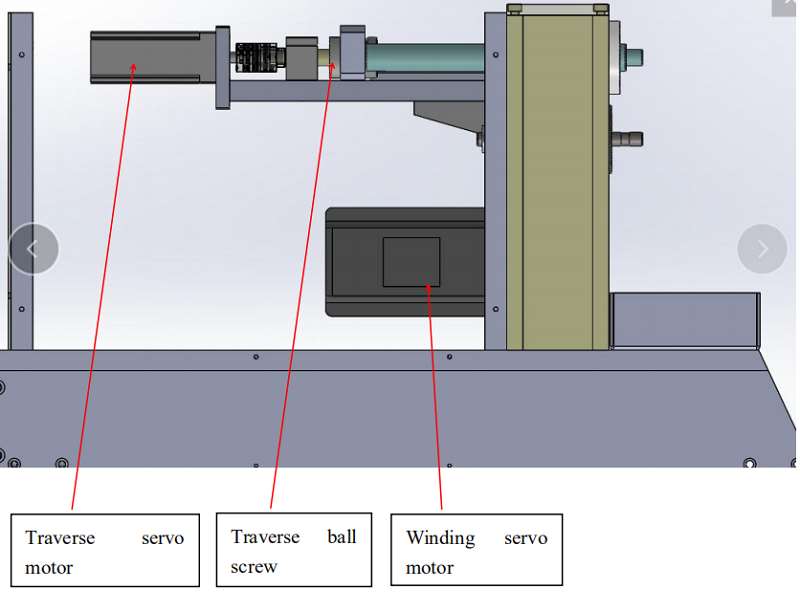

3)The motion of traverse，winding, are all driven by servo motors. The precision rolled ball screw works together with the servo motor to make sure the traverse motion is uniform and flat.
4)It best fit for the winding of coil of 13F relay and one operator can take care of 2-3 machines.
5)Consideration ease of operation and maintenance, this machine has a simple construction by reduction of the total number of parts. In addition, the total machine footprint is compact.
5.Specifications：
|
Model #
|
STC-0672
|
|
Spindle number
|
6
|
|
Spindle speed
|
15，000RPM
|
|
Spindle pitch
|
72mm
|
|
Wire range
|
0.25-1.5mm
|
|
Max. coiling diameter
|
Ф70mm
|
|
Max. coiling width
|
1-80mm
|
|
Power consumption
|
2500 w
|
|
Machine size
|
520mm（W）×580 mm（D）×1200 mm（H）
|
|
Machine weight
|
85 kg
|
|
Air pressure
|
0.49-0.59mpa
|

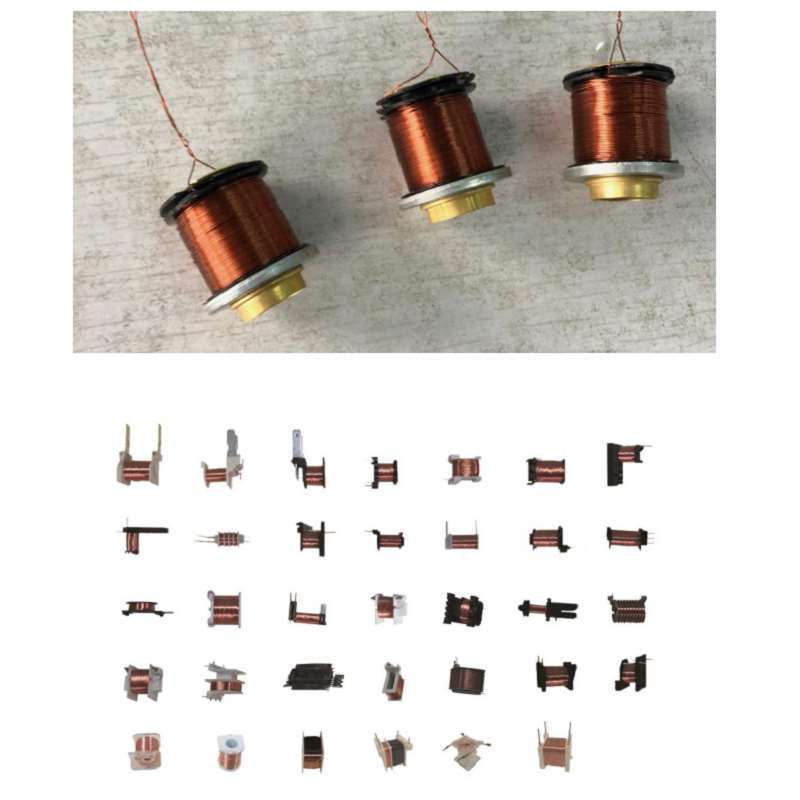

6.This linear winding machine is to replace the traditional flying fork winding machine to produce the magneto coils as below pictures. The advantages of this machine :
Faster
Better
More Cost-effective
