EC-Z06 6 Wireless & 4 Wired Zone GSM Alarm System
Features:
1. 4 wired & 6 wireless Zones.
2. Support Chinese, English, Spanish, Russian, French, etc
3. Support IOS / Android APP.
4. 6 groups alarm phone call, 3 groups SMS phone No.
5. Max support 50pcs wireless sensors and 50pcs remote controls
6. Built-in standby rechargeable battery, the panel automatically stores system status when power off
7. SMS alert when AC Power ON/OFF
8. Real-time arm/disarm and Timing arm/disarm function optional
9. Siren sounding time can be adjusted
10. 10 seconds voice record message
11. 1 relay output
12. Event memory for 100 records
Specifications:
|
Model No.
|
EC-Z06
|
|
Power Supply
|
DC9V-12V
|
|
Built-in Battery
|
NI-HI
AAA*6 DC7.2V
|
|
Standby Current
|
<25mA
|
|
Alarm Current
|
<450mA
|
|
Wireless frequency
|
433MHz
|
|
Encoding
|
1527/2264
|
|
GSM Operating Frequency
|
850/900/1800/1900MHz
|
|
Casing Materials
|
ABS
|
|
Operating Conditions: Temperature:
|
-10℃~ +55℃
|
|
Relative Humidity
|
≤95％RH(No
congelation)
|
|
Siren loudness
|
110db
(External siren)
|
|
Buit-in
siren loudness
|
85db
(Internal siren)
|
|
Unit size
|
17.5*11.5*2.5cm
|

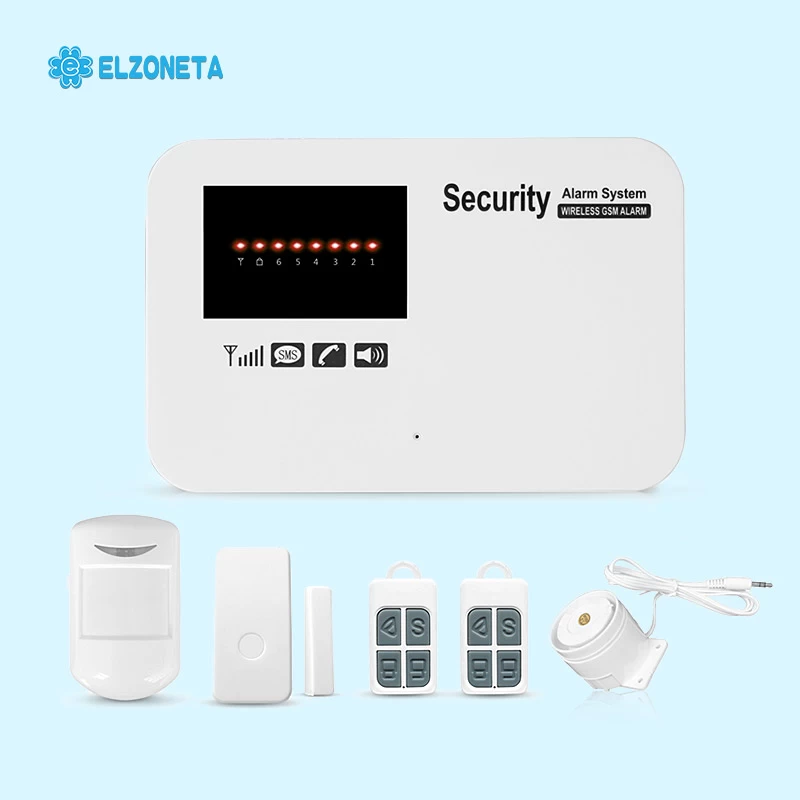

Standard Package:
1*Alarm Panel.
1*PIR Detector.
1*A pair of Door Magnetic
1*Siren.
2*Remote Control.
1*Power Adapter.
1*User Manual.
