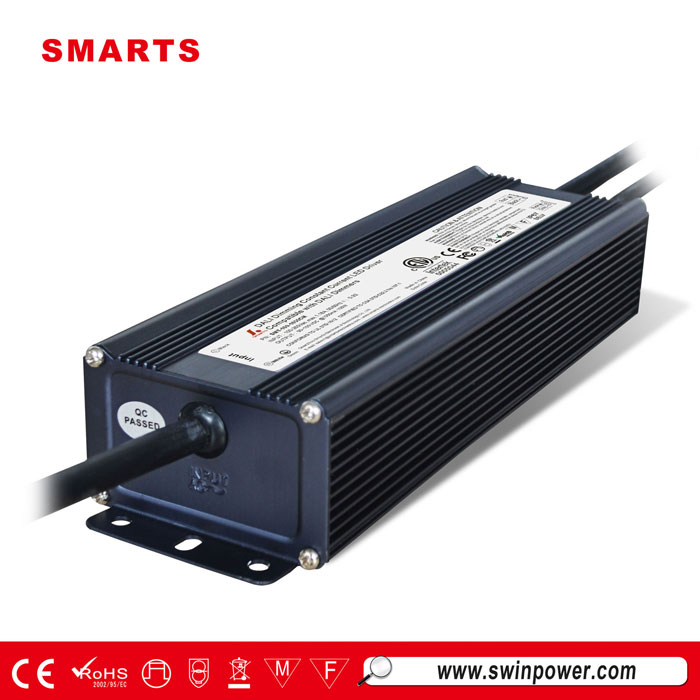

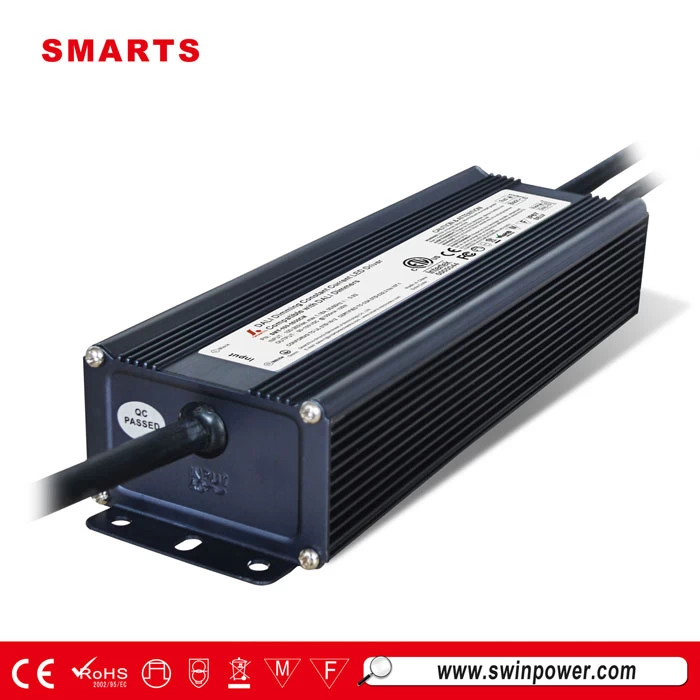

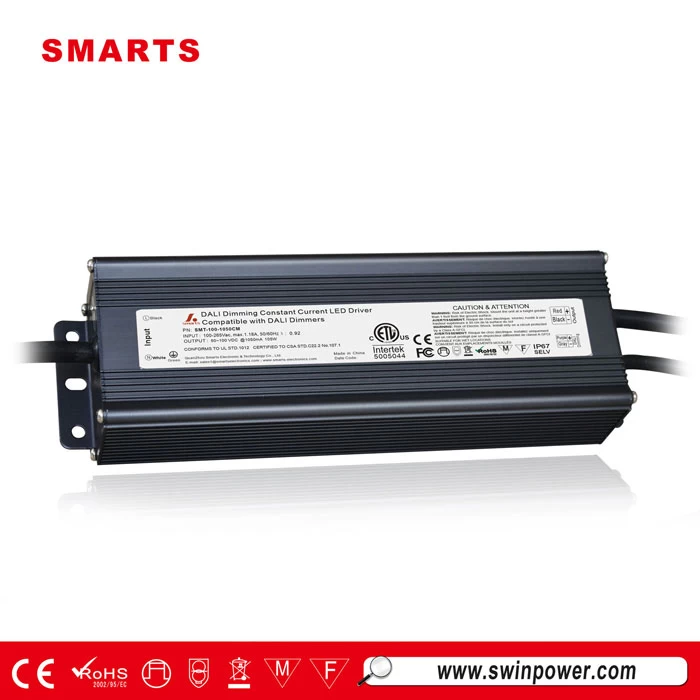

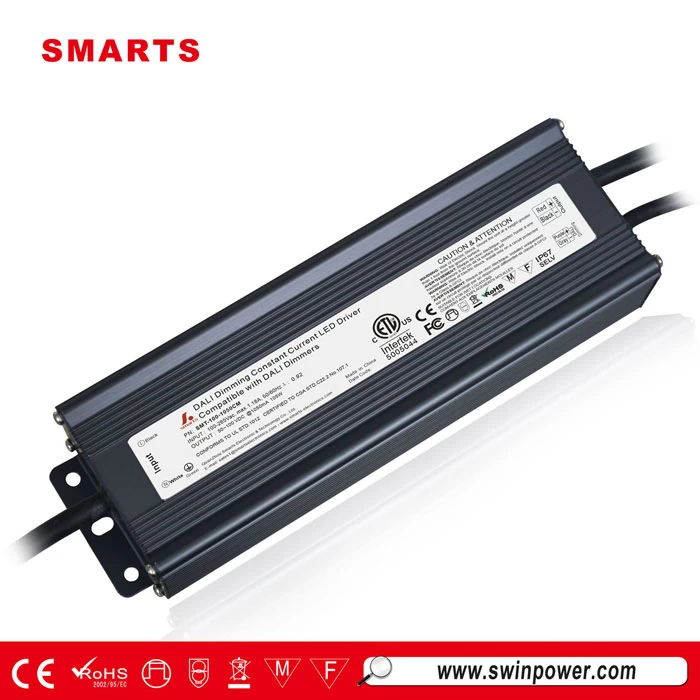

60-100vDC 1050mA 105w constant current led driver Dali dimmable control

Model

SMT-100-1050CM

SMT-071-1400CM

SMT-060-1750CM

SMT-050-2000CM

SMT-042-2400CM

Output

DC Voltage

50~100V

40~71V

40~60V

30~50V

25~42V

Voltage Accuracy

±0.5V

Rated current

0～1050mA

0～1400mA

0～1750mA

0～2100mA

0~2400mA

Rated power

105W

98W

105W

100.8W

100w

Input

Voltage Range

100-265VAC

Frequency Range

47～63HZ

Power Factor ( Typ.）

PF≧0.95/100V, 220V

Full Load Efficiency（Typ.）

>89%(110,220V)

>88%(110,220V)

>88%(110,220V)

>88%(110,220V)

>88%(110,220V)

AC

Current（Typ.）

0.960A(110,220V)

1.042A(110,220V)

1.031A(110,220V)

1.038A(110,220V)

1.037A(110,220V)

Leakage current

﹤0.75mA/110, 220VAC

Protection

Short Circuit

Protection type: Hiccup mode, recovers automatically after fault condition

is removed

Over Current

≦1.4*I out

Over temperature

100℃±10℃ shut down o/p voltage, re-power on to recover

Environment

Working TEMP.

-40～+50℃

Working Humidity

20～95%RH,non-condensing

Storage TEM.,Humidity

-40～+80℃，10～95%RH

TEMP.coefficient

±0.03%/℃（0～50℃）

Vibration

10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z  axes

Safety&EMC

Safety standards

EN61347-1 EN61347-2-13 IP66

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance toEN55015,EN61000-3-2 (≧50%load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry

level （surge4KV）

Others

Weight

1.3Kg

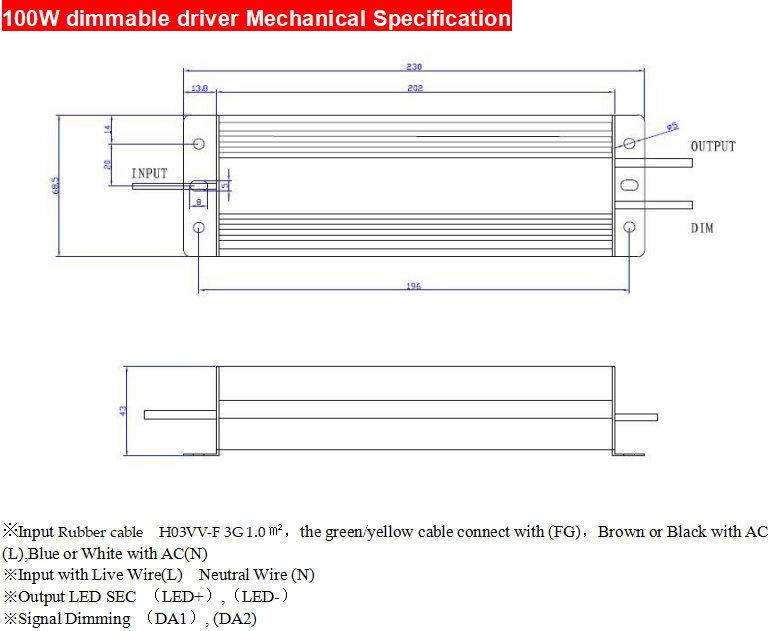

Size

230*69*45mm（L*W*H）

packing

355*215*215mm/10pcs/CTN    240*70*50 mm for inner box

Not

es

1. All parameters NOT specially mentioned are measured at 110V, 220VAC input , rated load and

   25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3. Tolerance:includes set us tolerance,line regulation and load regulation .
