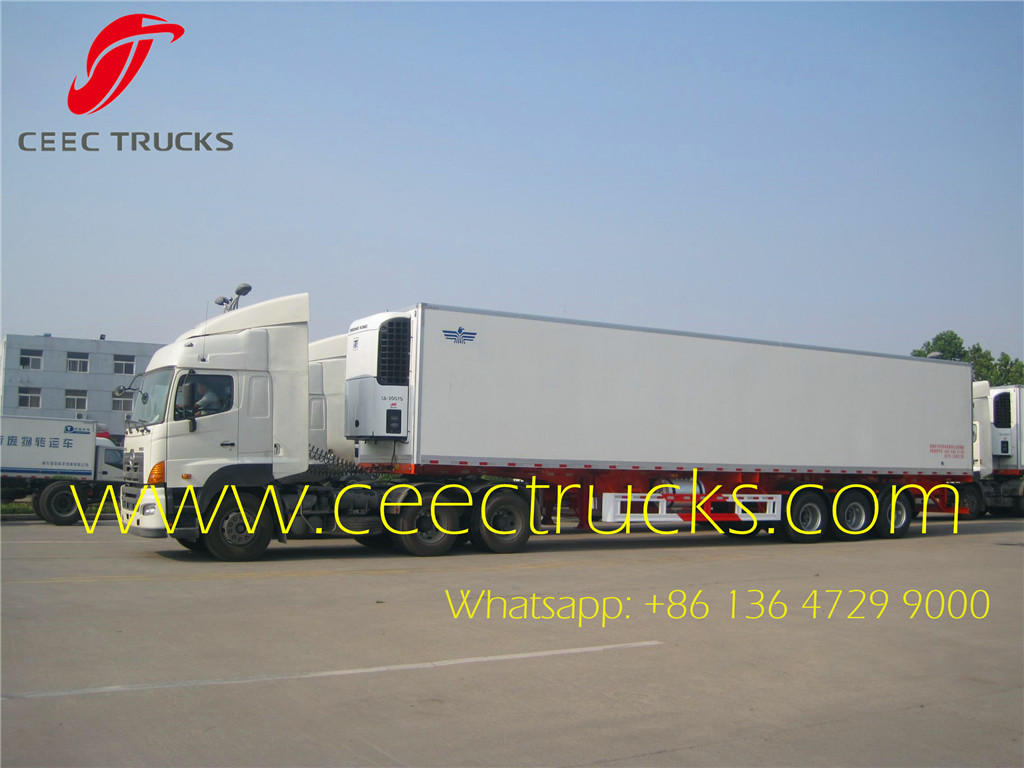

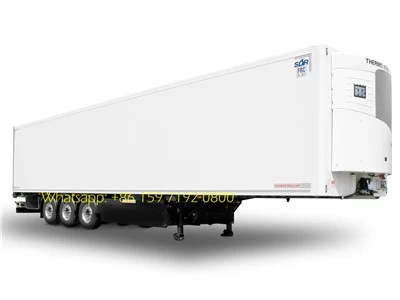

60 CBM refrigerated container Semi-trailer

60CBM refrigerated semitrailer with 3 axle, BPW / FUWA, JOST landing legs and JOST #50 kingpin widely export Africa congo, Thermo King refrigerated unit and temperature can be -20℃ controlled. widely used for meat and vegetable delivery.

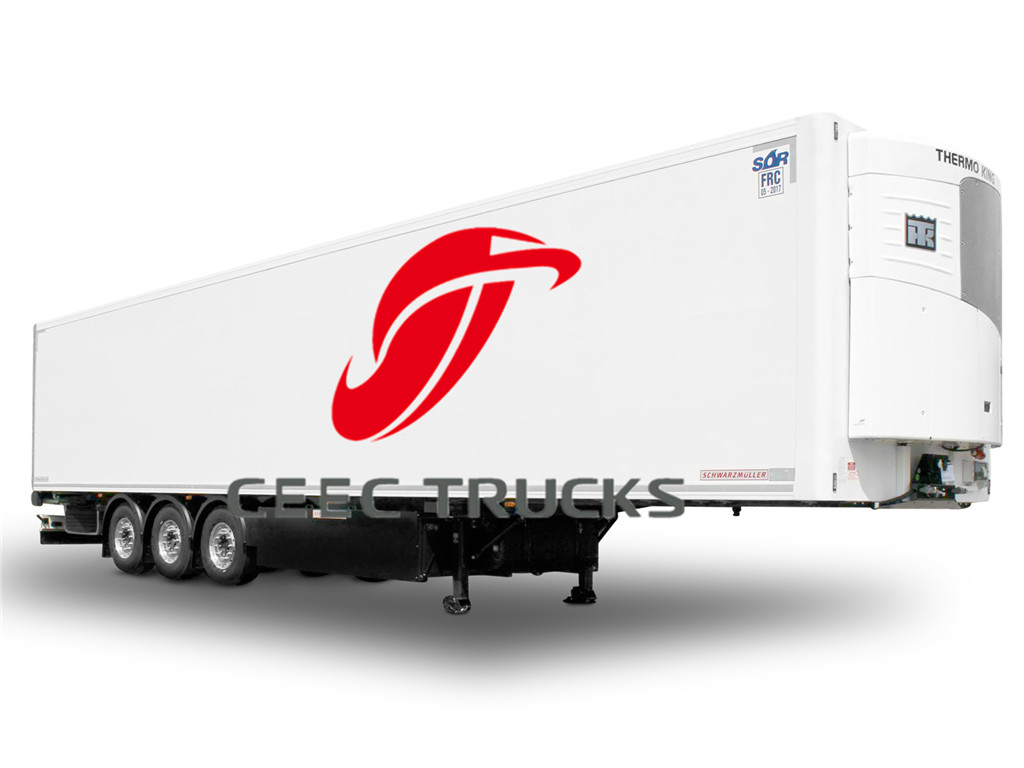

60 CBM Refrigerated Container Semitrailer manufacturer

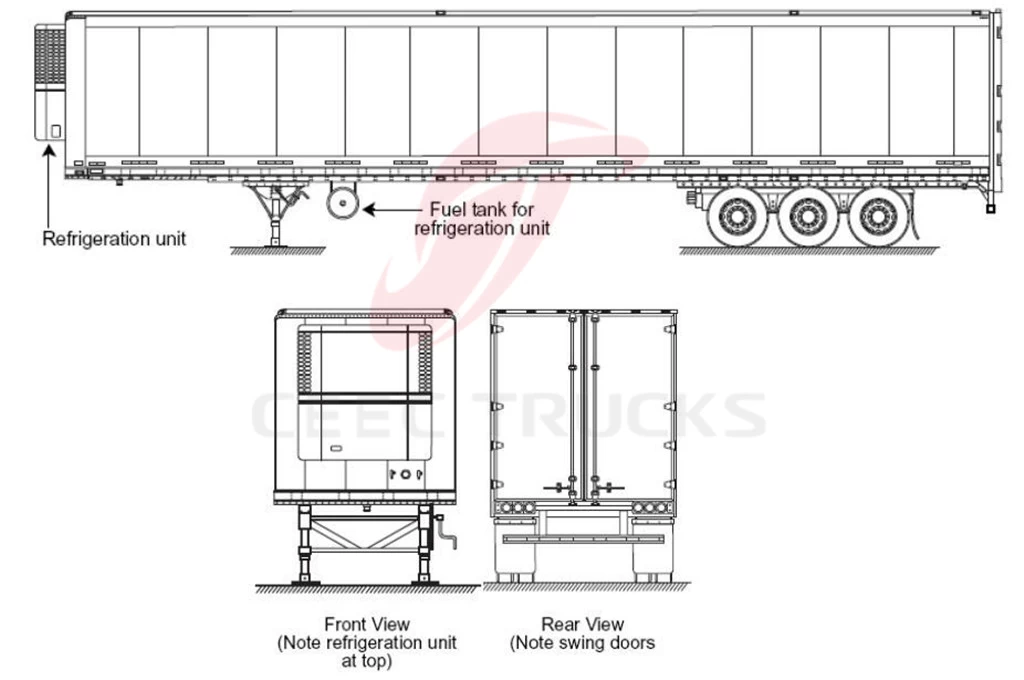

60CBM refrigerated semitrailer drawing



Manufacturer supplied refriegerated semitrailer, also can be called Refrigerator container semitrailer, refrigerator tanker semitrailer, etc. which mainly used to storage all kinds of perishable goods, such as meat and vegetable. The 60 CBM refrigerated semitrailer mainly for long distance transportation. and widely export Africa countries, such as Algeria, Kenya, Congo, Cameroon, Tanzania, Togo, Mauritania, Central Africa, Ethiopia, etc.

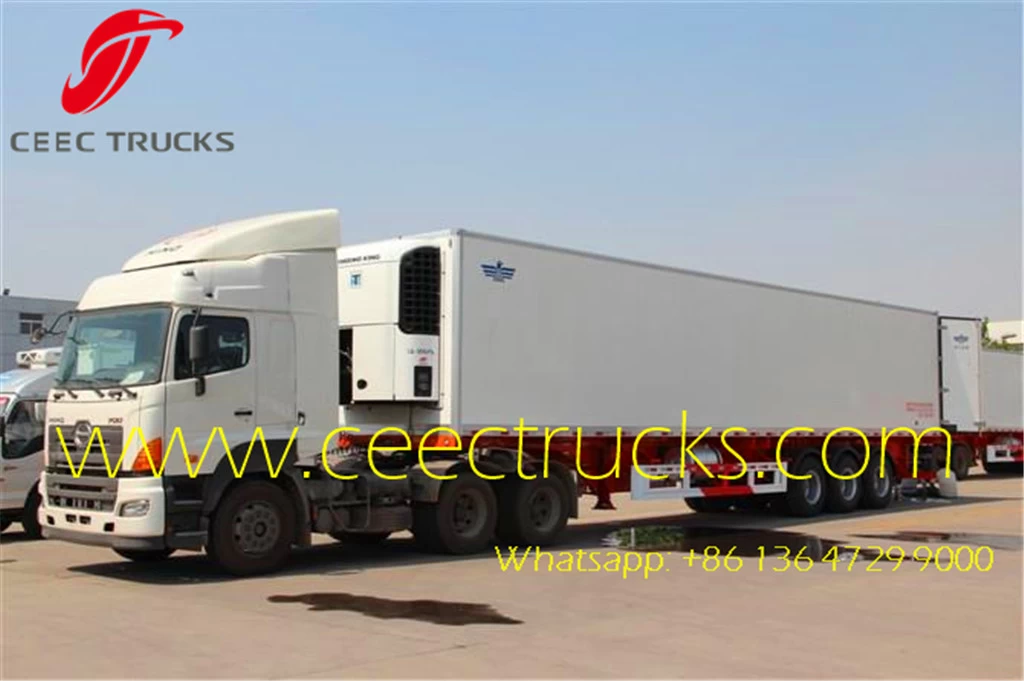

60CBM refrigerated semitrailer supply



Mozambique best selling 3 axle 60CBM refrigerated container trailer features:

Freezer box in GRP sandwich construction, testedaccording to FRC

Lightweight construction offering a payload advantage ofup 800 kg

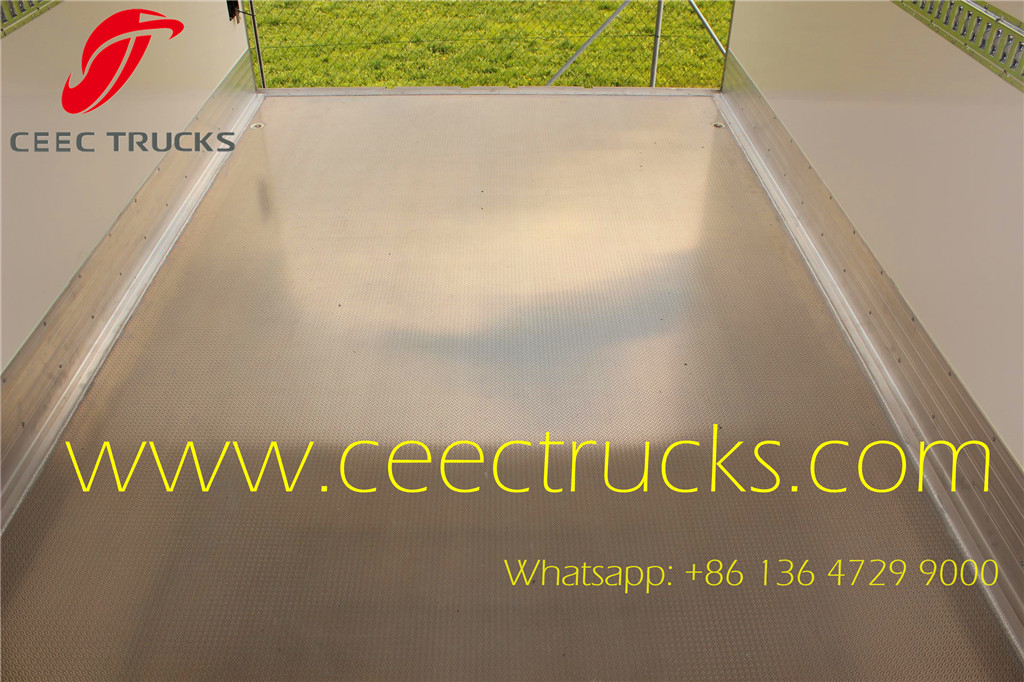

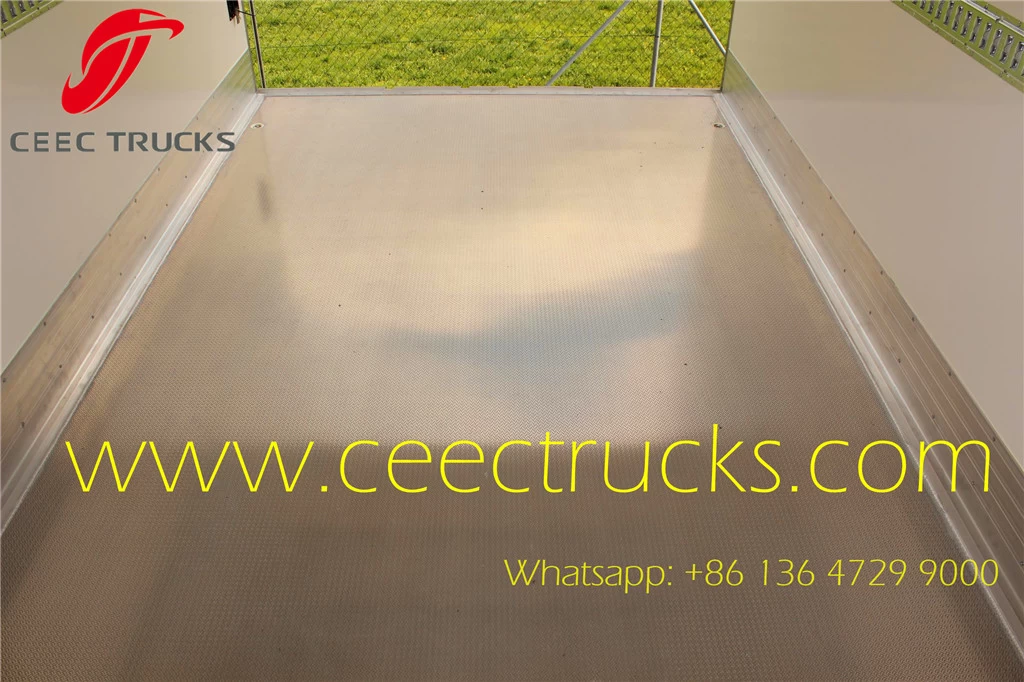

Stacker-bearing sanded floor and side-mounted aluminiumskirting

Installation of axles from well-known manufacturers suchas BPW, Mercedes or SAF

OPTIONAL: Multi-chamber freezer box with adjustablepartition and multi-temperature cooling unit

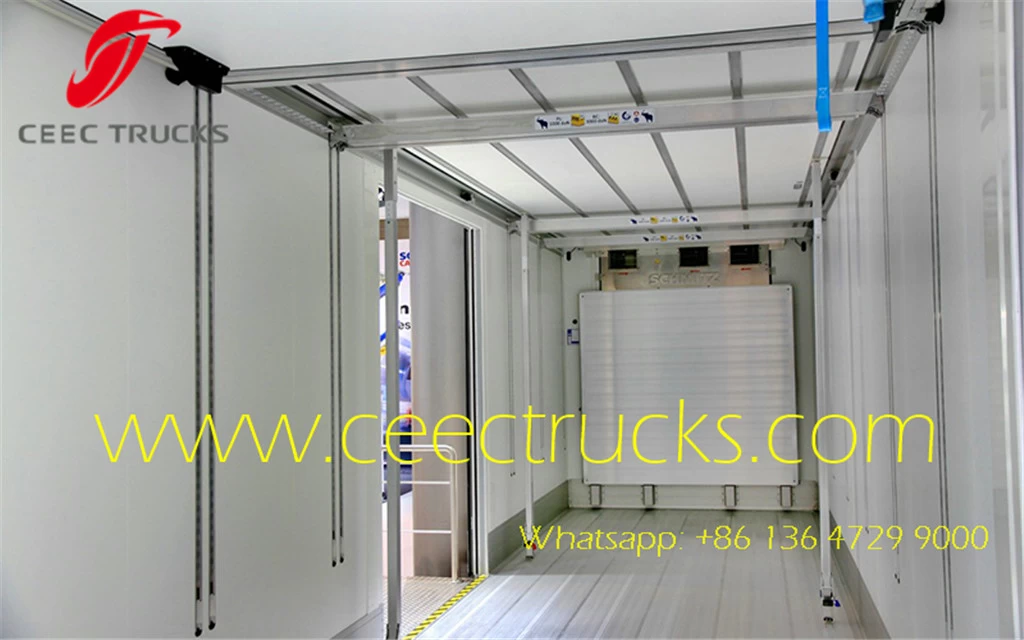

OPTIONAL: Meat box with 5 aluminium tube tracks

OPTIONAL: Height-adjustable twin-level loading system for33 EURO pallets

OPTIONAL: 2 air ducts = air distribution system

OPTIONAL: Models for fresh food or flower transport

OPTIONAL: Combination lashing rails recessed in sidewalls

OPTIONAL: Quiet running aluminium floor welded flush withskirting

OPTIONAL: TIR ventilation flaps

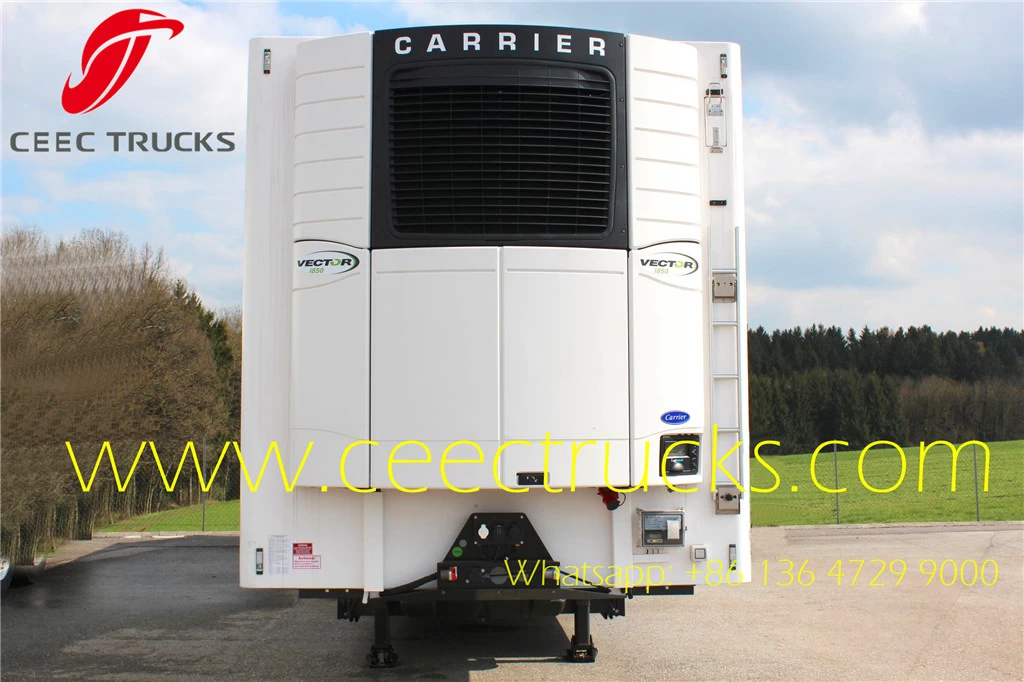

60CBM refrigerated semitrailer manufacturer



60CBM refrigerated semitrailer manufacturer



Similar Key Words: 40-60 CBM refrigerated tanker trucks suppliler, top refrigerator container semitrailer, best refrigerator truck trailers, 2 axle refrigerated semi-trailer, 2 axle refrigetated box-body semitrailer



DIMENSIONS & WEIGHT        60CBM 3-axle refrigerated container semitrailer

Vehicle Dimensions

13800*2550*4000mm

Box Dimensions

13000*2330*2200mm

Tare Weight

Approx.8500kg

Load capacity

Approx 45000kg

BOX DESCRIPTION

Volume

Approx 60m3

Material & Thickness

GRP inside & outside of the van, polyurethane as the insulation.& 80mm

Door

One Side Door and Rear door

Main Manufacture
Technology

Freon-free polyurethane and GRP material
All-close panel, adhesive structure with the type of building block,
Freon-free polyurethane vesicant material is our innovation,
which are very different from traditional open sandwich panel with connect by metals,
injected polyurethane at site with Freon.
At last, finish the production by heating,
vacuum and pressure using special equipment.

Other

Stainless steel of The main characters,high strength,light in weight,anti-corrosion,
non-pollution,easy repair long life,excellent,insulation

SPECIFICATION

Chassis

Stringer height of 500mm, up / down flap14mm/16mm web 6mm;
back plane; border 16 #channel steel, square tube runs through the beam;

Axle

3 axles


FUWA 13 T Optional BPW

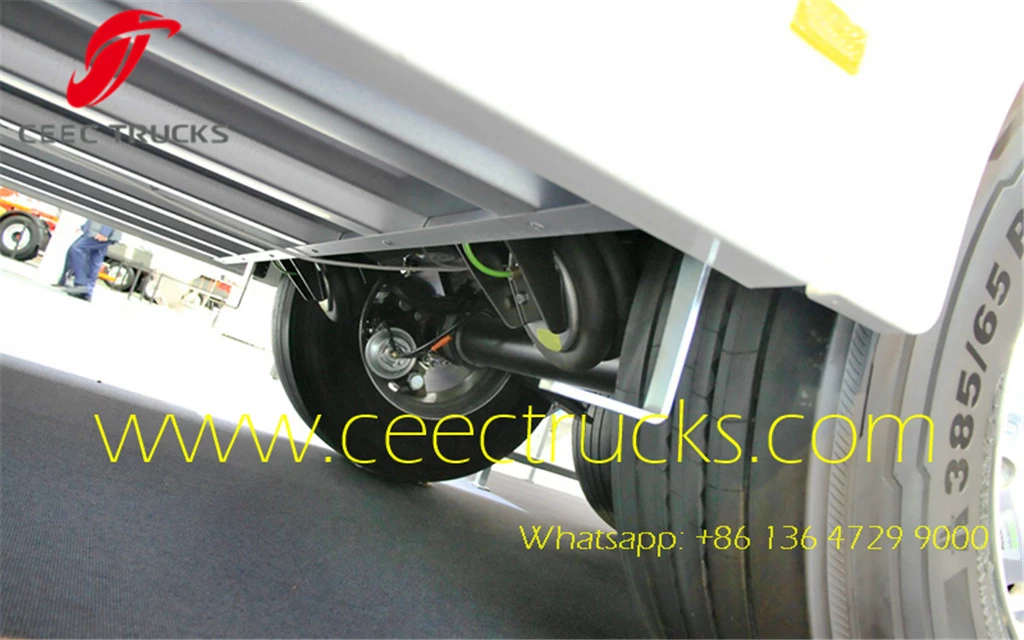

Suspension

Mechanic suspension with 10-piece leaf spring.

King Pin

JOST brand 2'' or 3.5''

Landing Gear

JOST brand Two Speed, Manually operated

Wheel Rim

ZHENGXING 8.5*20,13 pieces

Tyre

11.00R20 Radial tire , 13 pieces

Spare Tire Rack

one

Braking System

T30/30 Spring brake chamber; 40L air tanks with WABCO air controlled system.

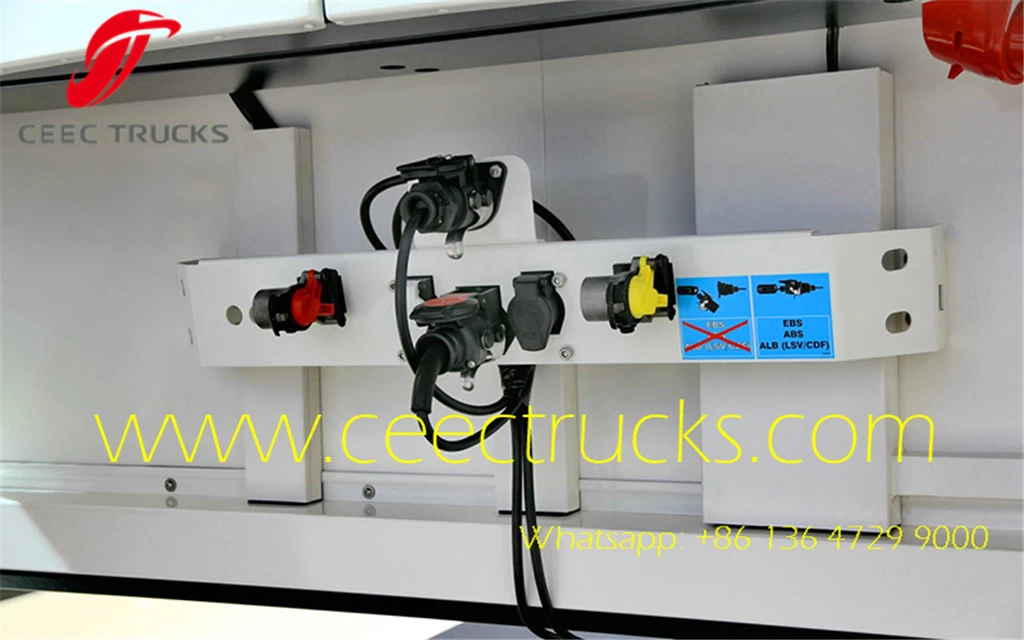

Light & wire

LED Combination Rear Lights, and LED Side lights. wire and 7-pin socket

REFRIGERATING UNIT DESCRIPTION

Brand

Thermo King

Model

SB-210+(30)

Temperature Range

-20ºC Temperature can be controlled



60CBM refrigerated semitrailer manufacturer    60CBM refrigerated semitrailer manufacturer



60CBM refrigerated semitrailer manufacturer    60CBM refrigerated semitrailer manufacturer



China Best Semitrailer on sale

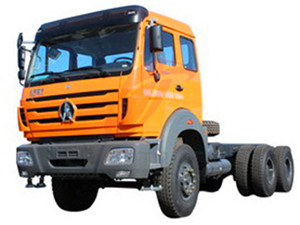

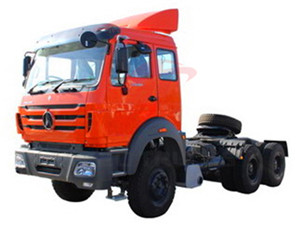

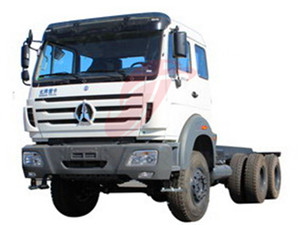

Beiben 30T, 40T, 50T, 60T, 70T tractor truck manufacturer supply
