Product Name

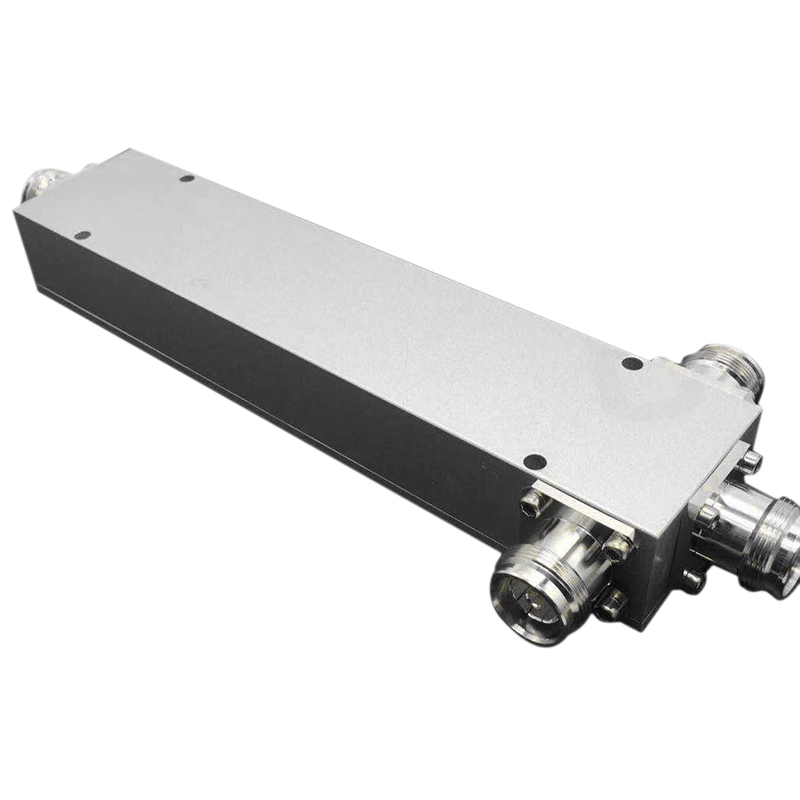

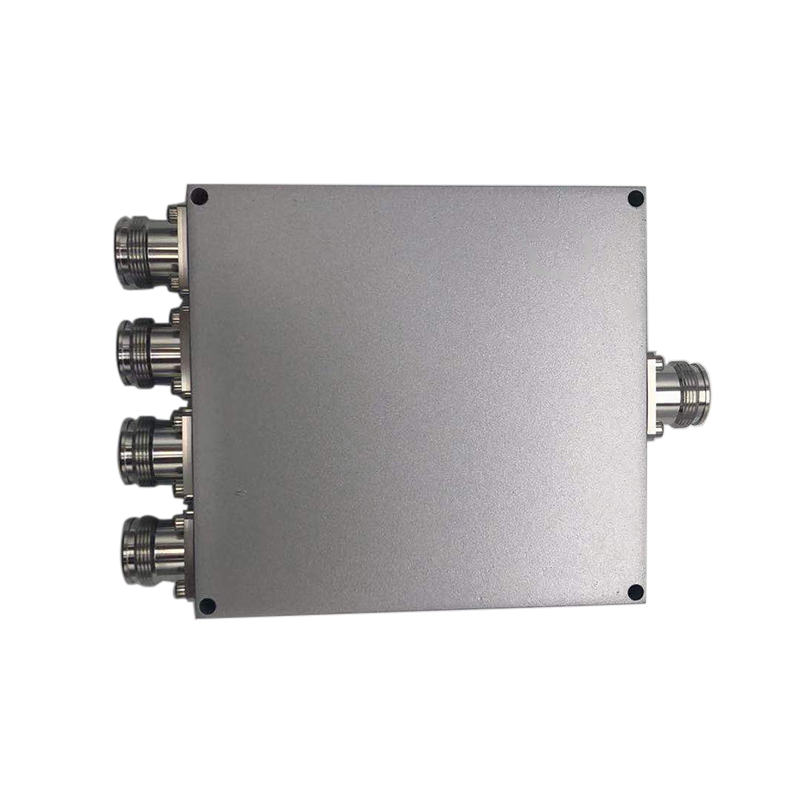

600-6000MHz 2/3/4Way Wilkinson Power Divider Splitter
These new designs with Low PIM -160dBc are used for 5G market.
Product Features
◆ Low VSWR
◆ Low Insertion Loss
◆ Indoor or outdoor Application
◆PIM-160dBc@2*43dBm
◆ Widely used for In-building Solutions and Outdoor application.
Technical &Mechanical Specifications
|
Model No.
|
MPSW-660-02-4F-160
|
MPSW-660-03-4F-160
|
MPSW-660-03-4F-160
|
|
Freq(MHz)
|
600-6000
|
600-6000
|
600-6000
|
|
Input Port Number
|
1
|
1
|
1
|
|
Output Port Number
|
2
|
3
|
4
|
|
Split Loss(dB)
|
3.0
|
4.8
|
6.0
|
|
IL(dB)
|
≤1.8
|
≤2.3
|
≤2.8
|
|
Isolation(dB)
|
≤18
|
≤16
|
≤16
|
|
VSWR
|
≤1.45
|
≤1.50
|
≤1.50
|
|
3rd PIM (dBc)
|
≤-160dBc@2*43dBm(698-2700MHz)
|
≤-160dBc@2*43dBm (698-2700)
|
≤-160dBc@2*43dBm (698-2700)
|
|
Average Power(W)
|
50
|
50
|
50
|
|
Impedance
|
50 ohm
|
50 ohm
|
50 ohm
|
|
Connector
|
4.3-10 Female
|
4.3-10 Female
|
4.3-10 Female
|
|
Color
|
Silver-plated
|
Silver-plated
|
Silver-plated
|
|
WorkingTemp(deg)
|
-35~+65
|
-35~+65
|
-35~+65
|
|
Application
|
Indoor or Outdoor, IP65
|
Indoor or Outdoor, IP65
|
Indoor or Outdoor, IP65
|
|
Relative Humidity
|
5%-95%
|
5%-95%
|
5%-95%
|
|
Dimensions(mm)
|

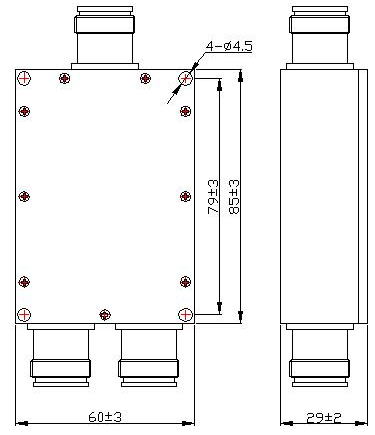

79*60*29
|

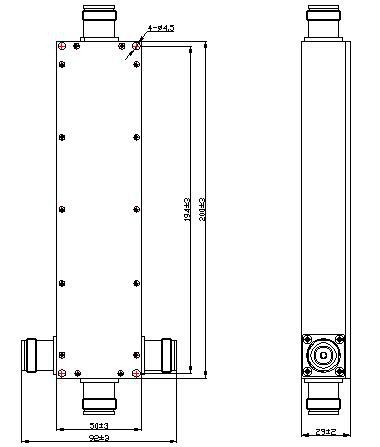

200*50*29
|

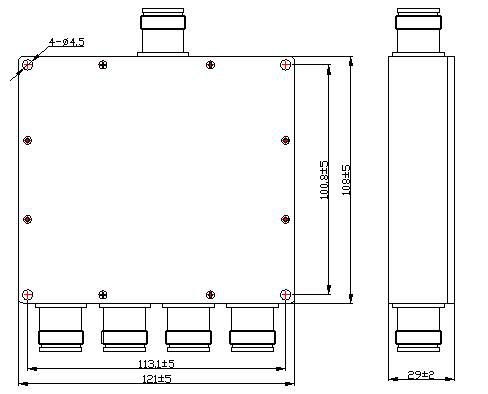

121*108*29
|
OUR SERVICES
1. Professional skills support for
600-6000MHz Low PIM-160dBc 6G 2/3/4Way Wilkinson Divider Microstrip Power Splitter with 4310-F
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose
