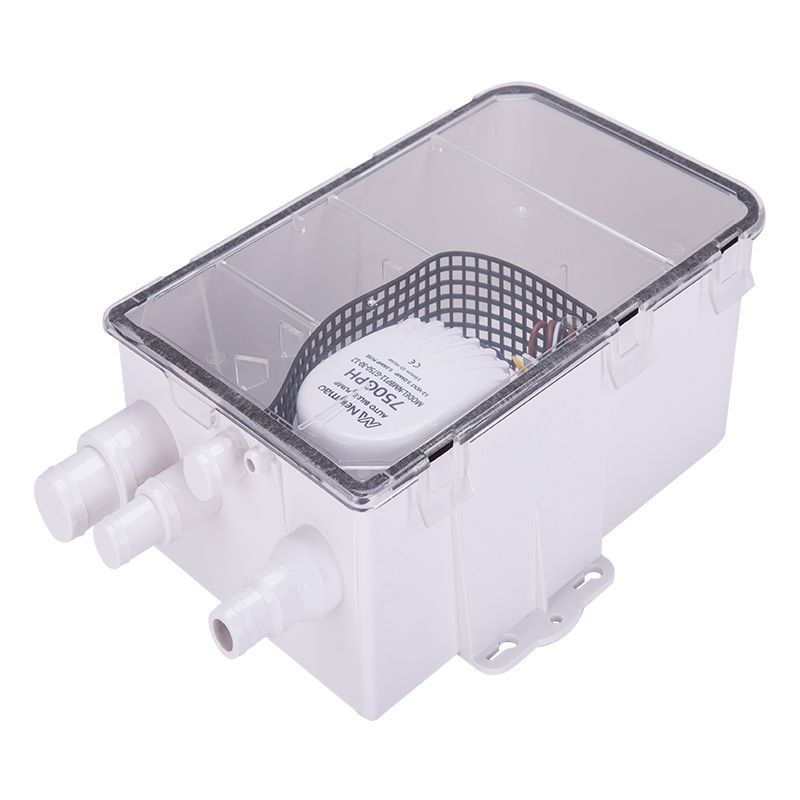

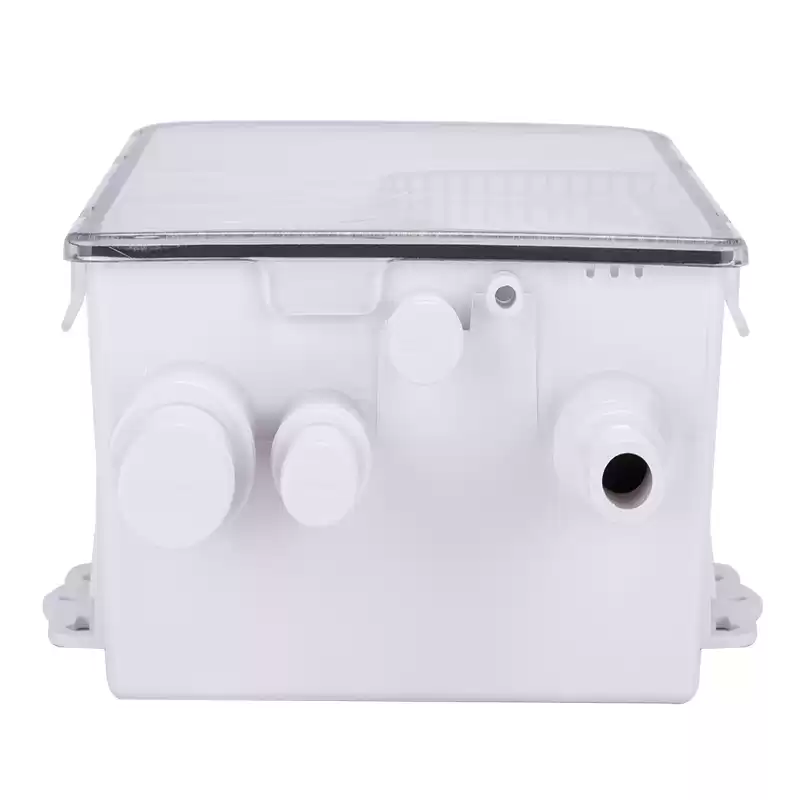

600 GPH Multi Port Shower Sump Pump Drain Kit System

shower sump pump system with multiple inlet ports.Designed to pump shower/sink water overboard or into a holding tank.Compact, full-capacity automatic shower sump draining kit. Check valve on outlet prevent water back flow. All-in-one pump & float switch. No additional float switch required. Pump turns on when water level rises & shuts off when water is removed.



About this item

Clear screw-down cover

Check valve on outlet

Ignition protected

Handles waste water from more than one tapping point

Multiple inlet ports for versatile usage

Available in 600,750 GPH

Easy installation

18 AWG, 1 m long Leads

Specification

Item
Number

Item
Description

Technical Specifications
(Material, Color, Finish, & Dimensions)

NMBP13-G600-25-12

Voltage: 12 V
Current: 2.5A
Fuse: 4.0A
Flow rate: 600 GPH
Head: 2.5 M

Outlet Ports: 3/4"
(19mm)Hose Barb
Max: 110°F(43°C)
18AWG, 1M lead
Intermittent

NMBP13-G600-25-24

Voltage: 24 V
Current: 1.5A
Fuse: 3.0A
Flow rate: 600 GPH
Head: 2.5 M

Outlet Ports: 3/4"
(19mm)Hose Barb
Max: 110°F(43°C)
18AWG, 1M lead
Intermittent



Dimensions
