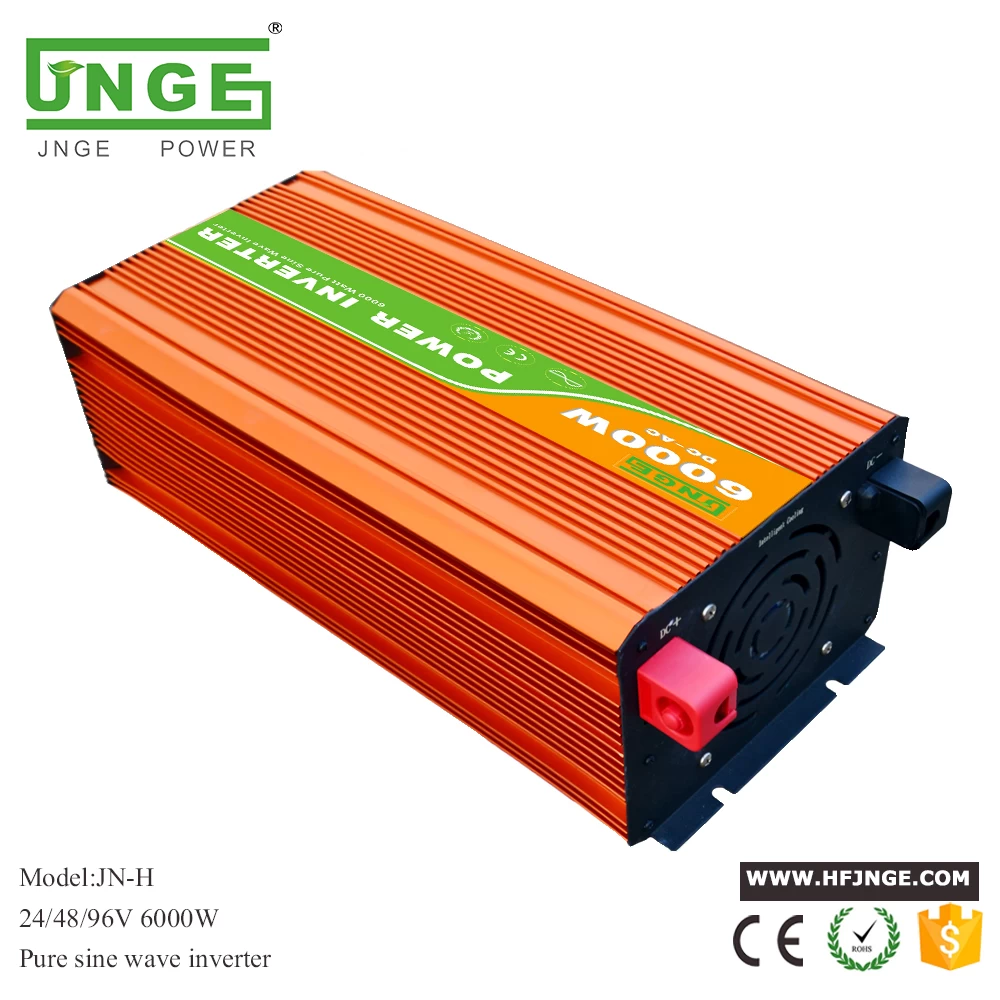

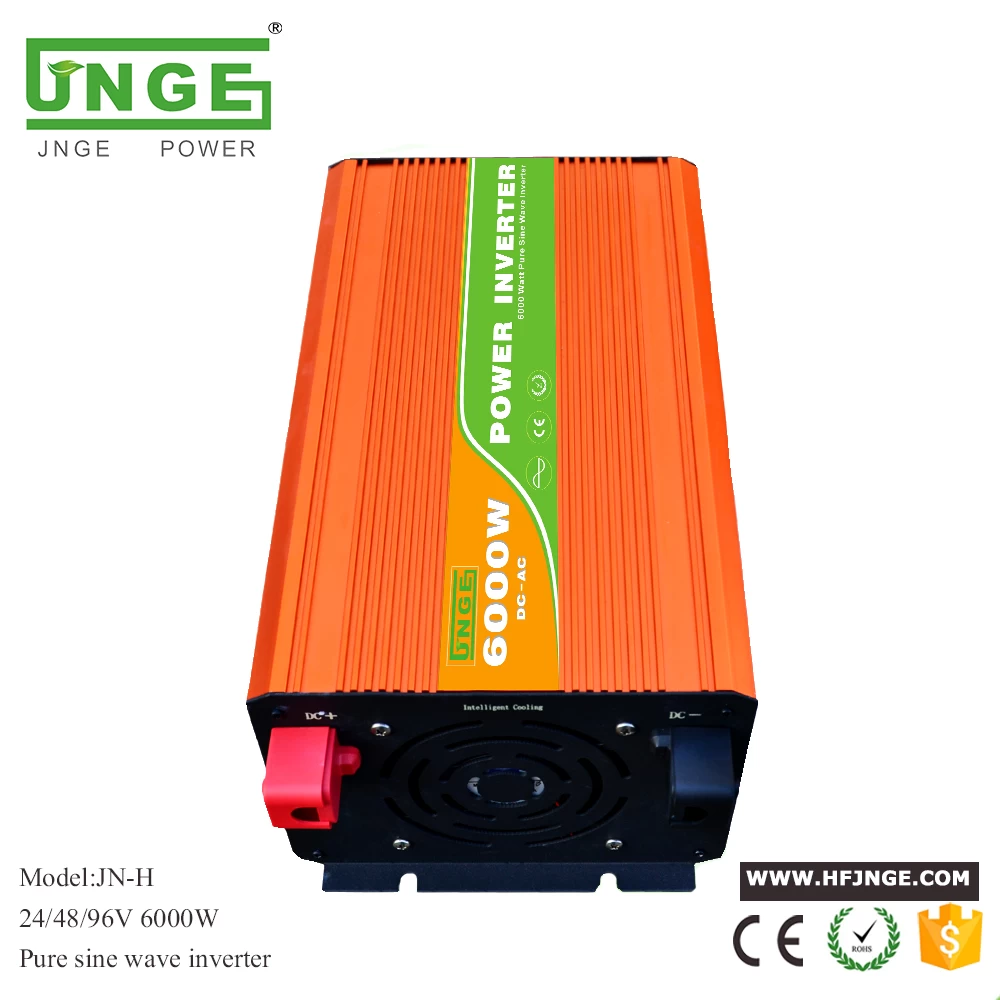

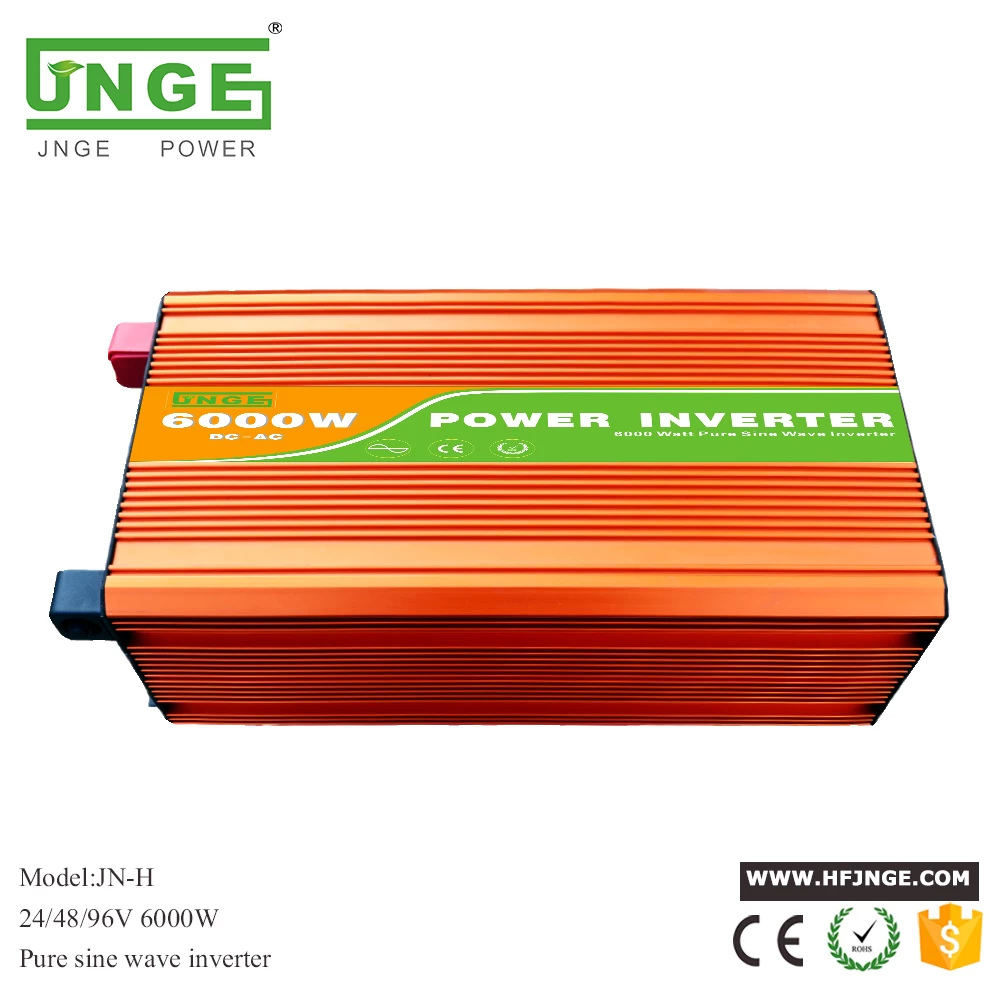

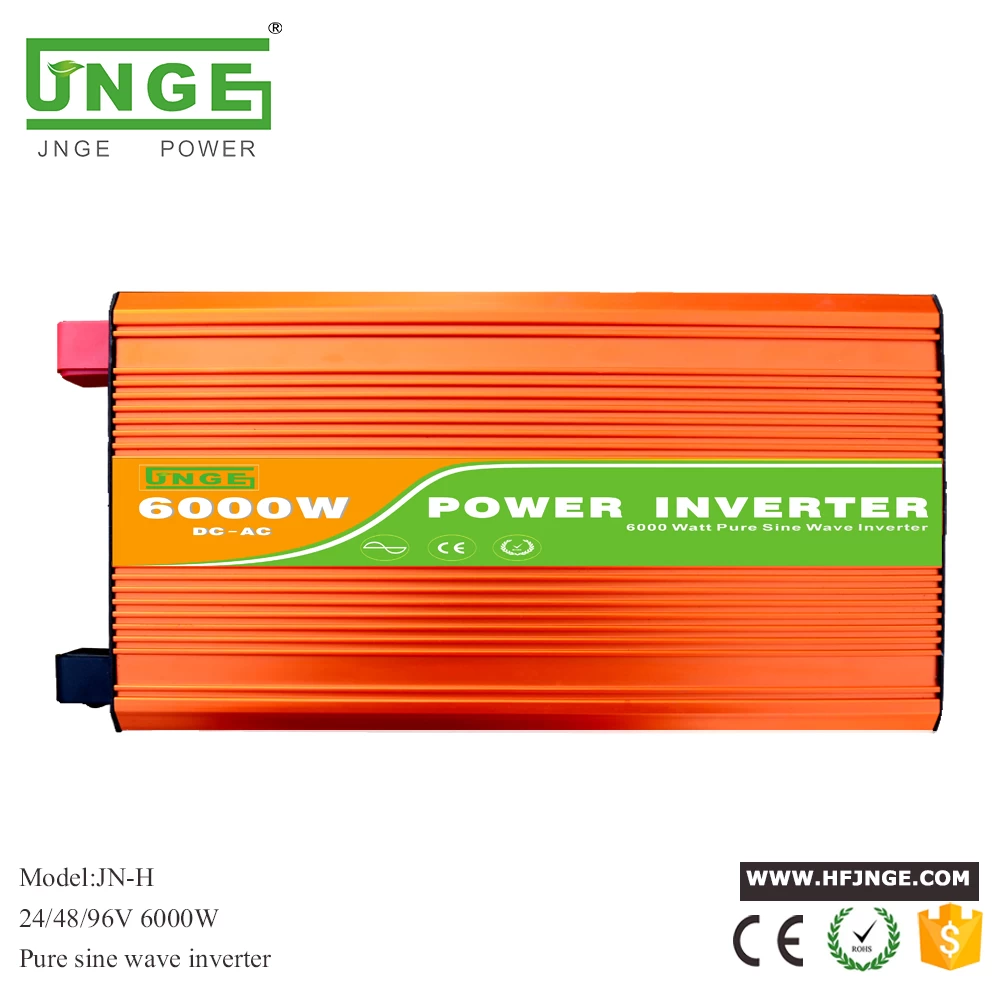

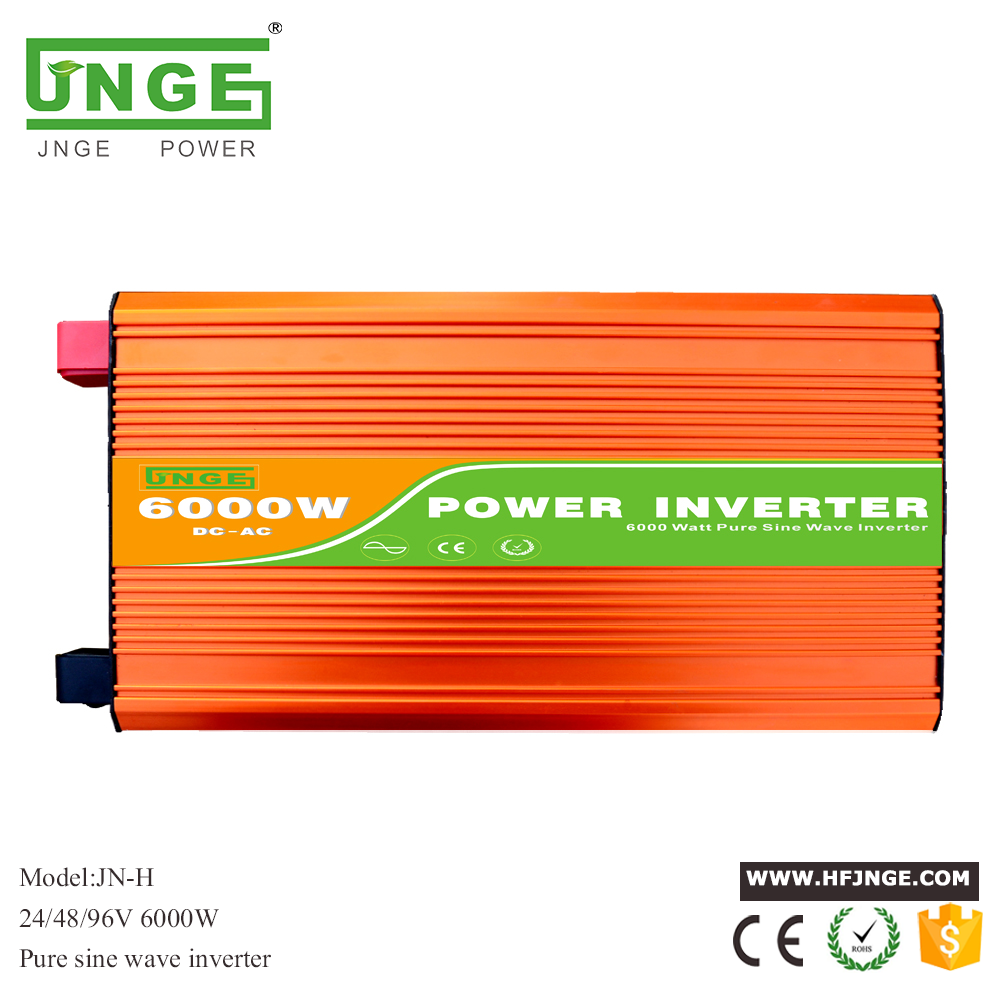

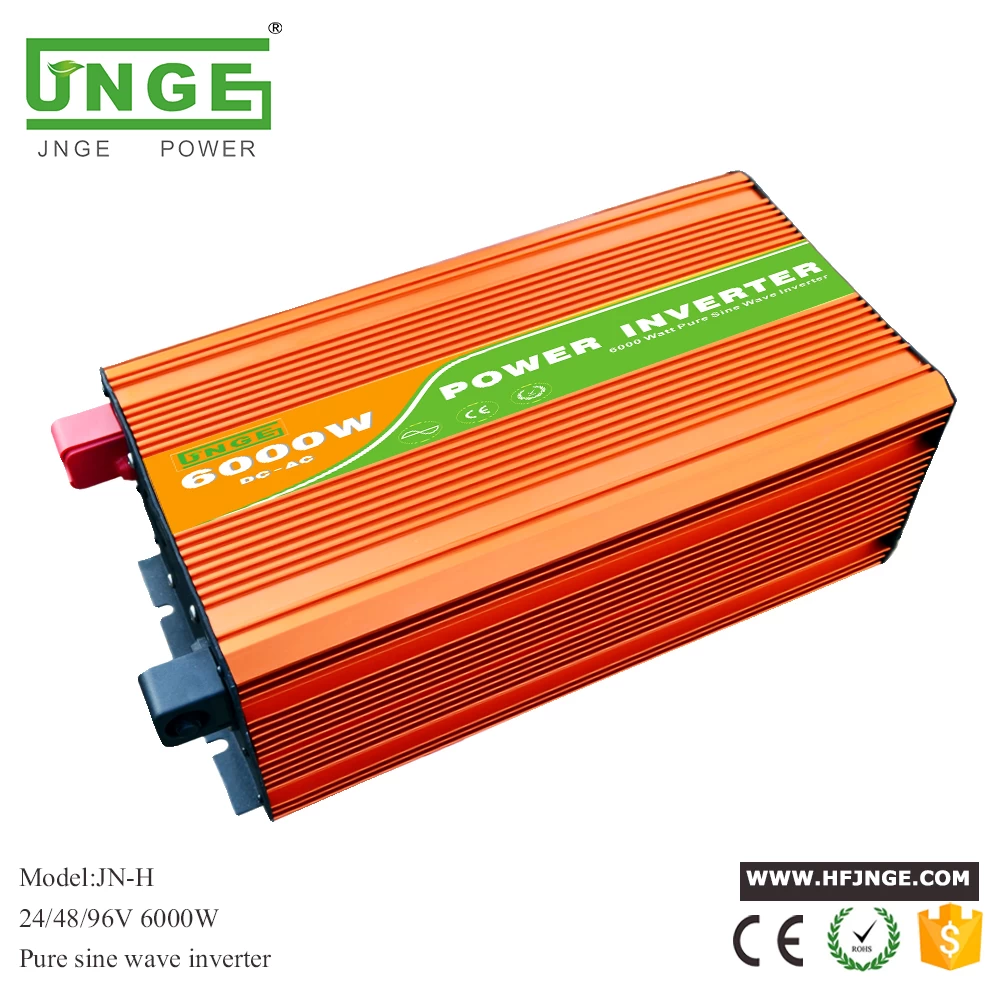

This is a 24V 48V 6000W pure sine wave power inverter which can generate 6000W of continuous power and up to 12000W of power at peak times (peak time reserve capacity is useful if more energy is required to start an appliance than for its continuous running).
This is a pure sine wave type of inverter, which means that the 110 or 230V AC output harmonically follows a smooth sine wave and is almost identical to normal mains electricity. Pure sine wave output is far superior than square sine wave or modified sine wave output for running appliances. This is because:
It is suitable for a broader range of appliances (for example, appliances with electric motors can not be powered by modified sine wave inverters)
It is more efficient compared to modified sine wave inverters.
This product comes with important protection and safety features, such as over-discharge, overload, overheating and short-circuit automatic shutdown.
The inverter also features a powerful USB port for faster charging of mobile phones, MP3 players and others mobile loads.
Product Parameters:
|
OUTPUT
|
OUTPUT VOLT
|
100/110/120/220/230/240VAC
|
|
CONTINUOUS POWER
|
6000W
|
|
SURGE POWER
|
12000W
|
|
WAVEFORM
|
PURE SINE WAVE
|
|
FREQUENCY
|
50Hz/60Hz
|
|
AC REGULATION
|
LOW & HIGH 10%
|
|
Non-load Consumption
|
<28W
|
|
EFFICEINCY
|
>90%
|
|
INPUT
|
USB OUTPUT
|
5V
|
|
DC VOLTAGE
|
LED DISPLAY POWER
& FAIL STATUS
|
|
INPUT RANGE
|
21-30VDC 40-60VDC 80-120VDC
|
|
PROTECTION
|
WORKING INPUT
|
24VDC 48VDC 96VDC
|
|
FUSE
|
20A 10A 15A
|
|
Low battery alarm
|
21+0.5V 42+0.5v 84+0.5V
|
|
Low battery shut down
|
20+0.5V 40+0.5V 80+0.5V
|
|
Over voltage shut down
|
30.5+0.5V 60+0.5V 120+0.5V
|
|
Over load shut down
|
6000W over 10 seconds
|
|
Over heating
shut down
|
>75℃
|
|
Over
Thermal
|
shut down the output
|
|
Working
Temperature
|
BETWEEN -10℃ and +50℃
|
|
soft start
|
|
OTHER
|
DIMENSION(L*W*H)
|
580*218*155mm
|
|
INNER BOX
DIMENSION
|
604*299*249mm
|
|
CARTON DIMENSION
|
670*310*255mm
|
|
NET WEIGHT
|
14±1KG
|
|
GROSS WEIGHT
|
16±1KG
|
|
PACKING
|
1PCS/CTN
|
