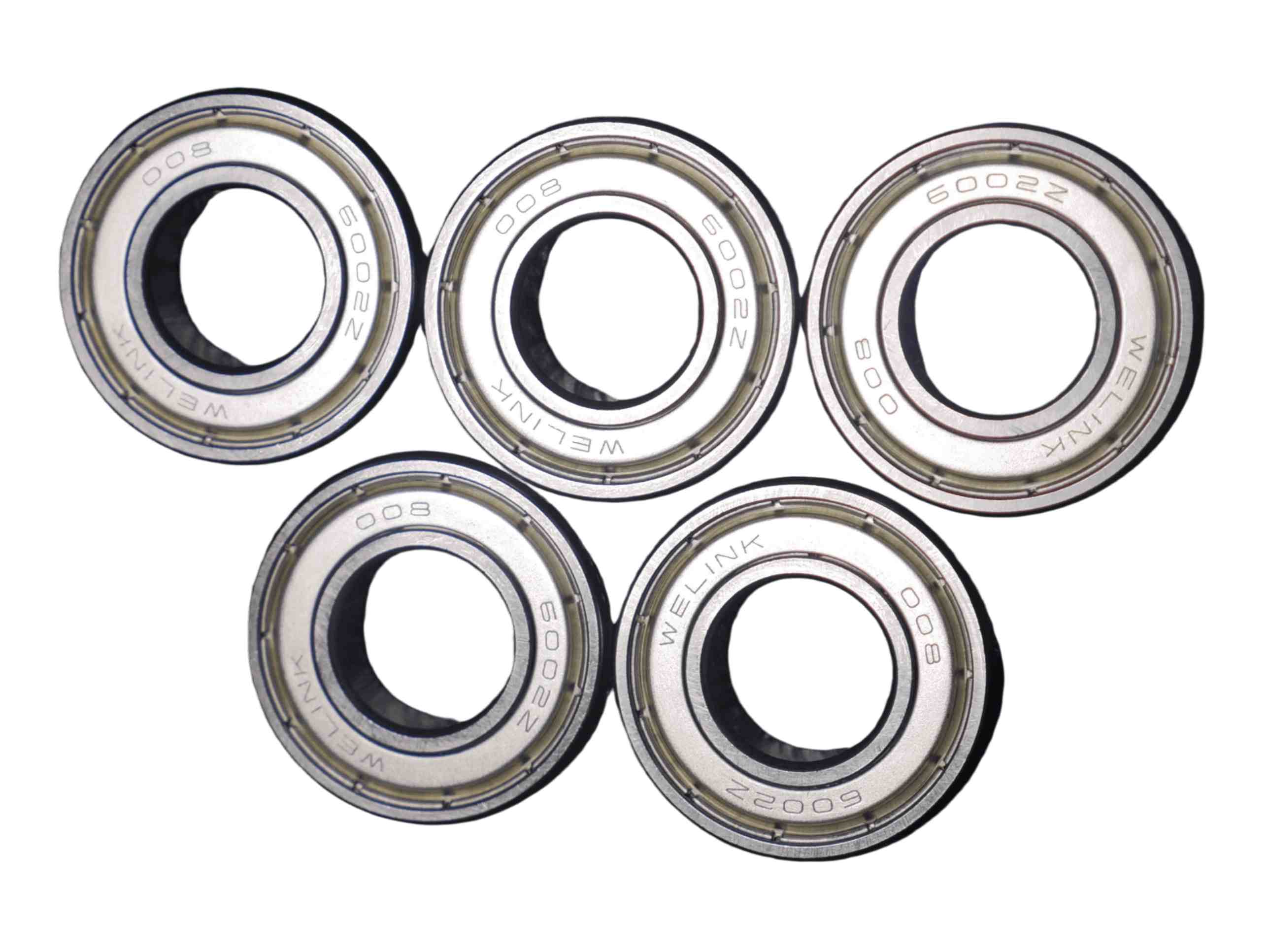

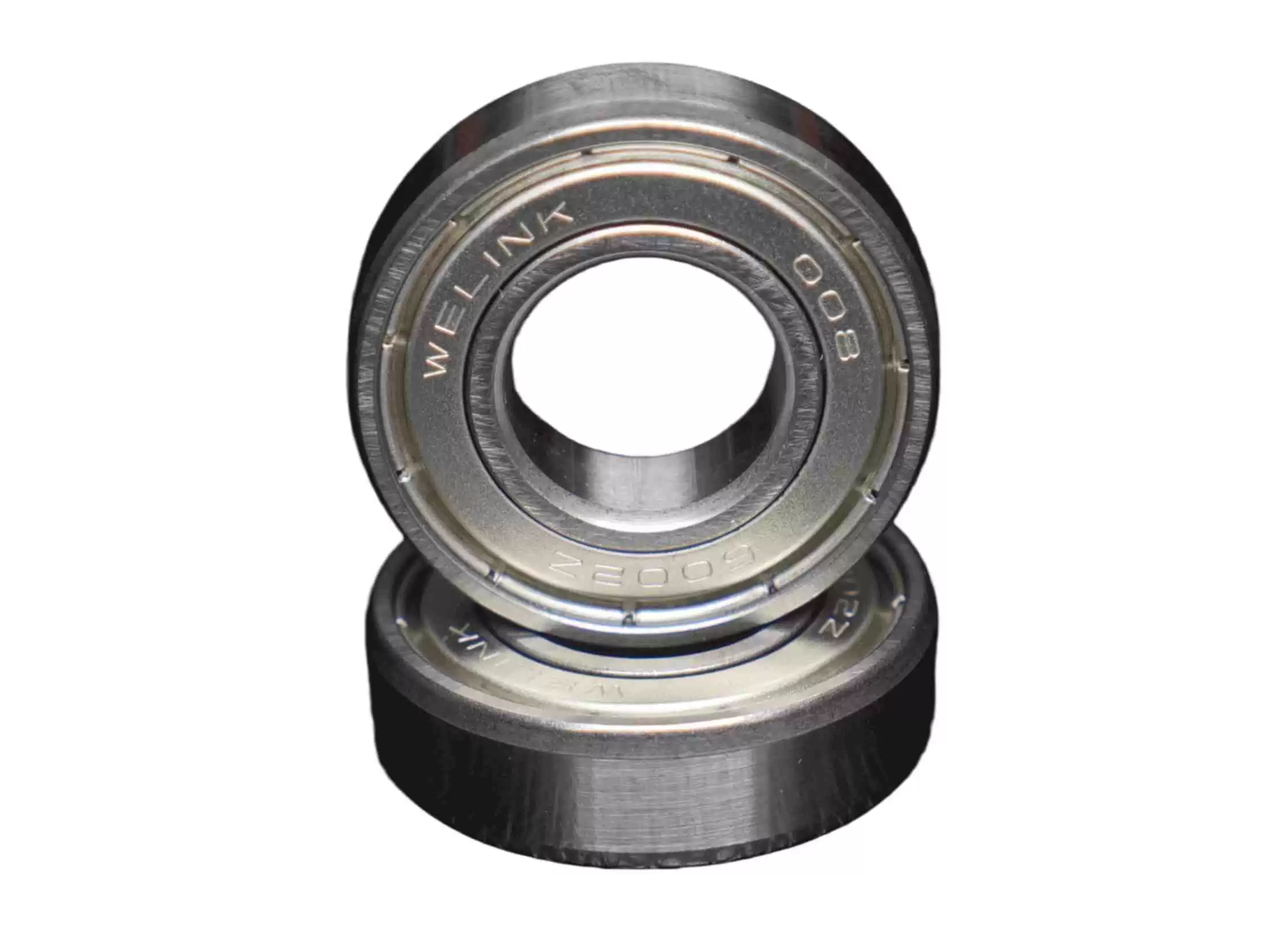

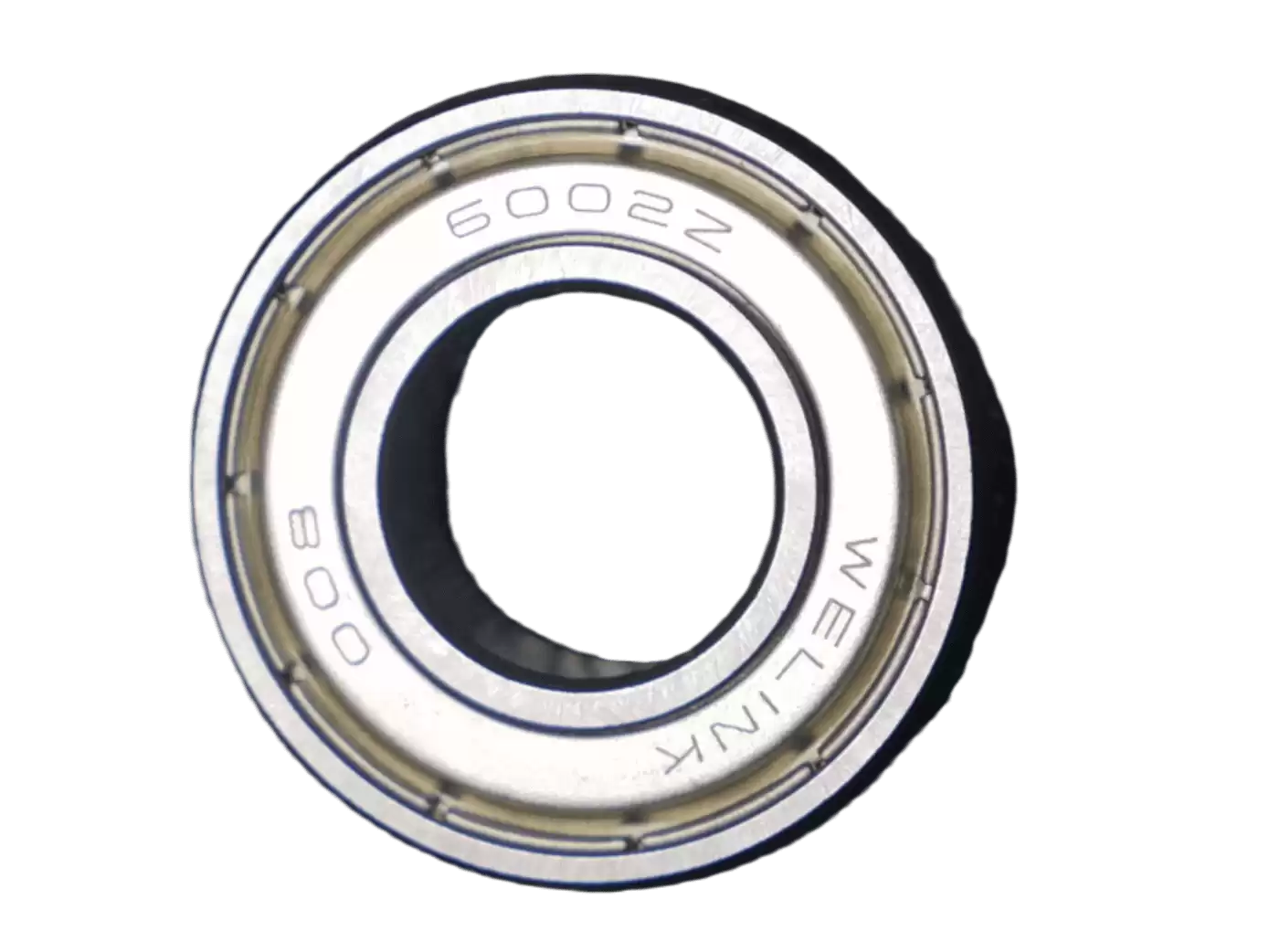

6002-ZZ Shielded Deep Groove Ball Bearing for Industrial Motors and Gear Drives | 15×32×9 Mm

The 6002-ZZ is a Double Steel Shielded Light Series Deep Groove Ball Bearing designed for robust performance in a variety of mechanical applications. Featuring steel shields (ZZ) on both sides, it provides reliable defense against dust and particulate contamination while maintaining internal lubrication and low operating torque. With a 15 mm bore and a light series cross-section, this bearing is well-suited for medium-duty electric motors, power transmission units, and industrial machinery where dependable operation in typical workshop or factory environments is required.



6002-ZZ Deep Groove Ball Bearing 15×32×9 mm | ISO 60 Series – Extra Light | Double Shielded

Utilizing a versatile deep groove geometry, this shielded bearing enables smooth and efficient operation at speeds up to 24,000 r/min (Oil). Designed to carry moderate radial loads and accommodate light axial loads from either direction, the 6002-ZZ is a robust solution for industrial motors, compact gearboxes, and power transmission units where durable performance and effective protection against dust are critical requirements.

6002-ZZ Shielded Deep Groove Ball Bearing for Industrial Motors and Gear Drives | 15×32×9 Mm

Comprehensive Applications

Ideal for a wide range of mechanical and industrial applications requiring a balance of load capacity, speed, and contamination protection:

Automotive & Transportation
  • Automotive Alternators, Starters & Pumps
  • Motorcycle Clutches & Transmissions
  • Electric Vehicle Auxiliary Drives
  • Material Handling & Fleet Vehicle Components
Industrial Machinery & Power Transmission
  • Industrial Electric Motors & Generators
  • Gearboxes, Reducers & Drive Shafts
  • Conveyor Systems & Material Handling Rollers
  • Agricultural Machinery Components
HVAC & Appliance Systems
  • Blower Fans & Ventilation Units
  • Appliance Motors (Compressors, Drives)
  • Commercial HVAC Fan & Blower Assemblies
General Equipment & Machinery
  • Industrial Pumps & Compressors
  • Food Processing & Packaging Equipment
  • Printing Machinery & Paper Handling Systems
  • General Workshop & Maintenance Equipment

Key Performance Features

01. Dependable Steel Shield Protection

Double pressed steel shields effectively contain grease and block the ingress of dust and larger particles from both sides. This non-contact design provides reliable protection in typical industrial environments without significantly increasing rotational torque.

02. Engineered for Smooth, Reliable Operation

Manufactured with precision-ground raceways and high-grade steel components, the 6002-ZZ ensures smooth rotation, low vibration, and consistent performance in continuous or intermittent duty cycles common in industrial settings.

03. Robust Light Series Design

Built to light series dimensions (15×32×9 mm), this bearing offers an optimal combination of radial load capacity and compactness, making it suitable for applications requiring durability within limited radial space.

Technical Specifications

Bearing Type Single Row Deep Groove Ball Bearing
ISO Dimension Series 60 Series – Extra Light
Basic Designation 6002
Suffix ZZ (Double Steel Shields)
Bore Diameter (d) 15 mm
Outer Diameter (D) 32 mm
Width (B) 9 mm
Material (Races & Balls) Chrome Steel (GCr15 / SAE 52100)
Precision Class Standard / P5 Grade Available
Cage Material Steel Stamped
Dynamic Load Rating (Cʳ) 7.65 kN
Static Load Rating (C₀ʳ) 3.72 kN
Limiting Speed (Grease) 18,000 r/min
Limiting Speed (Oil) 24,000 r/min
Weight (approx.) 38 g

Interchange Part Numbers

Common manufacturer equivalents include:

  • SKF: 6002-ZZ
  • NSK: 6002 ZZ
  • FAG: 6002-ZZ
  • NTN: 6002ZZ
  • KOYO: 6002ZZ

Design & Configuration

The 6002-ZZ is supplied with standard double steel shields, offering a cost-effective solution for dust protection in dry to moderately clean environments. For applications exposed to moisture, splashes, or finer contaminants, the double rubber-sealed version (6002-2RS) is recommended.

"Select the 6002-ZZ for general industrial motors and machinery where proven dust protection, reliable performance, and good load capacity are fundamental requirements."
