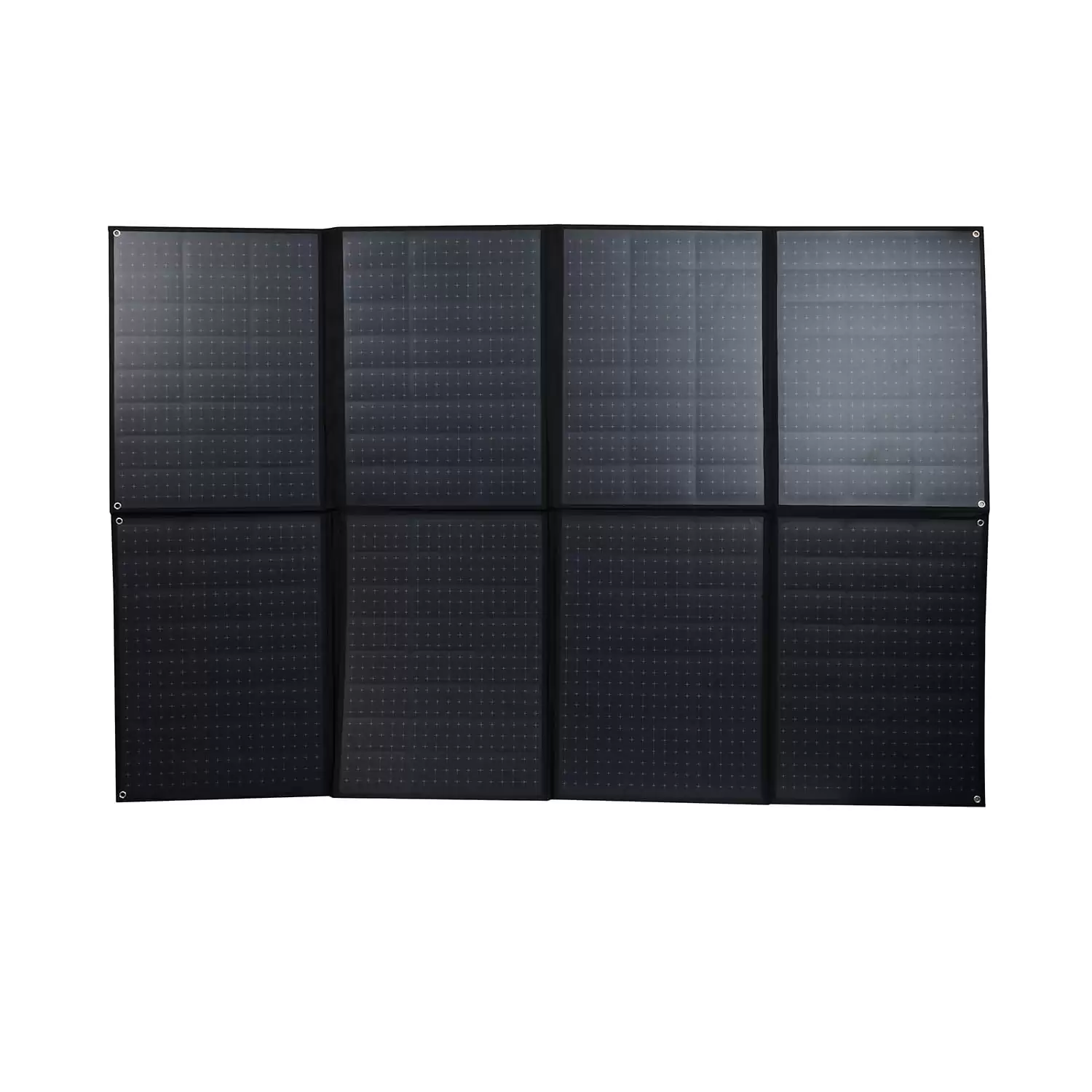

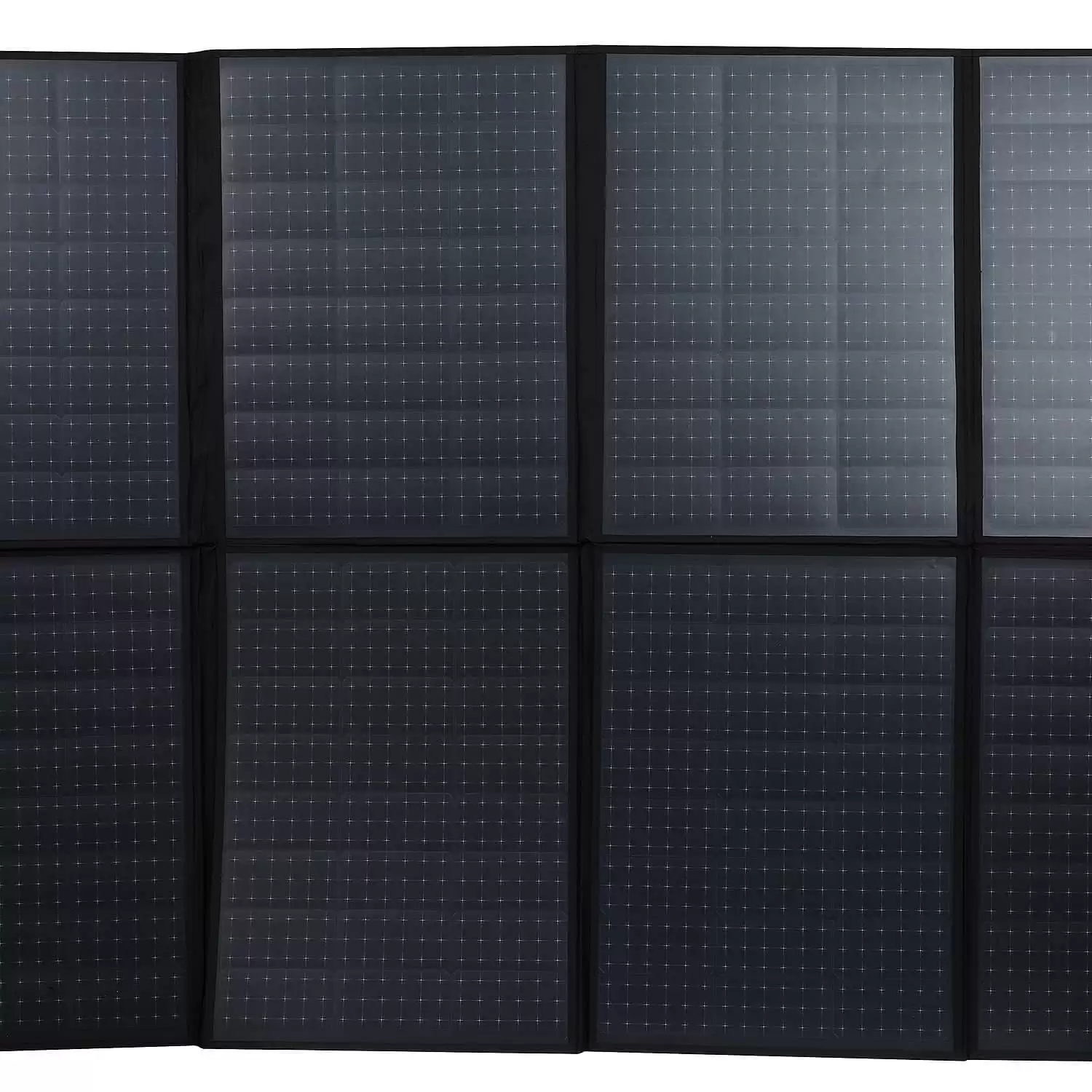

600W 48V Monocrystalline cloth seam 8-fold folding package Solar Folding Panel
High Power Output: The 600W 48V Monocrystalline Cloth Seam 8-fold Folding Package Solar Folding Panel has a high power output that maximizes solar energy conversion and permits effective use of sunshine.
Portable and Foldable Design: This solar panel is made to be portable and foldable, which maximizes convenience and flexibility by making it simple to travel and set up in different areas.

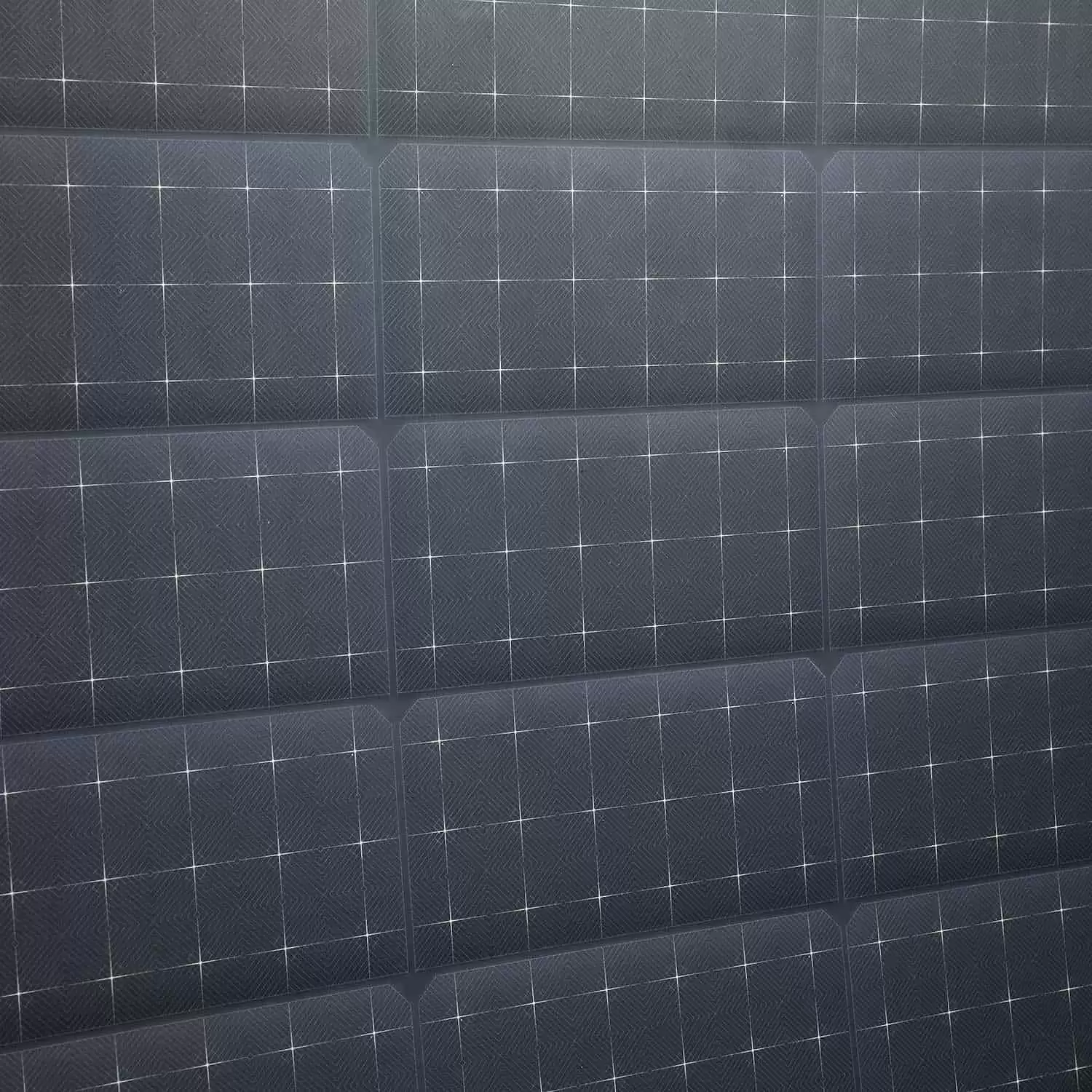

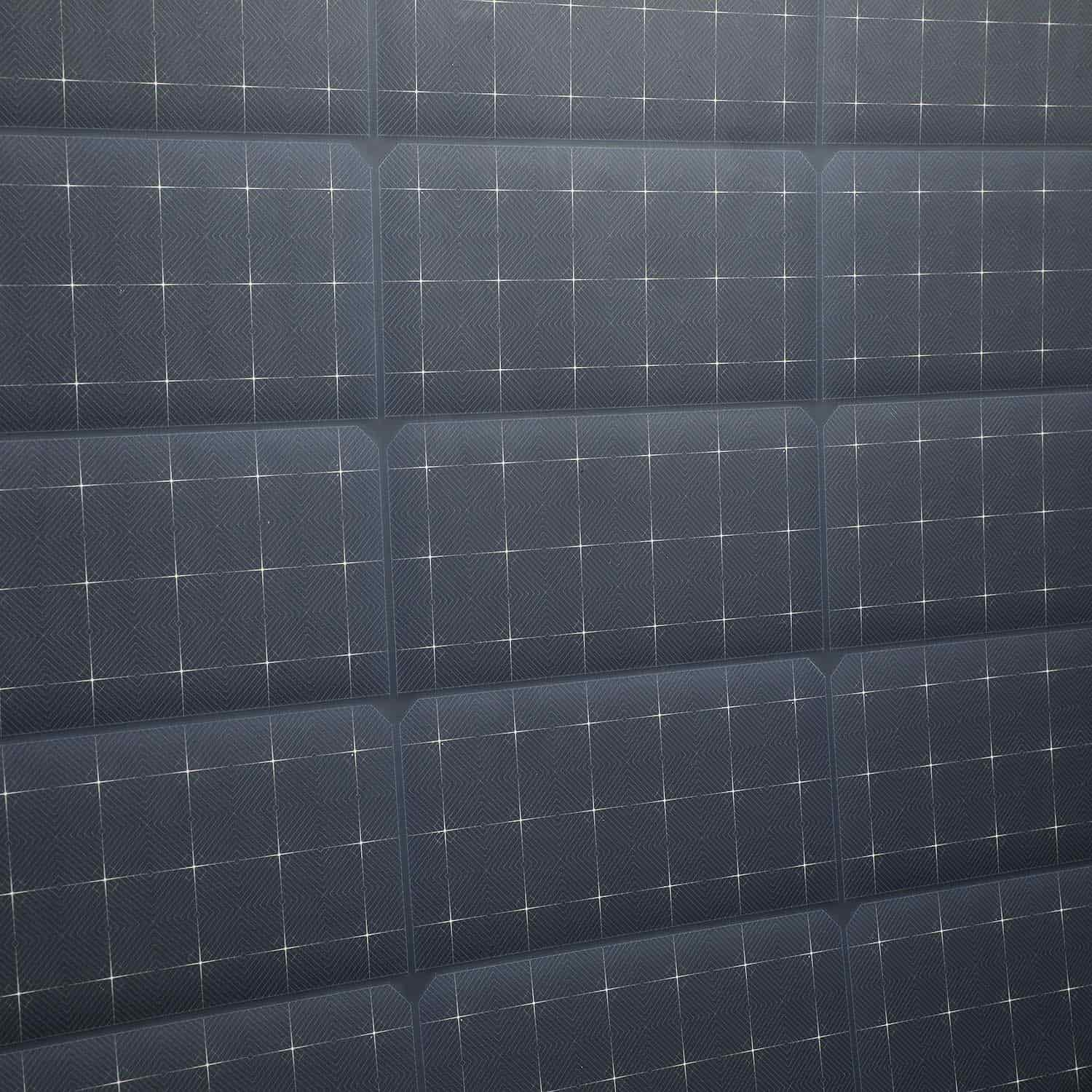

Monocrystalline Efficiency: The high efficiency of the monocrystalline solar cells used in this panel ensures ideal energy conversion and maximizes the power generated from the available sunshine.
Versatile Use: This solar panel may be folded up and carried about for use in a variety of situations, such as camping,
RVs, outdoor activities, and emergency power requirements.
Solar Power Maximization:This solar folding panel helps customers optimize their solar power potential by capturing the power of the sun, minimizing their dependency on conventional electricity sources and encouraging the use of sustainable energy.
| Specification of Foldable Solar Panel |
| Specification |
Product name |
595W 52V Monocrystalline cloth seam 8-fold folding package |
Document number |
AJ-595W52V-166/2 |
| Document name |
B-595W52V-166/2 Specification |
Version number |
A/0 |
| Electrical Performance Parameters (STC) |
| Specifications |
Unit |
Power |
Working voltage (Vm) |
Working current (Im) |
Open-circuit voltage (Voc) |
Short-circuit current (Isc) |
| AJ-595W-8 |
W |
595W |
52 |
11.45 |
63.5 |
12.14 |
| Power tolerance |
W |
0 ~ +3 |
| STC: AM=1.5, irradiance of 1000W / m2, Component temperature is 25℃ |
| Essential parameter |
| Unfolded size (Length & width) |
2285*1465mm |
Solar Cells |
2*4(3*8)/ Monocrystalline / 166*83mm |
| The back material |
Waterproof cloth (Black) |
Net weight |
About 11.5kg |
| Surface material |
Enhanced Film（high permeability） |
Cable specification |
2m 14AWG dual-core cable+MC4 |
| Materials |
EVA |
Packing specifications |

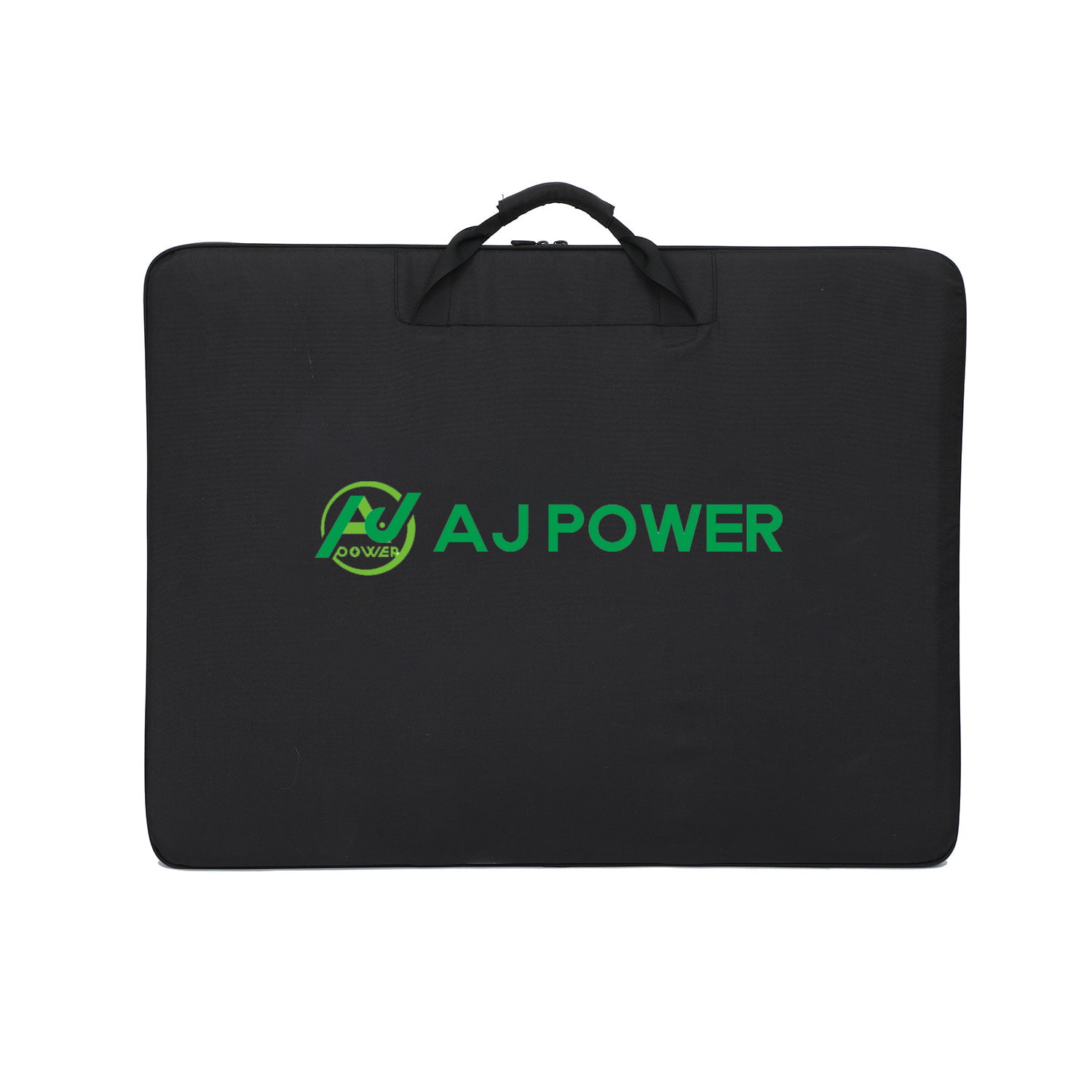

cloth bag+pearl cotton+carton |
| Adapter |
Can be customized according to the customer's request |

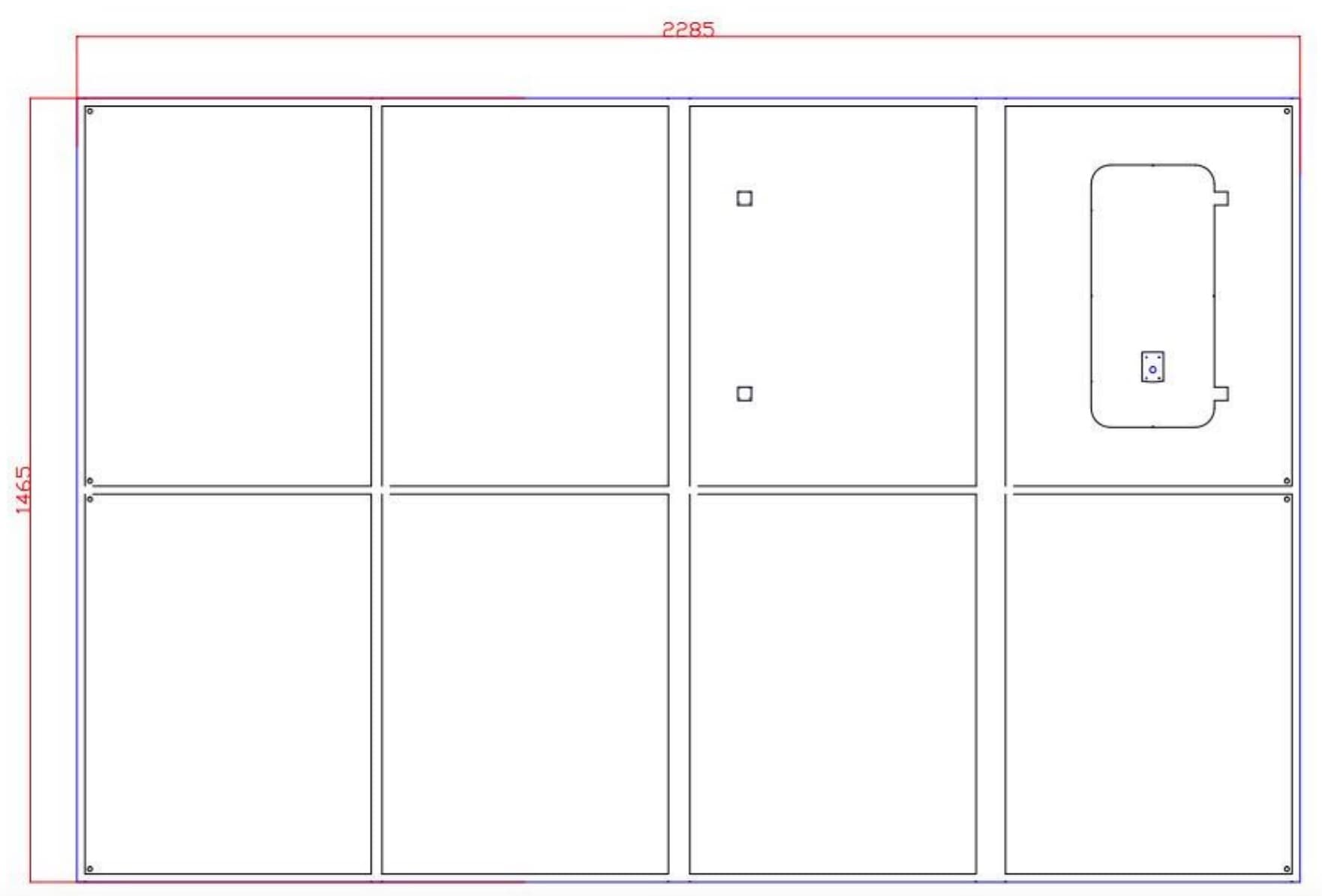

| Product Dimension |
|
|

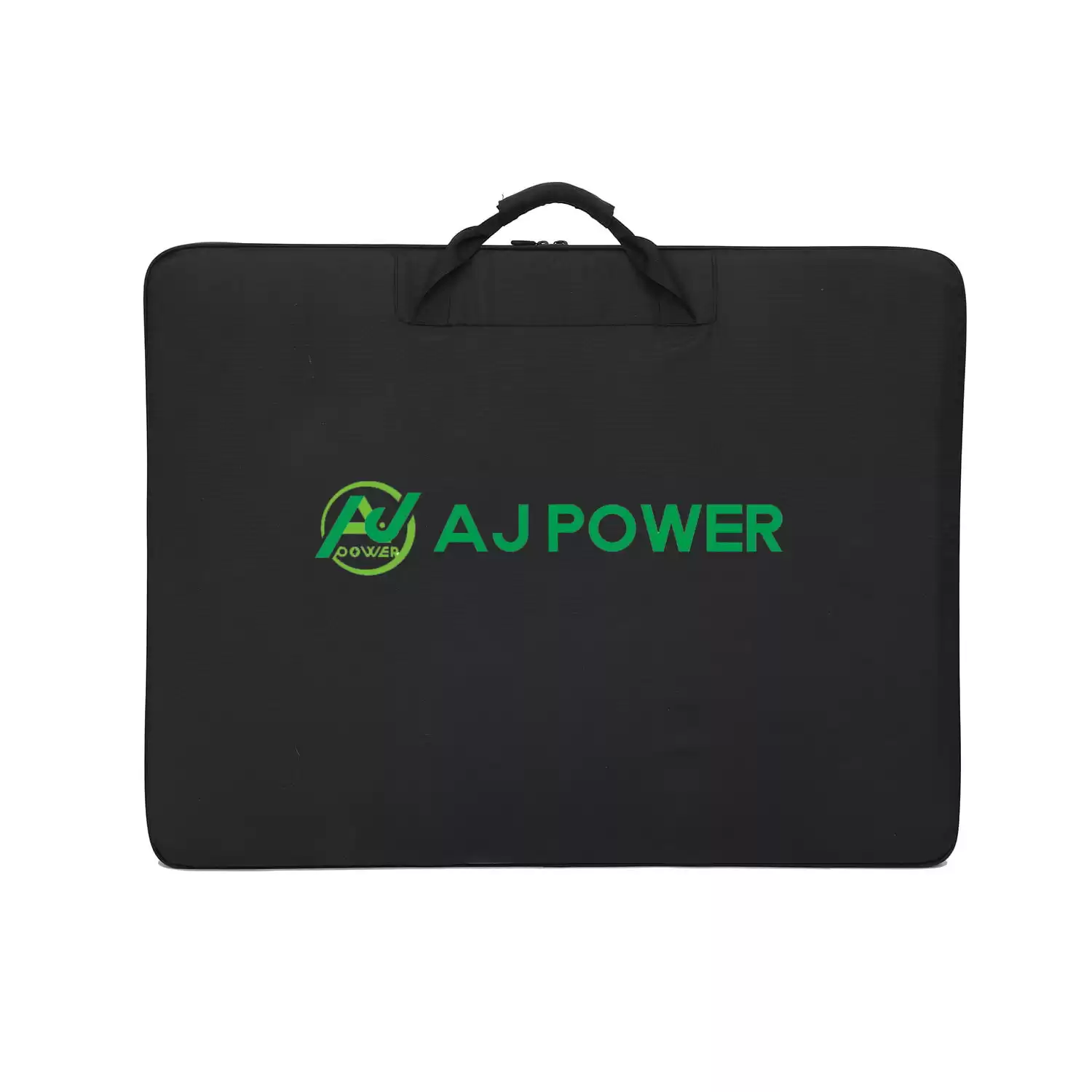

Foldable Design: The 600W Monocrystalline Cloth Seam 8-Fold Folding Package Solar Folding Panel features a foldable design for easy storage and transportation.
Easy to Carry: The lightweight construction of the solar panel makes it effortless to carry and set up in various locations.
Adjustable Bracket: The panel includes an adjustable bracket, allowing users to position it at the optimal angle for maximum solar energy absorption.
Multiple Charging Ports: The solar panel is equipped with multiple charging ports, enabling simultaneous charging of multiple devices.
Weather-Resistant and Durable Structure: The cloth seam construction provides weather resistance and durability, ensuring the panel's longevity in outdoor conditions.
Expandable and Modular: The solar panel is expandable and modular, allowing users to add more panels to increase their solar power capacity as needed.
High Energy Conversion Efficiency: The monocrystalline solar cells used in the panel offer high energy conversion efficiency, maximizing the generation of solar power.
Versatile Application: The solar panel can be used in various settings, including camping, RVs, off-grid systems, and emergency power, providing flexibility and versatility for solar power usage.
With a focus on high-end batteries and energy storage technologies, AJPOWER is a pioneer in the new energy sector. We guarantee the highest standards of quality and dependability thanks to our ISO 9001 accreditation.
Power batteries, portable power supplies, household energy storage batteries, and RV energy storage systems are all part of our product portfolio. Additionally, we are industry leaders in the fields of folding solar packs and flexible solar panels.
We take great satisfaction in offering individualized services with a human touch at AJPOWER. Our skilled staff works closely with clients to comprehend their particular energy requirements and provide tailored solutions.
Experience the power of AJPOWER and embrace a greener and more sustainable future with our flexible solar panels and foldable solar packs. Trust in our commitment to high-quality products and personalized service.
