• Compressor units for refrigeration systems
• Large commercial HVAC fan assemblies
• Cooling tower fans & circulation pumps
• Industrial exhaust systems & air handling units

• Automotive alternators & starter motors
• Truck water pumps & cooling fans
• Agricultural machinery drivelines
• Construction equipment auxiliary systems

• Conveyor systems & material handling equipment
• Textile machinery & processing equipment
• Paper mill machinery & converting equipment
• Machine tool spindles & auxiliary drives

• Industrial gearboxes & speed reducers
• Industrial electric motors & generators (Frame sizes up to 280)
• Centrifugal pumps & circulation pumps
• Fans, blowers & industrial ventilation systems

01. Optimized Balance of Size & Capacity

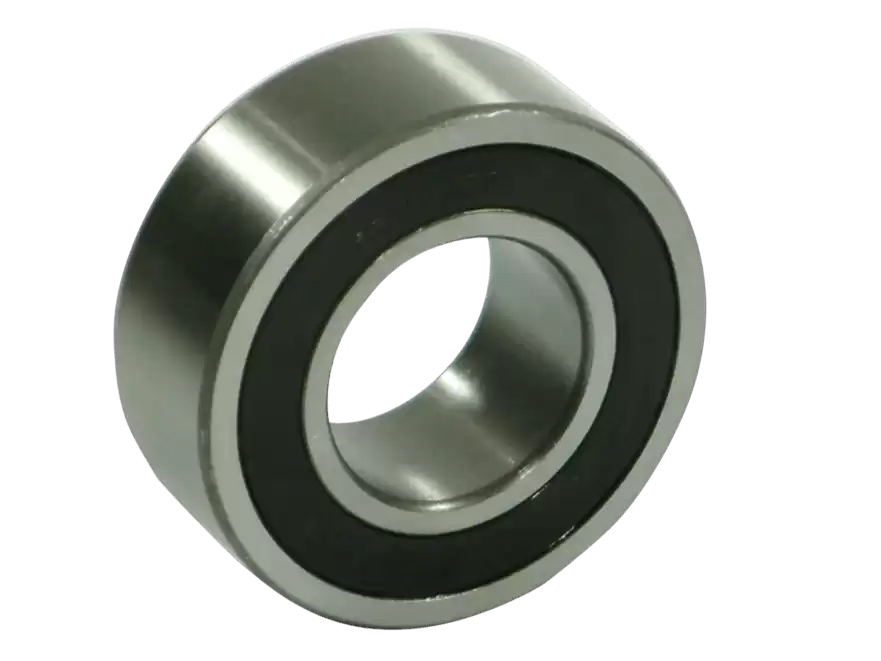

The 6022-2RS, with dimensions of 110×170×28 mm, achieves an optimal balance between a relatively compact form factor and substantial radial load capacity. With dynamic load ratings of 82-103 kN and static load ratings of 71-73 kN depending on manufacturer specification, this bearing delivers reliable performance across a wide array of demanding industrial applications.

02. Superior Sealing with Contact Seals

Two synthetic rubber contact seals (2RS) provide excellent protection against moisture, dust, and fine contaminants. This design ensures effective lubricant retention, contributes to extended bearing life, and supports reliable operation in environments where contamination risk is present. The nitrile rubber (NBR) seal material offers good resistance to oils and greases across a wide temperature range.

03. Precision-Ground for Quiet Operation

Manufactured from high-quality chrome steel components with precision-ground raceways and optimized internal geometry, this bearing is designed to deliver consistently quiet running, minimal vibration, and stable performance under various load and speed scenarios. Available with Normal (CN) internal clearance for standard operating conditions, with C3 clearance variants available for applications involving higher temperatures or press-fit mounting.

04. Wide Operating Temperature Range

Engineered to perform across diverse industrial environments, the 6022-2RS operates reliably within a temperature range of -30°C to +120°C, with some variants rated up to +150°C, accommodating thermal expansion and contraction in varying application conditions.

Interchange Part Numbers

Common manufacturer equivalents include:

• SKF: 6022-2RS1
• NSK: 6022DDU
• FAG: 6022-2RSR
• NTN: 6022LLU
• KOYO: 6022 2RS / 60222RS
• NKE: 6022-2RS
• ZWZ: 6022-2RS
• TIMKEN: 6022-2RS

Design & Configuration

The standard configuration for the 6022-2RS includes double rubber contact seals and factory-applied lithium-based grease. This offers dependable sealing for use in environments where protection against moisture and particulate contamination is required. The 60 series extra-light cross-section provides an excellent balance of load capacity and space efficiency.

For applications prioritizing very high speeds in clean, dry environments, the double metal-shielded alternative (6022-2Z / ZZ) is available. For applications involving higher operating temperatures or tighter fitments, C3 internal clearance variants are recommended.

Mounting considerations: Minimum abutment shoulder diameter (da) is approximately 119 mm, maximum housing shoulder diameter (Da) is approximately 161 mm, with maximum fillet radius of 2 mm.

"Ideal for electric motors, industrial pumps, and general machinery, the 6022-2RS ensures dependable, long-term operation. Its effective sealing against moisture and dirt is critical for maintaining performance and reducing maintenance intervals in challenging industrial environments where reliability cannot be compromised."
