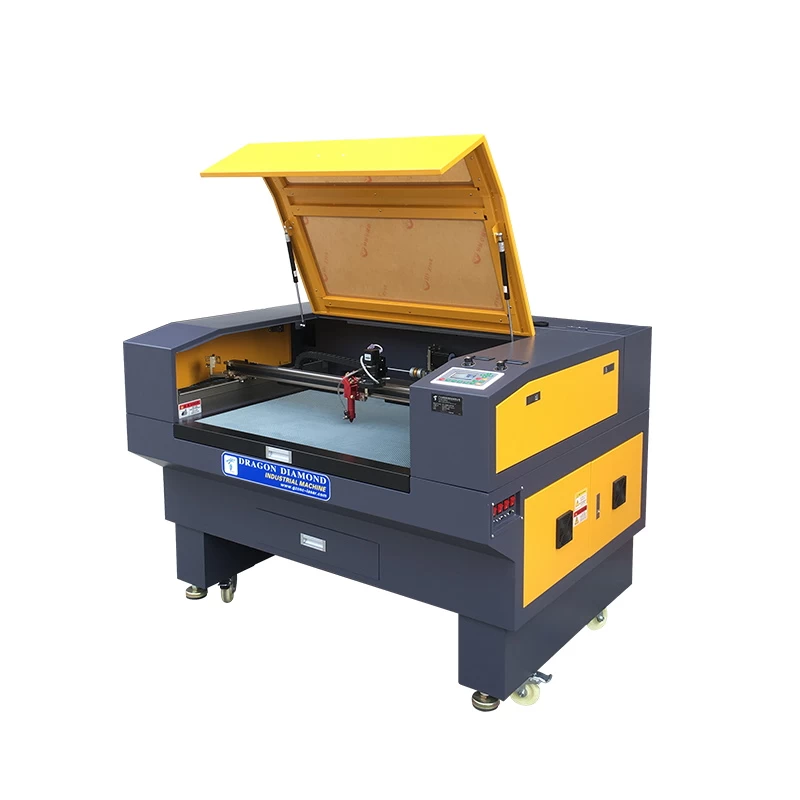

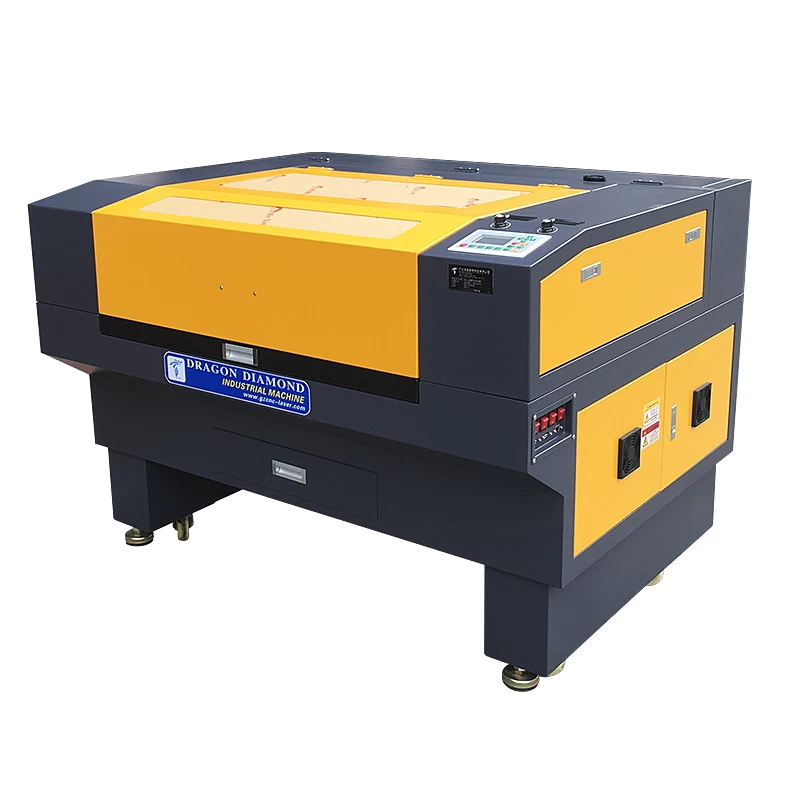

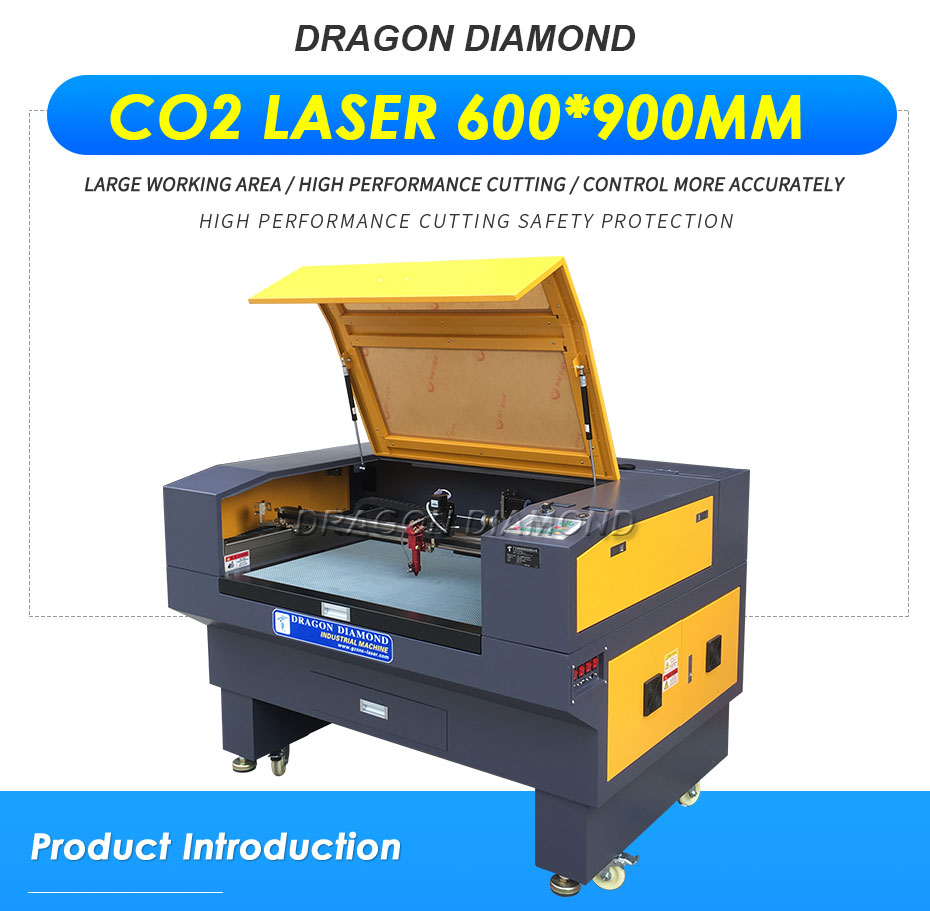

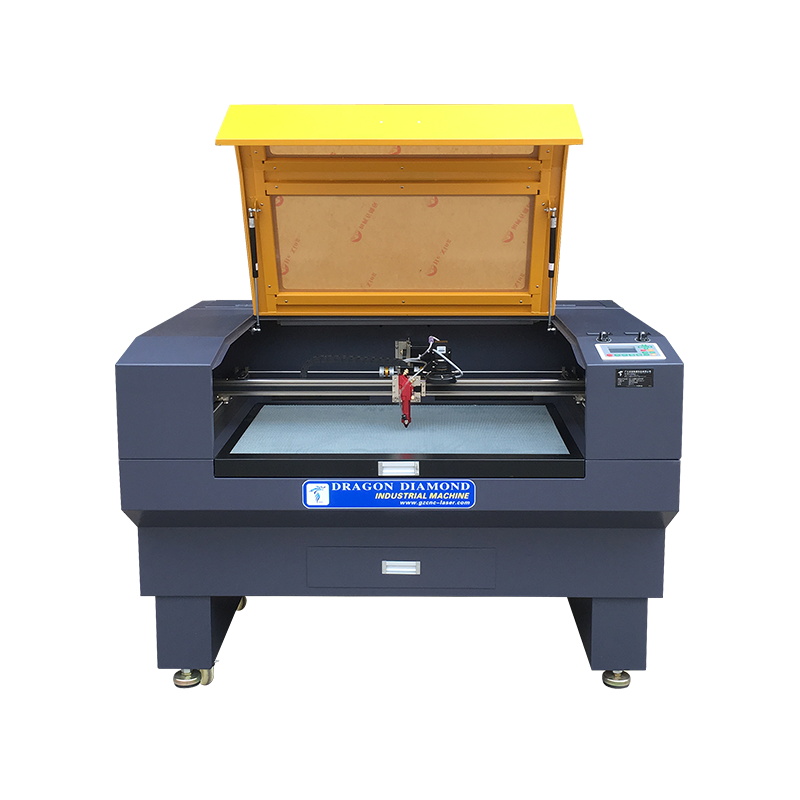

6090 Camera Laser Cutting Engraving Machine Crafts Products

60*90cm Laser Machine With CCD Function Automatically Edge Cutting.



6090 Camera Laser Cutting Engraving Machine Crafts Products




PRODUCT PARAMETER

NO.

Model

Lz-6090CCD

1

Working Area

780x580mm

2

Packing Size

1600x1350x1300mm

3

Working Table

HoneyComb Table

4

Laser tube type

CO2 sealed laser tube

5

Cooling System

Water Chiller CW5200

6

Control System

RUIDA6442G

7

Software
RD Work

8

Software supported
CorelDraw,Photoshop,AutoCAD,TAJIMA

9

File output mode
2.0 USB interface

10

Laser power
60~150W for option

11

Motor

Leadshine Stepper motor

12

Resolution
1,000--10,000 dpi

13

Machine Power
<3,000W

14

Minimum Character Size
English1.0×1.0mm

15

Engraving speed

0-40000mm/min

16

Cutting speed

0-10000mm/min

17

Reposition Accuracy

0.01mm

18

Graphic format supported

BMP, PLT, DST, DXF, AI

19

Voltage

AC220V/110V,50HZ/60HZ






PRODUCT FEATURES

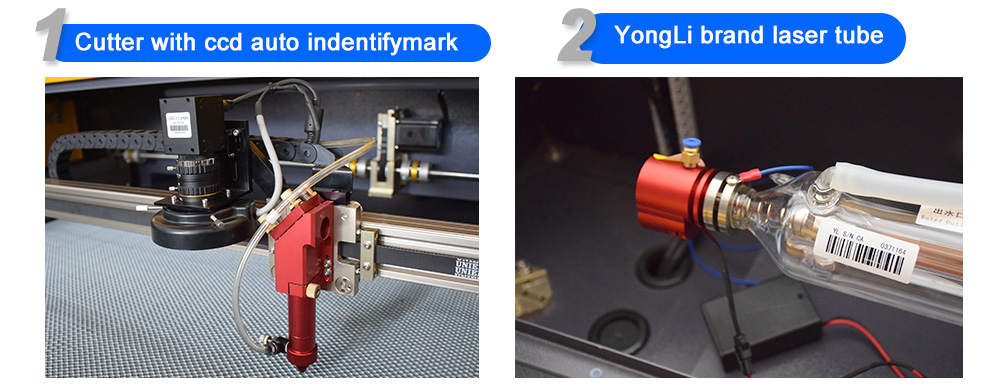

1.The Camera in Automatic Camera Positioning Cutting Machine reflects very fast with high frame rate. It’s much easier to install and adjust. One time position fixing will be OK for total work.


2.Has professional visual light source .During working process, it can automatically intake the pictures into computer by the visual system. Through treatment, it can automatically search for the work and position accurately to cut.
