Polyurethane sealing end sandwich board features
☆ Fireproof: with Grade A1 level, the high temperature reaches 150°;
☆ Heat & thermal insulation: the coefficient of thermal conductivity is 0.037-0.043w/m.k;
☆ Sound absorption: excellent in sound proof;
☆ Chemical resistance, anti corrosion;
☆ Energy conservation, environmental protection;
☆ Light weight, easy to install, save construct time, and reduce building cost.

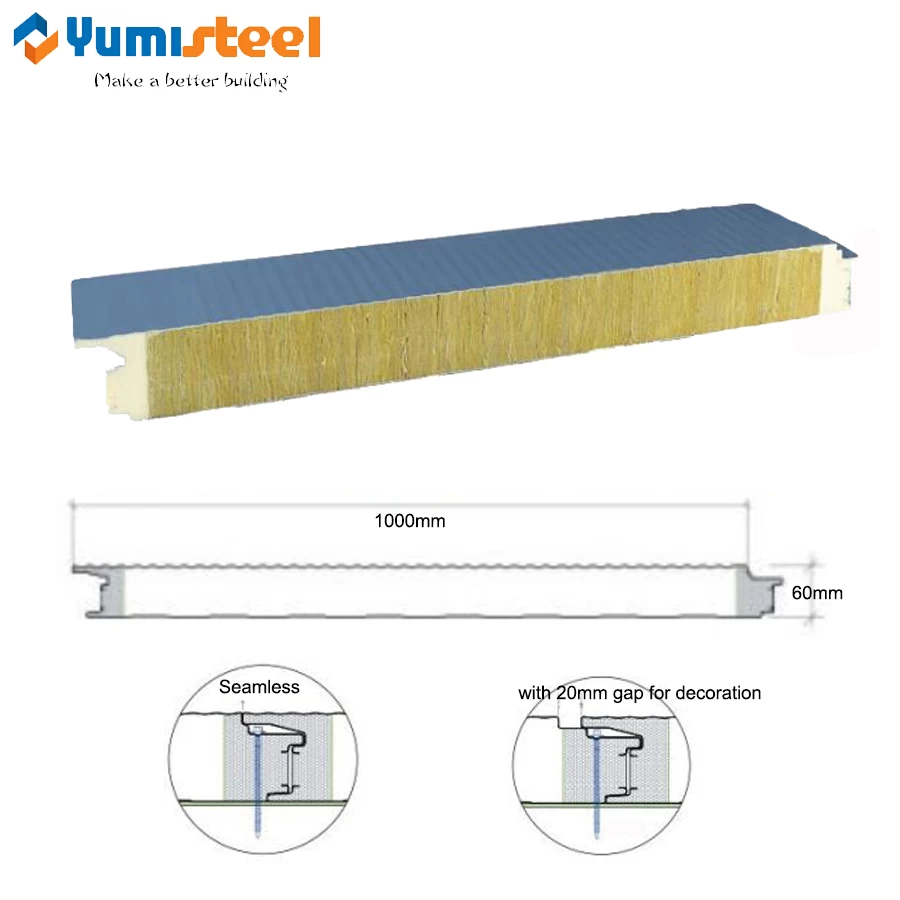

Concealed PU sealing rockwool sandwich panel joint way
Panel joint: Concealed hidden screws type,
Surface can be with 20mm decorative seam or seamless,

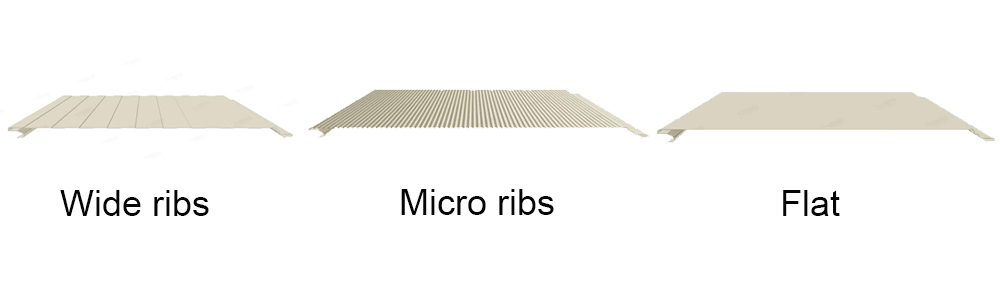

Composite panel texture 3 options
Colorful wall sandwich panels description
|
Product name :
|
60mm PUR sealing rockwool sandwich panel
|
|
Effective width:
|
1000mm
|
|
Density :
|
38 ~ 42 KG/M³ for PU;
80 ~ 150 KG/M³ for Rockwool;
|
|
Steel sheet thickness :
|
0.40 ~ 0.75 mm
|
|
Stainless steel sheet thickness :
|
0.40 ~ 0.70 mm
|
|
Al-Mg-Mn alloy metal thickness :
|
0.70 ~1.20 mm
|
|
Regular color:
|
White grey, Sea blue, Sliver grey, Dk grey, Iron grey, also can be customized
|
Coating type choice:
|
PE/ PVDF/ HDP/ SMP, etc.
|
|
Available length:
|
20FT container: ≤ 5.95m
40FT container: ≤ 11.95m
|

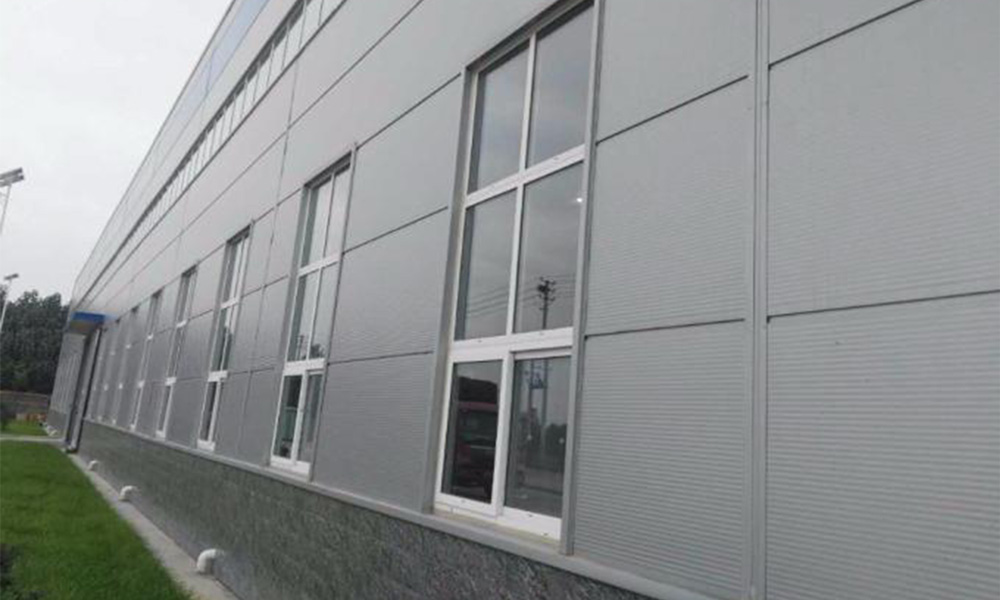

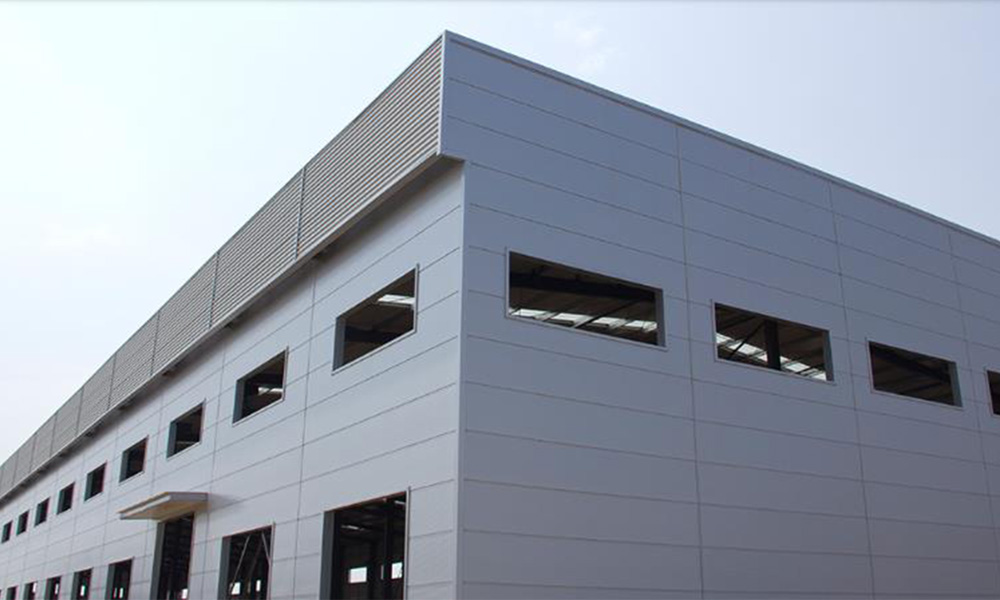

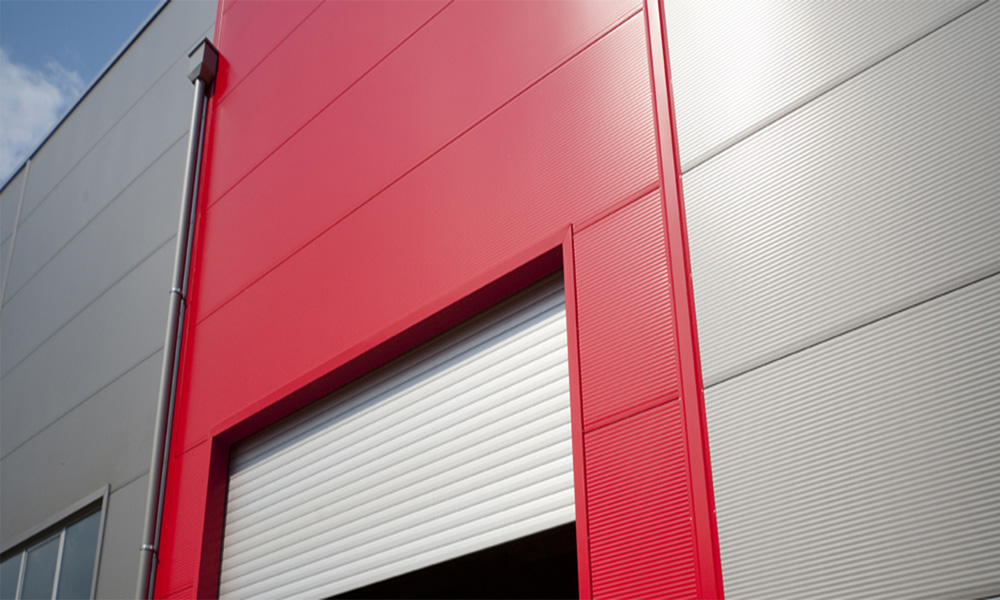

Sandwich panel wall application
Largy size factory buildings, storages, exhibition halls, gymnasiums, visual hall, concert hall, music hall, movie theater,cinema, studio, monitor room, meeting room, dance hall, ballroom, Karaoke chamber, etc.
If you have special designs,we can have our engineers to support your design work.

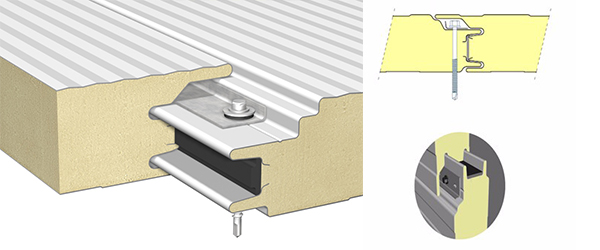

Concealed hidden screws type wall panel rendering
Packing & Delivery:
☆ Packing:
1)Number of panels per packages for your reference:
|
Panel thickness/mm
|
Panels per package/PCs
|
Remark
|
|
50
|
22
|
Standard package weight:3-5/ton for each package
|
|
75
|
15
|
|
100
|
11
|
|
150
|
7
|
|
200
|
6
|
2)Seaworthy packing standards:
PVC on both sides to protect the roof panel surfaces;
Packed with kraft paper to protect the panel ends;
Put EPS foam on the each space to keep the panels from squeezing each other.
If you have special requirement,please feel free to discuss with us.This is to make us improved,and protect your goods well.
☆ Delivery:
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
