Outdoor Landscape 60w Outdoor Landscape Led Garden Light For Post Lamp
Feature:
-
Traditional appearance structure, change to LED light source, which makes product more classic
-
Set screw fixed installation, more solid and reliable
-
Power supply and light source separated design make the product more convenient to install
-
Power supply is separable, easy to change
-
Beautiful appearance, use Philips 5050
-
Using SOSEN driver
-
IP65
Application:
Street, road lighting, walkway, park, courtyard lighting.
Datasheet:
|
Model
|
Lumens
|
Input
Voltage
|
System
Power
|
Product Size(MM)
|
Package Size(MM)
|
N.G
|
|
GD-TP882-W0120-N-XXXXK
|
13800lm
|
90-277Vac
|
120w
|
442*442*882mm
|
462*462*900mm
|
9.1KG
|
|
GD-TP882-W060-N-XXXXK
|
6900lm
|
90-277Vac
|
60w
|
442*442*882mm
|
462*462*900mm
|
8.8KG
|
|
GD-TP882-W030-N-XXXXK
|
3450lm
|
90-277Vac
|
30w
|
442*442*882mm
|
462*462*900mm
|
8.5KG
|
|
IP65
|
|
2550K~7000K Optional
|
|
Power efficiency>0.88
|
|
Driver: Sosen
|
|
Storage temperature: –40 ~ 50°C
|

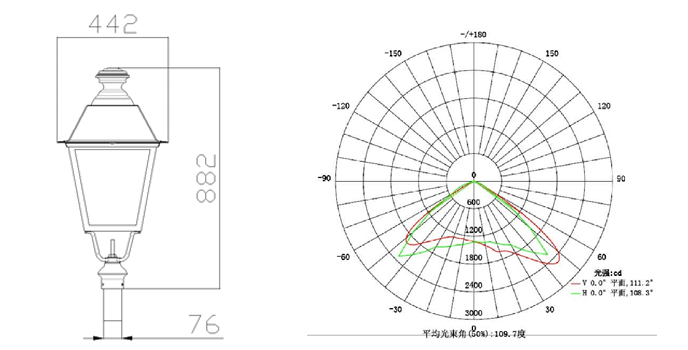

Product size & Photometric:
Installation caution:
-
Make sure the power has been turned off before maintenance.
-
Clean the lens cover regularly to maintain high transmission of light.
-
Clean up the dust from the reflector and heat sink regularly to keep sound heat dispersion.
-
Be careful not to use water or corrosive solution for cleaning, preferably with a dry cloth.
-
When install or replace power supply, directly open the back cover with a screwdriver, then remove the power supply. There are three-core cable of AC power, red corresponds to the power of “L”, blue to “N”, and green or yellow to “G ”.
-
Improvement and modification to fitting construction is prohibited. Product fault resulted from disassembling, remodeling or incorrect construction are not in the warranty.
