• Conveyor systems and material handling equipment
• Small gearboxes and speed reducers
• Power tools (drills, grinders)
• Office automation equipment
• Textile machinery thread guides
• Packaging equipment

• Washing machine motors
• Refrigerator compressor and fan units
• Vacuum cleaner motor shaft supports
• Blenders and food processors

• Alternators and starter motors
• Cooling fan systems
• Window lift mechanisms
• HVAC blower assemblies

• Fractional horsepower AC/DC motors
• Cooling fan motors for electronics and IT equipment
• Servo and stepper motors in automation
• Small pump and compressor drives

01. Effective Single-Shield Contamination Protection

Single Z-type non-contact steel shield on one side provides a reliable barrier against dust, dirt, and airborne particulates while maintaining low frictional torque. This partial shielding configuration offers an effective balance between protection and accessibility—allowing for inspection and relubrication in applications where maintenance access is beneficial. The open side facilitates lubricant replenishment in moderately dirty environments.

02. Robust Design with Reliable Load Capacity

Conforming to the popular 62-series light section, the 12×32×10 mm configuration delivers a dynamic load rating of 6.10–7.28 kN. This robust construction ensures reliable performance in applications where moderate radial and limited axial forces are present. The deep groove raceway design enables smooth handling of combined loads even at high speeds.

03. Optimized for High-Speed and Low Noise

Precision-manufactured components and a rigid pressed steel cage ensure consistent, quiet operation with minimal vibration. This makes the 6201-Z suitable for high-speed applications up to 22,000 RPM with grease lubrication, supporting stable performance in sensitive devices like electric motors, automotive alternators, and precision spindles.

Interchange Part Numbers

Direct replacement for:

• SKF: 6201-Z / 6201-Z/C3
• NSK: 6201Z
• FAG: 6201-Z
• NTN: 6201Z
• Timken: 6201-Z
• NACHI: 6201Z

Design & Configuration

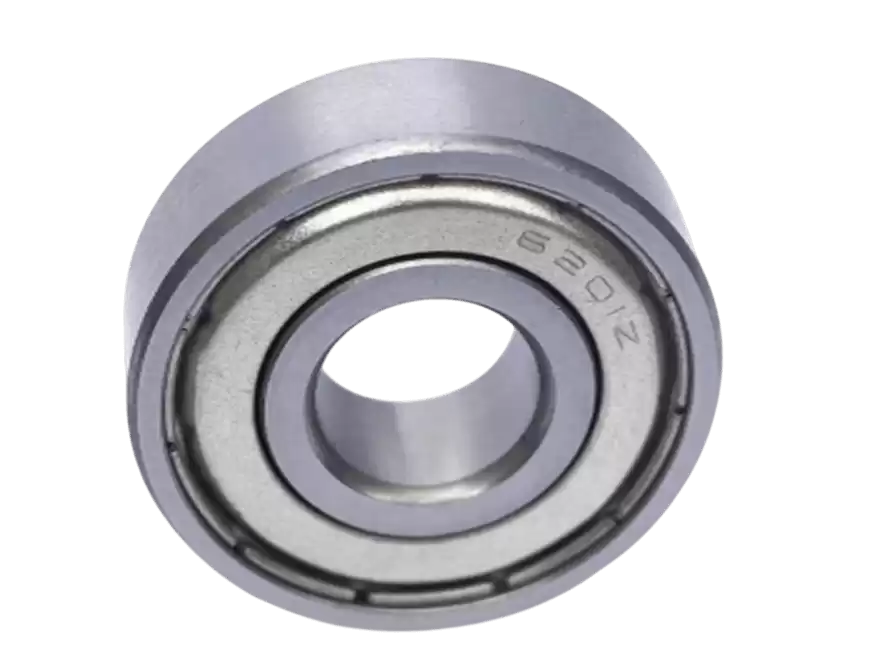

The 6201-Z is furnished with a single Z-type steel shield on one side as standard, delivering enhanced internal protection while maintaining the open side for applications where relubrication access is beneficial. For applications requiring maximum contamination protection, the double-shielded variant (6201-ZZ / 6201-2Z) or double rubber-sealed version (6201-2RS) is also available. Bearings with C3 internal clearance are available for applications with higher operating temperatures or thermal expansion requirements.

"The 6201-Z is a versatile workhorse for light industrial drives and automotive systems, combining reliable load capacity with single-shield protection for long-term, maintenance-conscious operation."
