• General Purpose AC/DC Motor Shafts
• Cooling Fan and Blower Motors
• Pump and Compressor Units
• Light-Duty Gearbox Outputs

• Auxiliary Drive Pulleys
• Idler Wheels and Tensioners
• Power Tool Armatures
• Alternators and Generators

• Machine Tool Spindles (Light Duty)
• Textile Machinery Components
• Agricultural Equipment Linkages
• Conveyor Rollers and Transfer Points

• Air Handling Unit Drives
• Packaging Machine Feed Mechanisms
• Warehouse Conveyor Systems
• Forklift Truck Wheel Bearings
• HVAC Fan and Blower Units

01. Effective Shielded Protection

Equipped with dual Z-type metal shields, this bearing offers robust protection against dust, dirt, and larger particles while retaining the initial grease lubrication. This non-contact shielding minimizes friction, allowing for high-speed operation in environments where re-lubrication is not feasible.

02. Optimized Load Carrying Design

The 6202-ZZ features a deep, uninterrupted raceway that supports high radial forces and bidirectional thrust loads relative to its size. Manufactured from high-quality chrome steel (SAE 52100), it provides excellent wear resistance and longevity in demanding duty cycles.

03. Precision & Operational Reliability

Manufactured to standard ABEC-1 (P0) precision tolerances as a baseline, with higher grades available upon request. The precision-ground raceways and graded balls work together to ensure low vibration, reduced noise, and consistent rotational smoothness, contributing to an extended service life in critical applications.

Interchange Part Numbers

Direct replacement for:

• SKF: 6202-ZZ / 6202-ZZ/C3
• NSK: 6202ZZ
• FAG: 6202-ZZ
• NTN: 6202ZZ
• Timken: 6202-ZZ
• Generic: 6202ZZ, 6202-2Z, 6202-Z

Design & Configuration

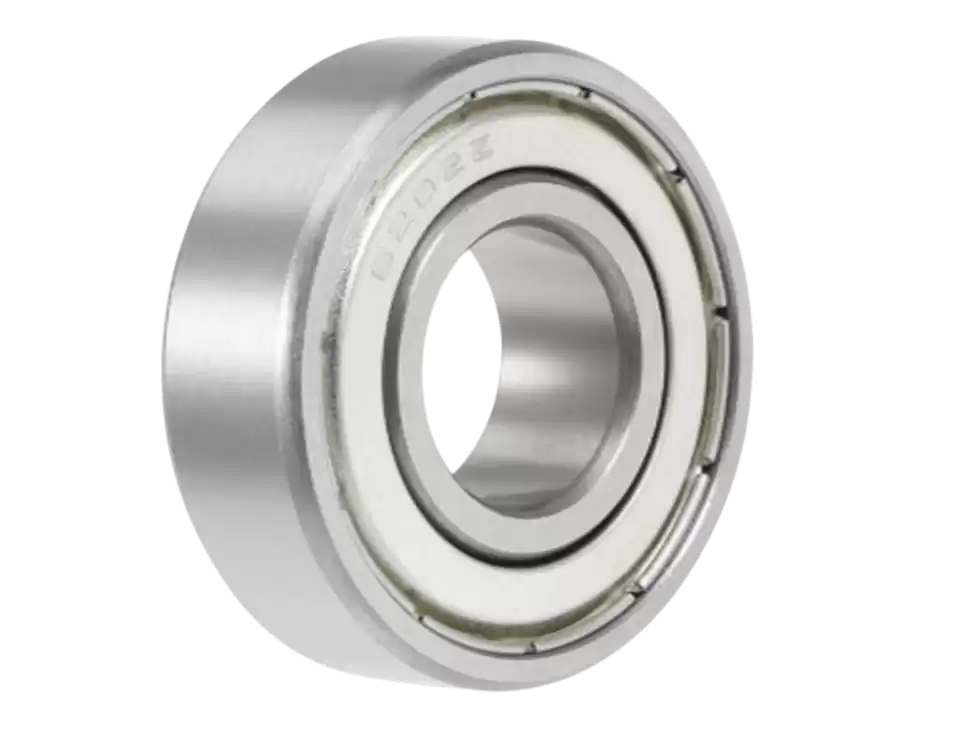

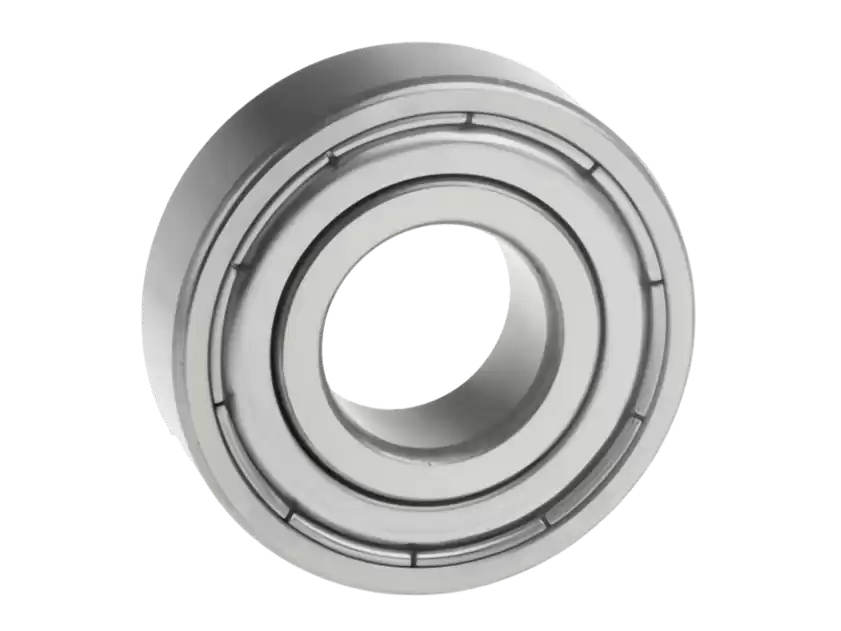

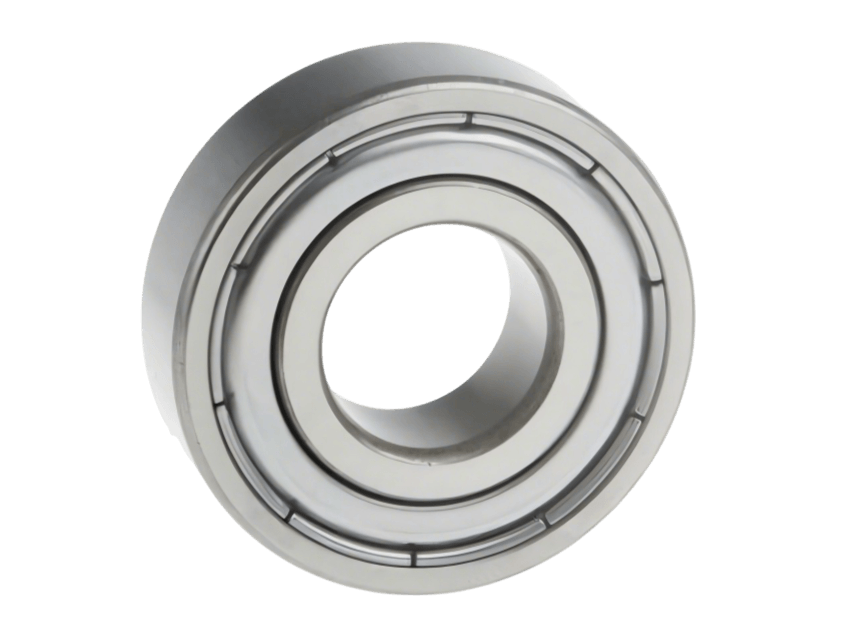

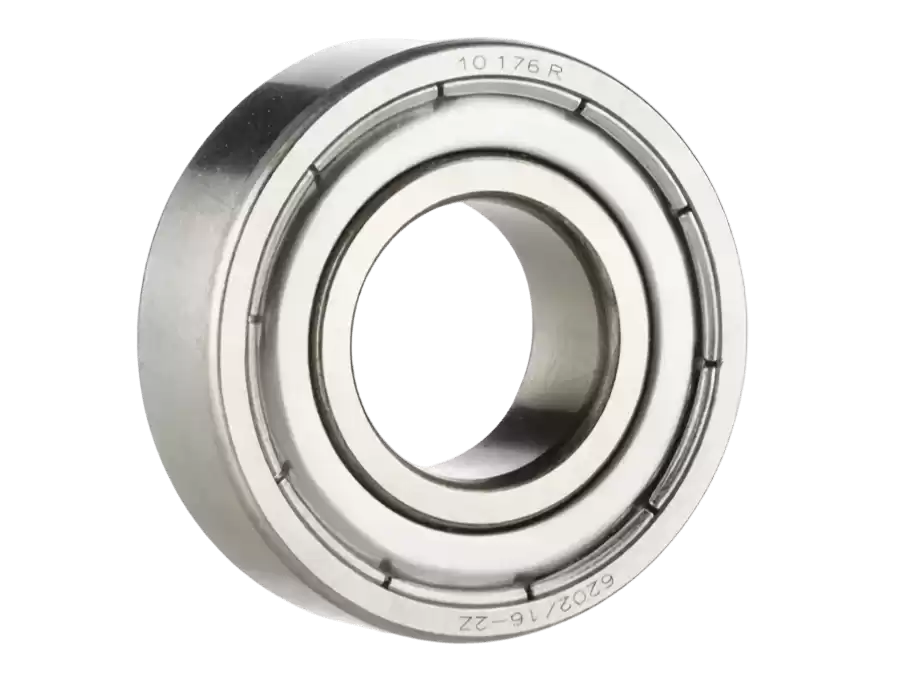

The 6202-ZZ is supplied as a pre-lubricated, double-shielded unit ready for installation. The low-friction metal shields provide excellent protection in clean to moderately contaminated environments. For applications requiring contact seals for wet or highly contaminated conditions, rubber-sealed variants (2RS) are also available. If you require alternative clearances (e.g., C3) or custom packaging, please contact our sales team for availability.

"For general-purpose machinery, electric motors, and conveyor systems, the 6202-ZZ offers a perfect balance of load capacity, speed, and durability. Its standardized dimensions and integrated shielding make it a maintenance-friendly, versatile component for a vast range of industrial applications."
