• Machine Tool Spindles (Light Duty)
• Textile Machinery Components
• Packaging Line Feed Mechanisms
• Conveyor Rollers and Transfer Points

• Power Tool Armatures
• Lawn and Garden Equipment
• Small Agricultural Machinery
• Snowmobiles and ATVs
• Household Appliances

• Cooling Fan and Blower Motors
• Pump and Compressor Units
• Light-Duty Gearbox Output Shafts
• General Purpose AC/DC Motor Rotors

• Auxiliary Drive Pulleys
• Idler Wheels and Tensioners
• HVAC Blower Motors
• Alternators and Generators

01. Optimized Load-Carrying Geometry

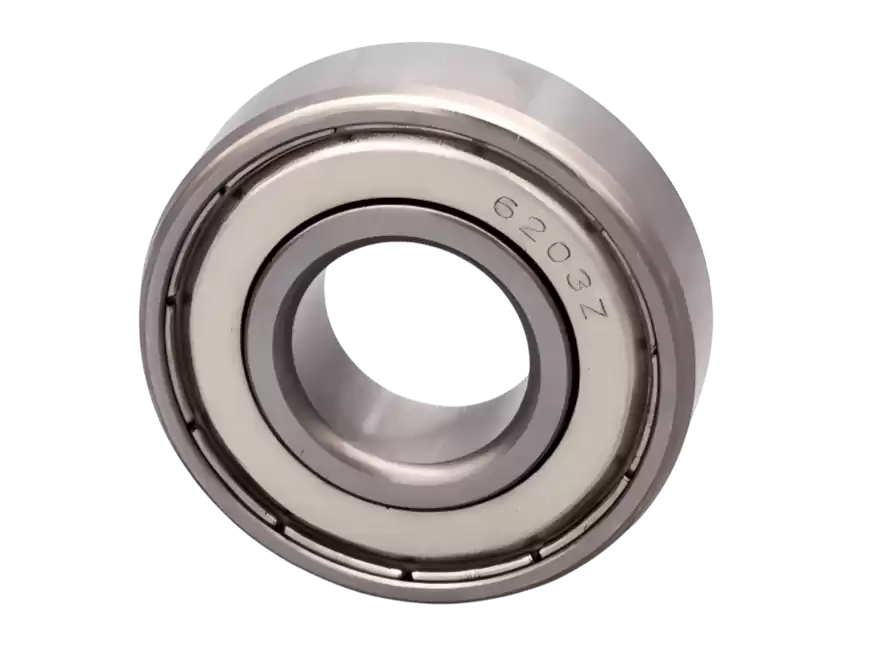

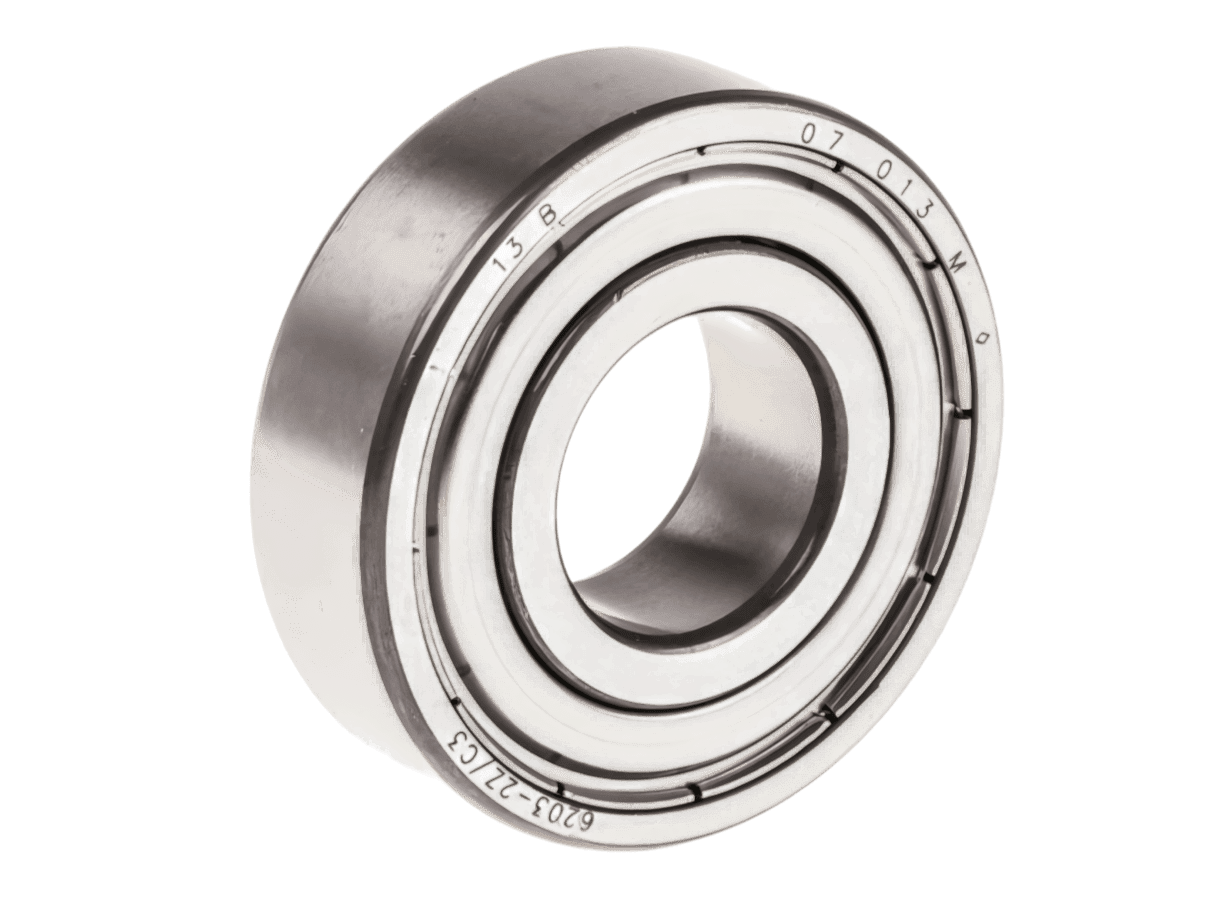

The 6203-ZZ incorporates precision-engineered raceway curvatures that maximize ball contact area for enhanced radial load distribution. Manufactured from high-quality chrome steel (SAE 52100), it delivers consistent mechanical performance and extended fatigue life under continuous operating conditions.

02. Comprehensive Double-Shield Protection

Features dual Z-type metal shields on both sides, providing effective protection against dust, dirt, and larger particles while retaining the initial grease lubrication . This non-contact shielding configuration minimizes frictional resistance, allowing for high-speed operation in environments where re-lubrication is not intended or practical .

03. Precision Manufacturing Standards

Produced to ISO dimensional tolerances with carefully controlled raceway surface finish . The precision-ground balls and optimized internal clearance ensure reduced frictional torque, minimal vibration characteristics, and quiet operational performance, contributing to reliable long-term service life in continuous-duty applications .

Interchange Part Numbers

Direct replacement for:

• SKF: 6203-ZZ
• NSK: 6203ZZ
• FAG: 6203.2ZR
• NTN: 6203ZZ
• Generic: 6203ZZ, 6203-2Z, 6203-ZZ, 6203 2Z

Design & Configuration

The 6203-ZZ is supplied as a pre-lubricated, double-shielded unit ready for immediate installation . The low-friction metal shields provide excellent protection in clean to moderately contaminated environments while maintaining high-speed capability. For applications requiring contact seals for wet or heavily contaminated conditions, rubber-sealed variants (2RS) are also available. If you require specific internal clearances (C3 for high-speed applications) , alternative lubricants, or custom packaging configurations, please consult our technical sales team for availability.

"For electric motors, pumps, and general industrial machinery requiring comprehensive protection with minimal maintenance, the 6203-ZZ delivers reliable performance with its double-shielded configuration. Its standardized dimensions and balanced load capacity make it a versatile, cost-effective solution for a wide range of applications."
