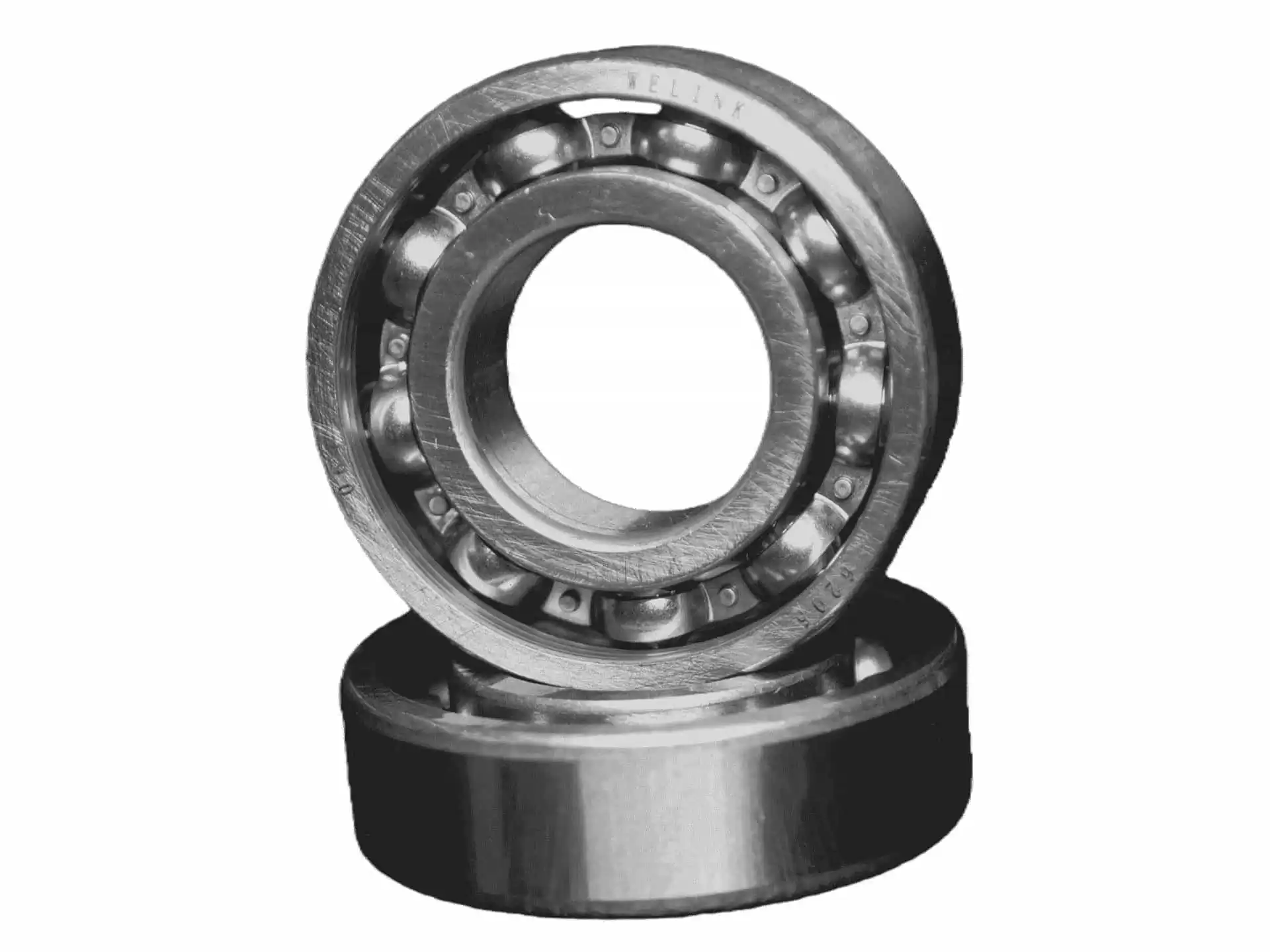

Product Overview: 6205 Deep Groove Ball Bearing
Key Features at a Glance:
- Open Design Platform: Offers unparalleled flexibility for integration into custom lubrication systems or the subsequent application of specific seals or shields.
- High Load Capacity: The light series design delivers robust radial and moderate axial load-carrying ability for demanding conditions.
- High-Speed Performance: Engineered for reliable and efficient operation at elevated rotational speeds.
- Precision Foundation: Supplied in standard open tolerances, serving as the base for producing higher P5 precision grades and all customised variants.
Technical Specifications
| Parameter |
Specification |
| Bearing Type |
Single Row Deep Groove Ball Bearing |
| ISO Dimension Series |
62 Series – Light |
| Basic Designation |
6205 |
| Suffix |
Open design (no suffix) |
| Bore Diameter (d) |
25 mm |
| Outer Diameter (D) |
52 mm |
| Width (B) |
15 mm |
| Dynamic Load Rating (Cʳ) |
14.0 - 14.8 kN |
| Static Load Rating (Cₒʳ) |
7.85 - 7.88 kN |
| Limiting Speed (Grease) |
13,000 - 18,000 r/min |
| Reference Speed |
Up to 28,000 r/min |
| Weight (approx.) |
0.127 - 0.134 kg |
Detailed Product Information
Design & Flexibility
The 6205 features the deep groove raceway, capable of carrying high radial and moderate axial loads. Its open design is its key attribute, making it the perfect starting point for engineered solutions. This allows for application-specific lubrication, re-lubrication capability, or the integration of custom seals (RS, 2RS, RZ), shields (Z, ZZ), or snap rings. We routinely use this reliable base design to manufacture a full range of protected or high-precision variants to order.
Performance Characteristics
This bearing is designed for durable, adaptable performance. The open design facilitates optimal heat dissipation and is compatible with a wide array of greases and oils. Manufactured to standard industrial tolerances, the 6205 forms the core component for our P5 precision grade and other custom bearings, ensuring a foundation of quality for all higher-performance derivatives.
Applications
As a true industry workhorse, the 6205 is specified in a vast spectrum of machinery:
- Automotive & Machinery: Gearboxes, engines, water pumps, and general rotating shafts.
- Industrial Equipment: Electric motors, conveyor systems, pulleys, and material handling drives.
- Specialised Machinery: Printing equipment, agricultural implements, food processing, and packaging machines.
