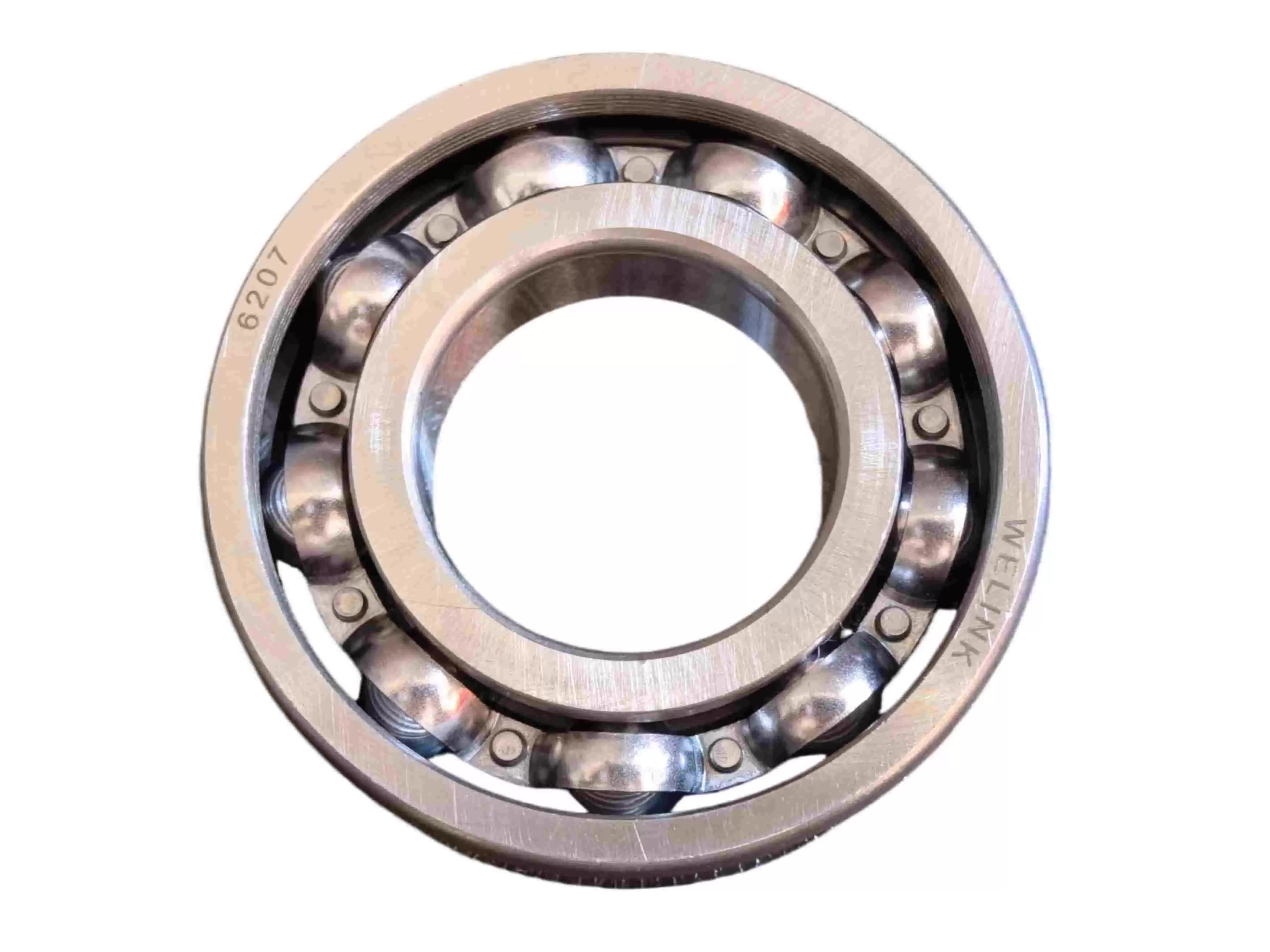

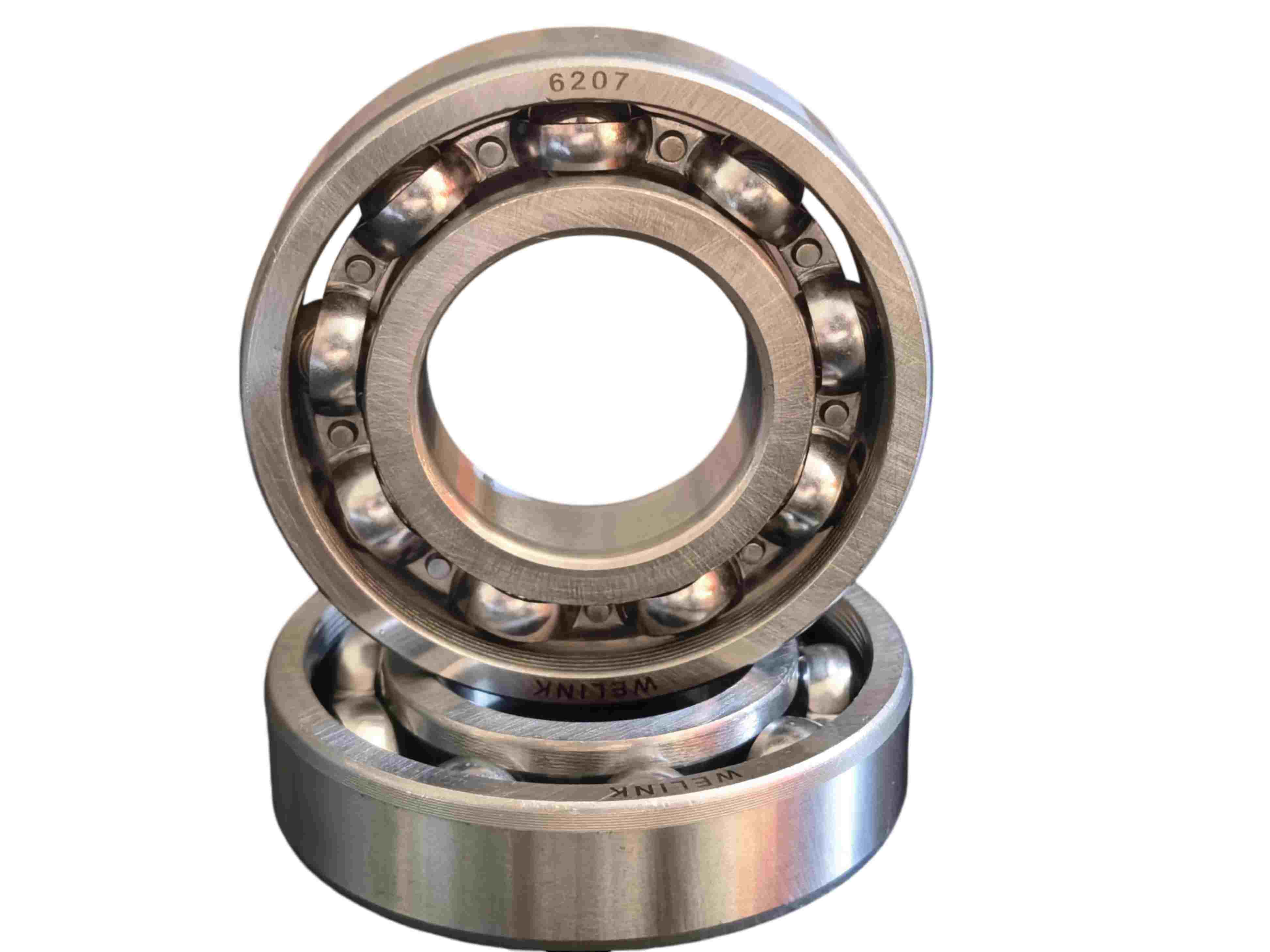

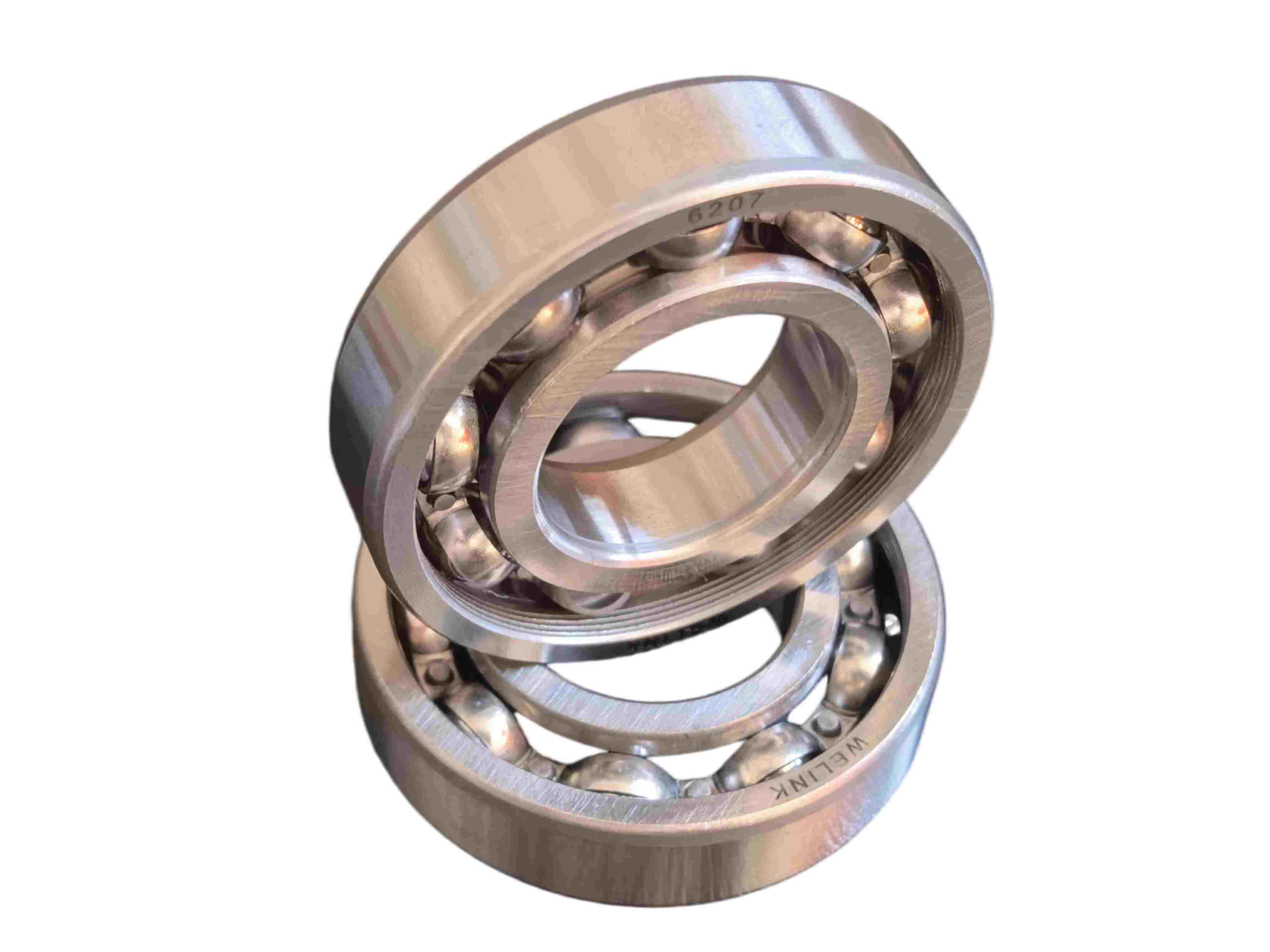

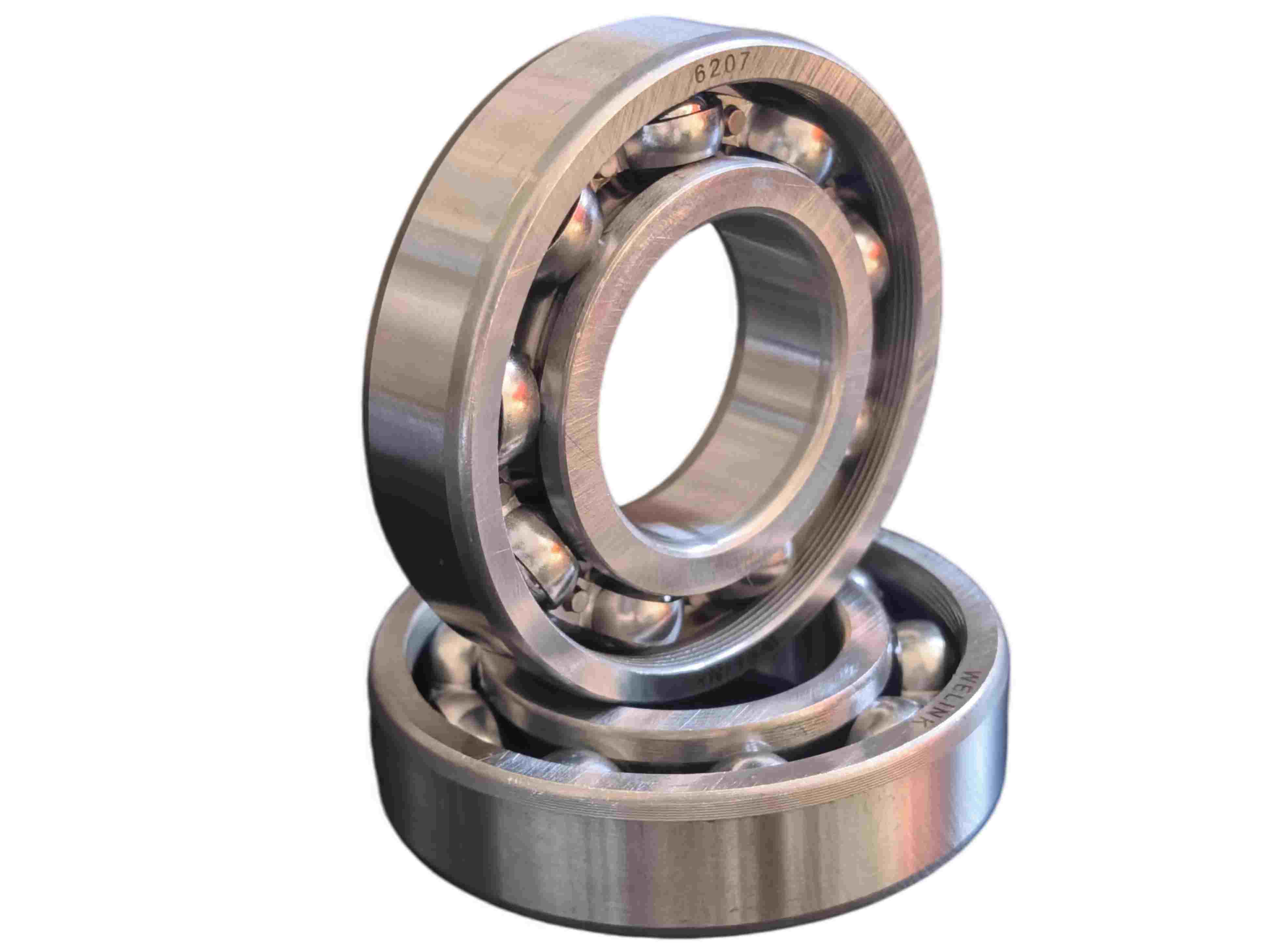

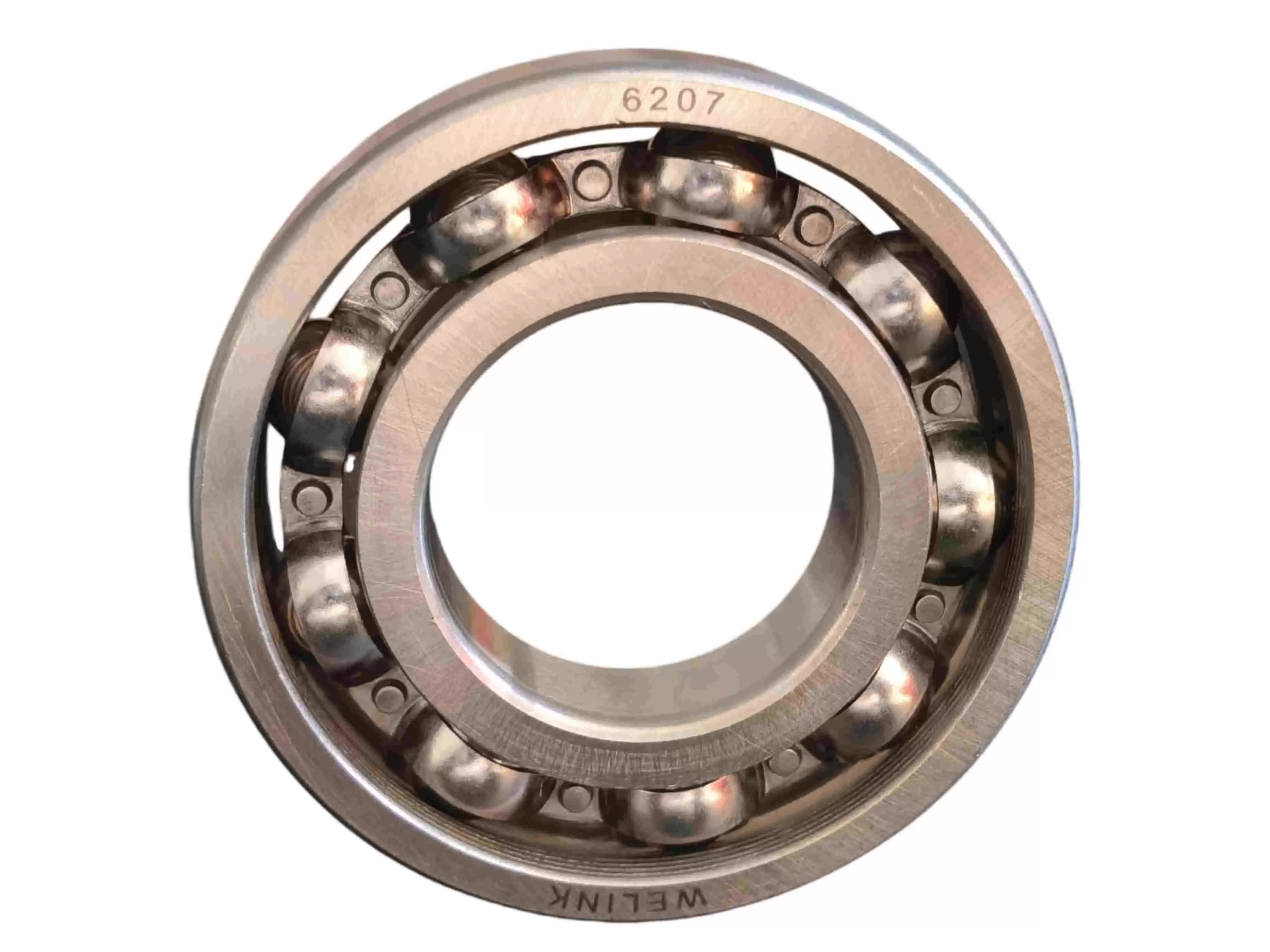

6207 Standard Deep Groove Ball Bearing for General Industrial Use | 35×72×17 Mm

The 6207 is a Single Row, Standard Series Deep Groove Ball Bearing designed for reliable performance in a wide array of industrial applications. As an open-type bearing without built-in seals or shields, it offers maximum versatility for custom lubrication and sealing arrangements. With a 35 mm bore, 72 mm outer diameter, and a 17 mm width, it provides an optimal balance of high load capacity, moderate cross-section, and excellent durability, making it a fundamental component in power transmission and rotating machinery.



6207 Deep Groove Ball Bearing 35×72×17 mm | ISO 62 Series – Standard | Open Type (No Seals/Shields)

This bearing features a classic and versatile deep groove design engineered for smooth operation under combined radial and axial loads, with operational speeds up to 15,000 r/min (Oil). Its robust construction and optimized internal geometry provide high dynamic and static load ratings, delivering consistent, adaptable performance across diverse mechanical systems.

6207 Standard Deep Groove Ball Bearing for General Industrial Use | 35×72×17 Mm

Comprehensive Applications

Suited for a broad spectrum of medium-duty industrial and mechanical applications:

General Industrial Machinery
  • Industrial Electric Motors and Generators
  • Gearboxes, Reducers, and Transmissions
  • Centrifugal Pumps and Compressors
  • Industrial Fan and Blower Shafts
Automotive & Transportation
  • Automotive Alternators and Starter Motors
  • Truck Clutch Release Bearings
  • Agricultural Machinery Drivelines
  • General-Purpose Wheel Hubs and Axles
Material Handling & Processing
  • Conveyor Drive Pulleys and Idler Rollers
  • Drum and Roller Drives in Processing Lines
  • Machine Tool Accessories and Spindle Supports
  • Printing and Paper Handling Machinery
Agricultural & Construction
  • Agricultural & Construction
  • Tractor PTO (Power Take-Off) Shaft Supports
  • Implement Drives for Harvesters and Tillers
  • Construction Equipment Auxiliary Drives
  • Irrigation Pump Shafts

Key Performance Features

01. Flexible Open Design for Custom Integration

The open structure enables customized sealing solutions and the selection of specialized greases or oil lubrication systems, providing maximum design freedom for tailored applications.

02. Precision Engineering for Optimal Performance

Manufactured with precision-ground raceways and balls, the 6207 ensures minimal friction, reduced vibration, and quiet operation, enhancing overall system efficiency and operational lifespan.

03. Robust Load Capacity for Demanding Applications

Built with a standard series cross-section (17 mm width) and high-quality chrome steel construction, this bearing offers substantial radial and axial load-carrying capability, ensuring reliable performance in challenging operating conditions.

Technical Specifications

Bearing Type Single Row Deep Groove Ball Bearing
ISO Dimension Series 62 Series – Standard
Basic Designation 6207
Suffix Open Type (No Seals/Shields)
Bore Diameter (d) 35 mm
Outer Diameter (D) 72 mm
Width (B) 17 mm
Material (Races & Balls) Chrome Steel (GCr15 / SAE 52100)
Precision Class Standard / P5 Grade Available
Cage Material Steel Stamped
Dynamic Load Rating (Cʳ) 25.5 kN
Static Load Rating (C₀ʳ) 15.0 kN
Limiting Speed (Grease) 10,000 r/min
Limiting Speed (Oil) 15,000 r/min
Weight (approx.) 0.32 kg

Interchange Part Numbers

Common manufacturer equivalents include:

  • SKF: 6207
  • NSK: 6207
  • FAG: 6207
  • NTN: 6207
  • KOYO: 6207

Design & Configuration

The 6207 is supplied as a standard open bearing, serving as a reliable foundation for systems utilizing external housings or custom sealing approaches. For applications requiring integrated protection, sealed (6207-2RS) or shielded (6207-ZZ) variants are available.

"A fundamental component in industrial design, the 6207 provides proven reliability, high load capacity, and exceptional flexibility for diverse applications including motors, gearboxes, and general machinery."
