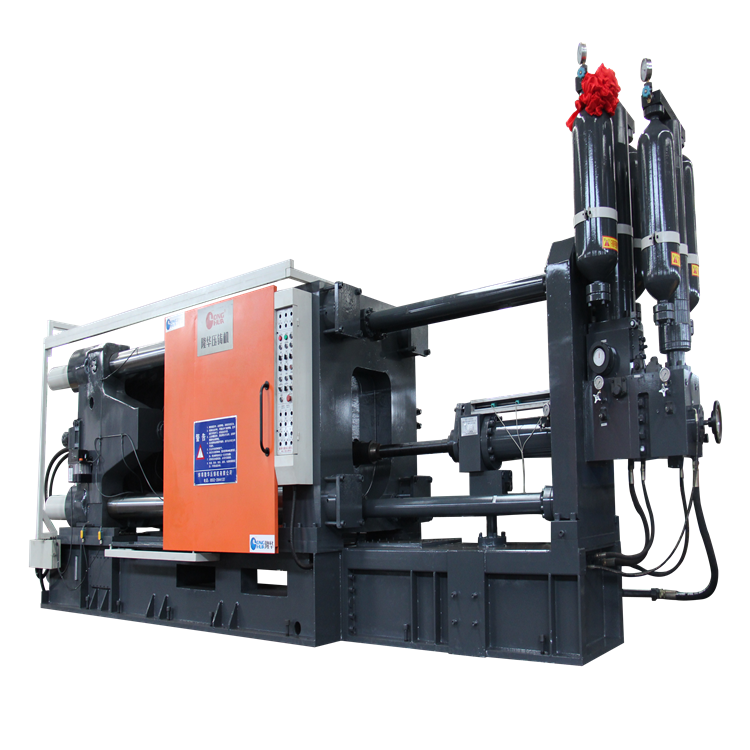

630T High Pressure Die Casting Machine For Making LED Street Lamp Shell

According to the requirements of yield, production process, variety and size, the types and models of die casting machines, production efficiency and load rate of equipment should be coordinated and reasonably configured.



630T  Low Pressure Die Casting Machine For Making LED Street Lamp Shell

Die Casting Machine For Making LED Street Lamp Shell




Features of die casting machine:

1.This die casting machine is suitable for die-casting of various non-ferrous alloys and ferrous metals (not common at present);

2.Die casting machine models are available;

3.The die casting machine has the advantages of few operation, high efficiency and easy automation;

4.The injection position of die casting machine is easy to adjust, which can adapt to the opening of eccentric gate, or the center gate;

5.The injection system of die casting machine has high technical content;

6.The classification and segmentation of the injection process of the die casting machine are obvious andeasy to be realized. which can meet the different requirements of the die casting process to a large extent, and adapt to the production of various types and requirements of the die casting

             LH series of standard parameter table (630 t)

Items

Unit

Specification

Hydraulic Working Pressure

MPa

14

Clamping Force

KN

6300

Space Between Tie Bars

mm

750*750

Tie Bar Diameter

mm

¢170

Die Opening Stroke

mm

650

Injecction Force(intensify)

KN

590

Plunger launch distance

mm

250

Injection position

mm

0  --  250

Plunger Diameter

mm

¢70----¢100

Injection Stroke

mm

600

Casting pressure (intensify)

MPa

153/117/92

Casting Fiange Protrusion

mm

15

Casting Fiange Diameter

mm

165

(40Mpa) Max Casting Area Under 40Mpa

CM

1400

lnjection Weight(Al)

Kg

11

Die Height(Min--Max)

mm

350~850

Ejector Force

KN

315

Ejector Steoke

mm

140

Motor Capacity

Kw

30

Machine Dimensions  (L*W*H)

m

8.4*2.2*3.1

Referential Machine Weight For Uplifting

T

30

Oil Tank Capacity

L

1250

We reserve the right to make any technical improvement without further notice


After-sales Service

1.For customers who purchase longhua products, we have trained professional engineers to enable them to operate, use and maintain longhua products independently;

2.Timely answer technical problems, our company can promptly send people to the user site to assist and guide;

3.Provide technical guidance when users need new equipment or expansion (modification) construction;

4.After upgrading the company's products, give priority to the replacement work of previous users as required.
