640x320 resolution 6.2 inch tft lcd panel with wide viewing direction
|
Specification
|
|
Part No.
|
TST062CCGS-W01
|
|

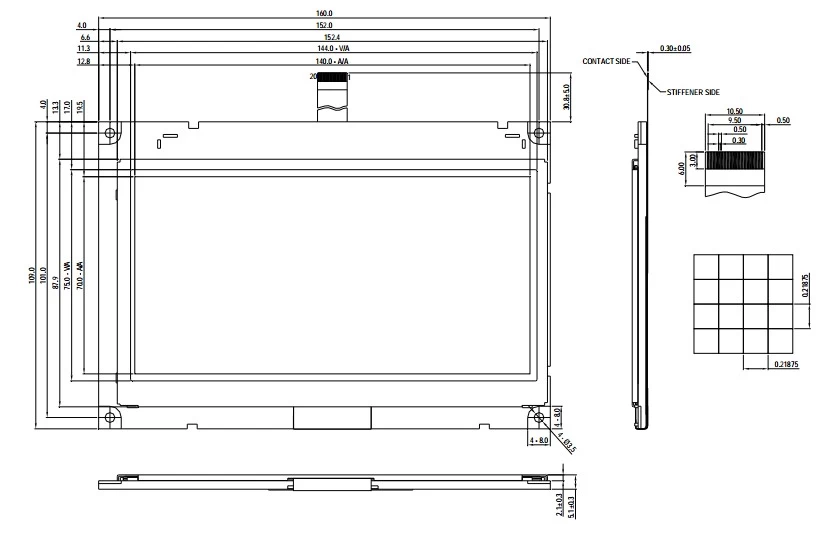

Outline Dimension(mm)
|
160.0 (w) x 109.0 (h) x 4.6 (t) mm
|
|
Active Area(mm)
|
140.0 (w) x 70.0 (h) mm
|
|
Resolution(dots)
|
640*RGB*320
|
|
Operating temperature(°C)
|
-20-60
|
|
Storage temperature(°C)
|
-30-70
|
|
Number of Pixel(pixels)
|
640RGB(H)xRGBx320(V)
|
|
Touch panel
|
without
|
|
Dot Pitch
|
0.21875 (w) x 0.21875 (h) mm
|
|
Pixel arrangement
|
Mono stripe
|
Display mode
|
Normal black VA
|
Display method
|
TFT active matrix
|
|
View direction
|
wide viewing
|
|
Weight(g)
|
TBD
|
|
Power Consumption(w)
|
Panel
|
0.226(Typ.)
|
|
B/L system
|
1.674(Typ.)
|
|
Interface
|
LCD controller / driver – Parallel 6800 / 8080, 4-line serial, 3-line serial
|
|
Module lifetime(Hours)
|
20,000-50,000
|
