• High-Volume Fans & Blowers
• Wind Turbine Drivetrains
• Large Frame AC/DC Electric Motors
• Industrial Generators & Alternators

• Large Conveyor Systems & Rollers
• Steel Mill & Rolling Equipment
• Heavy-Duty Centrifugal Pumps & Compressors
• Industrial Gearboxes & Speed Reducers

• Crushers & Grinding Mills
• Heavy-Duty Mixers & Agitators
• Vibrating Screens (with appropriate clearance)
• Quarrying Equipment

• Marine Propulsion Systems
• Large Hoists & Overhead Cranes
• Paper Machine Rolls
• Heavy Construction Equipment

01. High Load Carrying Capacity

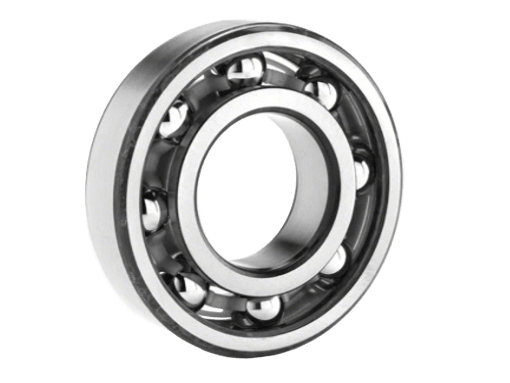

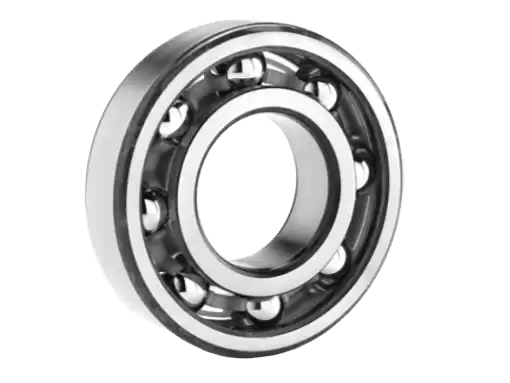

Manufactured to the robust 64 Series heavy-duty dimensions (85×210×52 mm), the 6417 offers a high dynamic load rating of 174 kN. Its deep raceway grooves and optimized ball complement ensure superior performance under substantial radial and thrust demands common in heavy industrial machinery.

02. Durability & Precision Engineering

Engineered with precision-grade tolerances (Standard P0 / P6 available), the 6417 features a robust steel cage and super-finished raceways. This design ensures smooth, quiet operation and minimal vibration, even at maximum rotational speeds, protecting sensitive machinery components from premature wear.

03. Open Design for Versatile Lubrication

The "Open" configuration allows unhindered access to the rolling elements. This design is perfect for applications utilizing oil bath or oil circulation lubrication systems, enabling optimal cooling and performance. It also allows for easy regreasing during routine maintenance schedules.

Interchange Part Numbers

Common manufacturer equivalents include:

• SKF: 6417
• NSK: 6417
• FAG: 6417
• NTN: 6417
• KOYO: 6417
• Timken: 6417

Design & Configuration

For applications requiring grease retention and protection against light contamination, this model can also be configured with metallic shields (6417-ZZ) or rubber seals (6417-2RS) upon request. The 6417 is supplied as standard with an open design, offering maximum flexibility for industrial lubrication systems. Please contact us for custom sealing or high-precision (P5/P6) variants.

"Choose the 6417 Open for heavy-duty industrial applications where high load capacity, robust construction, and flexible lubrication are essential for long-term reliability."
