650B Plus Full Suspension E-bike Carbon Frame E801

Battery System: Darfon BATTERY E5C05(630Wh,Horizontal)

Motor System:  Shimano ANTRIEBSEINHEIT DU-E8000

Size: S/M/L




Facebook Twitter Pinterest LinkedIn 分享

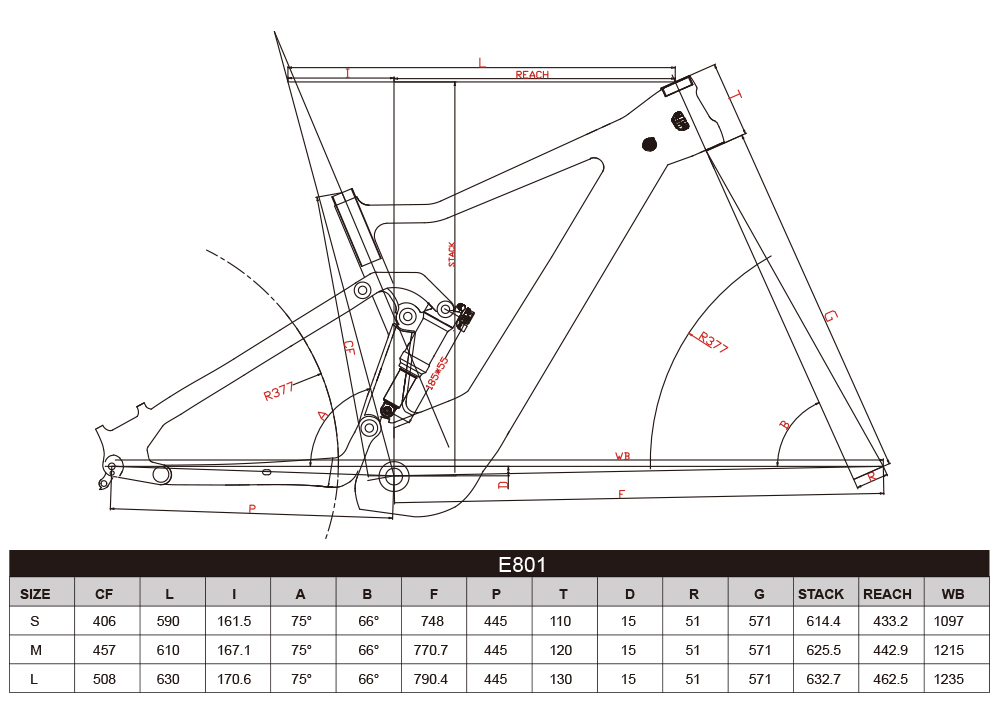

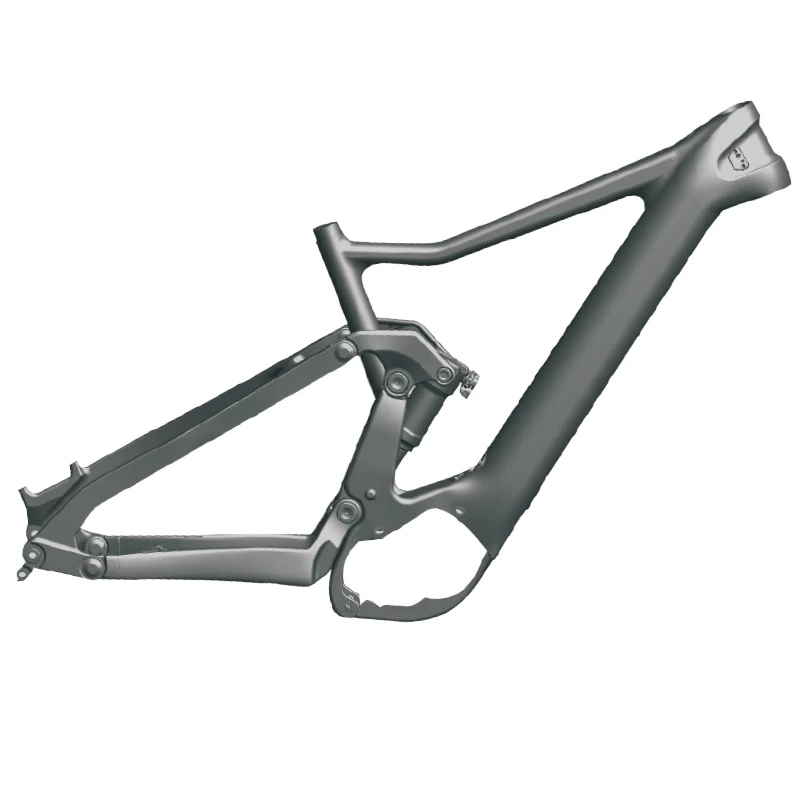

Frame 650B Plus Full Suspension E-bike Carbon Frame
Finish UD
Size
 		Small, Medium, Large
Headtube Integrated 42mm/52mm (Headset FSA NO.57)
Weight 3450g/M
Seat Post ∅31.6mm
Battery System

Darfon BATTERY E5C05(630Wh,Horizontal)

or Shimano BT-E8036

Motor System Shimano ANTRIEBSEINHEIT DU-E8000
Rear shock size 2 0-54*185*55mm
Front Travel                                 160mm
Rear Travel 160mm
Dropout TA12*148mm
Warranty

2 years

Max tire clearance                                 27.5*3.0" &  29ER*2.6"
