• CPU and Chipset Cooling Fans

• Small Blower and Exhaust Fan Motors

• Electronics Cabinet Cooling Modules
• Ventilation Fan Spindles

• Printer and Scanner Paper Feed Rollers
• Copier and MFP Mechanism Guides
• Small Motor Drives in Office Machines
• Fuser Roller Supports

• Instrument Panel Meter Movements

• Potentiometer and Control Knob Axles
• Light Duty Servo Mechanism Guides
• Sensor and Gauge Rotating Elements

• Textile Machine Thread Guides
• Low-Load Conveyor Guide Wheels
• Packaging Machine Feed Mechanisms
• Automotive Interior Actuators (vents, controls)

01. Ultra-Low Profile Design

The thin-series (67-series) construction provides full bearing functionality in a minimal axial width, saving critical space in compact assemblies while maintaining adequate radial load capacity for light-duty applications.

02. Integrated Shielded Protection

Comes standard with double metal shields (ZZ), offering effective protection against dust and debris ingress. This design is ideal for applications where re-lubrication is not feasible and a sealed-for-life unit is required.

03. Smooth Operation in Confined Spaces

Manufactured to standard tolerances for thin-section bearings. The precision components ensure smooth, low-noise rotation, providing reliable performance even in space-constrained environments where heat dissipation and airflow may be limited.

Interchange Part Numbers

Direct replacement for:

• Generic: 6701ZZ, 6701-2Z
• NSK: 6701ZZ
• NTN: 6701LLU

Design & Configuration

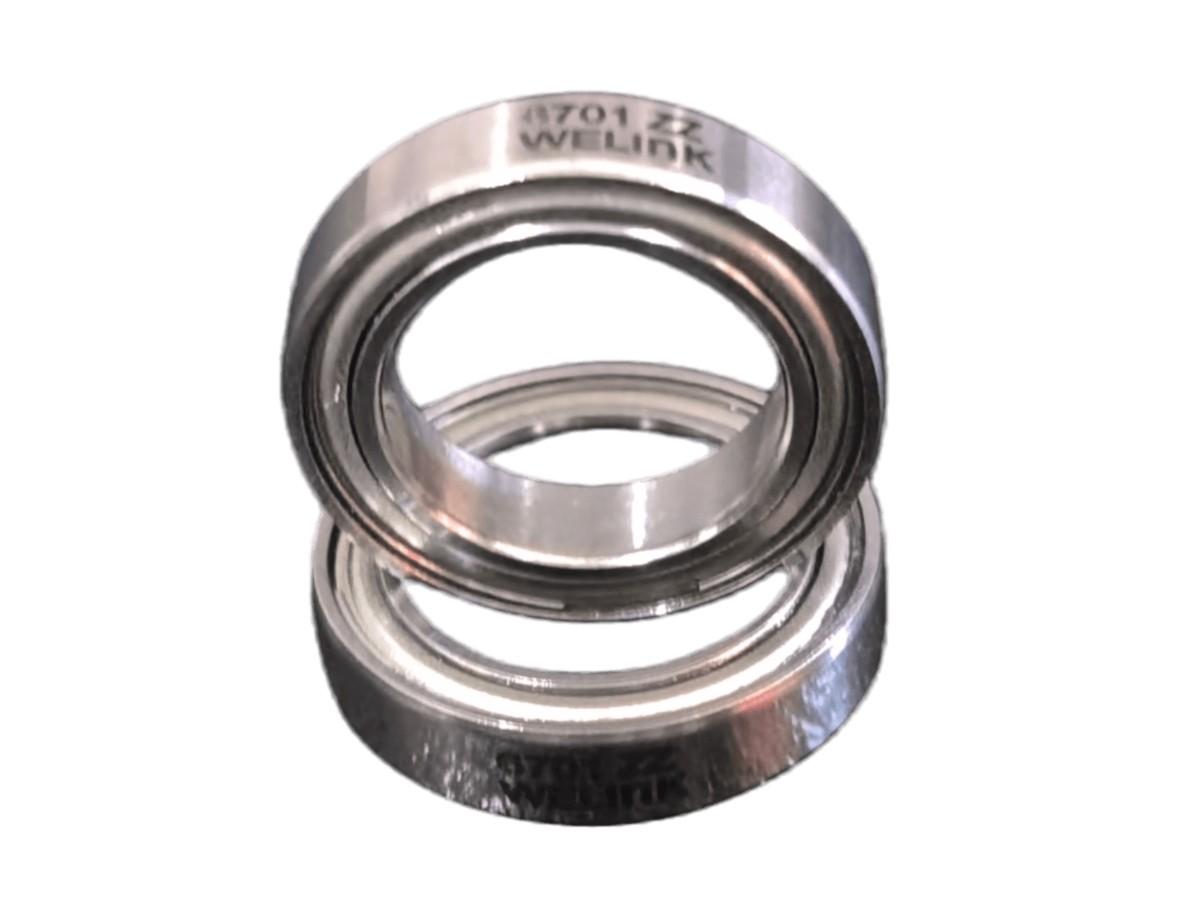

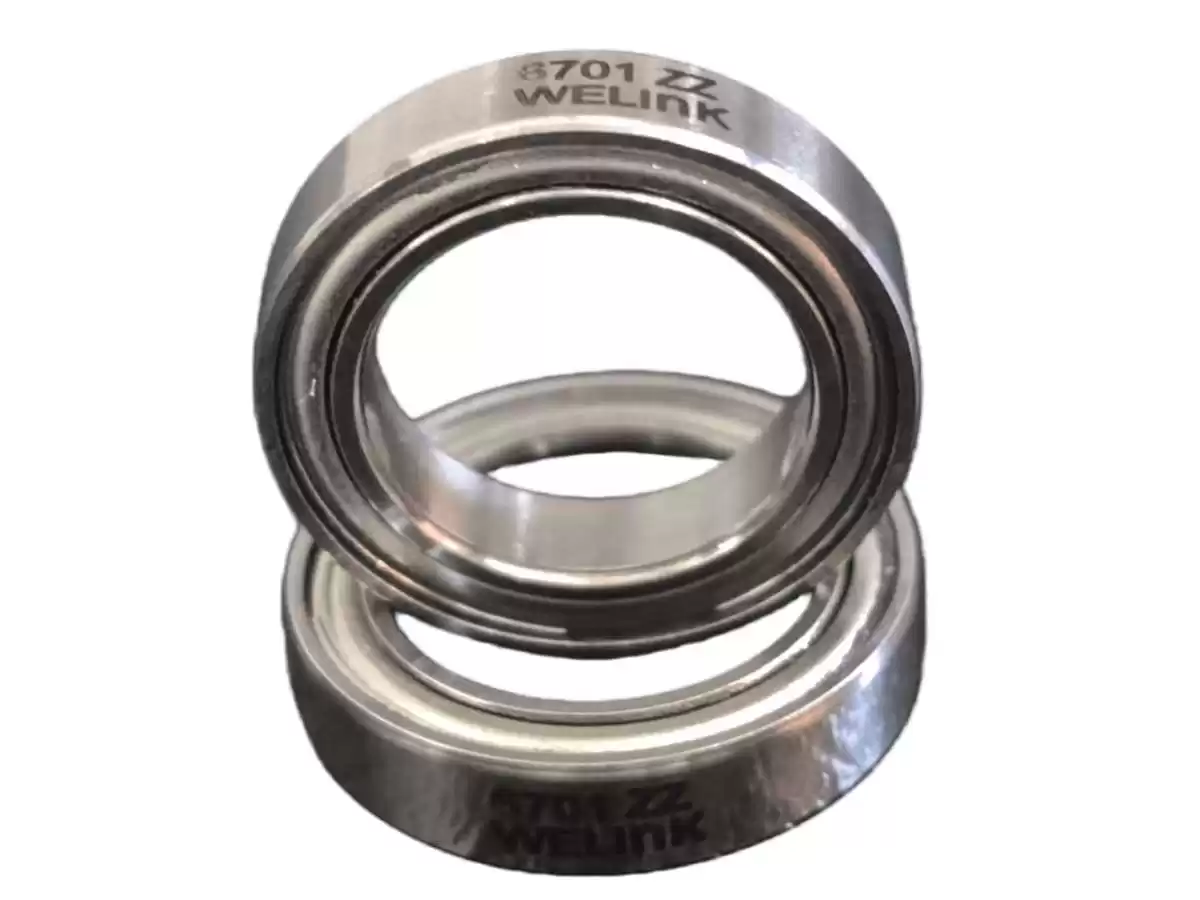

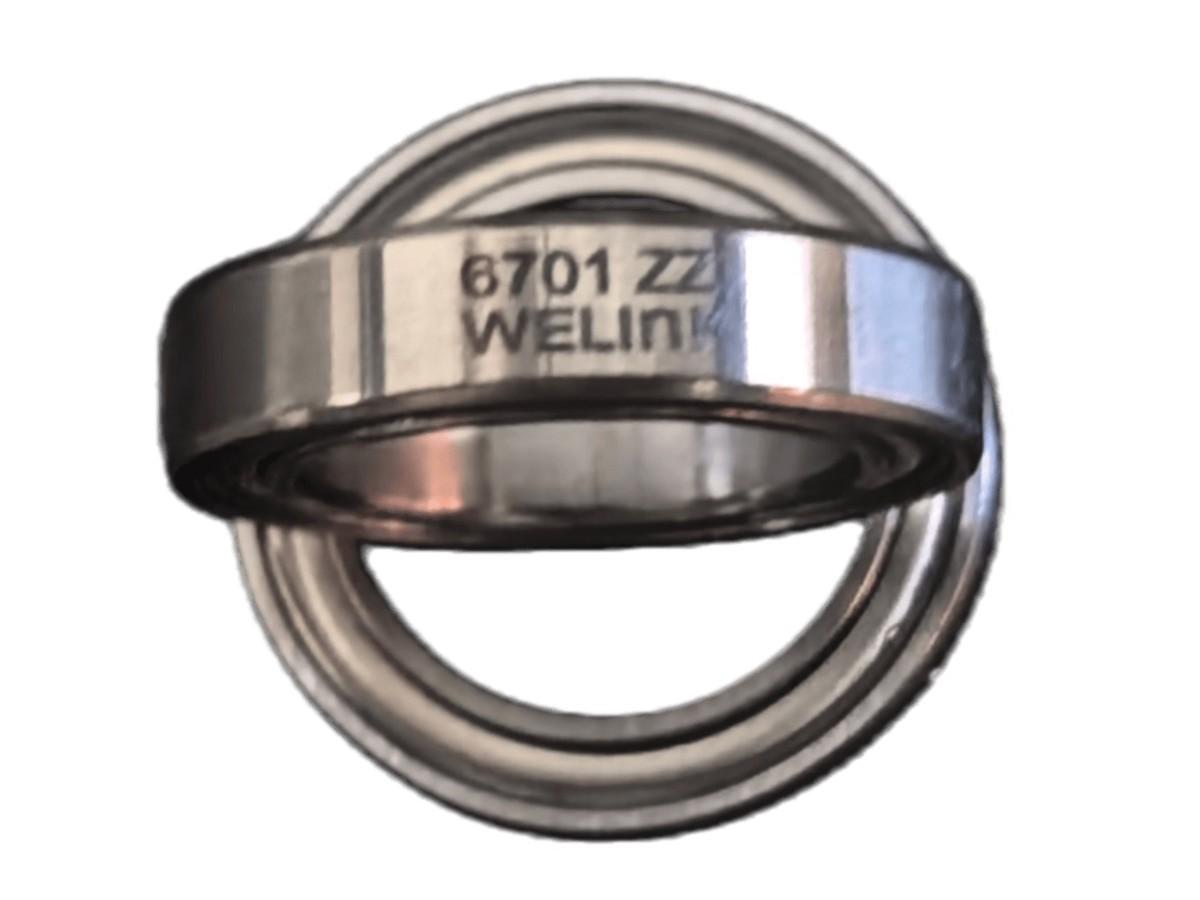

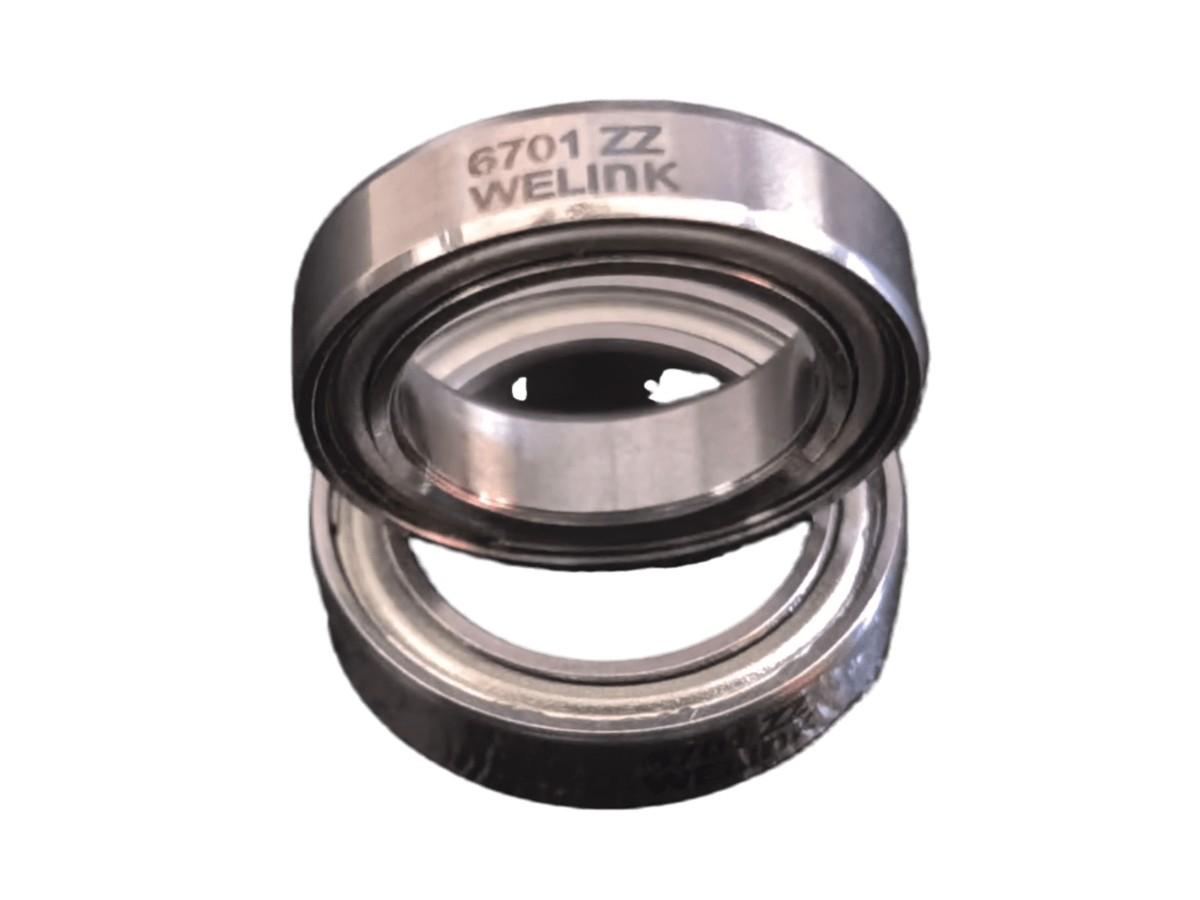

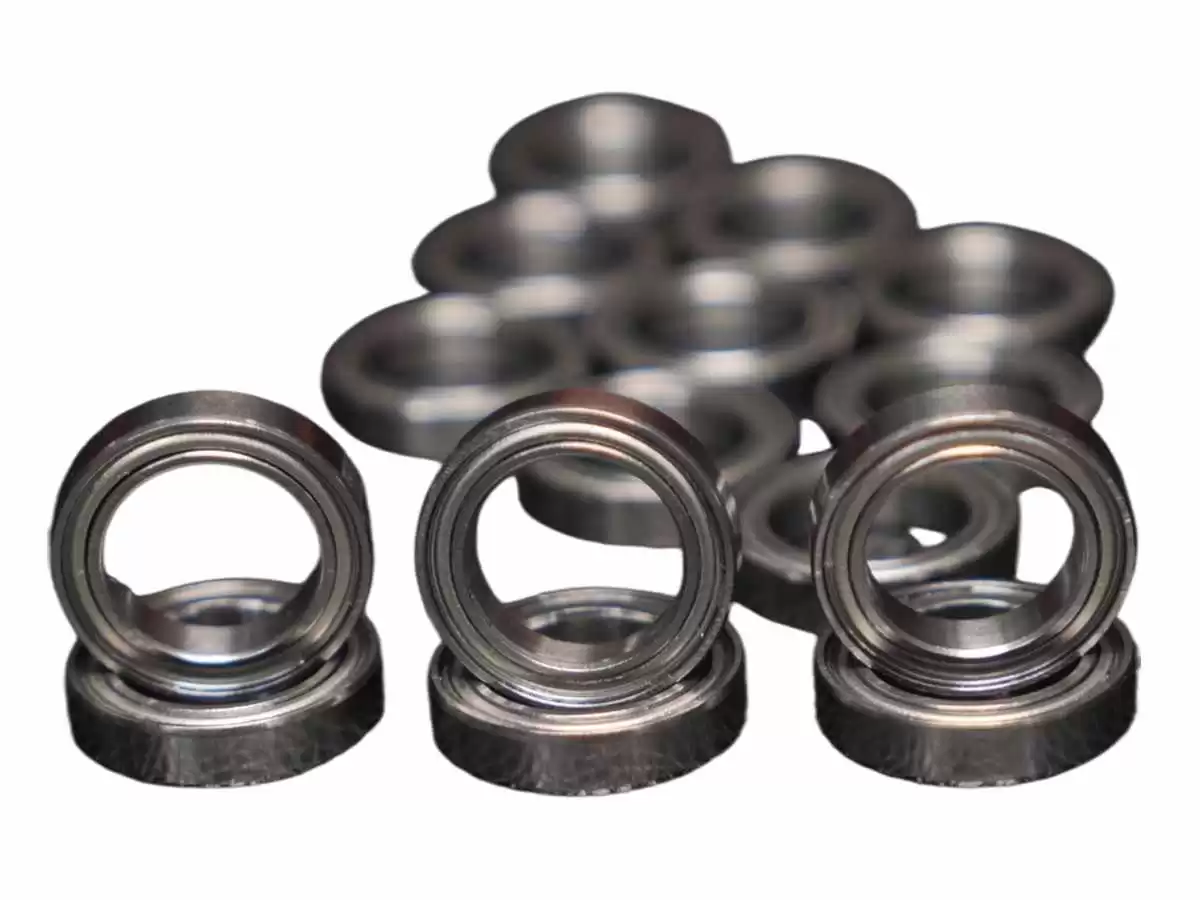

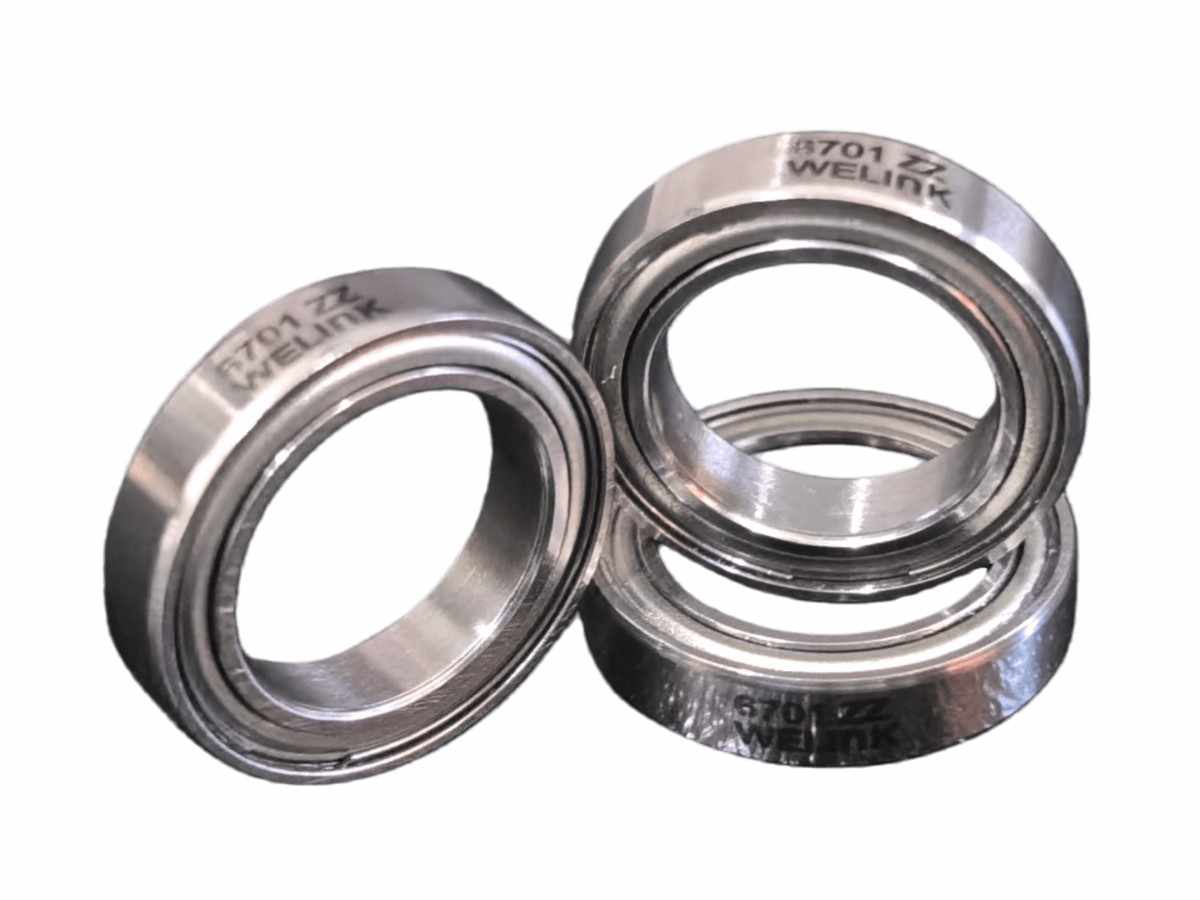

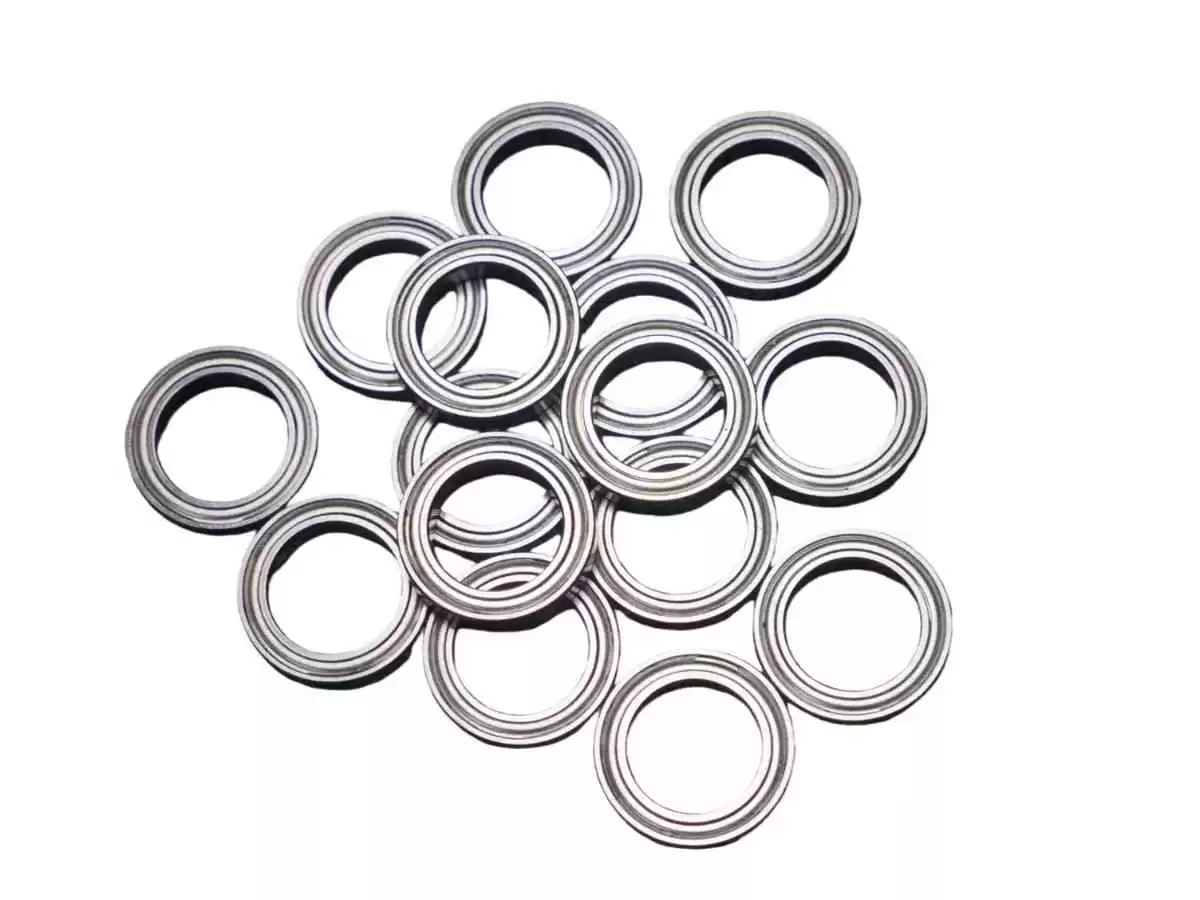

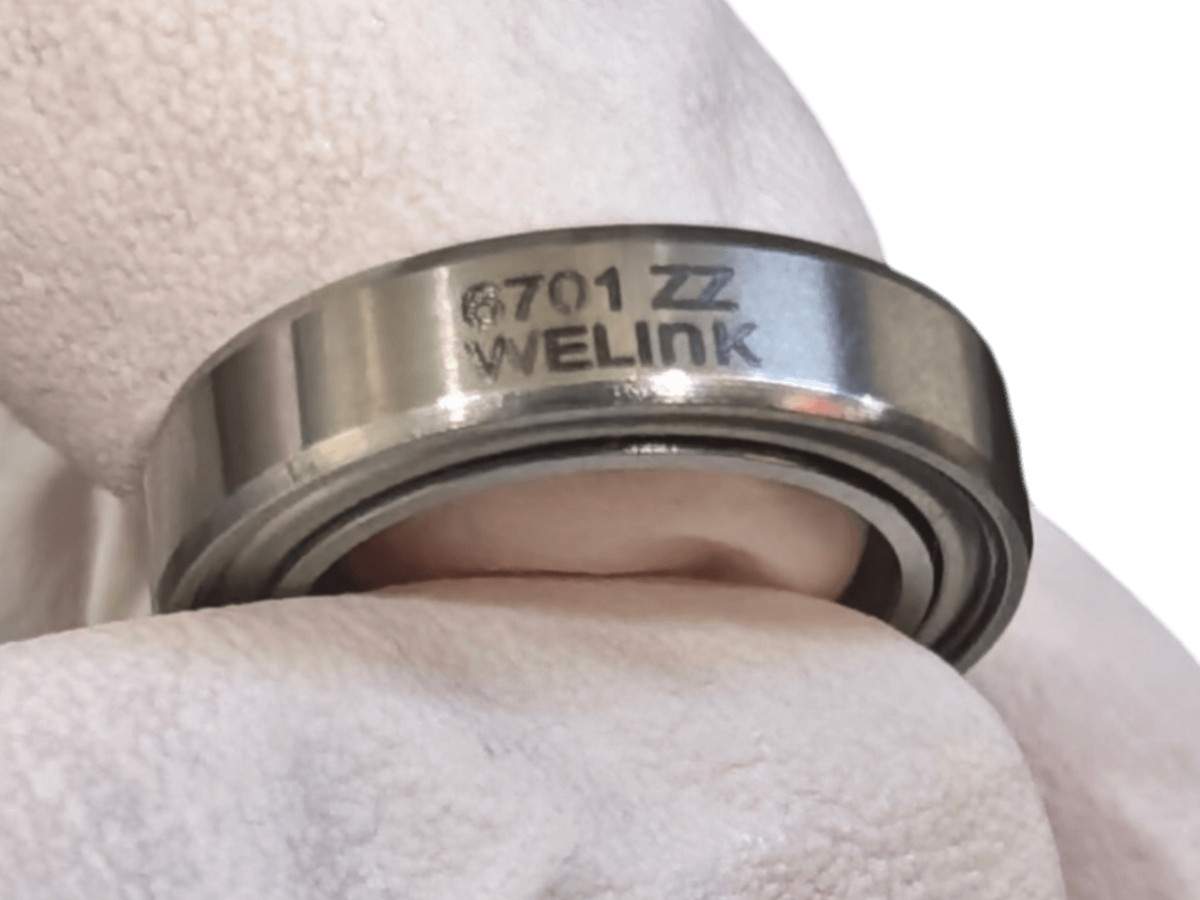

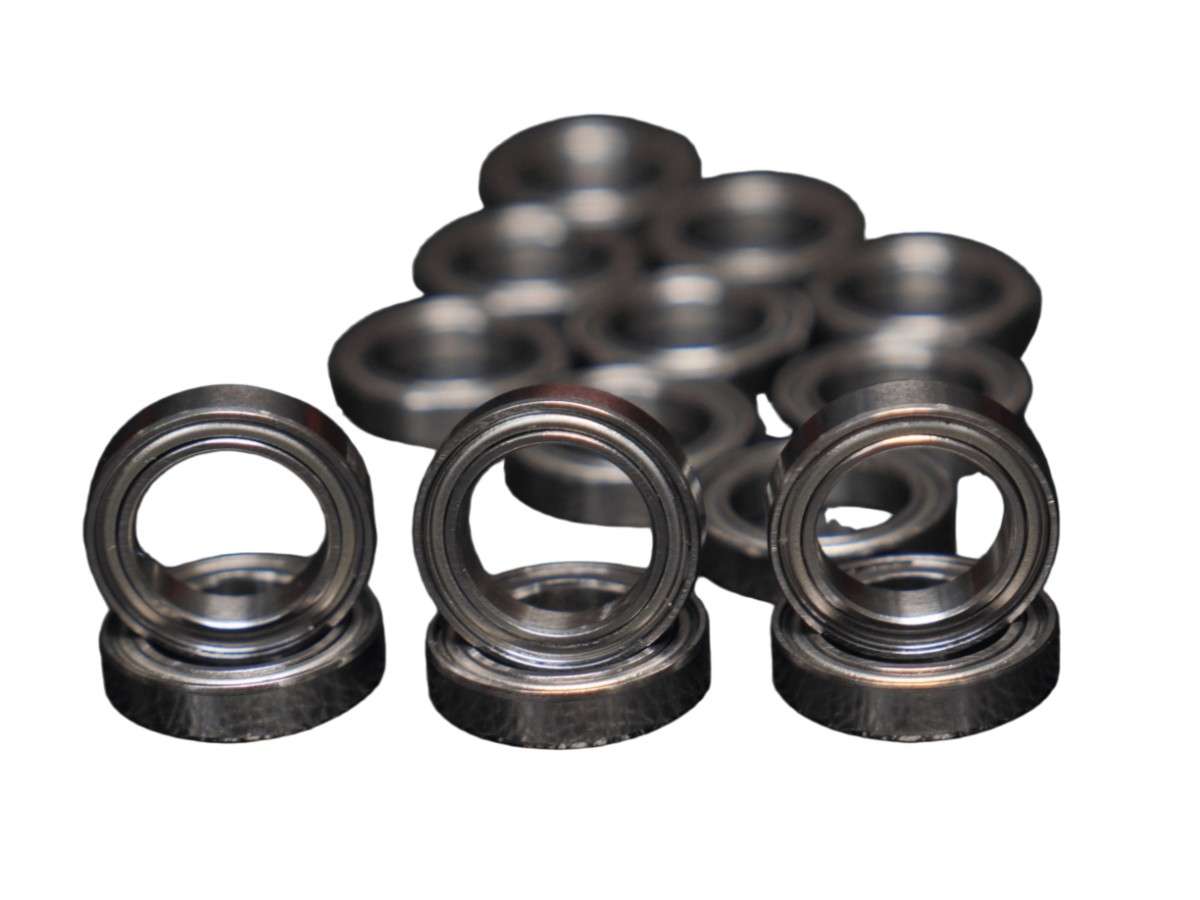

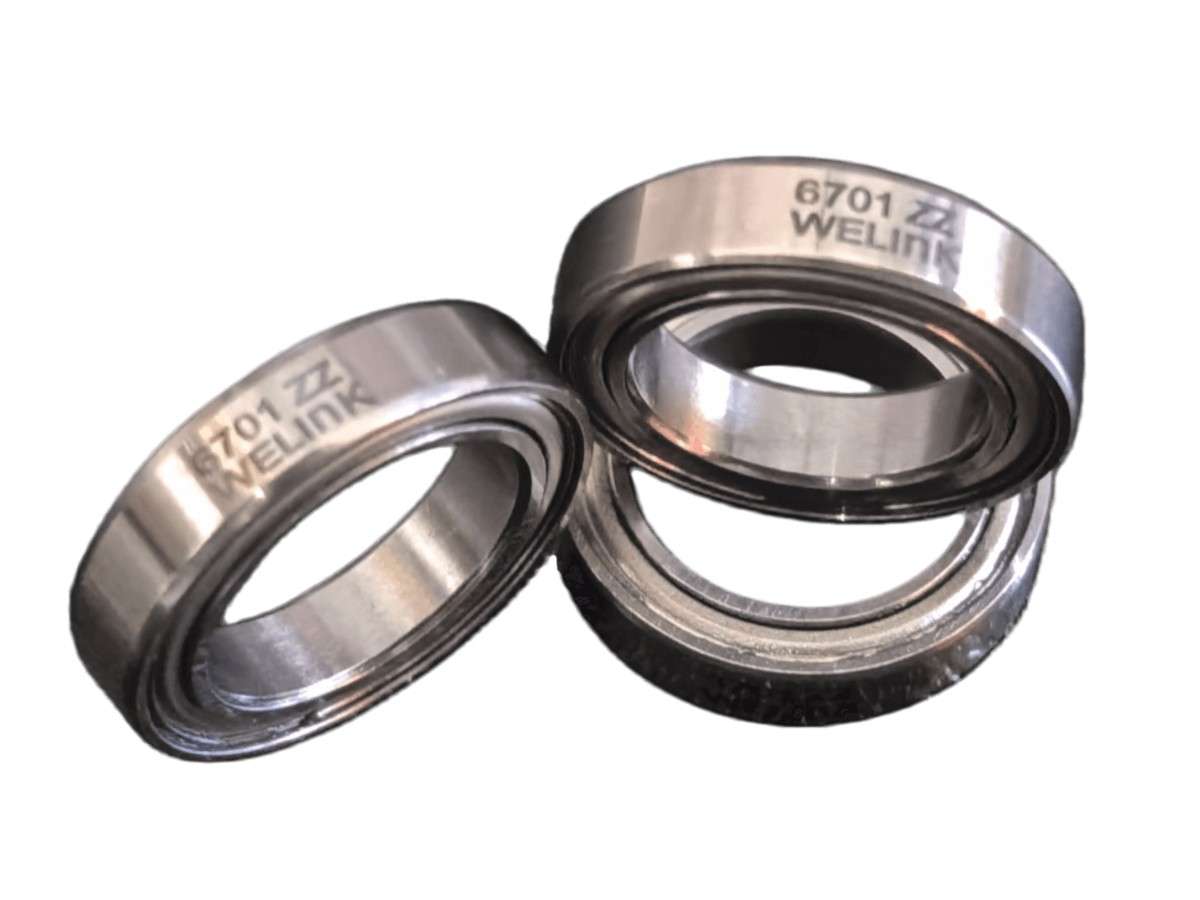

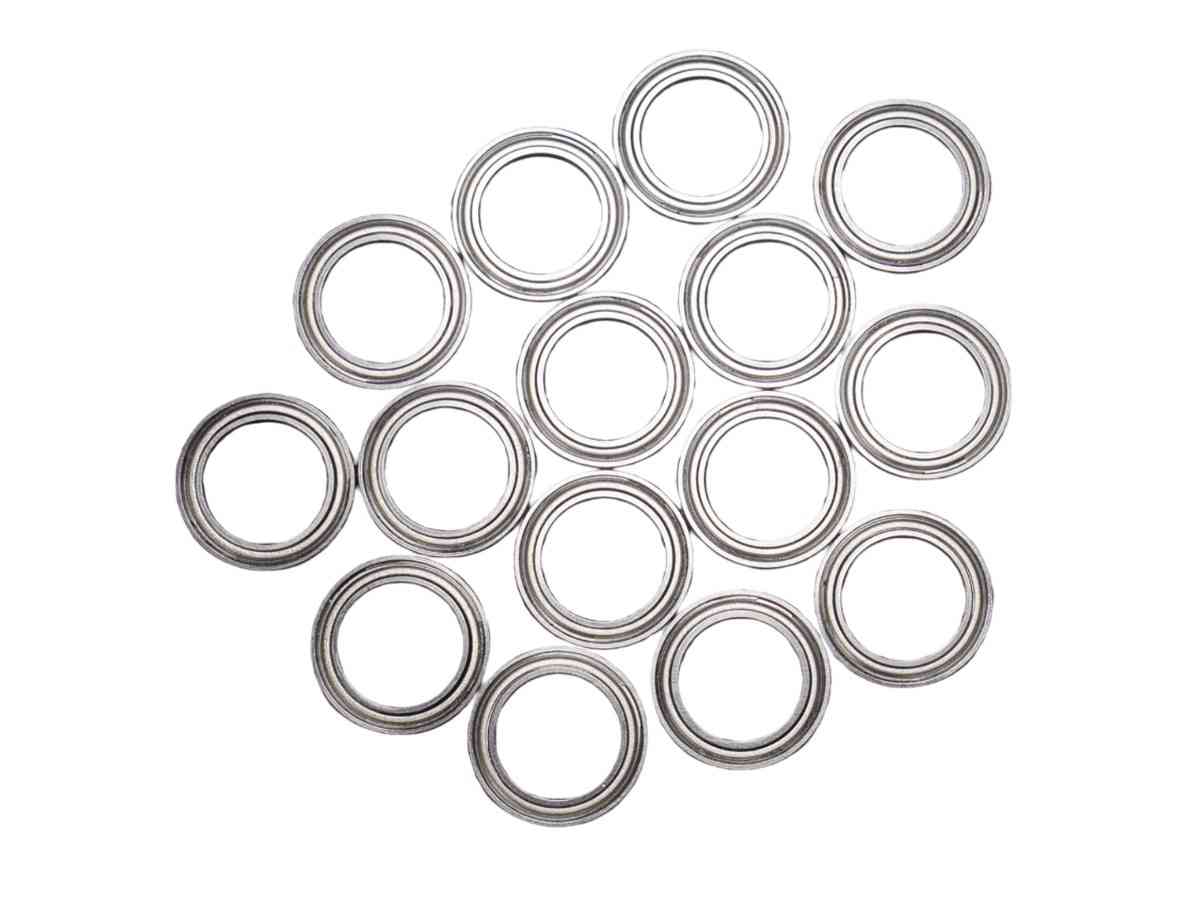

The 6701-ZZ is supplied as a pre-lubricated, double-shielded thin-section bearing. The metal shields provide a cost-effective barrier against particulate contamination. For applications requiring different sealing or an open design for custom lubrication, consult factory for availability.

"For cooling fans, office equipment, and any design where a low axial profile is essential, the 6701-ZZ provides a reliable, shielded bearing solution. Its thin cross-section solves space challenges without sacrificing basic bearing performance and protection."
