• Robotic Arm Joints
• Precision Linear Guides
• Small Gearboxes
• End Effectors

• Dental Hand Tools
• Infusion Pumps
• Diagnostic Scanners
• Laboratory Centrifuges

• Stepper Motors
• Encoders & Resolvers
• Small Cooling Fans
• Servo Motors

• Printers & Photocopiers
• Camera Gimbal Stabilizers
• Compact Household Appliances
• Office Automation Equipment

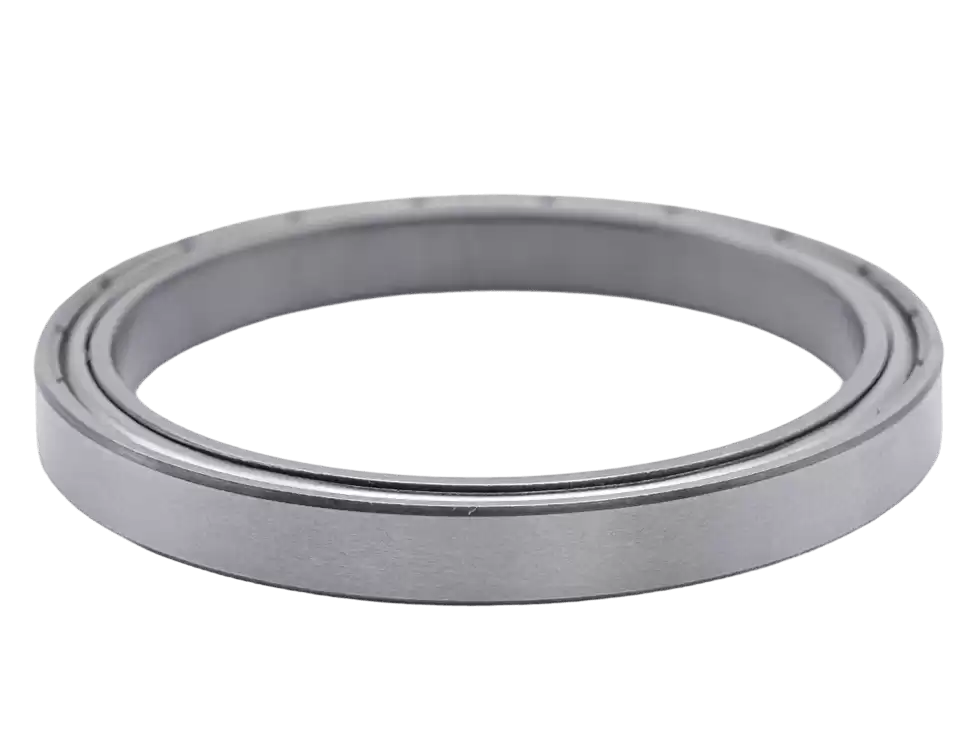

01. Ultra-Thin Cross-Section Design

As part of the extra-light 67 series, this bearing offers an extremely narrow radial cross-section. This thin section design significantly reduces the overall footprint and weight of your assembly, enabling the development of smaller, lighter, and more compact machinery without compromising on rotational performance .

02. Effective Dual-Shield Protection

Equipped with non-contact steel shields (ZZ) on both sides, this bearing provides robust protection against dust and larger particles while retaining lubricating grease. This configuration ensures longevity in clean environments and maintains the low friction characteristics required for high-speed operation .

03. Quiet & Smooth Operational Precision

Manufactured to precision tolerances (ABEC 1 / P6 available), the 6709-ZZ utilizes high-grade chrome steel and an optimized internal geometry. This results in exceptionally smooth rotation, low noise, and minimal vibration, ensuring consistent performance in noise-sensitive devices like medical equipment and precision measuring tools .

Interchange Part Numbers

Direct replacement for common industry designations:

• SKF: 6709-ZZ
• NSK: 6709ZZ
• FAG: 6709-ZZ
• NTN: 6709ZZ
• NACHI: 6709ZZ
• TIMKEN: 6709-ZZ
• MRC: 6709ZZ

Design & Configuration

The 6709-ZZ features double pressed steel shields for low-friction protection. For applications requiring a higher degree of sealing against moisture or fine dust—where a slight increase in friction is acceptable, the contact rubber seal version (6709-2RS / 6709-2RU) is also available.

"For environments with higher humidity or fine particulate contamination, the 6709-2RS with double rubber seals offers superior protection and extended service life."
