• Portable Diagnostic Devices
• Micro-Centrifuge Internal Rotors
• Laboratory Fluid Mixing Units
• Precision Ophthalmic Instruments

• Miniature Servo Motor Shafts
• Robotic Finger Joint Actuators
• Micro-Linear Slide Components
• Automated Precision Gripper Gears

• Smart Home Camera Pivot Points
• Professional Gimbal Stabilizers
• Computer Peripheral Roller Units
• Precision Remote Control (RC) Vehicles

• High-Speed Cooling Micro-Fans
• Small Drone Propeller Motors
• Precision Gearbox Output Shafts
• Miniature Encoder Disk Supports

01. Zero-Maintenance Sealing Technology

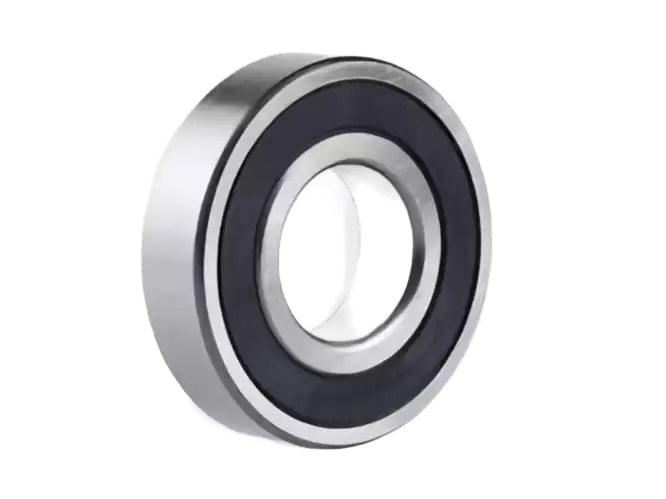

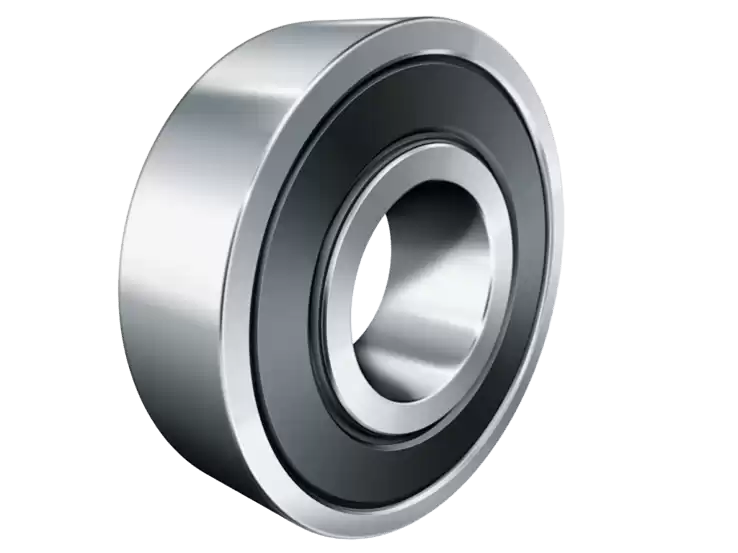

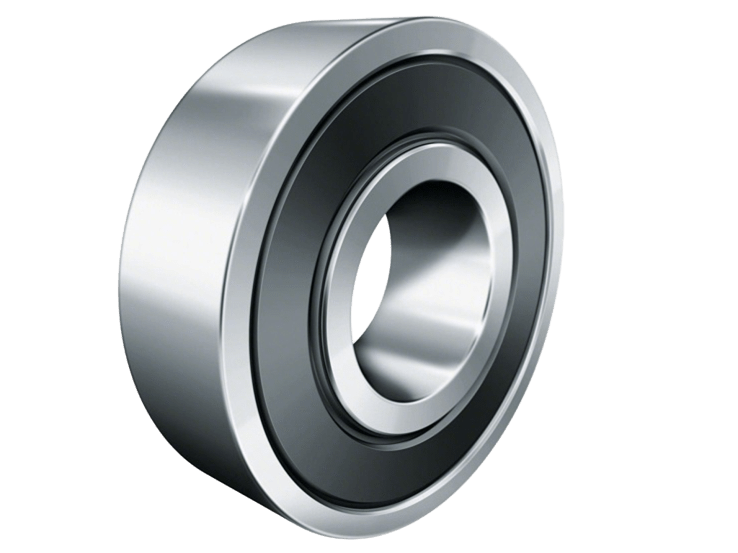

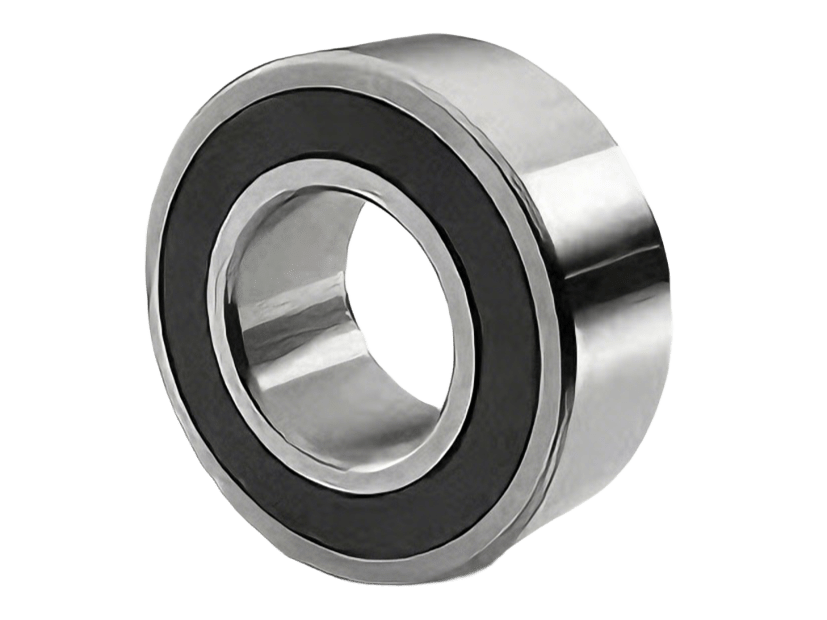

Fitted with two Nitrile Butadiene Rubber (NBR) contact seals, the 682-2RS is a "sealed-for-life" component. These precision-engineered seals provide a robust barrier against fine particulates and moisture ingress, effectively preventing grease leakage and ensuring consistent performance in challenging operating environments.

02. Ultra-Compact Radial Profile

Manufactured from premium-quality chrome steel (GCr15), this bearing features a refined 2.3 mm width. This slim-profile architecture allows for the radical downsizing of equipment housings, enabling designers to achieve higher power density in smaller mechanical footprints without sacrificing rotational precision.

03. Whisper-Quiet Dynamic Stability

The internal steel balls and raceways are finished to P5 precision grades and V-Class vibration standards. This meticulous manufacturing process results in an incredibly low noise floor and minimal heat generation, which is essential for noise-sensitive applications like medical laboratories and handheld electronic devices.

Interchange Part Numbers

Direct equivalents from global manufacturers include:

• SKF: 682-2RS1
• NSK: 682DD
• NTN: 682LLU
• KOYO: 682-2RS
• NMB: L-520W52EE / MR52-2RS

Design & Configuration

The 682-2RS is the standard choice for engineers requiring a reliable, protected bearing for micro-hardware. Its 2.3 mm width provides slightly more surface area than ultra-thin models, offering enhanced stability for shafts in small-scale motors and scanners.

For applications involving high-moisture exposure or sterile environments, stainless steel versions (S682-2RS) are also available. If the application requires maximum rotational speed with minimal starting torque in a clean environment, the metal-shielded (682-ZZ) variant should be considered.

"Where micro-precision meets industrial-grade durability, the 682-2RS delivers the smooth, silent, and reliable performance required for the next generation of miniaturized technology."
