• Micro Robotic Articulation Joints
• Stepper Motor Assemblies
• High-Resolution Rotary Encoders
• 3D Printer Extruder Mechanisms

• High-Speed Dental Handpieces
• Compact Laboratory Centrifuges
• Automated Liquid Handling Pumps
• Portable Surgical Power Tools

• RC Car Wheel Hubs and Gearboxes
• Drone and Quadcopter Brushless Motors
• RC Helicopter Main and Tail Rotors
• Micro Servo Motor Components

• Computer CPU Cooling Fans
• Small Household Appliance Motors
• Precision Measuring Instruments
• Handheld Power Tool Spindles

01. Ultra-High-Speed Capabilities

Manufactured with strict dimensional tolerances (Standard P0 / P5 available), the 683-ZZ utilizes finely polished raceways and a low-friction steel cage. This internal geometry drastically reduces rotational resistance, allowing the bearing to operate quietly and smoothly at speeds up to 58,000 RPM without overheating.

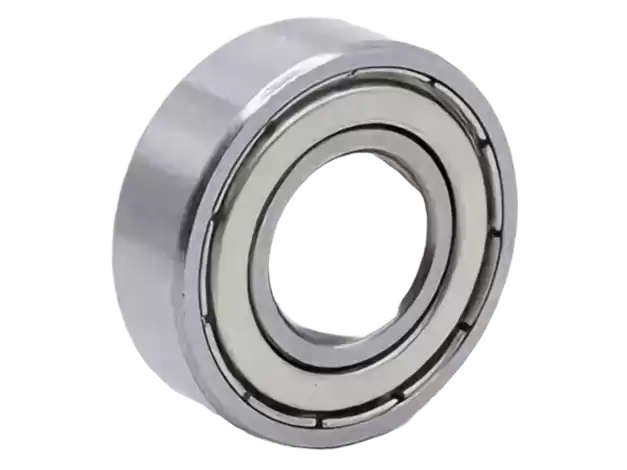

02. Dual Metal Shields (ZZ) for Protection

Equipped with pressed steel shields on both sides, this model offers excellent defense against particulate contamination. The non-contact shield design ensures there is no added friction torque, making it the superior choice for environments where maintenance access is difficult and high-speed efficiency is required.

03. Optimized for Micro-Scale Load Distribution

Despite its ultra-compact 68 Series dimensions (3×7×3 mm), the 683-ZZ provides a stable dynamic load rating of 0.311 kN. The high-quality GCr15 chrome steel construction ensures it withstands continuous rotational stress, resisting wear and deformation in continuous-duty miniature applications.

Interchange Part Numbers

Common manufacturer equivalents include:

• SKF: 683-2Z / W683-2Z
• NSK: 683ZZ
• NTN: 683ZZ
• KOYO: 683ZZ
• Timken: 683ZZ

Design & Configuration

The 683-ZZ is factory-supplied with dual metal shields (ZZ) and pre-lubricated with high-performance grease, providing a ready-to-mount solution for dust-prone, high-speed applications. If your assembly requires protection against liquid ingress rather than just dry contaminants, this model can be customized with rubber contact seals (683-2RS). For extreme high-speed or ultra-low friction needs, open variants (683) without shields are also available.

"Select the 683-ZZ Shielded Bearing for miniature precision applications where rapid rotation, compact sizing, and zero-maintenance longevity are essential."
