01. Slim Design with Reliable Capacity

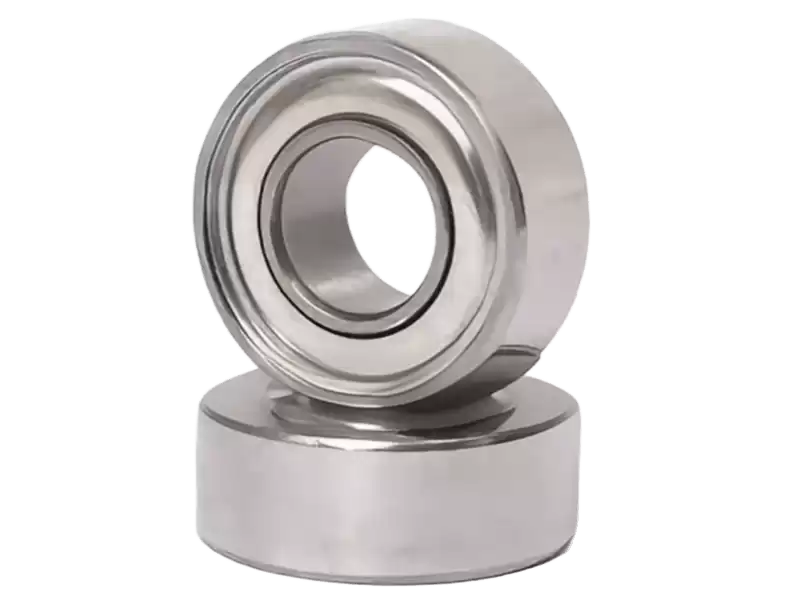

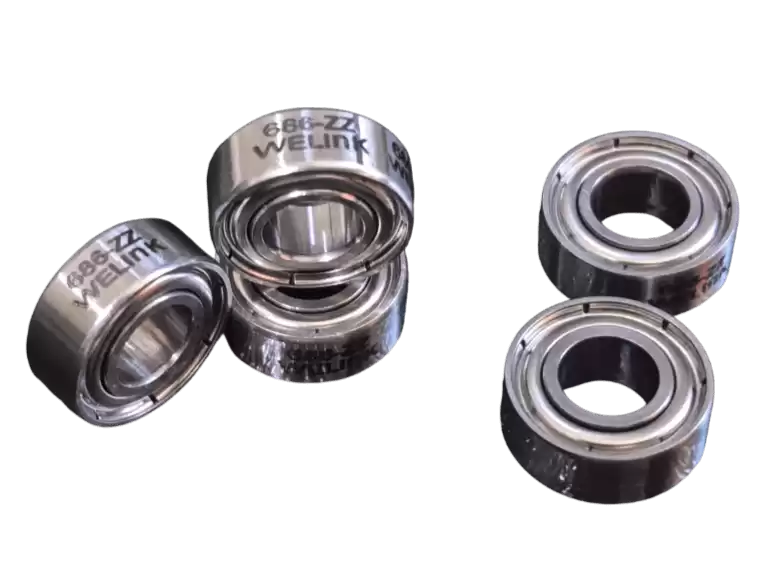

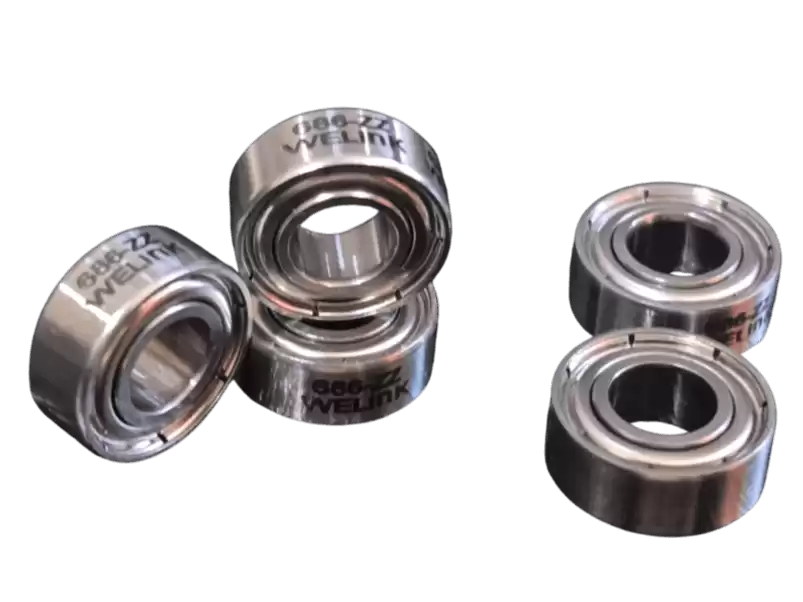

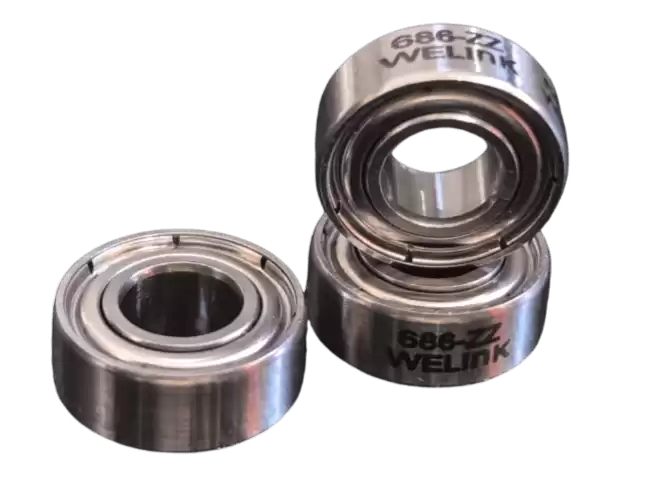

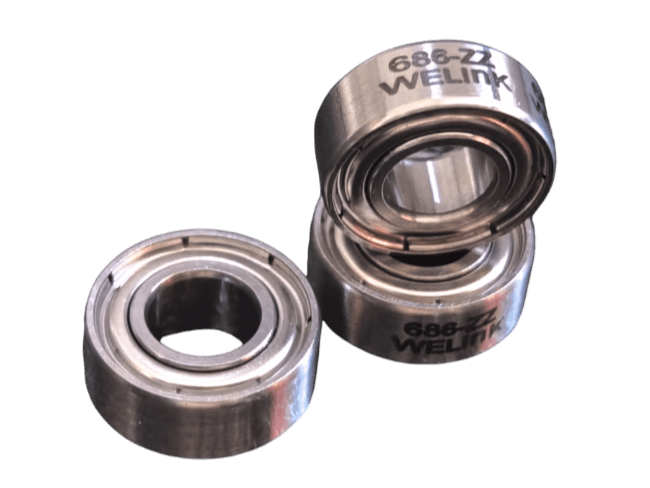

Built to the extra-light series in a space-saving 6×13×5 mm configuration, this bearing delivers useful load-carrying ability in a slender form factor, ideal for applications with axial space constraints.

02. Effective Contamination Defense

Double non-contact steel shields provide reliable sealing against dust and particles from both sides, helping to retain lubricant and extend operational life without adding significant rotational drag.

03. Smooth and Quiet Running

Precision-manufactured components ensure consistent operation with minimal vibration and noise, supporting stable performance in sensitive devices such as office equipment and medical tools.

Interchange Part Numbers

Direct replacement for:

• SKF: 686-ZZ
• NSK: 686 ZZ
• FAG: 686 ZZ
• NMB: R-1686ZZ
• NTN: 686ZZ

Design & Configuration

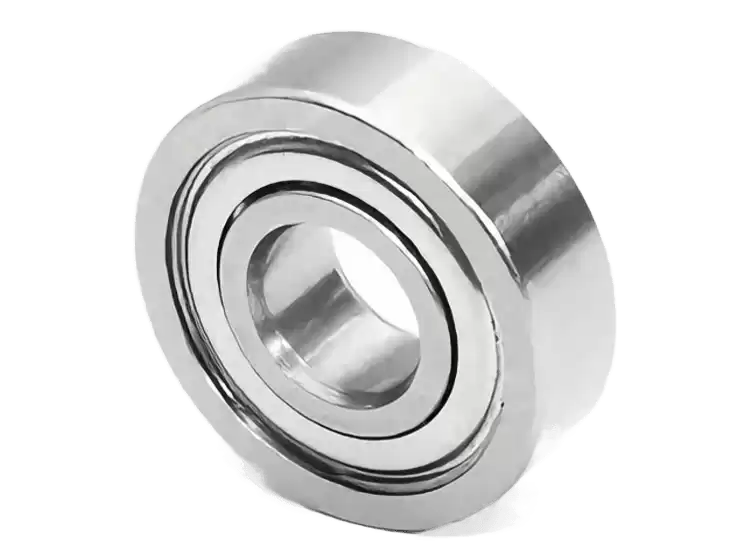

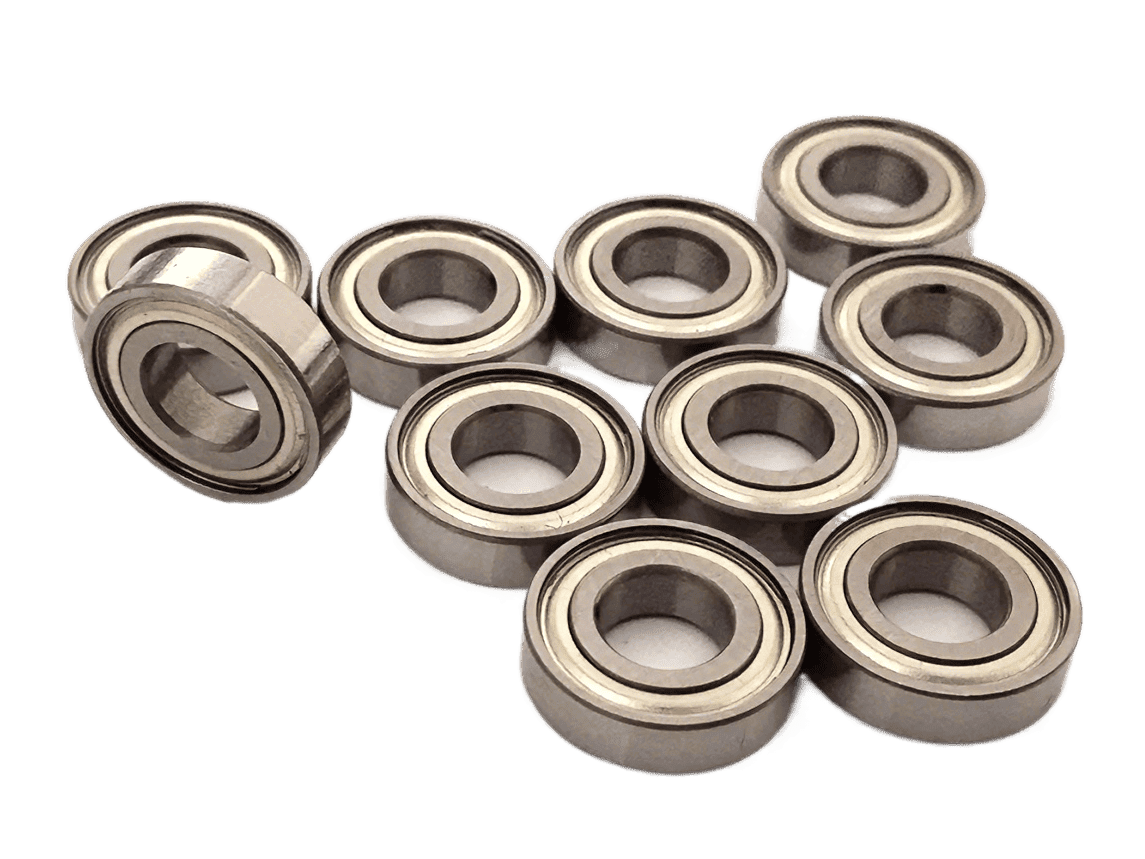

The 686-ZZ is furnished with double steel shields as standard, delivering enhanced internal protection in dusty or debris-prone conditions. For applications requiring improved sealing against fluids or finer contaminants, the double rubber-sealed variant (686-2RS) is also offered.

"The 686-ZZ is a versatile choice for slim-profile designs where reliable contamination protection and smooth operation are needed."
