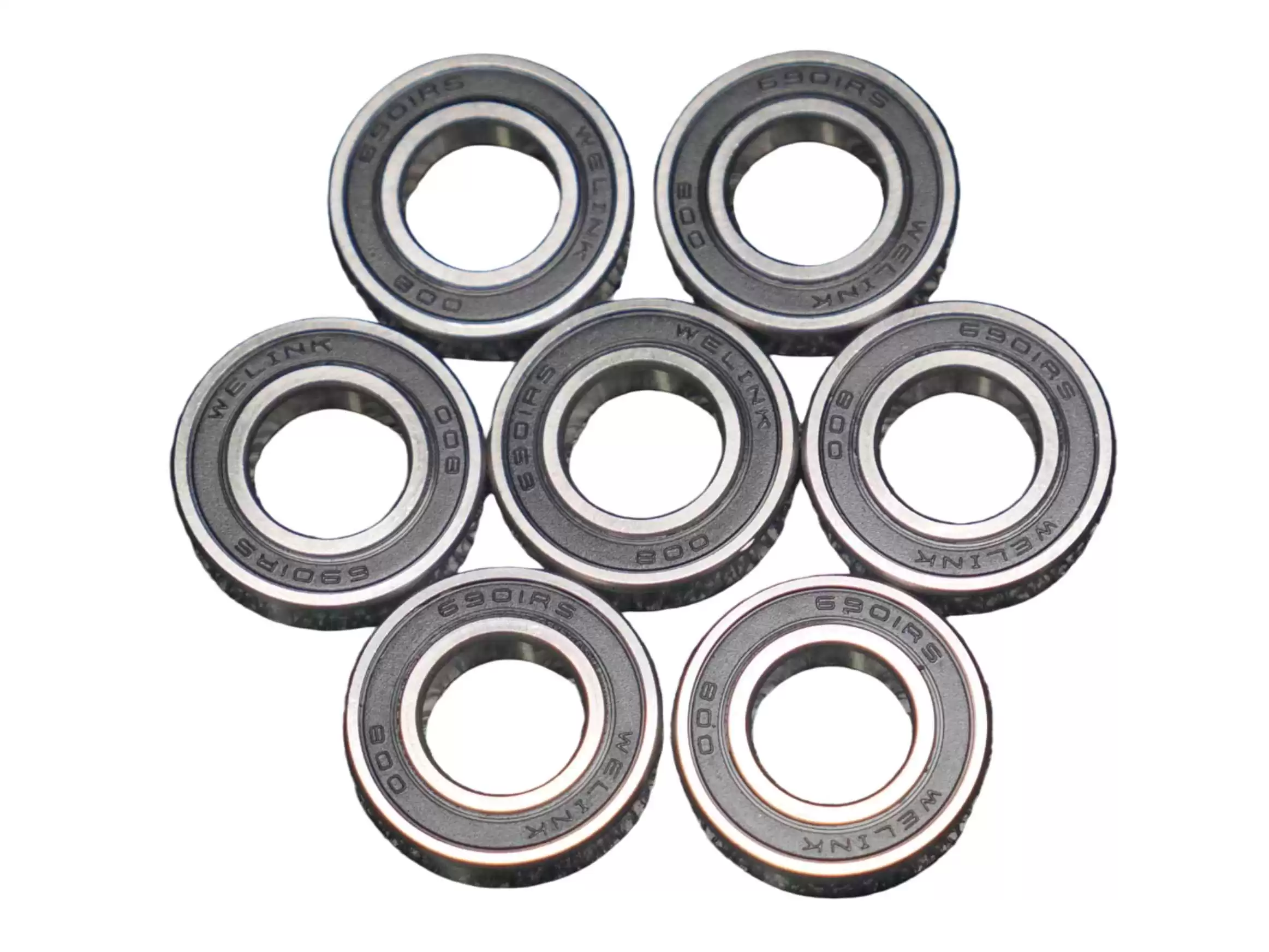

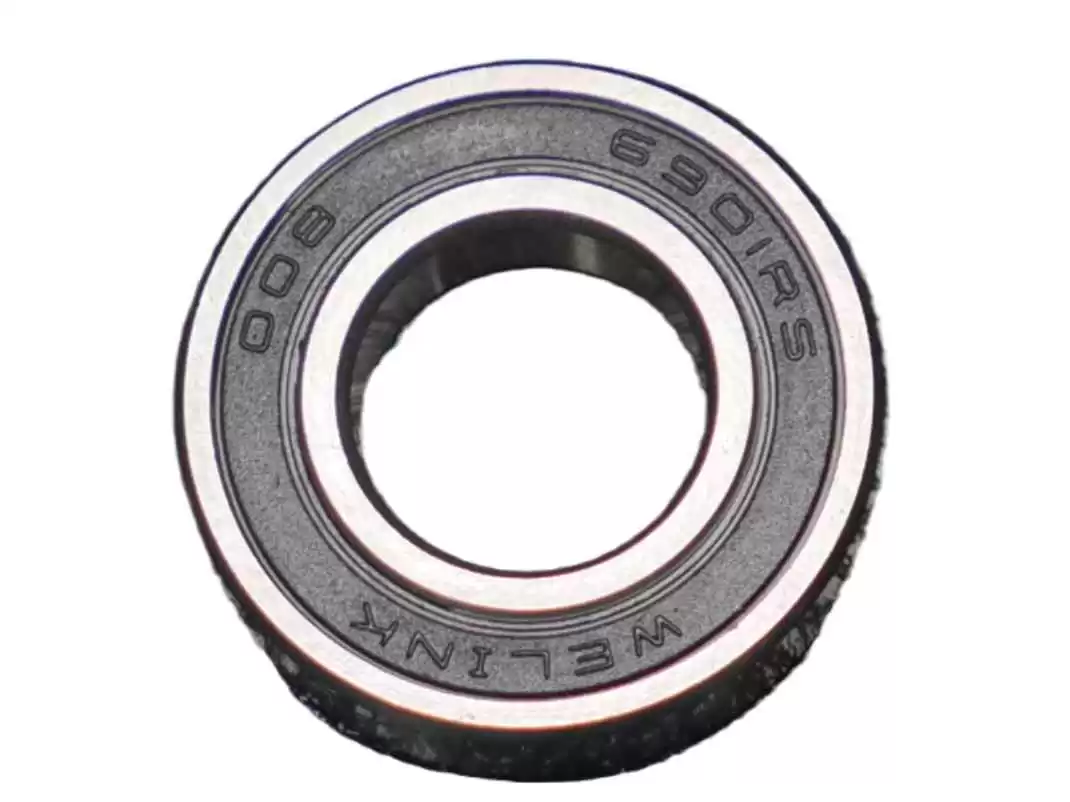

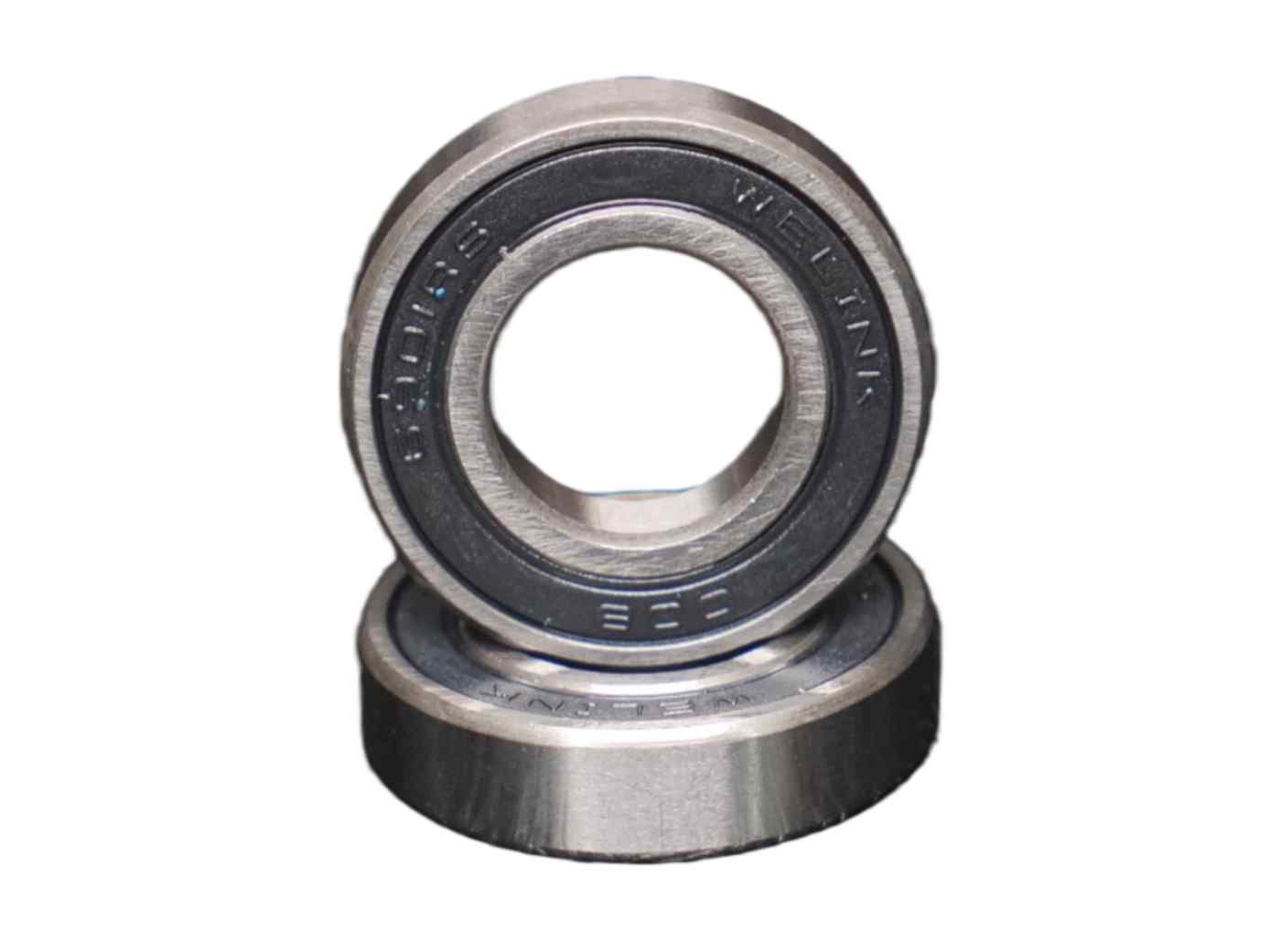

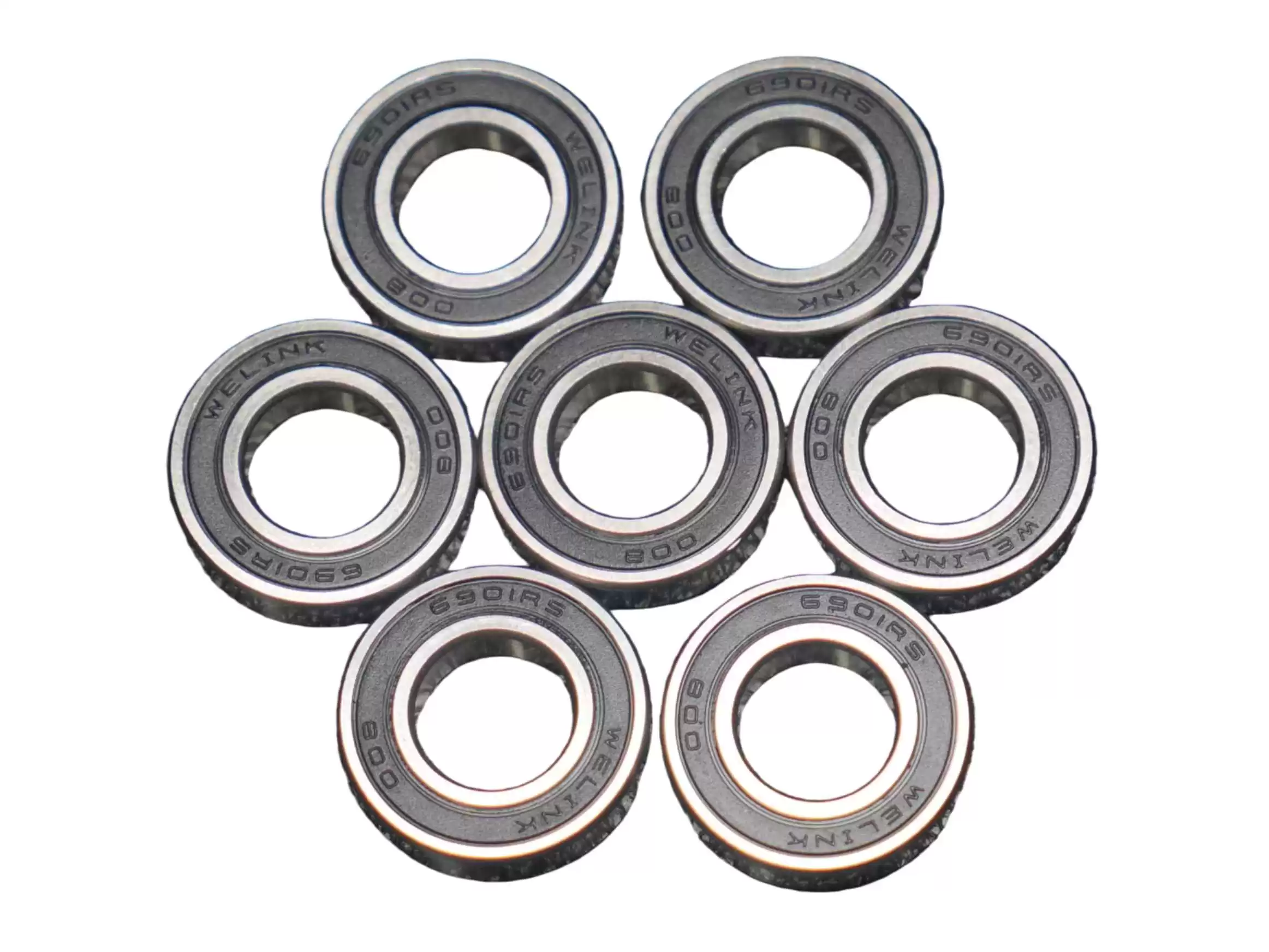

6901-2RS Sealed Ultra-Thin Deep Groove Ball Bearing for Compact & Lightweight Applications | 12×24×6 Mm

The 6901-2RS is a Double Rubber-Sealed Ultra-Thin Section Deep Groove Ball Bearing designed for space-sensitive applications requiring reliable sealing and low-profile design. Equipped with two rubber contact seals (2RS), it effectively shields against dust, moisture, and contaminants while retaining grease for extended service. Featuring a 12 mm bore and an exceptionally slim 6 mm width, this bearing is ideal for small motors, precision instruments, and compact mechanisms where axial space is limited.



6901-2RS Deep Groove Ball Bearing 12×24×6 mm | Extra Thin Series | Double Rubber Sealed

Built on a space-saving deep groove design, this sealed bearing supports smooth and quiet operation at speeds up to 22,000 r/min (Oil). Capable of handling light to moderate radial loads, the 6901-2RS offers an effective sealing solution for compact assemblies in environments where both contamination protection and minimal cross-section are essential.

6901-2RS Sealed Ultra-Thin Deep Groove Ball Bearing for Compact & Lightweight Applications | 12×24×6 Mm

Comprehensive Applications

Ideal for compact and lightweight mechanisms across industries where slim design and environmental protection are critical:

Automotive & Mobility Accessories
  • Automotive Actuators & Dashboard Motors
  • E-Bike & Scootor Mid-Motor Supports
  • Window Lift & Mirror Adjustment Drives
Medical & Laboratory Equipment
  • Small Pump & Fluid Handling Devices
  • Dental Handpiece & Lab Instrument Drives
  • Diagnostic & Analysis Equipment
Miniature & Precision Drives
  • Small DC Motors & Micro Gearboxes
  • Stepper & Servo Motors in Automation
  • Optical Encoders & Sensor Rotors
  • Camera Module & Lens Adjustment Mechanisms
Electronics & Small Appliances
  • Cooling Fans for Electronics & IT Equipment
  • Household & Personal Care Appliances
  • Printers, Scanners & Office Machine Drives

Key Performance Features

01. Smooth Low-Torque Operation

Precision-ground chrome steel components and optimized internal geometry ensure smooth rotation, low starting torque, and quiet running, ideal for battery-operated and sensitive devices.

02. Ultra-Thin & Lightweight Design

With a width of only 6 mm, this bearing delivers significant space and weight savings while maintaining adequate load capacity for compact assemblies and portable equipment.

03. Effective Seal in Slim Profile

Two integrated rubber contact seals (2RS) provide reliable protection against contaminants, making this ultra-thin bearing suitable for dusty or humid compact applications without sacrificing sealing performance.

Technical Specifications

Bearing Type Single Row Deep Groove Ball Bearing
ISO Dimension Series 69 Series – Extra Thin
Basic Designation 6901
Suffix 2RS (Double Rubber Contact Seals)
Bore Diameter (d) 12 mm
Outer Diameter (D) 24 mm
Width (B) 6 mm
Material (Races & Balls) Chrome Steel (GCr15 / SAE 52100)
Precision Class Standard / P5 Grade Available
Cage Material Steel Stamped
Dynamic Load Rating (Cʳ) 3.35 kN
Static Load Rating (C₀ʳ) 1.52 kN
Limiting Speed (Grease) 18,000 r/min
Limiting Speed (Oil) 22,000 r/min
Weight (approx.) 15 g

Interchange Part Numbers

Common manufacturer equivalents include:

  • SKF: 6901-2RS
  • NSK: 6901DDU
  • FAG: 6901-2RSR
  • NTN: 6901LLU
  • KOYO: 6901LLB

Design & Configuration

The 6901-2RS is supplied with two rubber contact seals, providing reliable sealing in environments with light moisture or dust. For applications requiring very low friction in clean, dry conditions, the double shielded version (6901-ZZ) is also available.

"An ideal sealed bearing choice for space-constrained designs such as small motors, precision drives, and portable devices, where ultra-thin profile and contamination protection are both required."
