Product Name

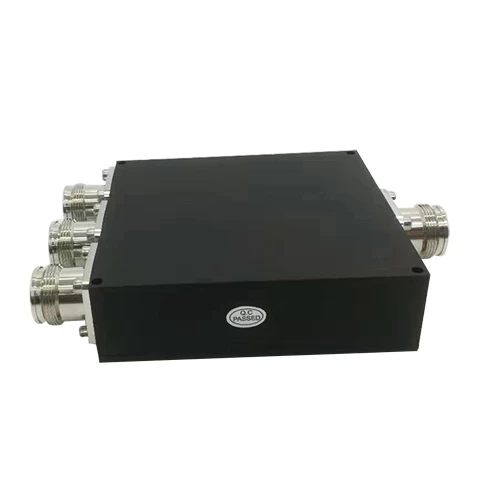

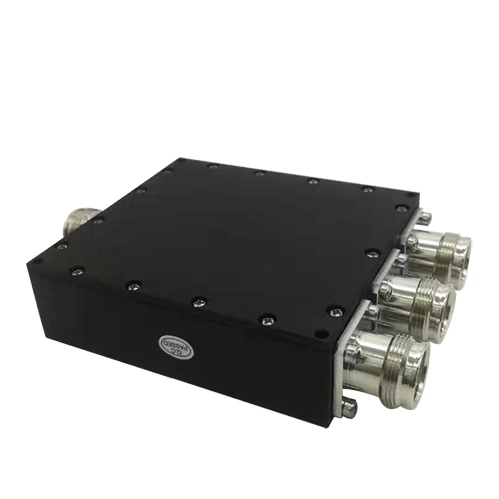

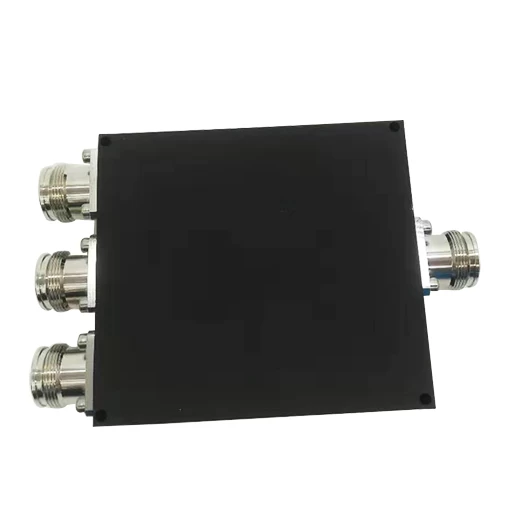

698-2700MHz Low PIM Wilkinson/Microstrip Power Splitter/Divider with 4310-F
Wilkinson Power Combiner is divided into 2way,3way,4way for combining other components to form the whole system
Product Features
◆ Low VSWR
◆ Low Insertion Loss
◆ Indoor Application
◆PIM-160dBc@2*43dBm
◆Black or Grey or Silver Color
◆ Widely used for In-building Solutions and Outdoor application.
Technical &Mechanical Specifications
|
Model No.
|
MPSW-727-03-4F-160
|
|
Freq(MHz)
|
698-2700
|
|
Input Port Number
|
1
|
|
Output Port Number
|
3
|
|
Split Loss(dB)
|
4.8
|
|
IL(dB)
|
≤0.8
|
|
Isolation(dB)
|
≧18
|
|
VSWR
|
≤1.30
|
|
3rd PIM (dBc)
|
≤-160dBc@2*43dBm
|
|
Average Power(W)
|
50
|
|
Impedance
|
50 ohm
|
|
Connector
|
4.3-10 Female
|
|
Color
|
Black
|
|
WorkingTemp(deg)
|
-35~+65
|
|
Application
|
Indoor or Outdoor, IP65
|
|
Relative Humidity
|
5%-95%
|
|

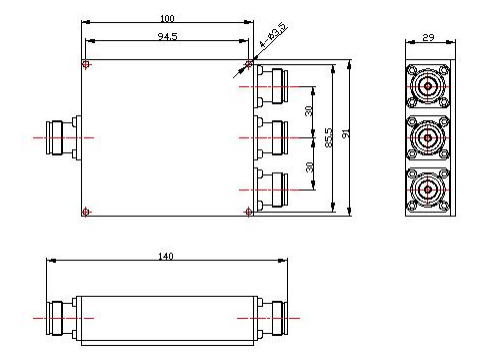

Dimensions(mm)
|
100*91*29
|
|
Net Weight(kg)
|
0.48
|
