Product Name

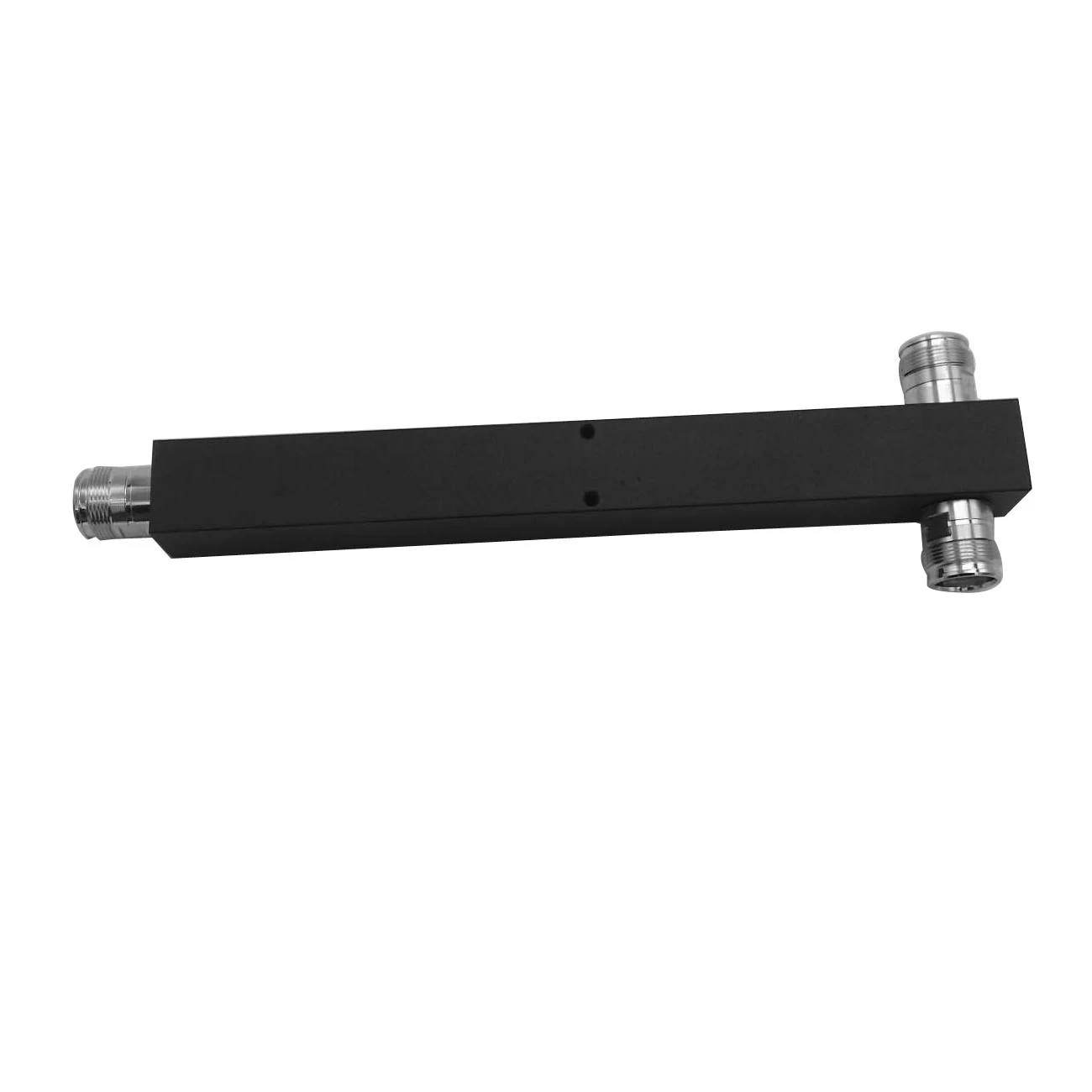

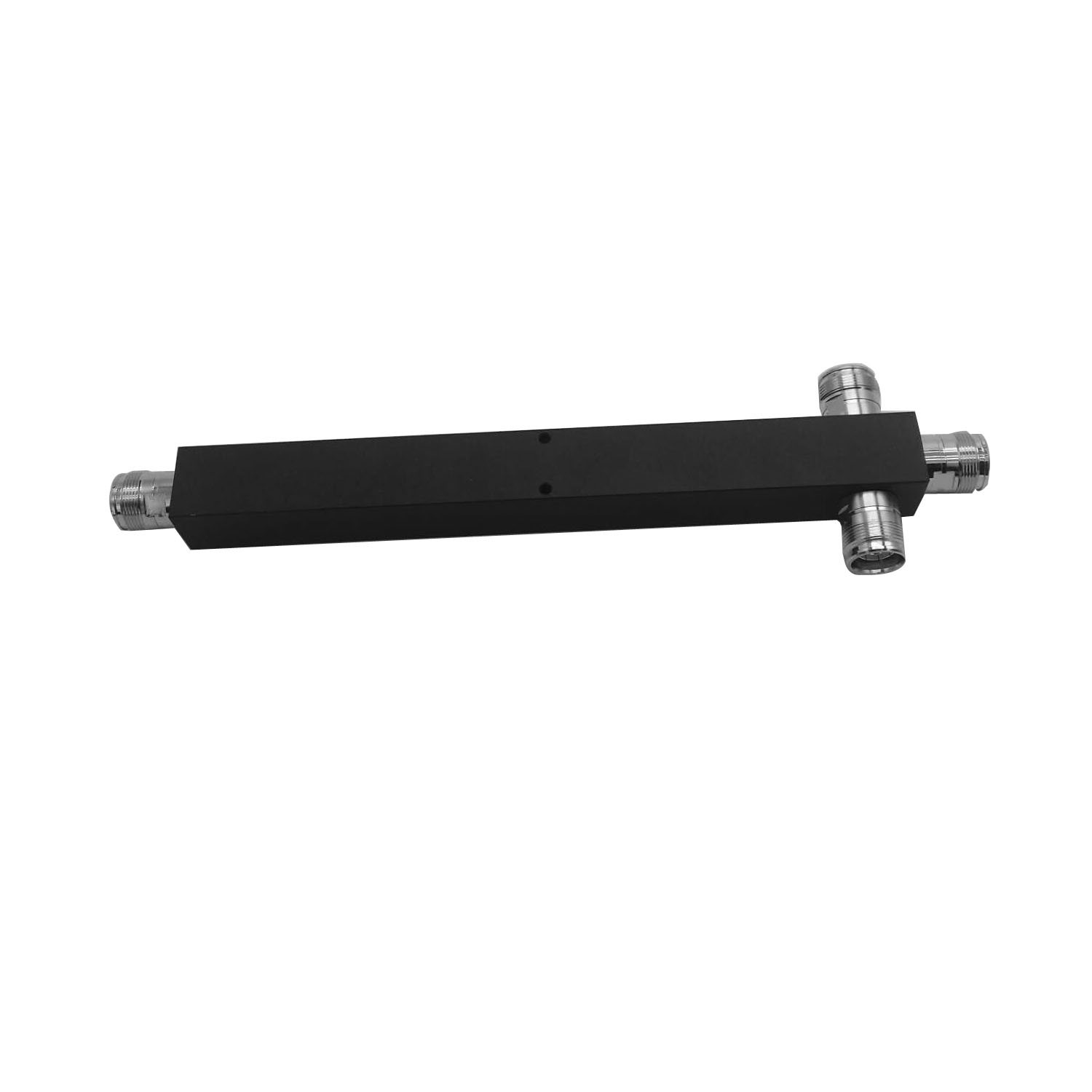

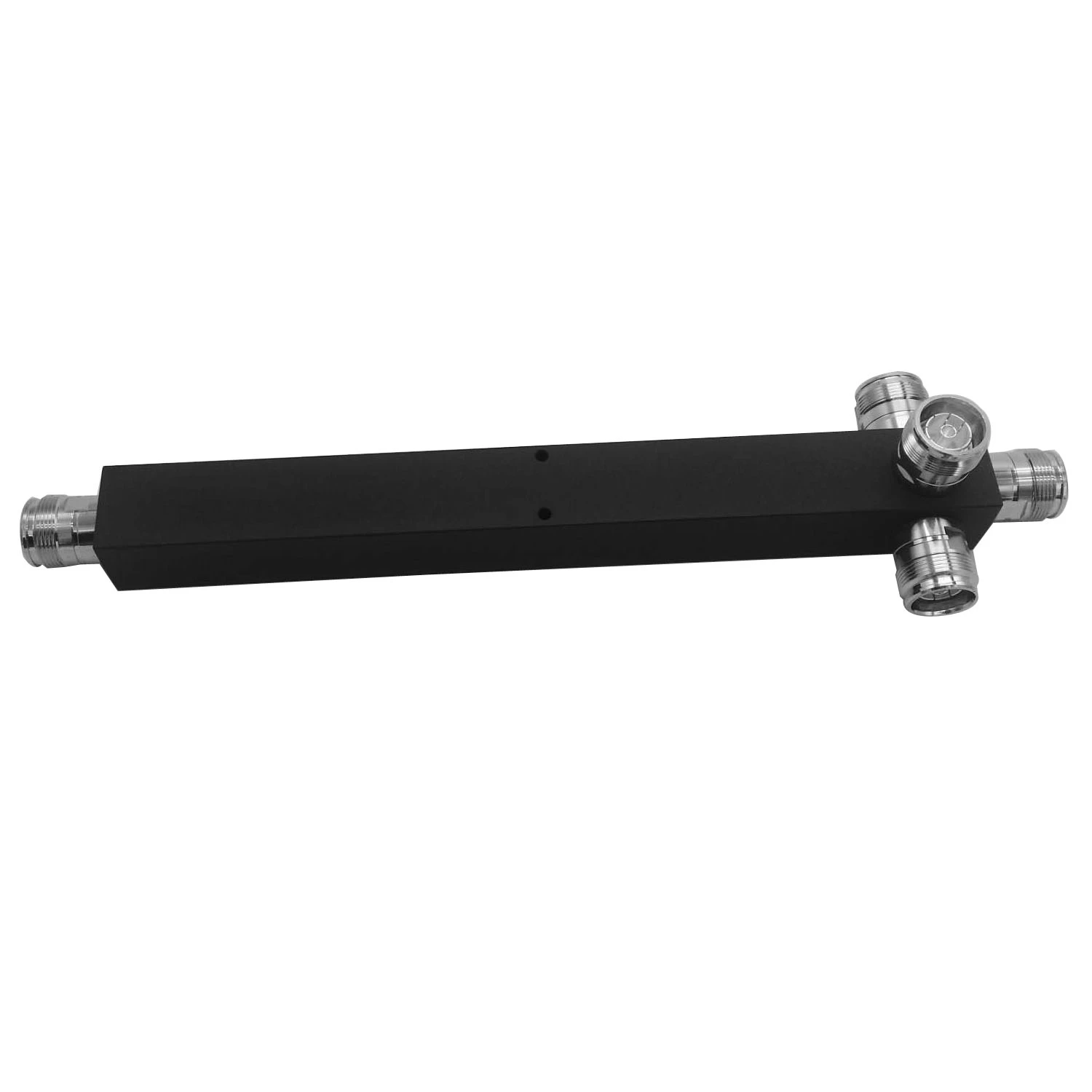

698-2700MHz 2Way/3Way/4Way Cavity Power Divider Combiner with 4310-F Type
These DAS RF SPlitters are typically used for 3G telecommunication field.NF and 7/16 Female type are also available
Product Features
◆Low VSWR
◆ Low Insertion Loss
◆ Indoor Application
◆PIM-160dBc@2*43dBm
◆Widely used for In-building Solutions and Outdoor application.
Technical &Mechanical Specifications
|
Model No.
|
MPS-727-02-4F-160
|
MPS-727-03-4F-160
|
MPS-727-04-4F-160
|
|
Freq(MHz)
|
698-2700
|
|
Input
|
2-way
|
3-way
|
4-way
|
|
Split Loss(dB)
|
3.0
|
4.8
|
6.0
|
|
IL(dB)
|
≤0.3
|
≤0.4
|
0.4
|
|
VSWR
|
≤1.3
|
|
PIM(dBc)
|
≤-160dBc@2*43dBm
|
|
Power(W)
|
300
|
|
Impedance
|
50 ohm
|
|
Connector
|
4310-female
|
|
Color
|
Black
|
|
Temp(deg)
|
-30~+65
|
OUR SERVICES
1. Professional skills support for
698-2700MHz 4310-F Type 2Way/3Way/4Way RF 3G DAS Cavity Power Divider Combiner with Low PIM-160dBc.
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose
