Product Name

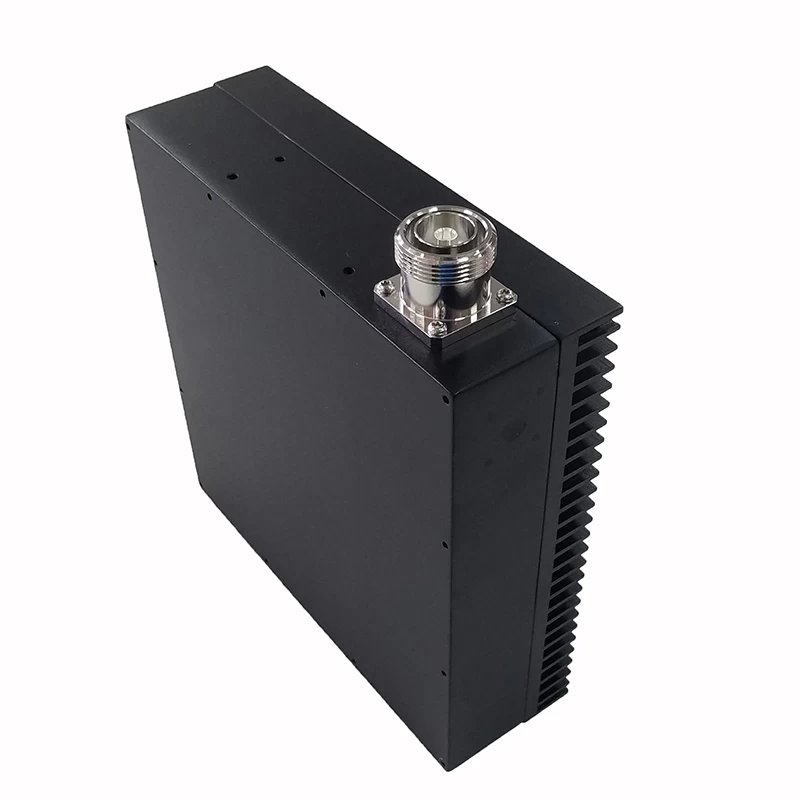

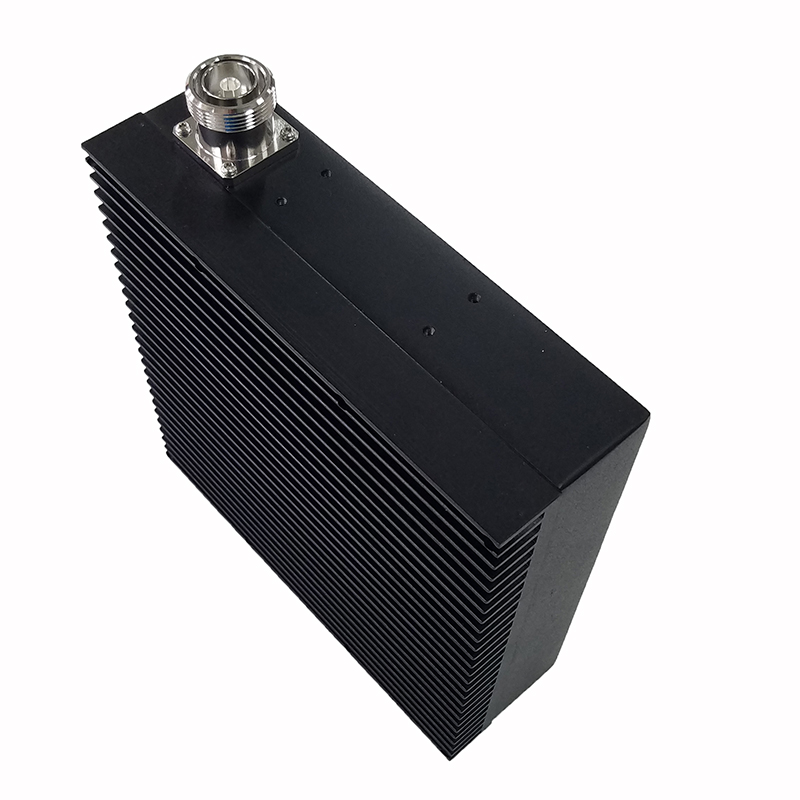

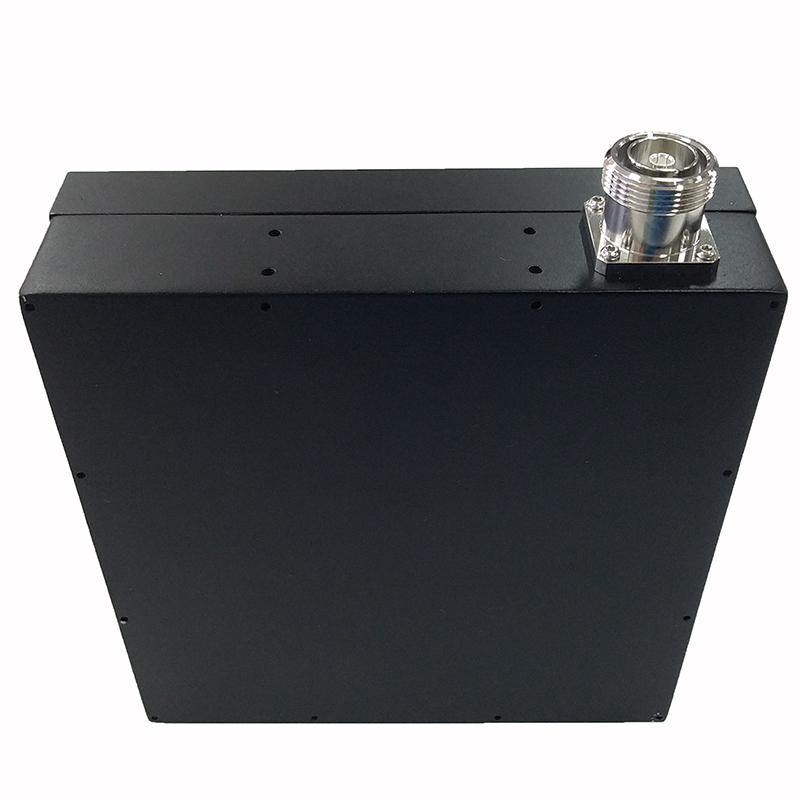

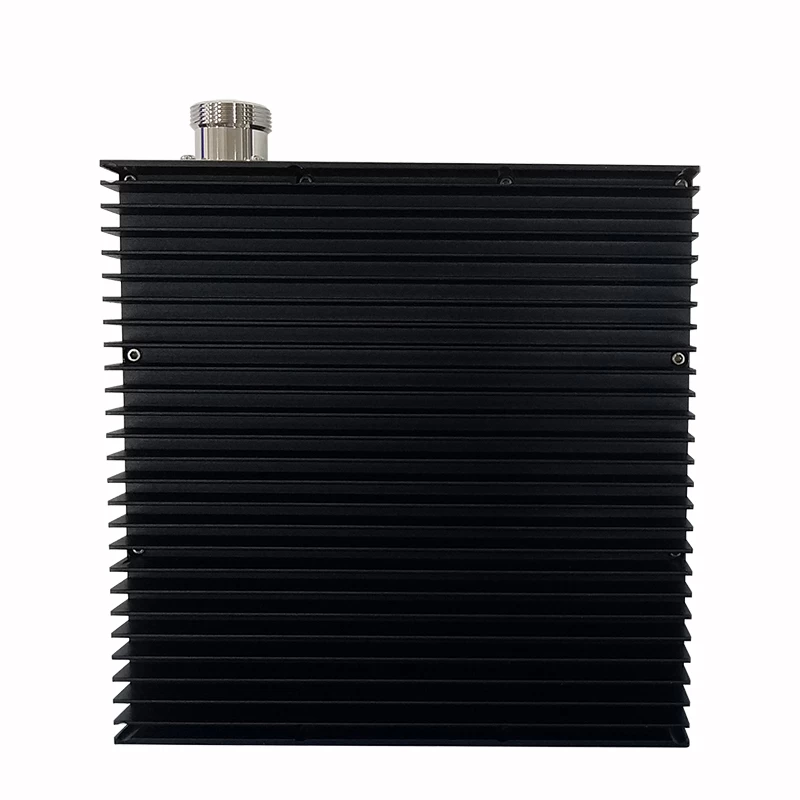

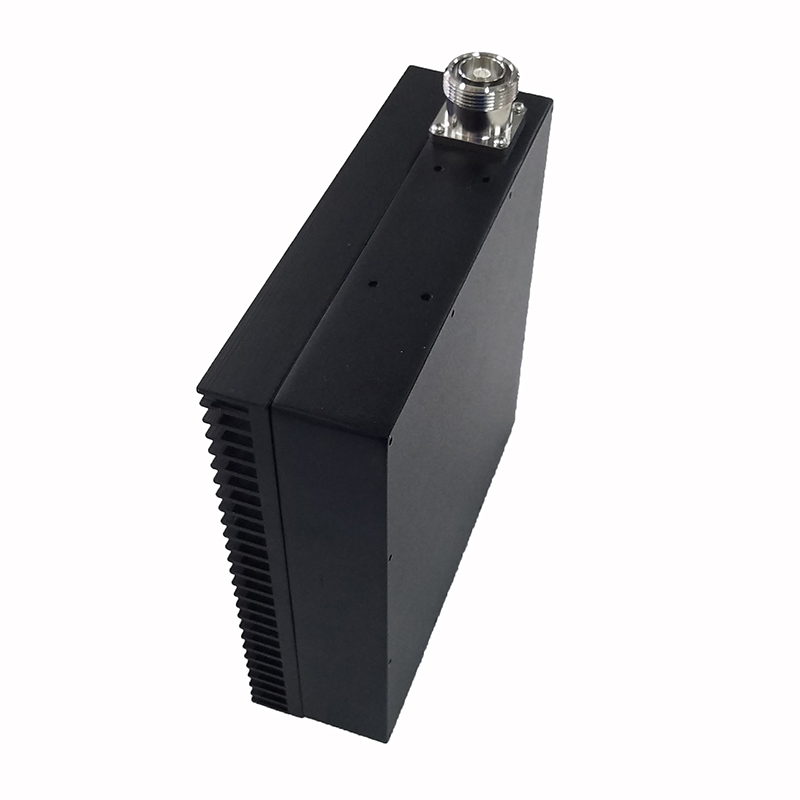

698-2700MHz Low PIM RF Termination -160dBc Dummy RF Load
Product Features
◆ with Wide Frequency Band
◆ 2G/3G/4G/LTE Coverage
◆ Low VSWR
◆ Low PIM -160dBc
◆ Widely used for In-building Solutions
698-2700MHz is an RF Termination that operates from 698 to 2700MHz. It can handle an average power of 100 watts. This 50-ohm termination has a VSWR of less than 1.15:1 with DIN (F) connector.
Technical &Mechanical Specifications
|
Model No.
|
MRL-100W-727-160-XX
|
|
Freq(MHz)
|
698-2700
|
|
VSWR
|
≤1.15
|
|
PIM3(dBc)
|
≤-160(2*43dBm)
|
|
Average Power(W)
|
100
|
|
Impedance
|
50 ohm
|
|
Connector
|
D-Female
|
|
Color
|
Black
|
|
Temp(deg)
|
-30~+65
|
|
IP Grade
|
IP60
|

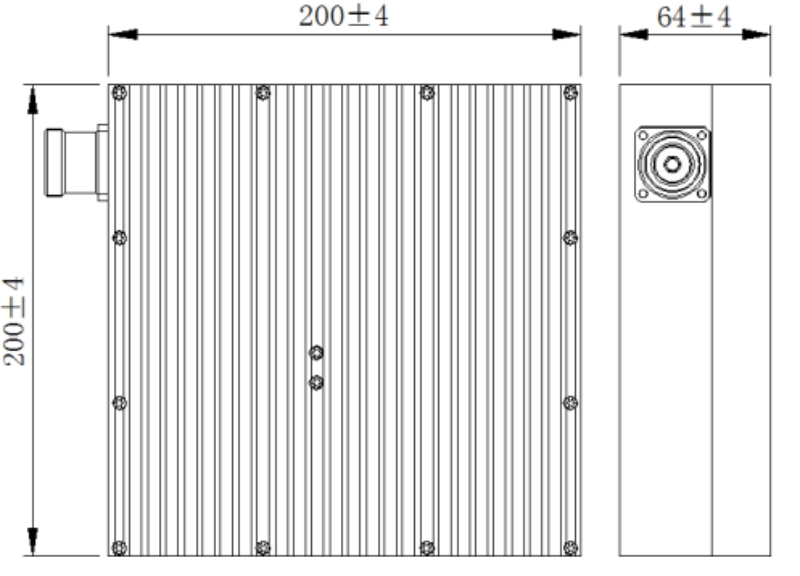

Mechanical Drawing
FAQ
Q:Are you factory or trading company?
A:We are manufacturer.
Q:How long to delivery time?
A:Usually it is 3-10 days if the goods are in stock. Or it is 15-20 days according to quantity or customize.
Q:What is your MOQ?
A:No MOQ for any sample test,at least 10pcs after sample order.
Q:What's your company advantage?
A:We have our own R&D, production, sell team; unbelievable competitive price and OEM ODM or customized are available .
Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can send out once you ask for it, but will ask a sample fee. Sample fee will return back in future order.
Q: Payment?
A: 30% deposit and 70% balance before shipping.
Q:How about the Warranty?
·The first year: replace the new equipment if the your products failed
·The second and third year: supplying free maintanence service, just charge components cost fee and labor fee.
(Without damage caused by the following cases:1.Stricken by thunder high voltage, watering 2. Damage caused by accidents. 3.
Product exceeds the warranty period and so on)
