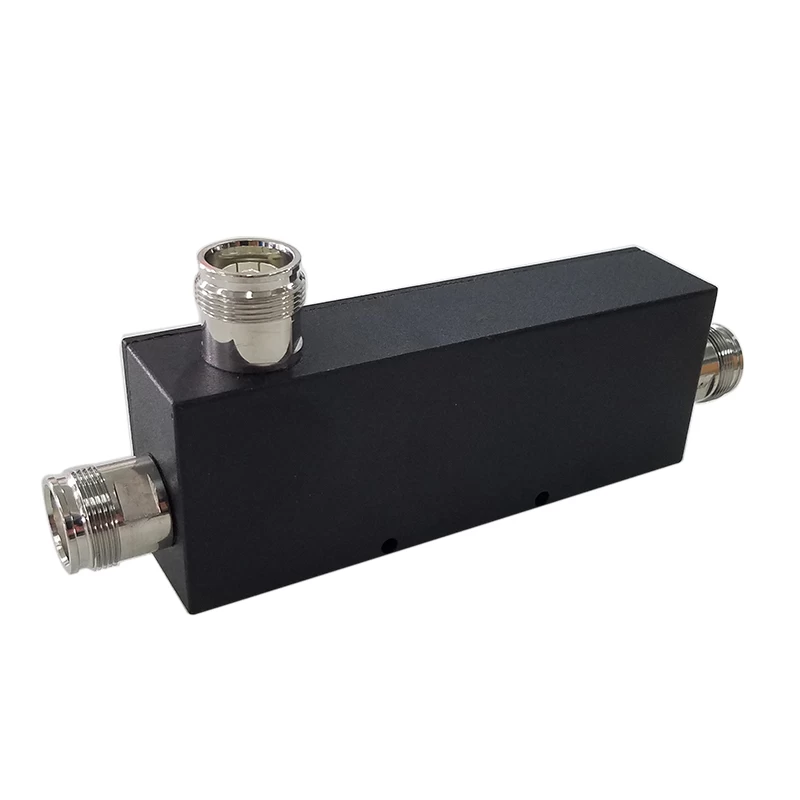

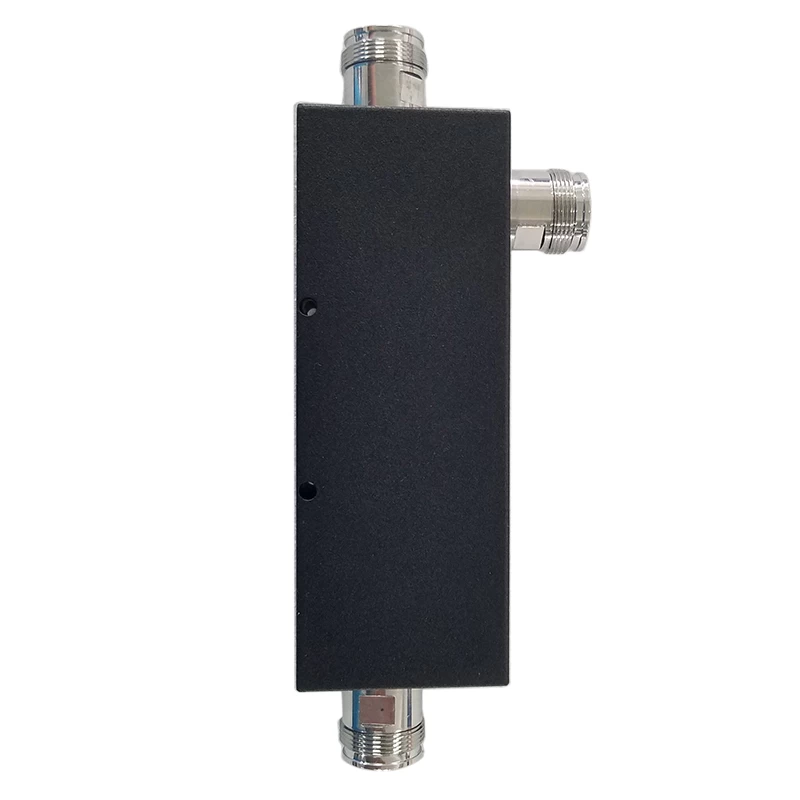

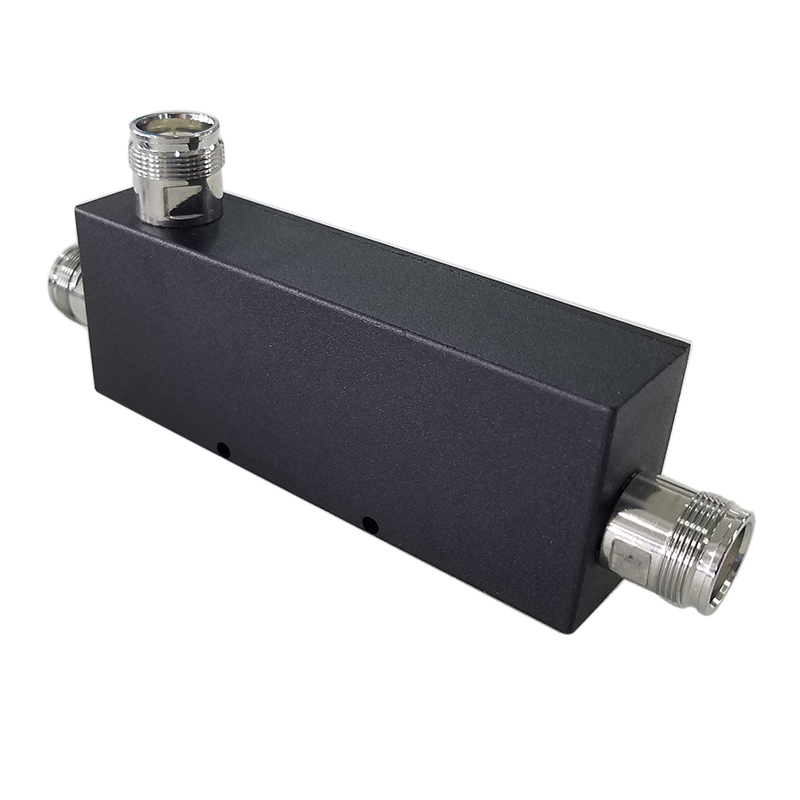

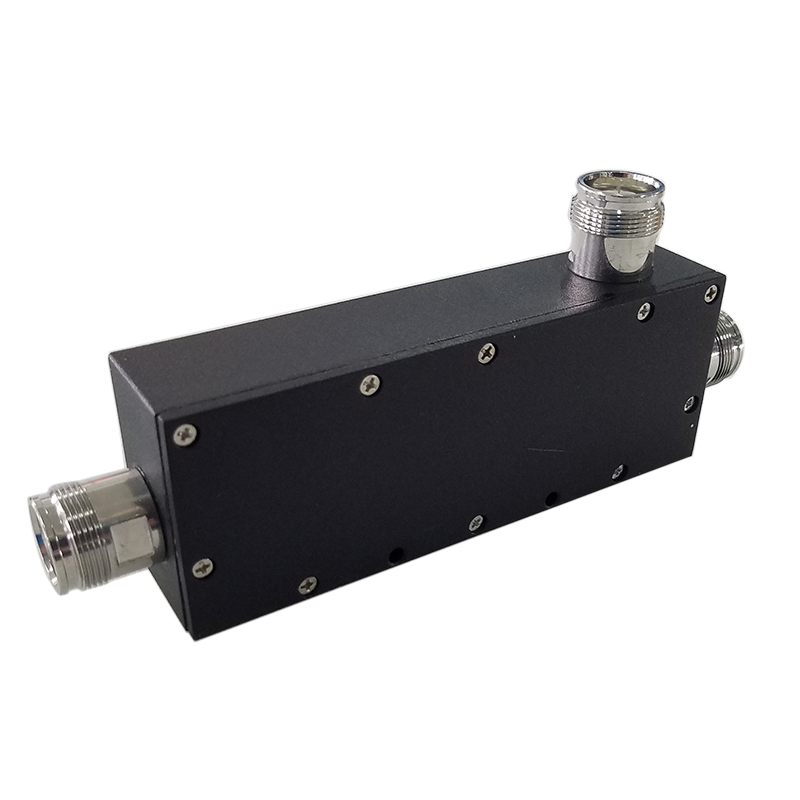

698-3800MHz directional coupler for 5G BTS DAS IBS
Product features
◆Wide Frequency Band for 5G IBS BTS DAS
◆ 2G/3G/4G/LTE/5G Coverage
◆ Low Passive Intermodulation
◆ Low VSWR &Insertion Loss
◆ High Isolation, Indoor Application
◆ Widely used for In-building Solutions
Technical &Mechanical Specifications
|
Model No.
|
MC-738-05-4F-5
MC-738-06-4F-5
|
MC-738-07-4F-5
MC-738-08-4F-5
|
MC-738-10-4F-5
MC-738-12-4F-5
|
MC-738-13-4F-5
MC-738-15-4F-5
|
MC-738-20-4F-5
|
MC-738-30-4F-5
|
|
Freq(MHz)
|
698-3800
|
|
Coupling(dB)
|
5/6
|
7/8
|
10/12
|
13/15
|
20
|
30
|
|
IL(dB)
|
≤2.2/≤2.05
|
≤1.9/≤1.8
|
≤1.2/≤1.2
|
≤1.2/≤0.9
|
≤0.8
|
≤0.8
|
|
Accuracy(dB)
|
±1.3/±1.3
|
±1.3/±1.3
|
±1.6/±1.6
|
±1.6/±1.7
|
±1.8
|
±2.0
|
|
Isolation(dB)
|
≥20/≥21
|
≥22/≥23
|
≥25/≥27
|
≥28/≥30
|
≥35
|
≥45
|
|
VSWR
|
≤1.25
|
|
PIM(dBc)
|
≤-150dBc@2*43dBm
|
|
Power(W)
|
200 (average)
|
|
Impedance
|
50 ohm
|
|
Connector
|
N-female
|
|
Color
|
Black
|
|
Temp(deg)
|
-30~+65
|
|
Application
|
Indoor or Outdoor IP65
|
|
Humidity
|
5%-95%
|
|
Net Weight
|
0.23kg
|
