Product Name

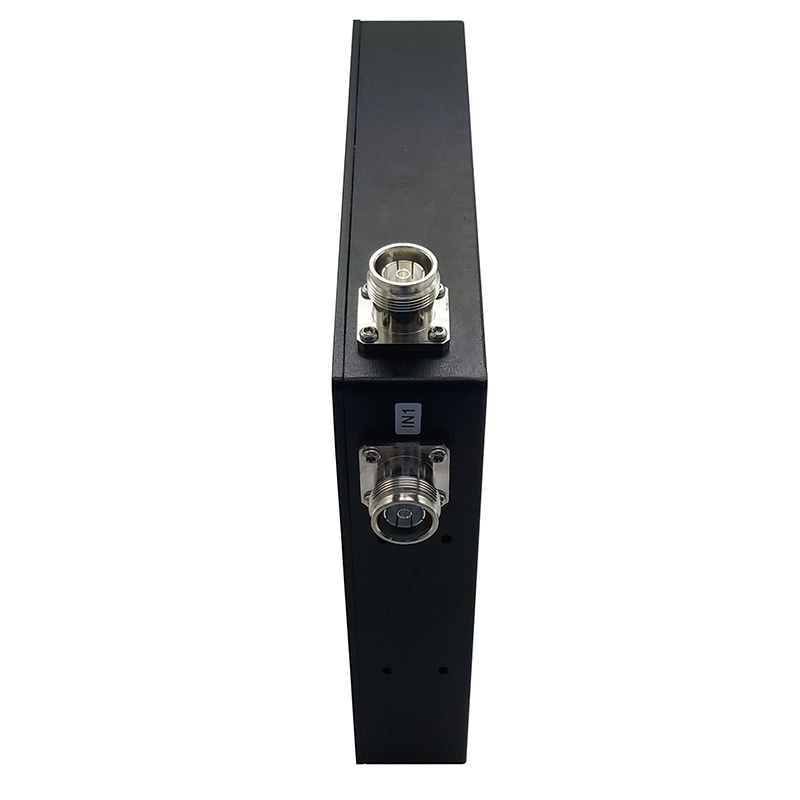

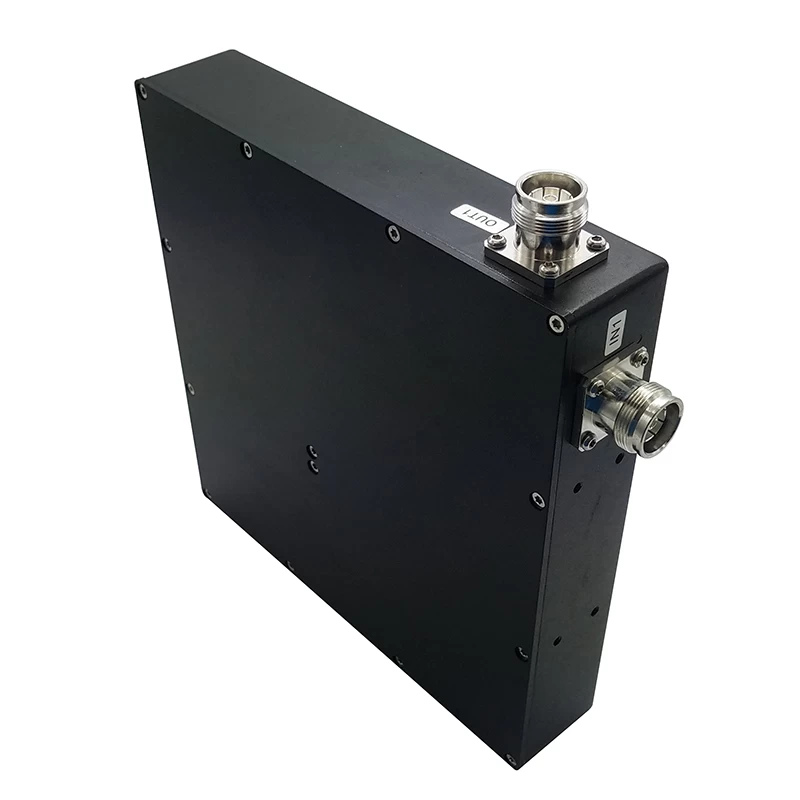

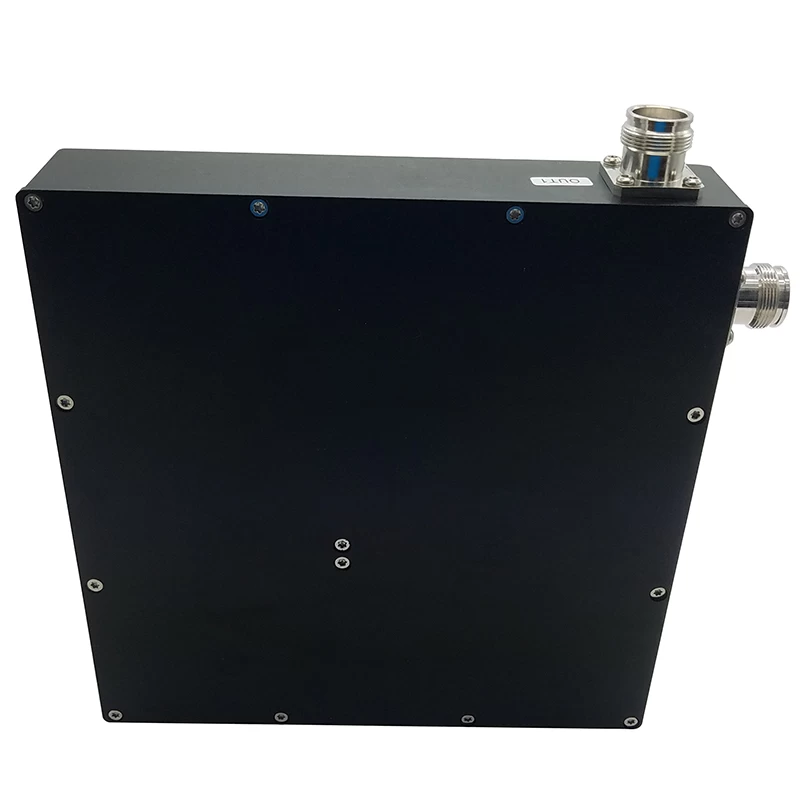

100W RF ATTENUATORS (698-3800MHz, 4.3-10-Female/Female, -160dBc)
Product Features
◆ Wide Frequency Band 698-3800MHz
◆ 2G/3G/4G/LTE Coverage
◆ Low VSWR
◆Low Passive Intermodulation -160dBc
◆ Widely used for In-building Solutions
Technical &Mechanical Specifications
|
Model No.
|
MNA-738-100-X-41-160
|
|
Freq(MHz)
|
698-3800
|
|
VSWR
|
≤1.25
|
|
Attenuation(dB)
|
3/5/6
|
10
|
15
|
20
|
30
|
/
|
|
Accuracy(dB)
|
±0.8
|
±0.8
|
±1.0
|
±1.2
|
±1.5
|
/
|
|
PIM (dBc)
|
≤-160dBc@2*43dBm (698-2700)
|
|
Average Power(W)
|
100W
|
|
Impedance
|
50 ohm
|
|
Connector
|
4.3-10- Female/Female
|
|
Color
|
Black
|
|
Temp(deg)
|
-30~+65
|

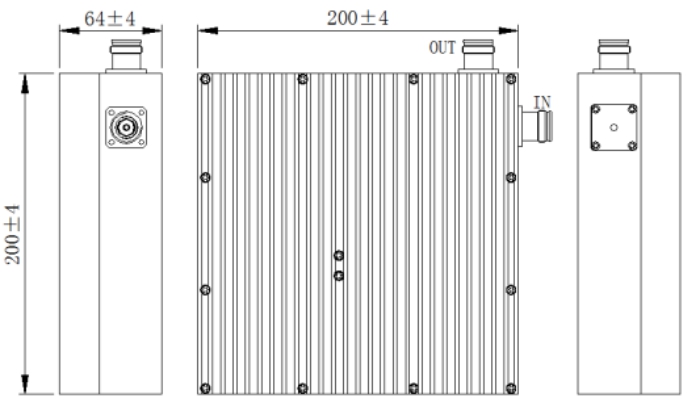

Mechanical Drawing
